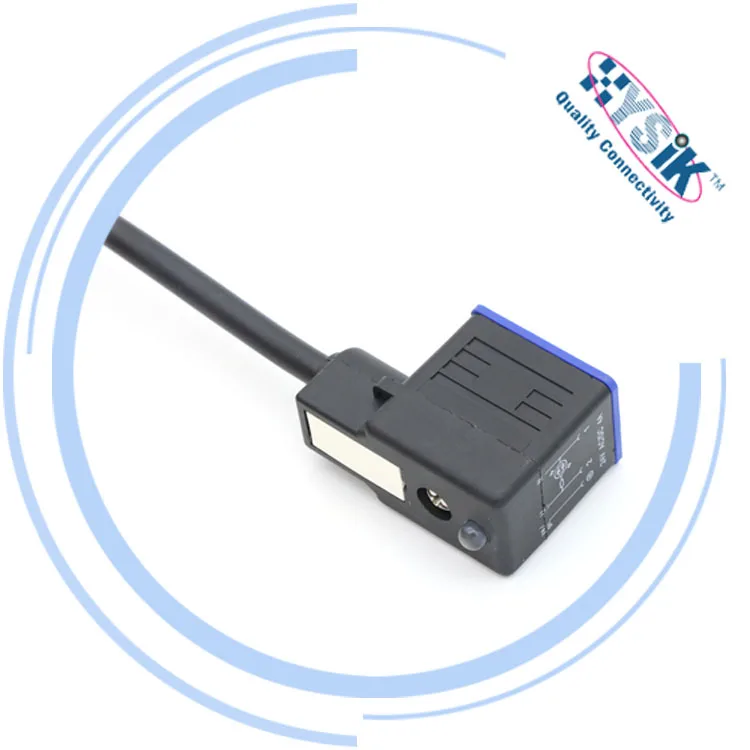

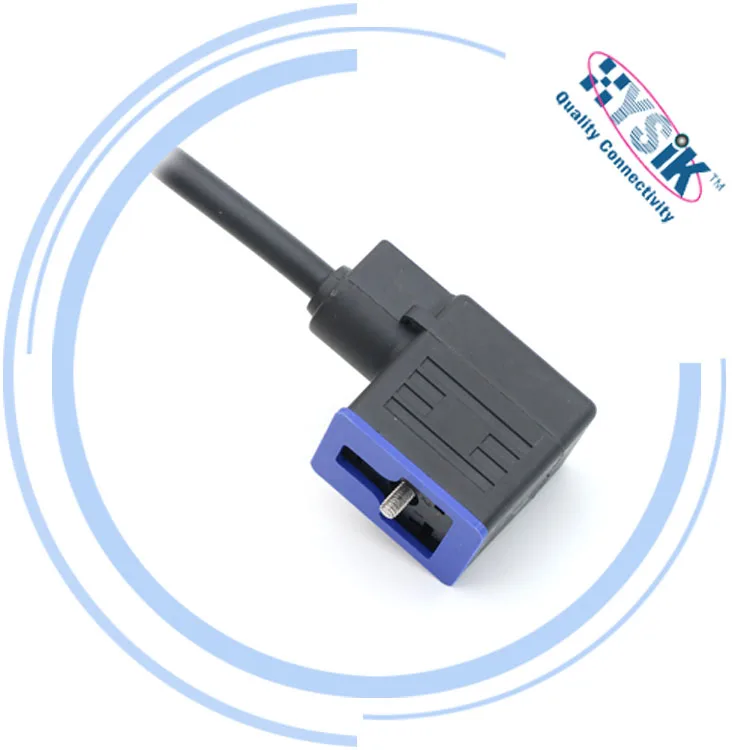

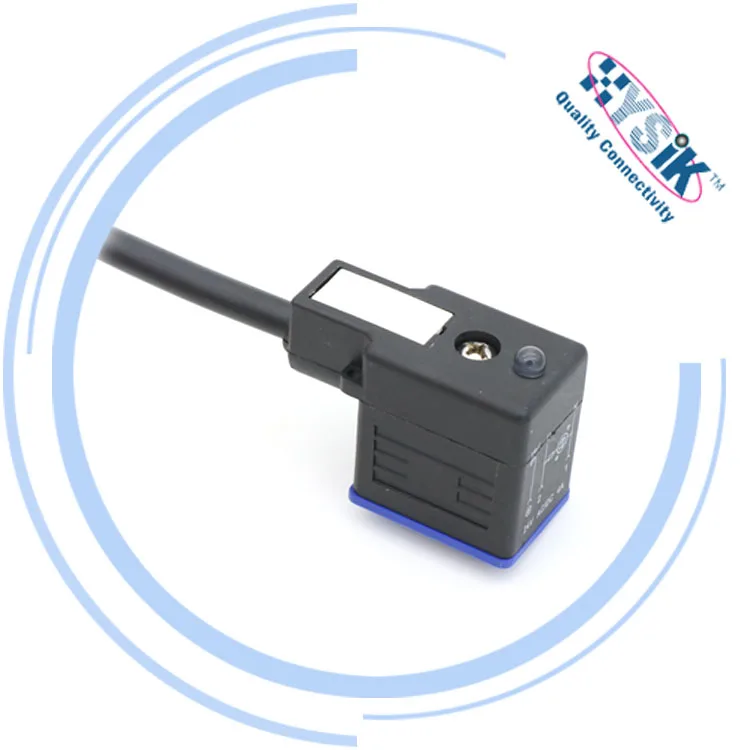

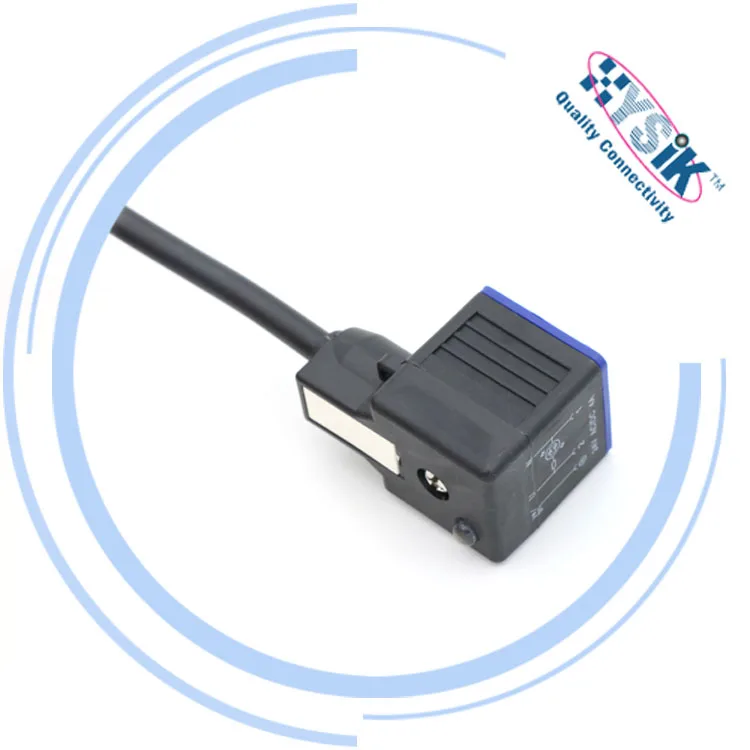

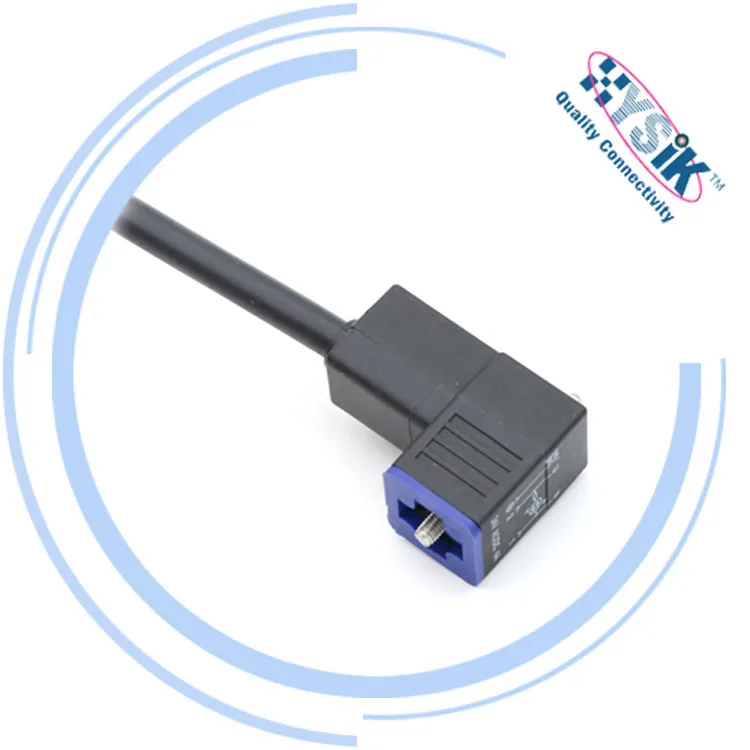

DIN 43650 A 24V DC 230V AC Voltage PG 9 Gland 2P E 3P E Female Solenoid Valve Connector Plug with Indicator Light for Switches
- Category: >>>
- Supplier: Shenzhen Hysik Electronics Co. Ltd.
Share on (1601277366371):
Product Overview
Description
Product Description
ProfiBus field wireable sensor connectors for electromagnetic actuators and sensors
Poles: 2+PE, 3+PE
Connector Nut: stainless steel
Connector Nut: stainless steel
Connector Gender: Male, Female
Working Current/Voltage: 24V DC-4A or 230V AC-4A
Standard: EN175301-803
Waterproof Rating: IP67, IP68, IP69K
Standard: EN175301-803
Waterproof Rating: IP67, IP68, IP69K
Specification

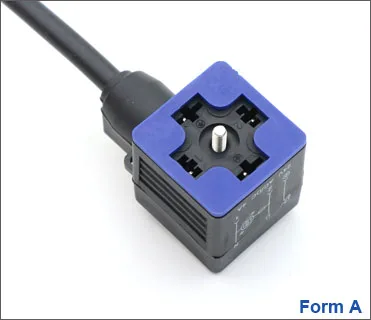

DIN 43650 FORM A - FORM B - FORM C - SOLENOID VALVE CONNECTORS
DIN 43650 form A male 2 3 poles+ground panel mount connector includes solder termination, center retaining nut and M3 x 10mm and M3 x 5mm screw.
DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in hydraulics and pneumatics. Other applications are pressure sensors and switches, optical, limit and proximity switches.
DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in hydraulics and pneumatics. Other applications are pressure sensors and switches, optical, limit and proximity switches.
Solenoid valve connectors are manufactured in the standard varieties as well as they can be customized to customer specifications.
Valve Electrical Data:
Rated Current: 8A / 10A
Rated Voltage: 24V / 250V
Contact Resistance: ≤4MΩ
Insulation Resistance: ≥100MΩ
Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE, 3+PE)
B type Pin dimensions: 10mm or 11mm(2+PE)
C type Pin dimensions: 8mm or 9.4mm(2+PE, 3+PE)
Waterproof: O-ring FKM
Protection: IP68/IP69K
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
Led indication with different color(Yellow/Gray/Red...)
Valve Electrical Data:
Rated Current: 8A / 10A
Rated Voltage: 24V / 250V
Contact Resistance: ≤4MΩ
Insulation Resistance: ≥100MΩ
Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE, 3+PE)
B type Pin dimensions: 10mm or 11mm(2+PE)
C type Pin dimensions: 8mm or 9.4mm(2+PE, 3+PE)
Waterproof: O-ring FKM
Protection: IP68/IP69K
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
Led indication with different color(Yellow/Gray/Red...)
Cable can be customized.
Primary Type | Valve |
Product Header | A-Style Valve Connector |
Special Features | LED indicatior |
Connector Type | Cable plug |
Operating Temperature | -40~105 degree |
Contact Configuration | 2+Gnd or 3+Gnd |
Details Images
Packing & Delivery
Packing: 5pcs packed in a sealed bag then put in a inner box, or according to customer's request.
Delivery: We can not ship out on weekend or China's Holiday.
Shipping:5-7 days after receipt of payment.
