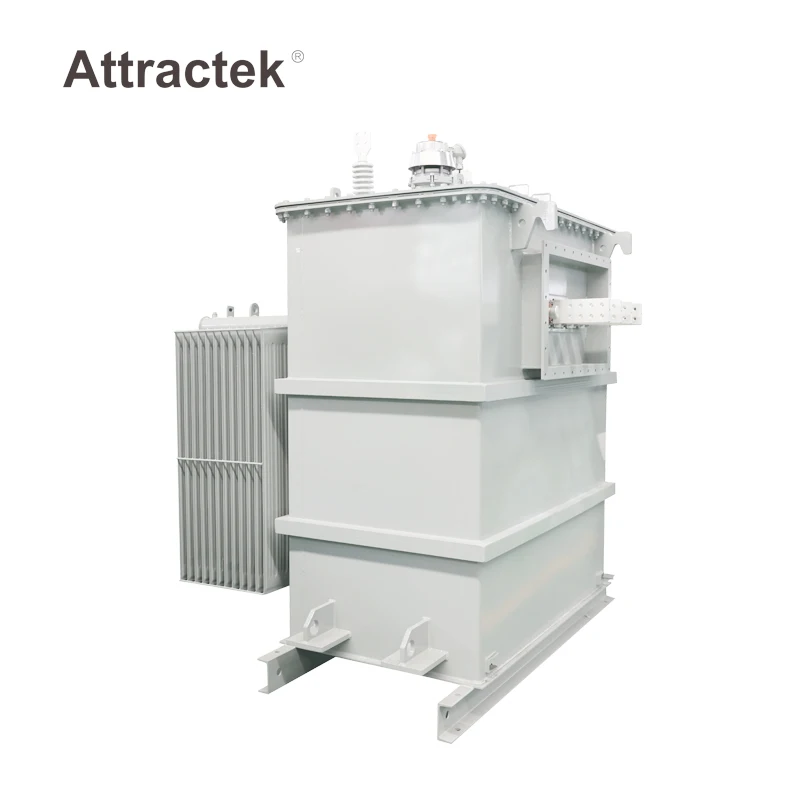

Attractek Transformer Oil Immersed Substation 25kV 600kVA 630 kVA 300kVA Power Transformer Package Substation Price
- Category: >>>
- Supplier: ATTRACTEK PTE LTD
Share on (1601277367015):
Product Overview
Description
Attractek Advantages
1. Certifications
Attractek is a professional transformer manufacturer and supplier. Various international standards can be customized for your transformer, such as: IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, GOST, etc.Attractek produces transformers with UL/cUL, CSA, CESI etc certifications.
2. Efficient and transparent supply chain
A. Fast delivery: 4-6 weeks.
B. Online video factory inspection, and online product lab testing available.
3. After Sales Service
A. Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, Attractek's after-sales team will solve it promptly and quickly;
B. Local after-sales installation service team. Whether you are in North America, South America or other regions, Attractek's local team can provide you with professional transformer installation, commissioning, maintenance and other services;
C. Attractek transformer provides remote video guidance for transformer installation;
Transformer Detail

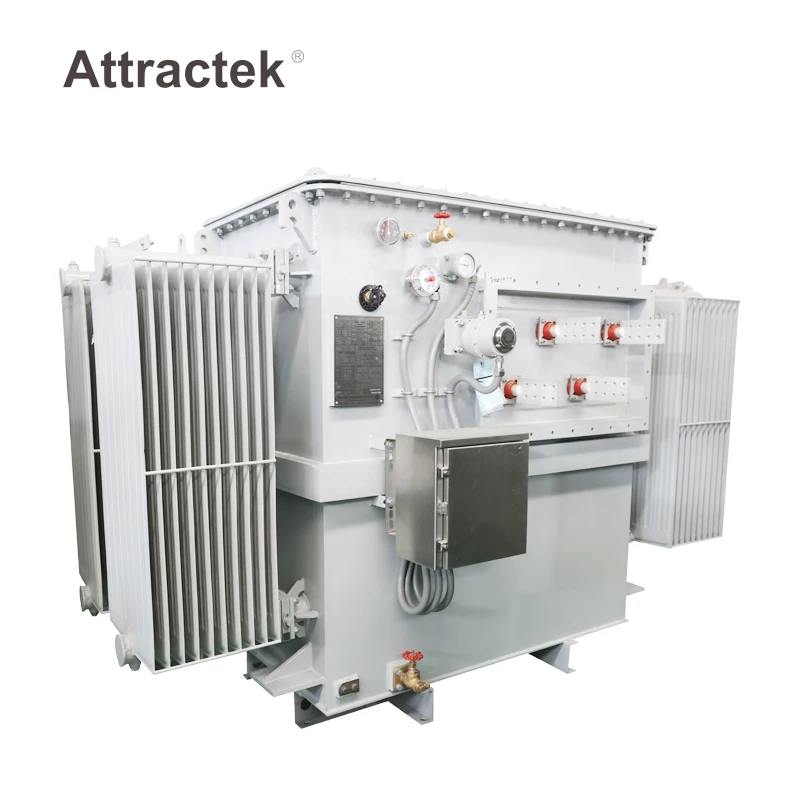

Small Substation Power Transformer
Attractek Distribution Transformer offers a complete line of liquid filled distribution transformers that meet current applicable ANSI" /lEEE" standards.
With high voltages up to 44kV and ratings up to 20 MVA(ONAN), Attractek Transformer primary and secondary substation transformers are used in a wide range of utility, commercial and industrial applications, High-grade materials, combined with state of the art technology in our design and manufacturing systems, are key elements of a transformer that will deliver years of high reliability service.
With high voltages up to 44kV and ratings up to 20 MVA(ONAN), Attractek Transformer primary and secondary substation transformers are used in a wide range of utility, commercial and industrial applications, High-grade materials, combined with state of the art technology in our design and manufacturing systems, are key elements of a transformer that will deliver years of high reliability service.
Standard Feature
− Insulating mineral oil
− 60/50 Hertz operation
− Liquid level gauge
− Externally operated de-energized tap changer with(2)
2.5% full capacity taps above and below nominal
− 65℃ average winding rise
− Side-mounted bushingsTop filter press valve provision
− ANSl grounding pad
− ANSl 61 paint finish, 5 mils thickness
− HV and LV flange connections
− Pressure-vacuum gauge − Liquid level gauge
− Liquid temperature gauge
− Pressure test valve
− Drain/filter valve with sampling device
− Tank lifting lugs
− Corrosion resistant nameplate
− Hydran provision (above 7.5 MVA)
− ANSl 70 paint finish, 5 mils thickness
Option Accessories
■High-fire point fluid,such as silicone,hydrocarbon or
vegetable fluids. (up to 15 MVA)
■55° C 55/65° C average winding rise
■Forced air cooling
■Forced air cooling with 2 stages
(from 7.5 MVA and up to 15 MAVA)
■Removable radiators
■Pressure relief device
■Winding temperature device
■Sudden pressure relay with or without seal in
■Devices with alarm contacts
■Top filter press valve
■HV & LV air terminal compartments
■HV lightning arresters in ATC
■Current transformers
vegetable fluids. (up to 15 MVA)
■55° C 55/65° C average winding rise
■Forced air cooling
■Forced air cooling with 2 stages
(from 7.5 MVA and up to 15 MAVA)
■Removable radiators
■Pressure relief device
■Winding temperature device
■Sudden pressure relay with or without seal in
■Devices with alarm contacts
■Top filter press valve
■HV & LV air terminal compartments
■HV lightning arresters in ATC
■Current transformers
■50 Hertz
■ Neutral grounding resistor
■ Special impedances
■ Low losses
■ Special environment(i.e:classified areas)
■ Special/low sound level
■ Retrofit to specific dimensions
■ Non-standard loading conditions such as
harmonic loading or specified K-factor
■ Stainless steel removable radiators
■ Galvanized steel removable radiators
■ Special paint for marine ambient
■ Special paint thickness
■ Special colors
■ CSA compliance
■ Other special features upon request
■ Special impedances
■ Low losses
■ Special environment(i.e:classified areas)
■ Special/low sound level
■ Retrofit to specific dimensions
■ Non-standard loading conditions such as
harmonic loading or specified K-factor
■ Stainless steel removable radiators
■ Galvanized steel removable radiators
■ Special paint for marine ambient
■ Special paint thickness
■ Special colors
■ CSA compliance
■ Other special features upon request
■ Seismic zone lll and lV
Technical Specification
Small substation Power Transformer | ||||||||
Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |||||
No-load Loss (W) | On-load Loss (W) | |||||||
800 | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others | 120/240V 480Y/ 277V 600Y/ 347V | 980 | 9350 | ||||
1000 | 1160 | 11500 | ||||||
1250 | 1380 | 13900 | ||||||
1600 | 1660 | 16600 | ||||||
2000 | 2030 | 18300 | ||||||
2500 | 2450 | 19600 | ||||||
3000 | 3240 | 26500 | ||||||
5000 | 4500 | 27000 | ||||||
7500 | 7200 | 32000 | ||||||
10000 | 8500 | 35500 | ||||||
Packing & Delivery
Wooden Case
As shown in the picture above, Attractek transformers are packed in wooden case. Put the transformer on a solid wooden pallet for fixing, and protect it with wooden boards on the top and around. Such wooden case packaging ensures that the transformer will avoid damage caused by impact during transportation.
Wooden Pallets
The package shown in the picture above is wooden pallet package. This packaging method of transformers is usually used for full container transportation by sea. After wrapping the transformer with plastic film (moisture and scratch protection), fix it on the log pallet. Attractek can also do packing according to your request.
Applications
Data Center System Facilities
Attractek Transformer is experts in data center systems, providing power distribution equipment solutions for your data center, including small substation transformer, pad mounted transformer. Fast delivery time and perfect design plan bring you the greatest economic benefits.
Oil And Gas Refining Facilities
Attractek Transformer has provided effective power solutions for oil and gas exploration customers in the United States,Canada,Venezuela and other countries. We are familiar with your needs for transformer equipment, and our professional technical team will provide you with efficient solutions;
Utilities
Attractek Transformer designs and produces single phase pole mounted transformer, pad mounted transformer and substation style transformers to fit utility needs. The lead time of 6-8 weeks and the monthly production capacity of 500 units will provide are liable guarantee for your project.
Renewable Energy Facilities
Attractek Transformer can provide power distribution solutions for your wind, solar, battery storage and other renewable energy facilities. Pad mounted transformer and small substation transformer are technically designed to meet your facility needs, providing you with a one-stop solution.
Factory Profile
Attractek Transformer is the top transformer supplier in China. The factory is located in Jiangsu Province, covering an area of 60,000 square meters. With more than 20 years of transformer export experience, the professional technical team can meet your requirements for all technical standards; the professional marketing team will quickly and efficiently promote your transformer project, saving you more time and economic costs. Various international certifications of transformers to ensure product quality, safety and reliability. The practical application of Attractek Transformer in nearly a hundred countries will make you more confident in Attractek Transformer. Attractek Transformer will be your good choice.
Contact Information
Contact person: Sean Xiao
Tel: 86-0574-26280026
Mobile Phone: 86-186-0574-0887
Email：sean@attractek.com
Whatsapp： 86-186-0574-0887
Email：sean@attractek.com
Whatsapp： 86-186-0574-0887
