Factory Price Complete Full Automatic PET Bottle Mineral Pure Water Plant
- Category: >>>
- Supplier: Zhangjiagang City Bievo Machinery Co. Ltd.
Share on (1601277376285):
Product Overview
Description
Products Description
CGZ series water filling machine - Washing filling capping 3-in-1
This series is applicable for mineral water and pure water filled in plastic bottles and capped with plastic caps,with optional capacity from 2000 BPH to 28000 BPH.
Product Paramenters
Model | CGZ 12-12-6 | CGZ 18-18-6 | CGZ 24-24-8 | CGZ 32-32-8 | CGZ 40-40-10 | CGZ 50-50-12 | CGZ 60-60-15 | ||||||
Production Capacity(bph) | 2000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-28000 | ||||||
Applicable Bottle Type | Bottle Diameter: Φ50-Φ100 mm Height: 150-320 mm Volume: 330-1500 ml | ||||||||||||
Applicable Cap Shape | Plastic Screw Cap | ||||||||||||
Gas Source Pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | ||||||
Gas Consumption (m3/min) | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | ||||||
Total Power(kw) | 4.6 | 4.6 | 6.4 | 7 | 11 | 12 | 15 | ||||||
Weight(kg) | 2500 | 3300 | 4800 | 6000 | 8000 | 9500 | 12300 | ||||||
Dimension (L*W*H)(mm) | 2450*1650*2100 | 2600*1800*2100 | 3000*2200*2400 | 4000*2220*2400 | 4100*2700*2600 | 4500*3400*2600 | 5400*4100*2600 | ||||||

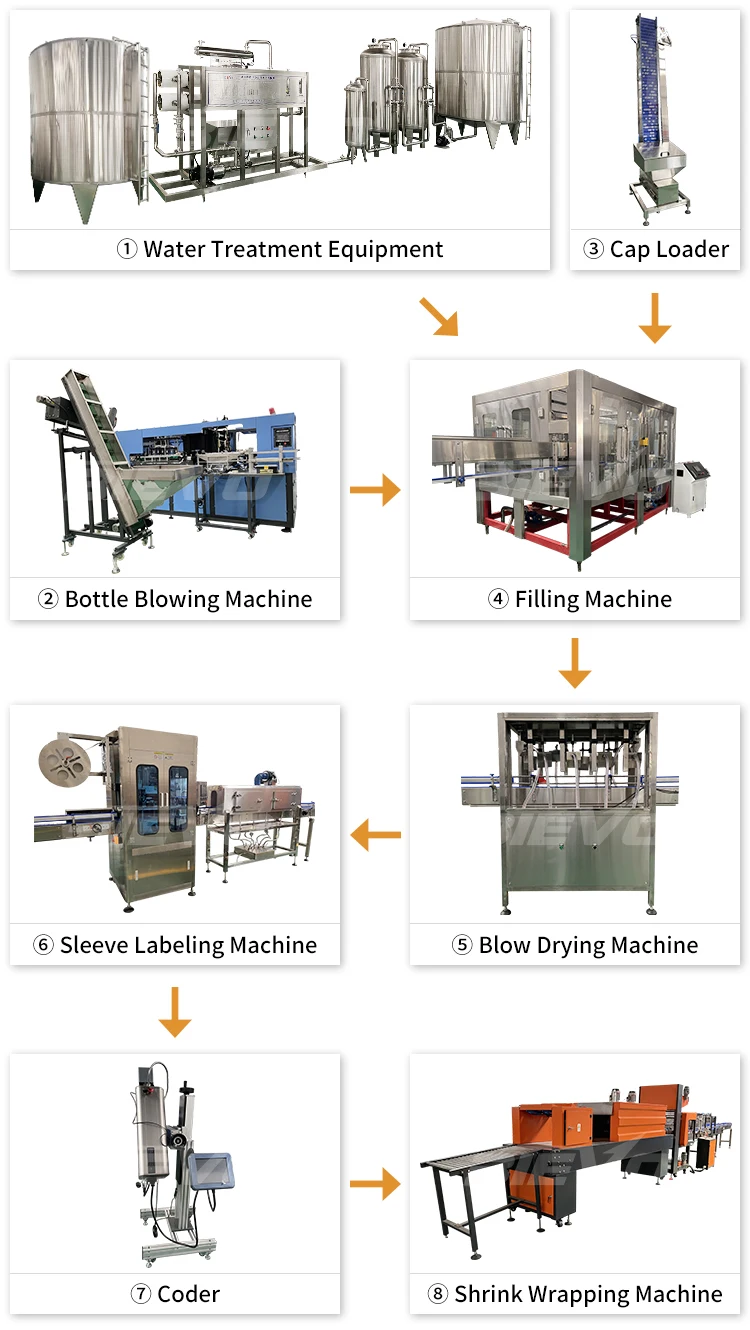

Details Images

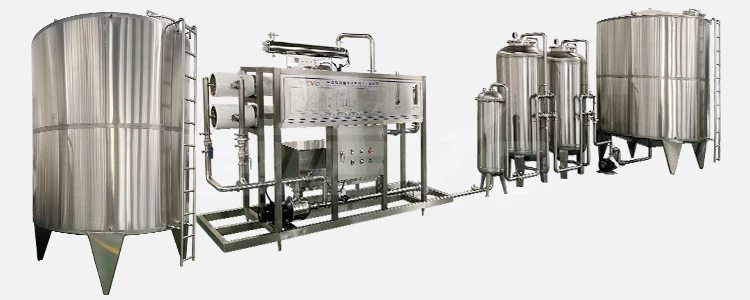

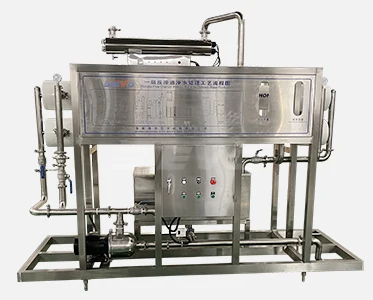

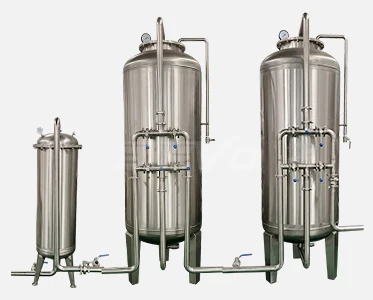

1. Water Treatment System
Simple operation/Less maintenance/Lower power consumption.
The physical characteristics of water are filtered or treated so that water can be used directly for drinking or other purposes.

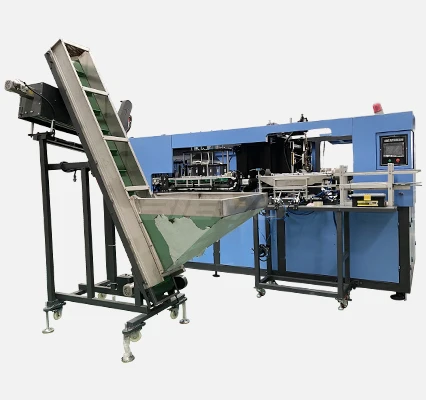

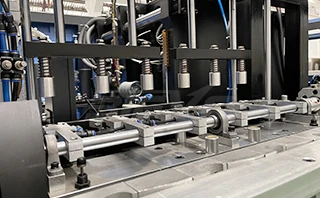

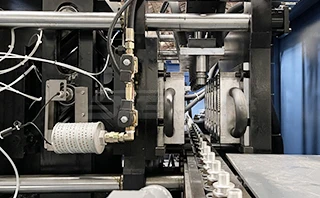

2. PET Bottle Blowing Machine
Less bottle cost/Stable working/High bottle performance.
The bottle blowing machine is for making plastic bottles. It is widely used in the food and beverage package industry.

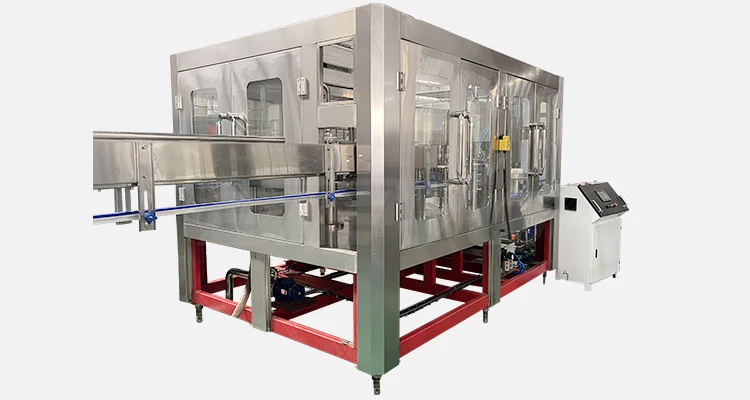

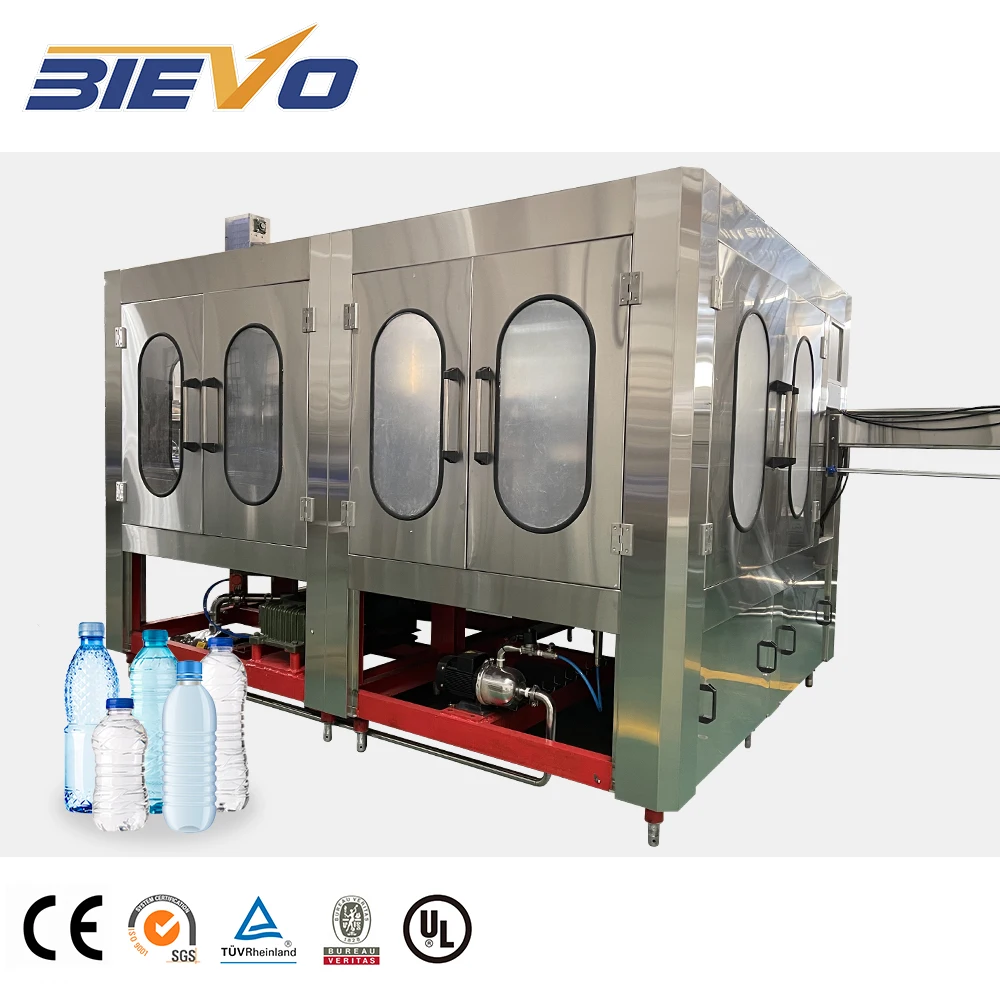

3. Water Filling Machine
High filling accuracy/Famous components/Stainless steel material.
CGZ water filling machine adopts the suspension design. It allows the machine to fill different type of the bottles. And it can also be used for fill PET bottle with fruit juice and tea drinks at high temperature by simply change the accessories.

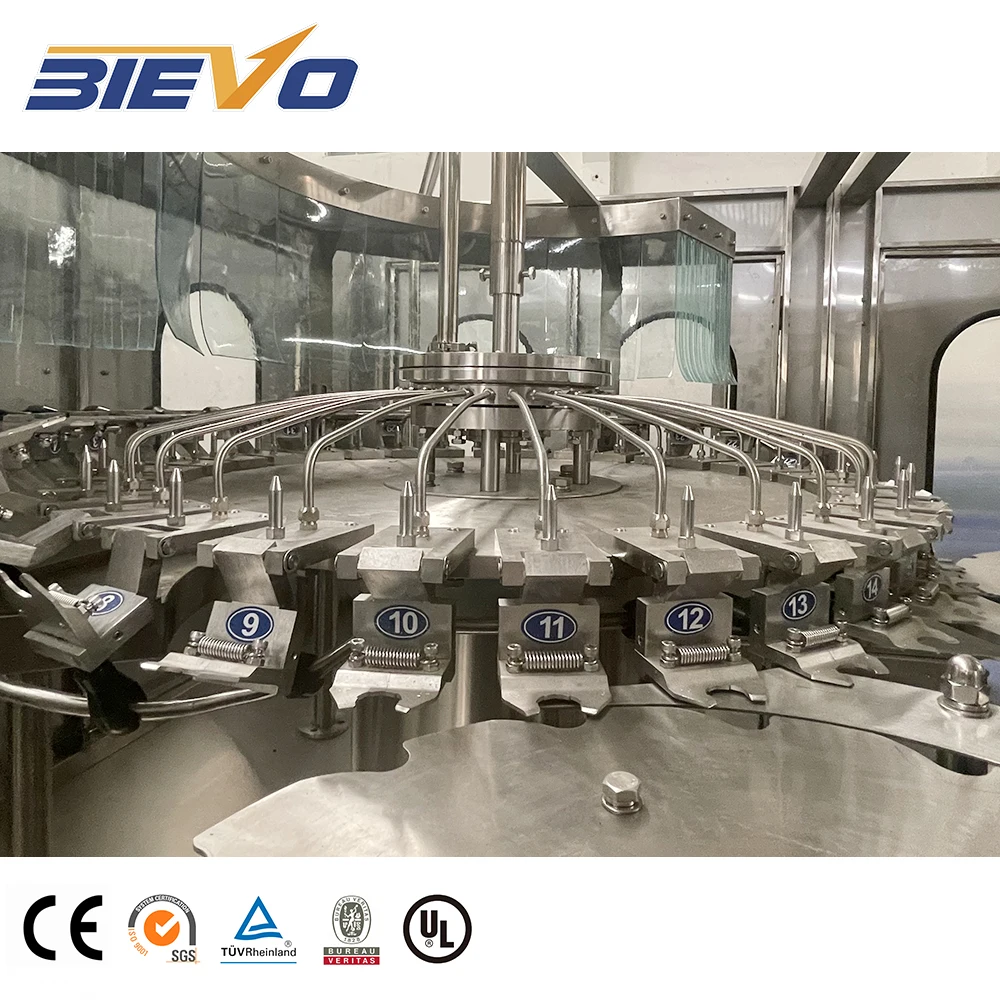

Washing Part
<1>Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinse water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;
<2>Single fluid spray nozzle is used, rinse water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

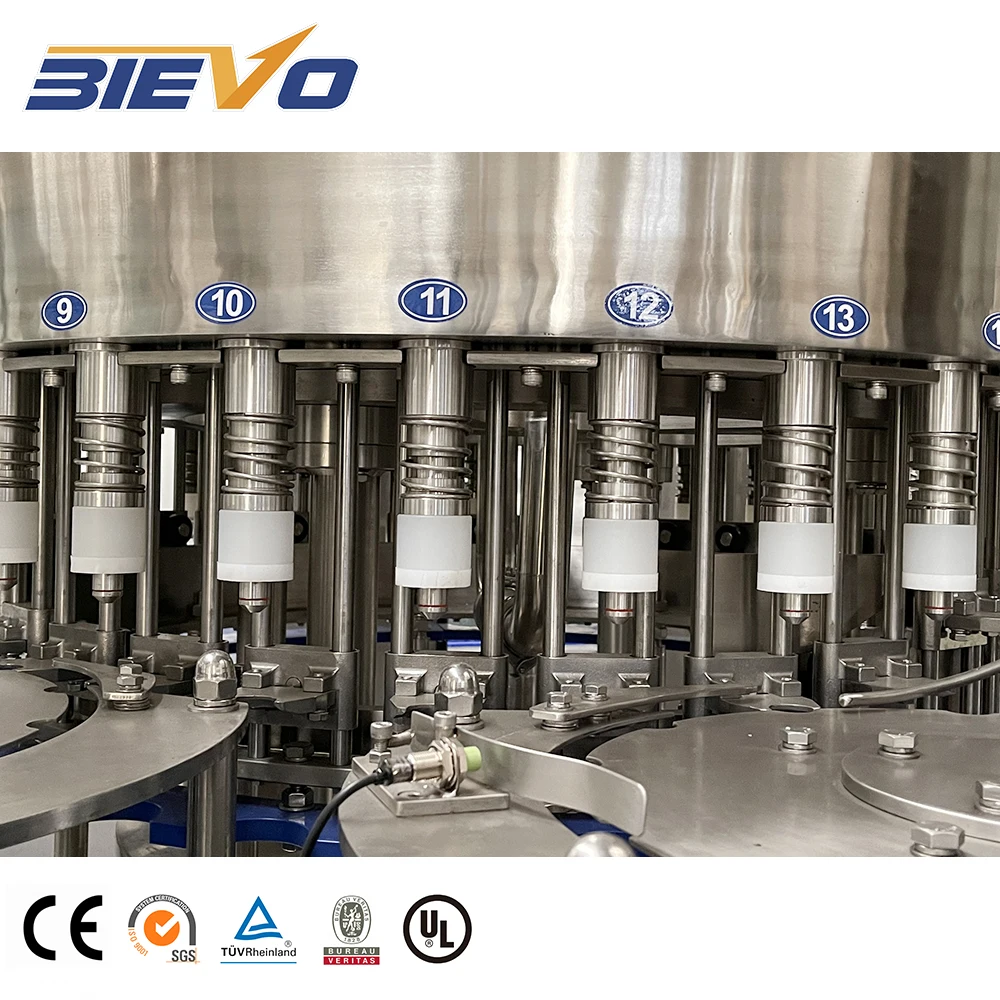

Filling Part
<1>Material of filling valve and tank are made from stainless steel 304L.
<2>High speed and precision filling technology, liquid level precision ≤±2mm;.
<3>Circling liquid tank, the liquid level is controlled by floating ball.
<2>High speed and precision filling technology, liquid level precision ≤±2mm;.
<3>Circling liquid tank, the liquid level is controlled by floating ball.

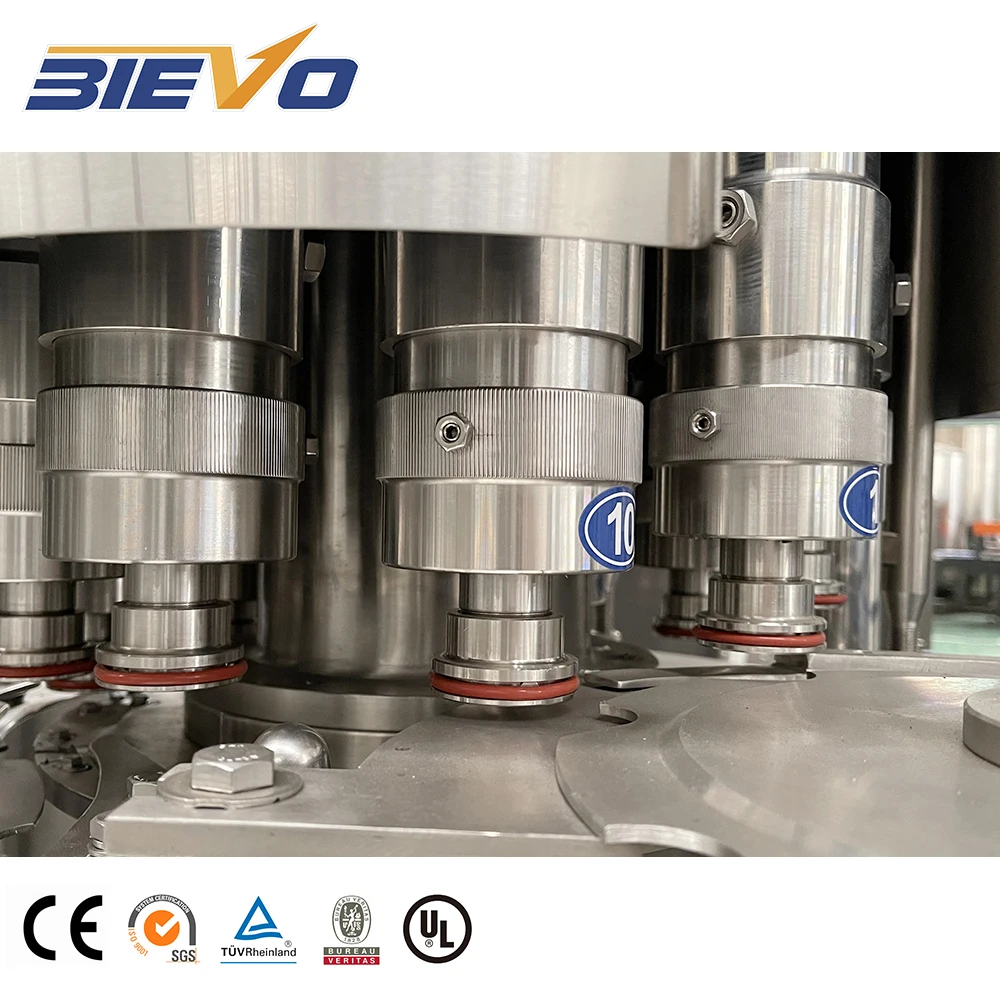

Capping part
<1>High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.

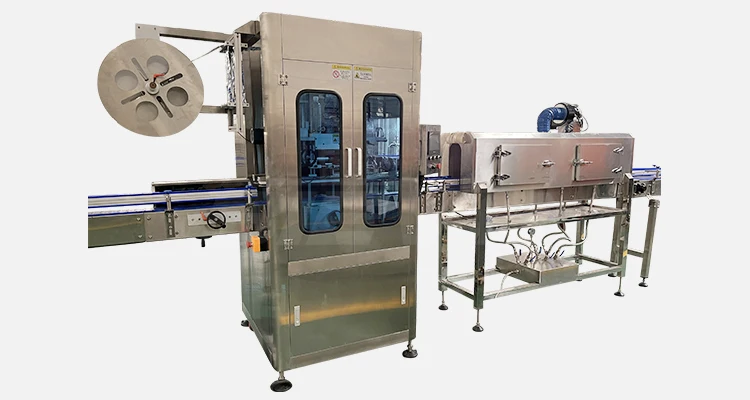

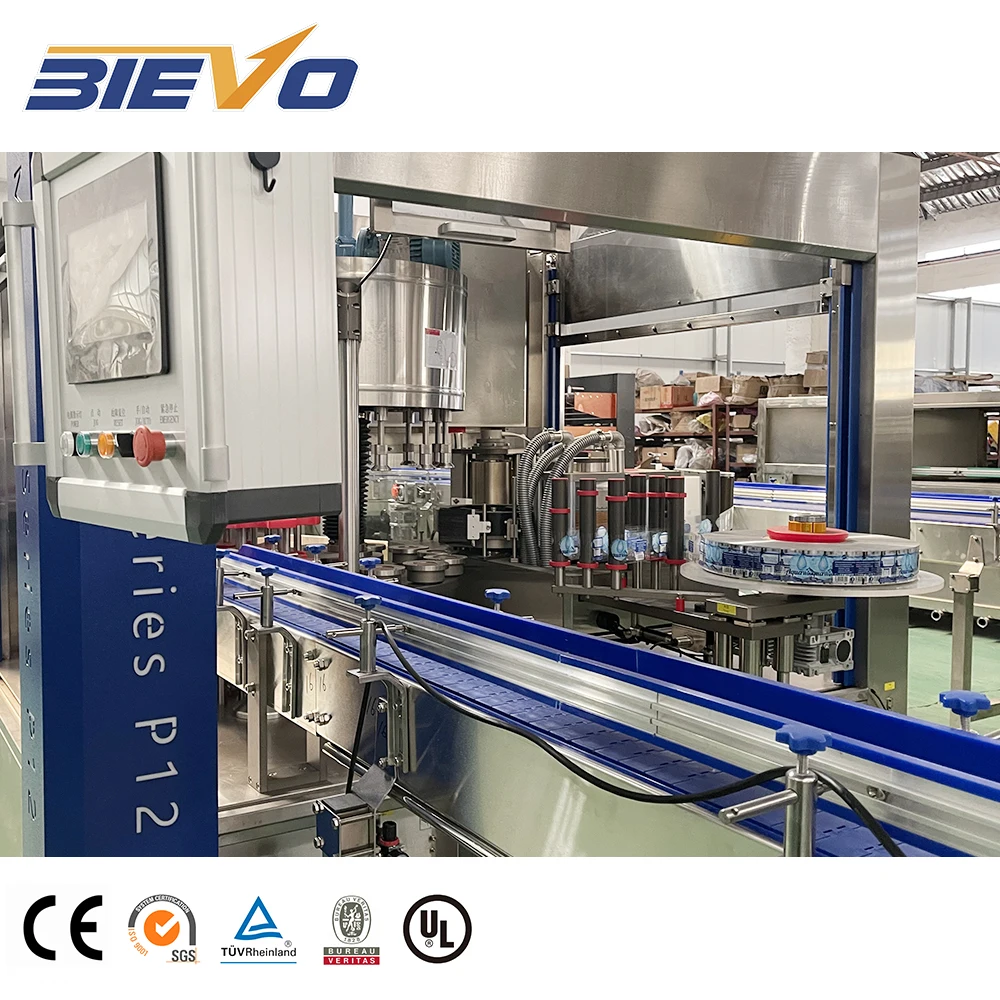

4. Bottle Labeling Machine
High precision/High speed.
There are mainly three kinds labeling machine, PVC sleeve shrink labeling machine, pressure sensitive sticker labeling machine and OPP hot glue labeling machine.

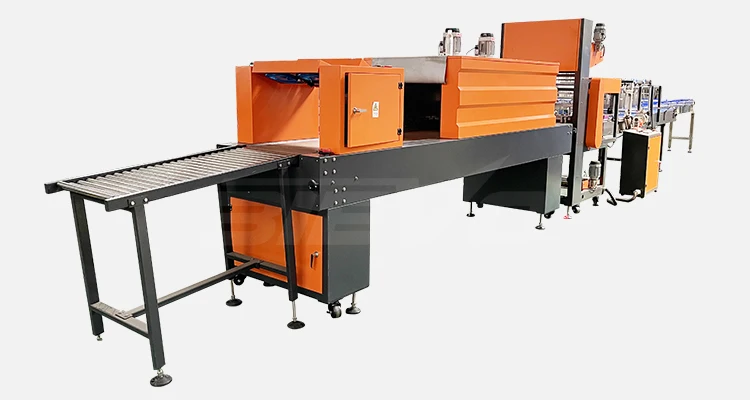

5. Bottle Packing System
Better design for final package solution, more choice for label material.
We supply the different bottle package design. Film package ,carton box wrapper, film with tray package and so on.
Related products
Middle and small size mineral water / Pure water filling production Line
Like pure water, mineral water, spring water...
Why Choose Us
Detail determines quality
We have confidence in the quality of our products because of our professional technology and experienced staff team. We always adhere to the “Control every procedure well, make each product well”.
About us:
Set up in 2010, BIEVO leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.
We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation.
Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation.
Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
BIEVO as a beverage equipment supplier, except the quality, performance and price, we focus more on the “delivery”.
BIEVO is committed to be a strategic partner of the beverage manufacturers. We’d like to help you build leading technology, excellent performance and most efficient production line with our professional equipment solutions.
Pre-Sales Service
Inquiry and consulting support.
24 hours on line answer your confusion.

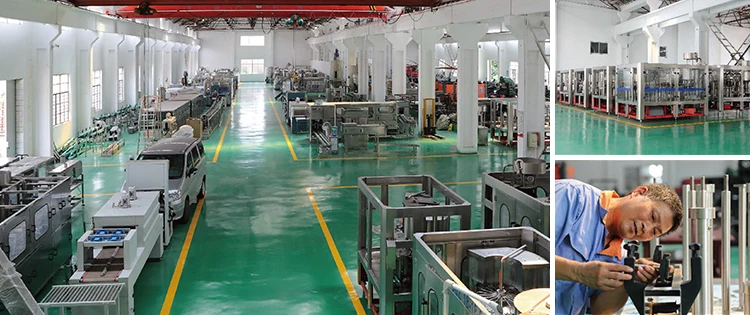

Welcome to view our Factory.
Help client choose the suitable machine.
Take video as client's request.
Take client's other need into consideration.
24 hours on line answer your confusion.
Welcome to view our Factory.
Help client choose the suitable machine.
Take video as client's request.
Take client's other need into consideration.
After-Sales Service
Help client installing,commissioning and training.
We provide useful documents with machine. (machine layout,certificate,general manual book)
All spare parts are always available and free for your request in first year.
You can mail/call us at any time if have any problem. And our most experienced is always free for giving you consulting service.
We provide useful documents with machine. (machine layout,certificate,general manual book)
All spare parts are always available and free for your request in first year.
You can mail/call us at any time if have any problem. And our most experienced is always free for giving you consulting service.
Certifications
Exhibition
FAQ
Q1: Do you provide customized service?
A1: We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: How long time for installation?
A3: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q4: Do you have technicians for installation?
A4: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to operate the complete line.
Q5: What's the payment you prefer?
A5: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q6: Where is your factory? How can i visit there?
A6: Our factory is located in Zhangjiagang City,Jiangsu Province,China.
It’s very near to Shanghai. If you fly to Shanghai,we will pick you up to visit our factory.
A1: We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: How long time for installation?
A3: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q4: Do you have technicians for installation?
A4: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to operate the complete line.
Q5: What's the payment you prefer?
A5: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q6: Where is your factory? How can i visit there?
A6: Our factory is located in Zhangjiagang City,Jiangsu Province,China.
It’s very near to Shanghai. If you fly to Shanghai,we will pick you up to visit our factory.
