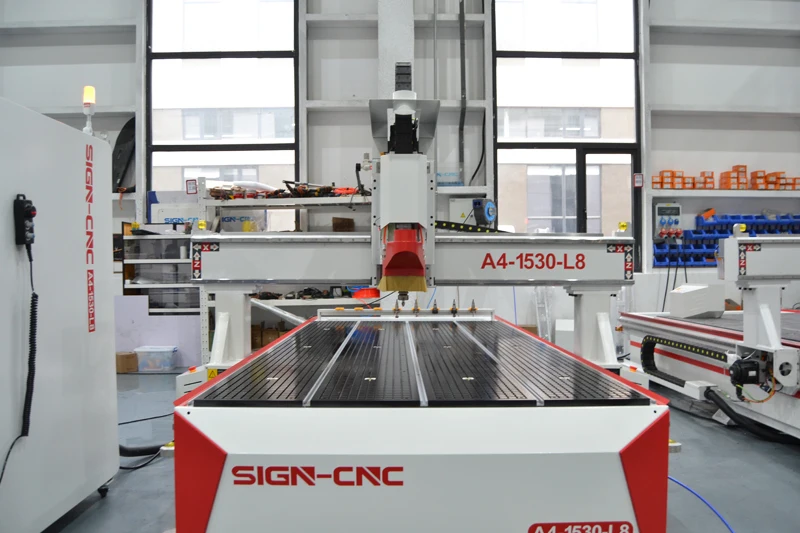

3 axis woodworking machinery A4 1530 L8 Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting
3 axis woodworking machinery A4-1530-L8-Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting

3 axis woodworking machinery A4 1530 L8 Pro ATC Wood CNC Router with atc spindle and AC servo motor for engraving and cutting

Share on (1601277389864):


Price:$11,000.00 - $13,500.00

Quantity:


Product Overview

Description

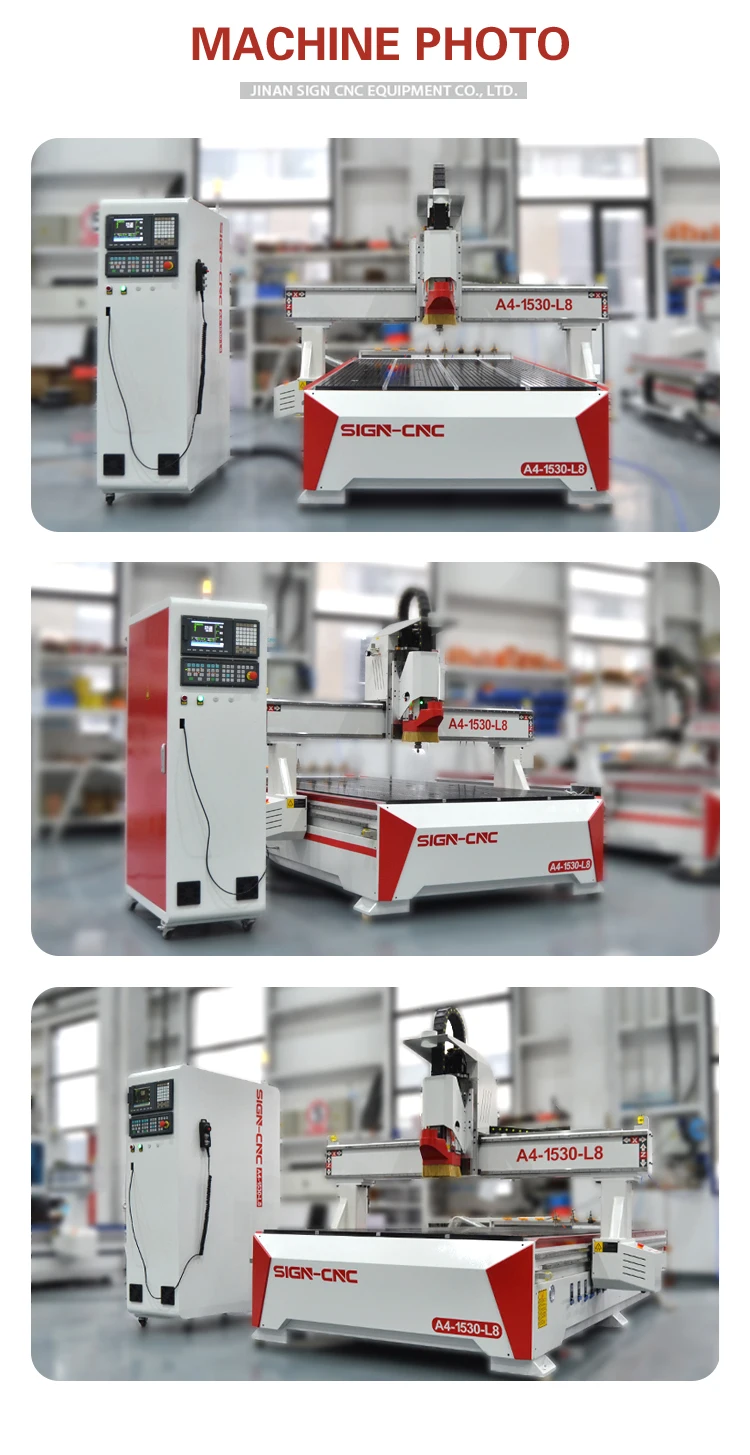

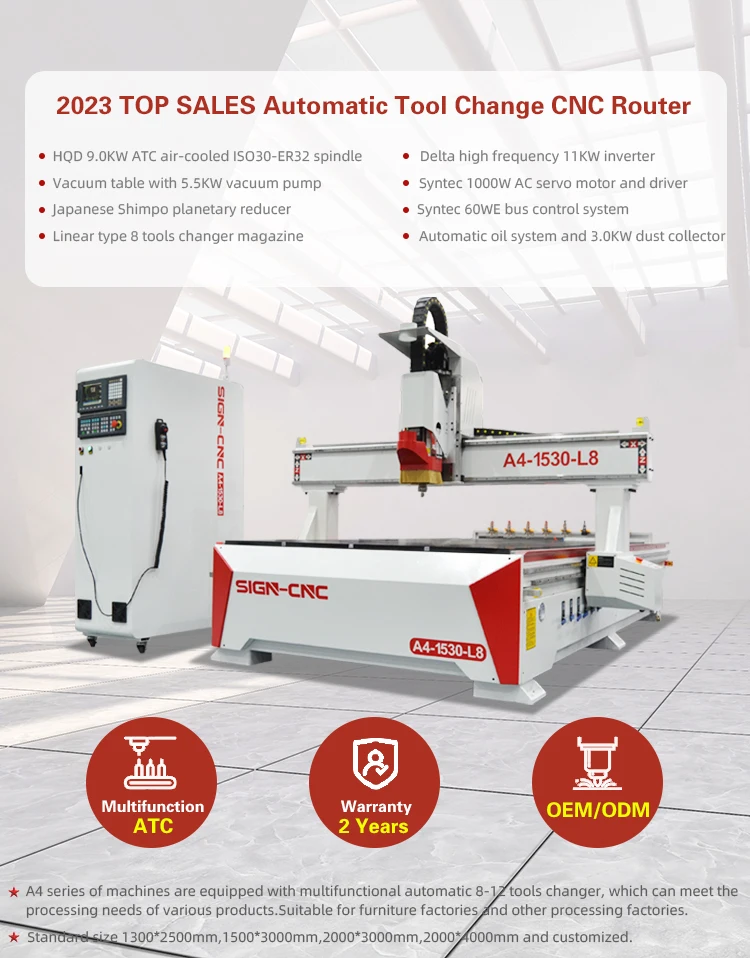

1325/1530/2030/2040 atc woodworking cnc A4-1530-L8-Pro Wood CNC Router with ATC 9KW Spindle for wood door/windows processing


Product Overview

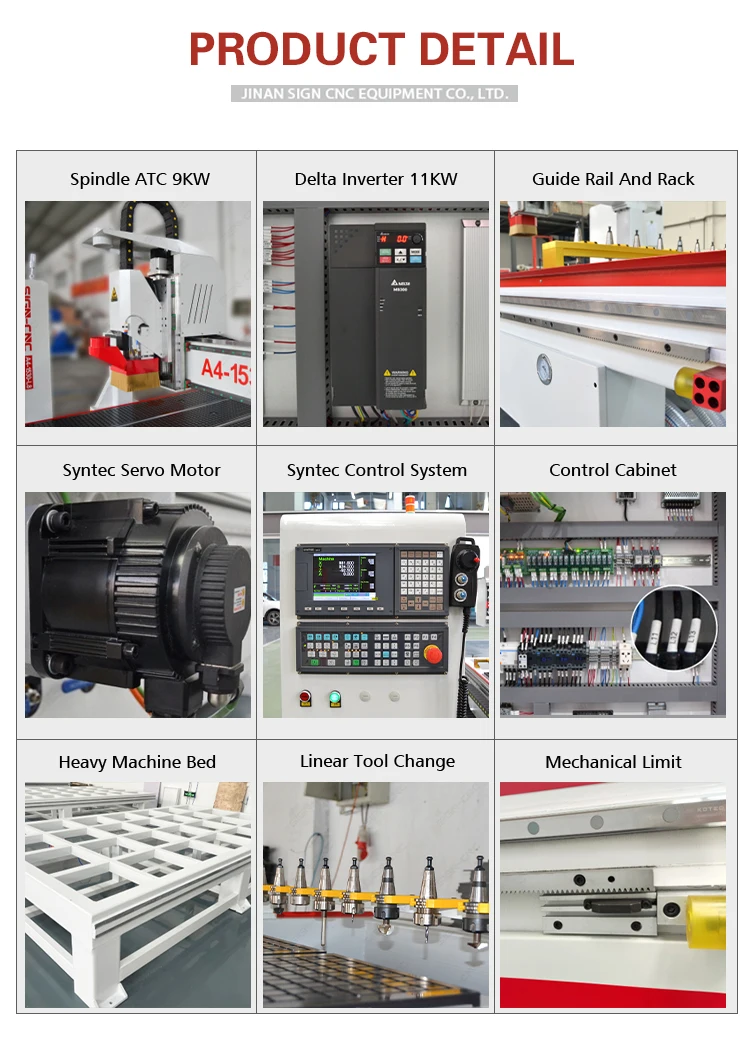

PRODUCT CONFIGURATION




PRODUCT SPECIFICATIONS


Model
A4-1325-L8
A4-1530-L8
A4-2030-L8
Working area
1300*2500mm
1500*3000mm
2000*3000mm
Z feeding
300mm
Frame structure
Steel casting-welding
Type of table cover
Vacuum table with T-slot
Vacuum pump
7.5kw
Z axis transmission
Ball screw and 25mm square guide rails

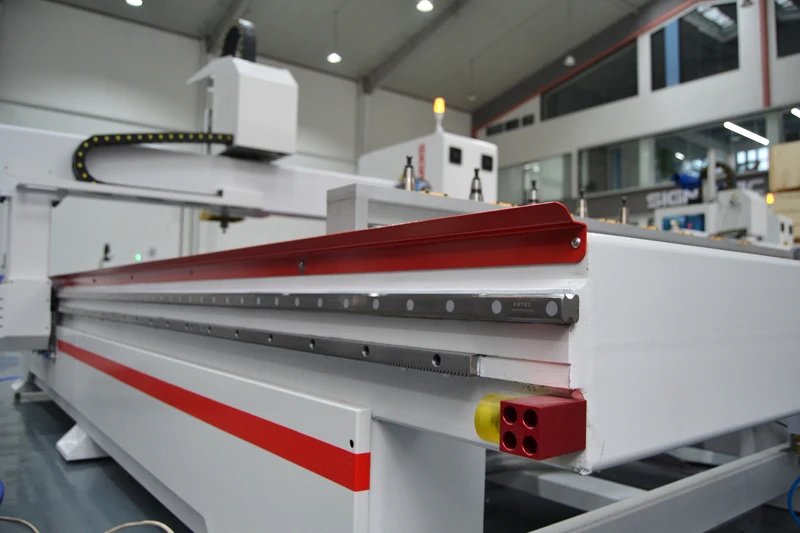

X Y axis transmission
25mm square guide rails + Helical rack
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
30000mm/min
Command Code
G code * .u00 * .mmg * .plt
Operating voltage
AC 380V/50Hz
Spindle power
HQD 9.0 KW air cooling spindel

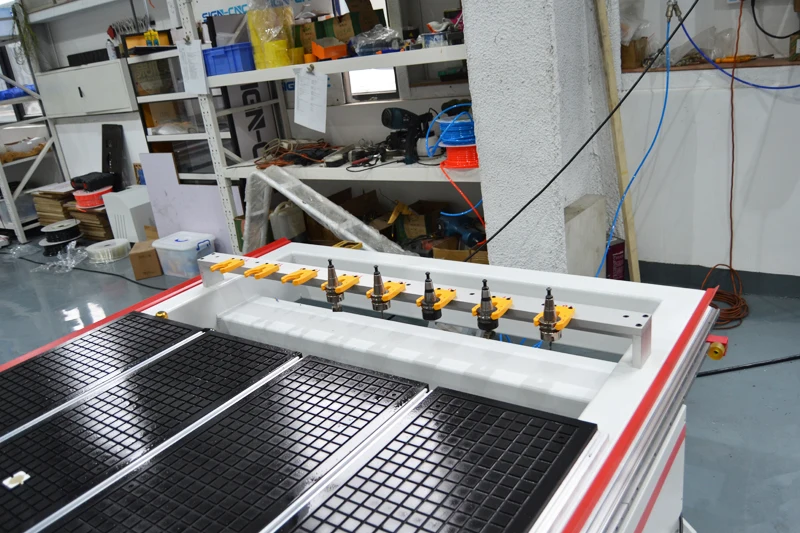

Tool Magazine
8 - 12
Type of cooling
Air cooling
Spindle Speeds
0-24000rpm/min
Drive motor type
AC servo motor and driver

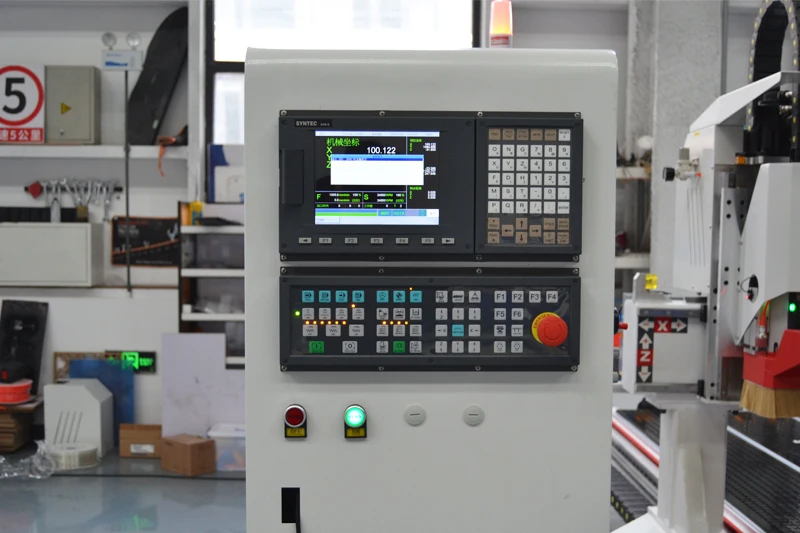

operating system
SYNTEC 60WE control in bus
Dust Collector
3kw with double bags
Lubrication system
Automatic
Supported software
Artcam software, Type3 software
Operating conditions
Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty
Two year






Application

Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen

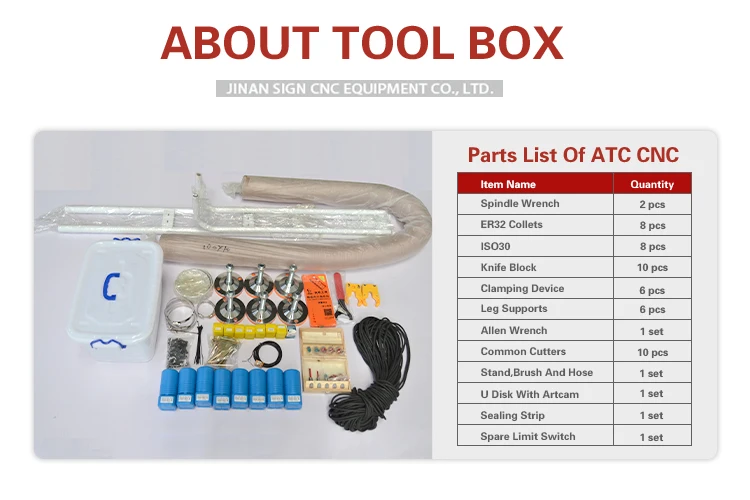

Package




Company Profile




40%-50% clients also like products as following


Carousel ATC cnc router
Carousel type tool change more fast, tools 8-12 pc according your demand.
ATC 4 axis cnc router
ATC type and spindle rotate 180 degree, carving for side hols like Keyhole, hinge hole and so on.


FAQ


Q1：What about your after-sales service
A1： Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
