Product Overview
Description
PRODUCTS DESCRIPTION

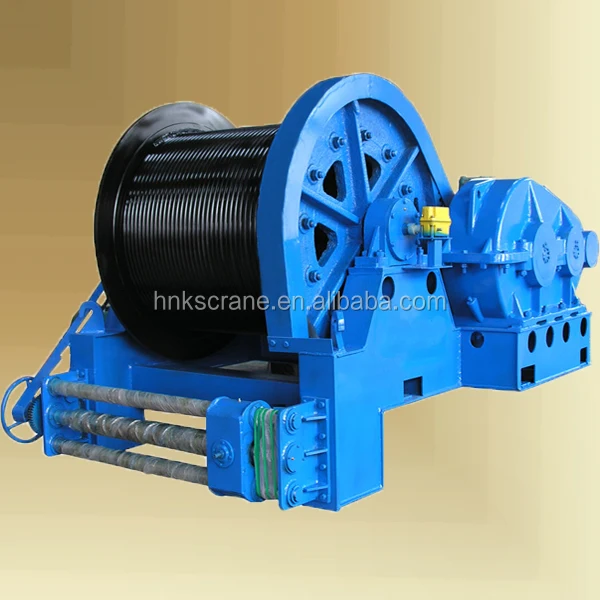

High Quality Electric hydraulic Winch For Sale
Electric winch or windlass is a kind of widely used machine in lifting machinery field. It's widely used in industrial and mining, metallurgy, hoist construction, chemical, road and bridge, dock, oil industry ect. It has been a necessary machine in construction site and port pier.
Electric winch has compact structure, it is economical & easy to install, and wide range of application. The product has the characteristic brake promptly, small volume, light, compact, convenient and easy to maintain. This is the ideal equipment to improve working efficiency and working conditions nowadays.

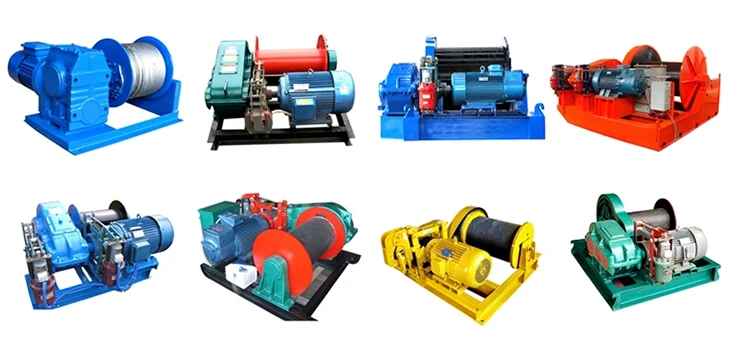

We can provide different kinds electric winches to meet your indeed needs:
JK Series electronic control high speed winch
JM Series electronic control slow speed winch
JKL Series hand control high speed free rolling winch
JKD Series new type winch etc.
Besides these, we can provide many other electric winches, such as ship use winch, metallurgy winch and so on.
JK Series electronic control high speed winch
JM Series electronic control slow speed winch
JKL Series hand control high speed free rolling winch
JKD Series new type winch etc.
Besides these, we can provide many other electric winches, such as ship use winch, metallurgy winch and so on.
FEATURES AT A GLANCE
a). It can drive drum combine with structure of changing speed, so as to loading and unloading. As the optimal construction tools, it can be widely used in middle & small residence, fit up of construction, lifting plank, digging well and lifting etc.
b). Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on.
b). Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on.

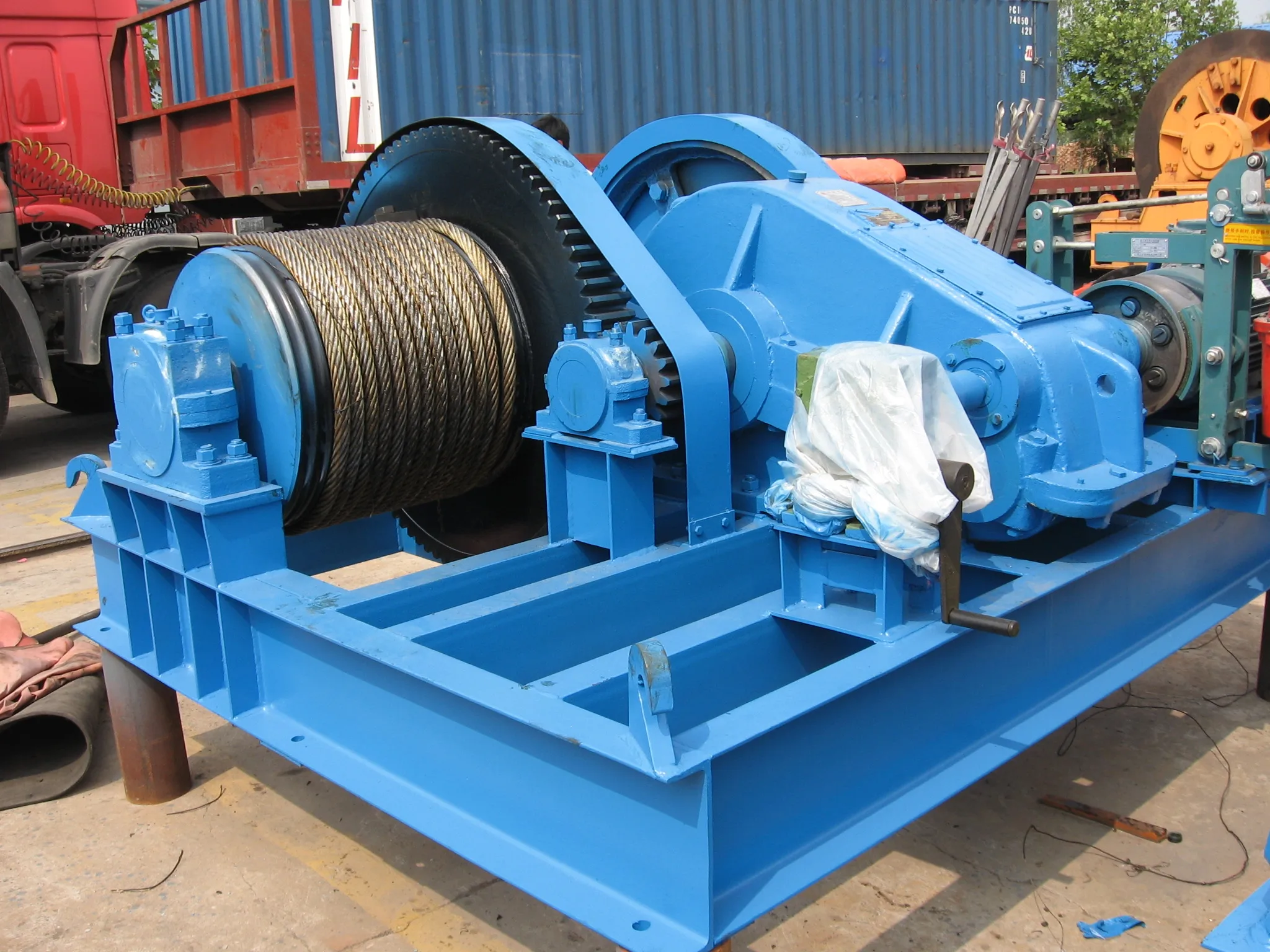

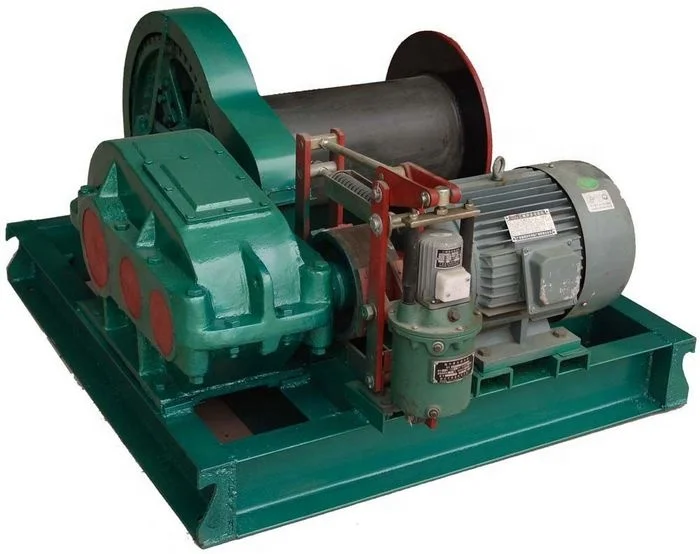

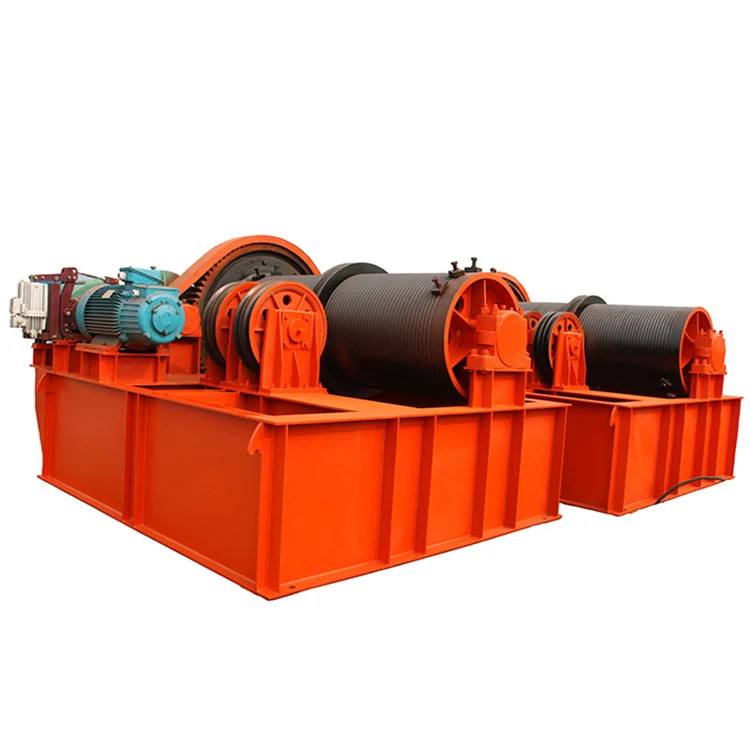

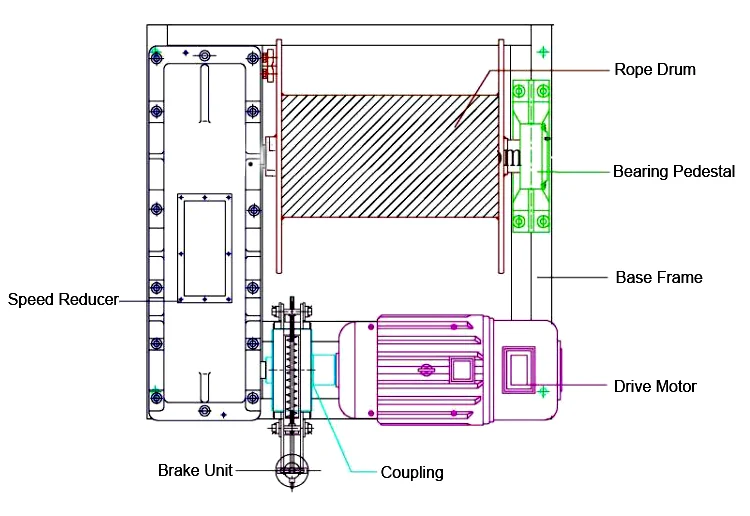

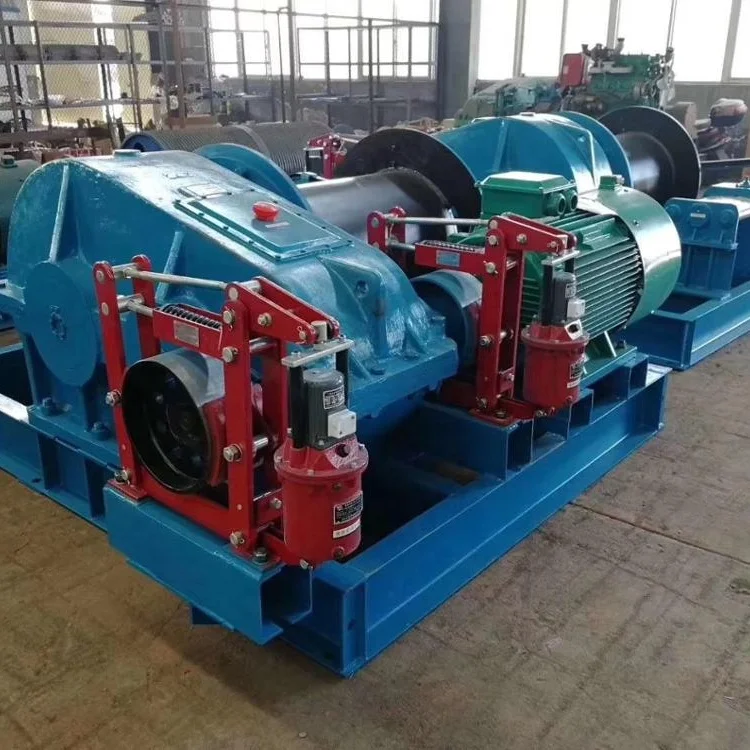

DETAILS IMAGES
PRODUCT SPECIFICATIONS
Model | JK1 | JK3 | JK5 | JK8 | JK10 | ||
Line pull capacity (kg) | 1000 | 3000 | 5000 | 8000 | 10000 | ||
Wire rope average speed (m/min) | 30 | 30 | 28 | 20 | 19 | ||
Wire rope Dia.( mm): | 9.3 | 15.5 | 21.5 | 26 | 30 | ||
Reduction box | Type | JZQ350 | JZQ500 | JZQ500 | JZQ500 | JZQ750 | |
Transmission ratio | 31.5 | 23.34 | 23.34 | 23.34 | 23.34 | ||
Drum (mm) | Diameter() | 190 | 325 | 406 | 500 | 550 | |
Length | 360 | 520 | 840 | 900 | 1000 | ||
Capacity(m) | 110 | 200 | 300 | 300 | 450 | ||
motor | Type | Y132M-4 | YZR225M-8 | YZR250M1-8 | YZR250M1-6 | YZR250M2-6 | |
Power(kW) | 7.5 | 22 | 30 | 37 | 45 | ||
Rotating speed(r/min) | 1440 | 715 | 864 | 960 | 960 | ||
Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-200/25 | YWZ-400 | ||
Dimension (cm) | 945x97x60 | 147x140x95 | 186x166x95 | 240x180x110 | 250x190x120 | ||
Weight(kg) | 460 | 1200 | 2700 | 4000 | 5000 | ||

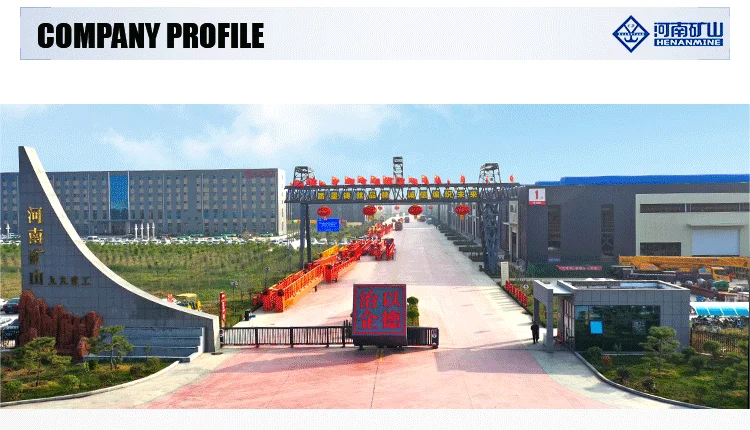

COMPANY PROFILE
The 4,500-plus-member factory covers over 1,620,000 square meters and has a total asset of 1.18 billion CNY. The 3,000-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
PRODUCT PACKING
Fast Delivery
Henan Mine has sound production security system and experienced workers to ensure timely or early delivery period.
Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?

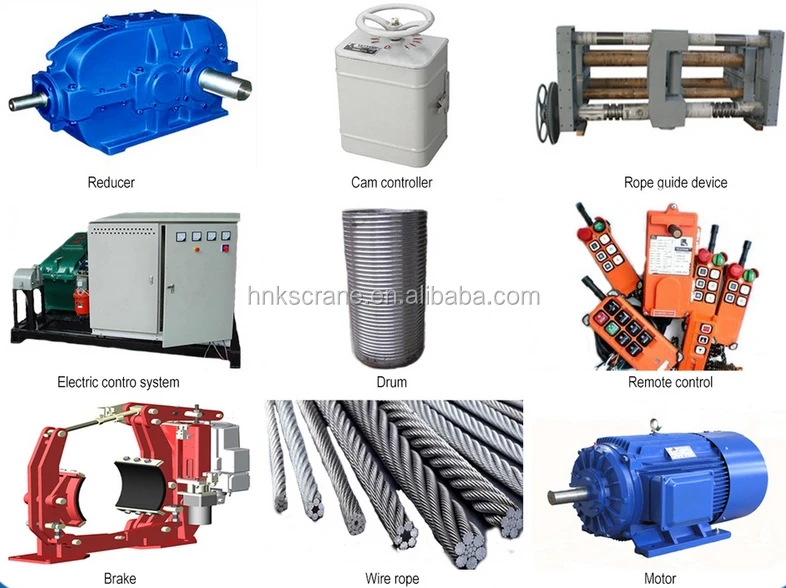

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
