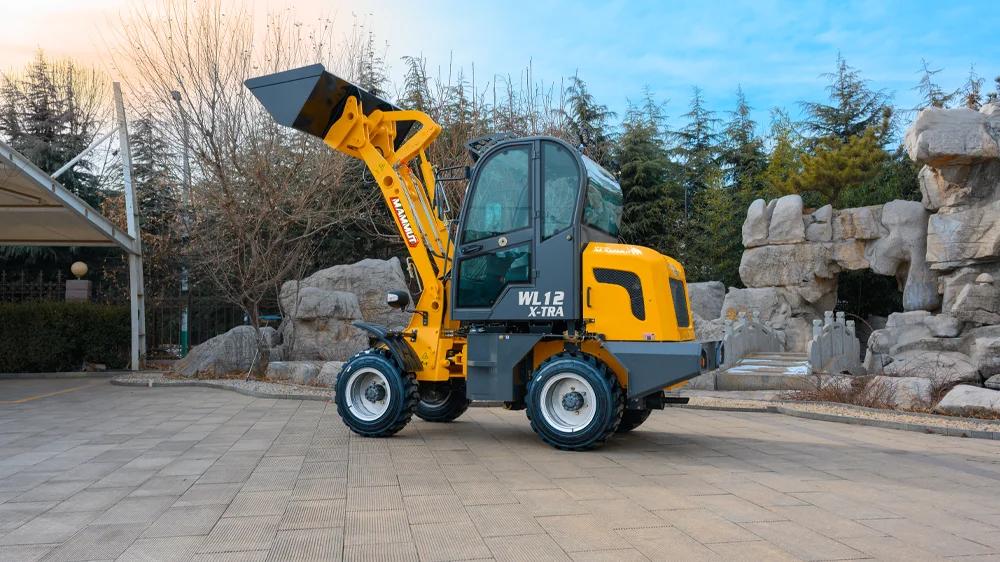

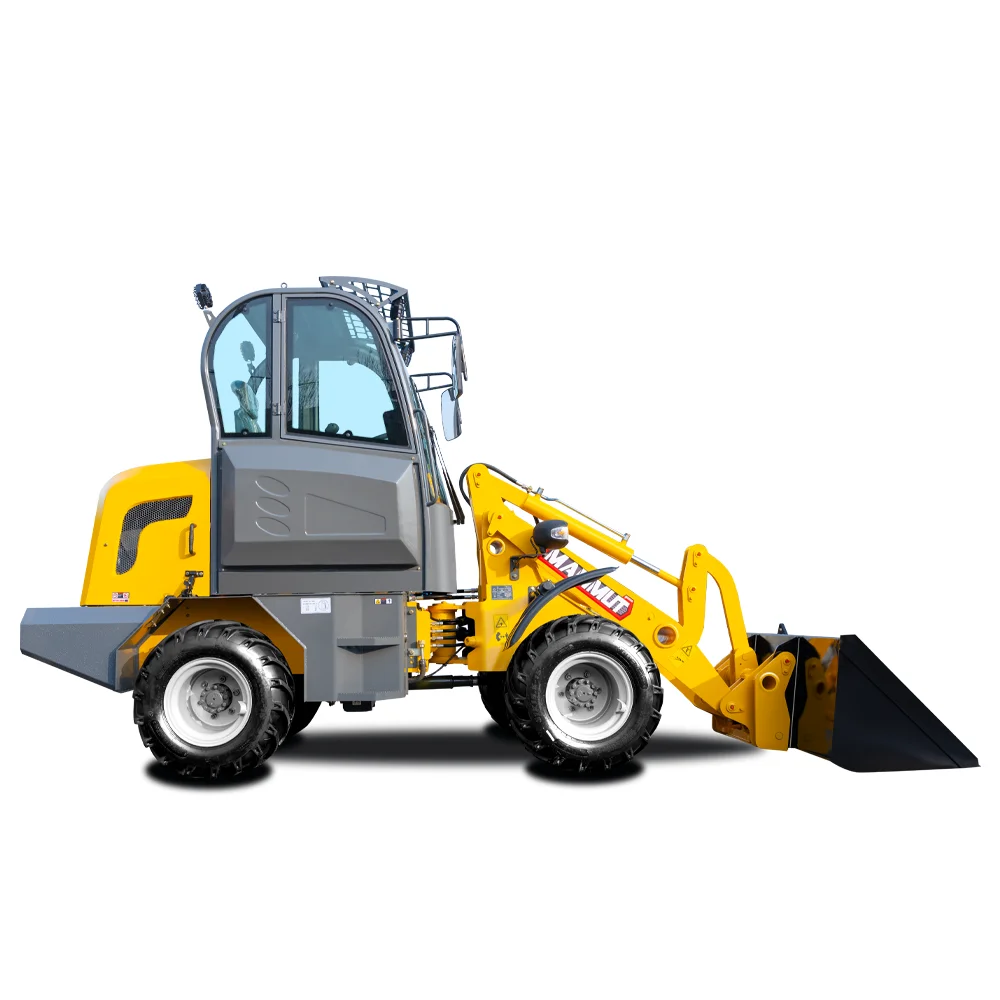

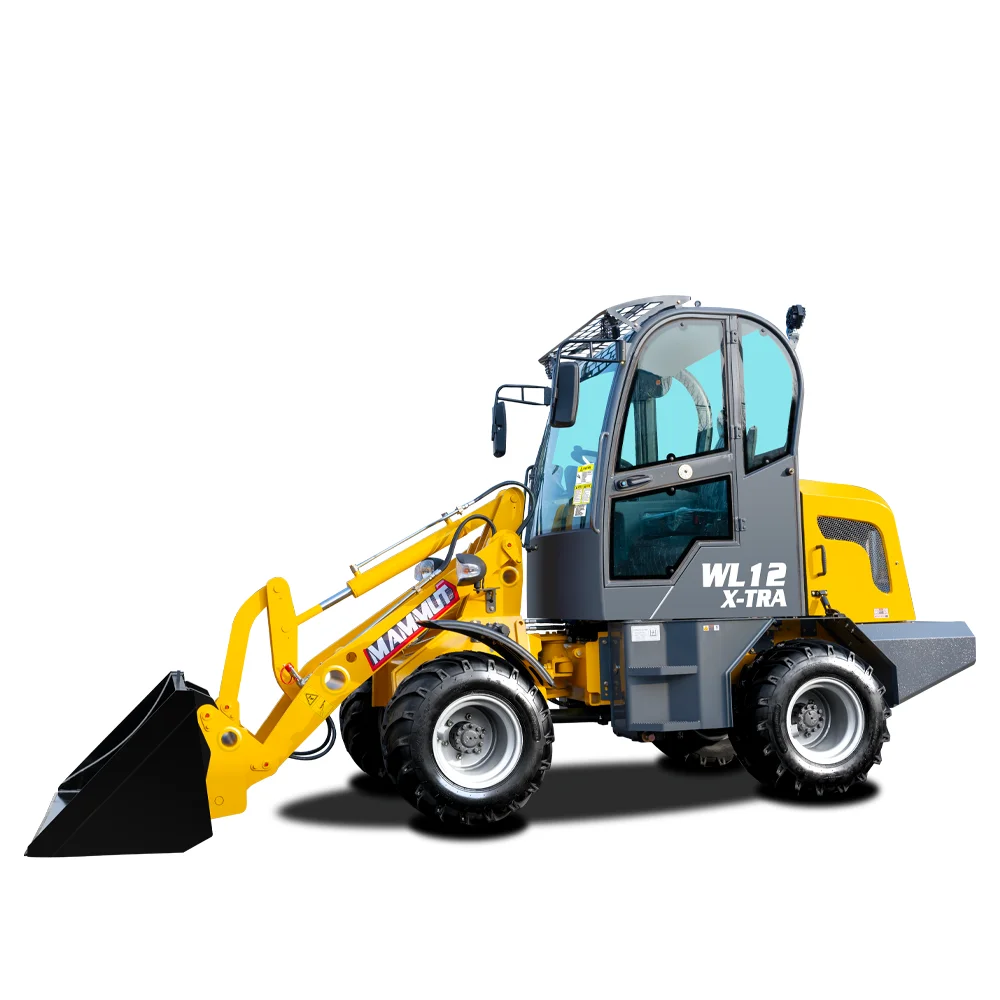

Mammut Wholesale mini Wheel loader WL12 0.8ton CE Approved multifunction articulated mini wheel loader
- Category: >>>
- Supplier: Shandong Oujin Engineering Machinery Co. Ltd.
Share on (1601277412957):
Product Overview
Description
Product Description
Detailed Images
xinchai euroiii engine,hydraulic automatictransmission,electric joystick more easy to control,quick hitch you can change different attachments.
Product Specification
1.0 Engine Details | ||
(1) Model: | Yunnei | |
(2) Engine Type: | In-line arrangement,water-cooled,four-cycle diesel engine | |
(3) Rated Power: | 36KW | |
(4) Rated Speed: | 2400 r/min(rpm) | |
2.0 Transmission System | ||
(1) Type: | Fixed-spindle power shift | |
(2) Shift gear control oil pressure | 1.0-1.8MPa | |
(3) Rated input speed: | 2500(rpm) | |
(4) Max.Breakout Force: | 36.8KN | |
3.0 Bucket | ||
(1) Bucket capacity: | 0.4m3 | |
(2) Bucket Width: | 1500mm | |
(3) Bucket type: | Heavy-duty bolt on teeth | |
(4)Liftting capacity: | 1000kg | |
(5)Operating Weight | 2900kg | |

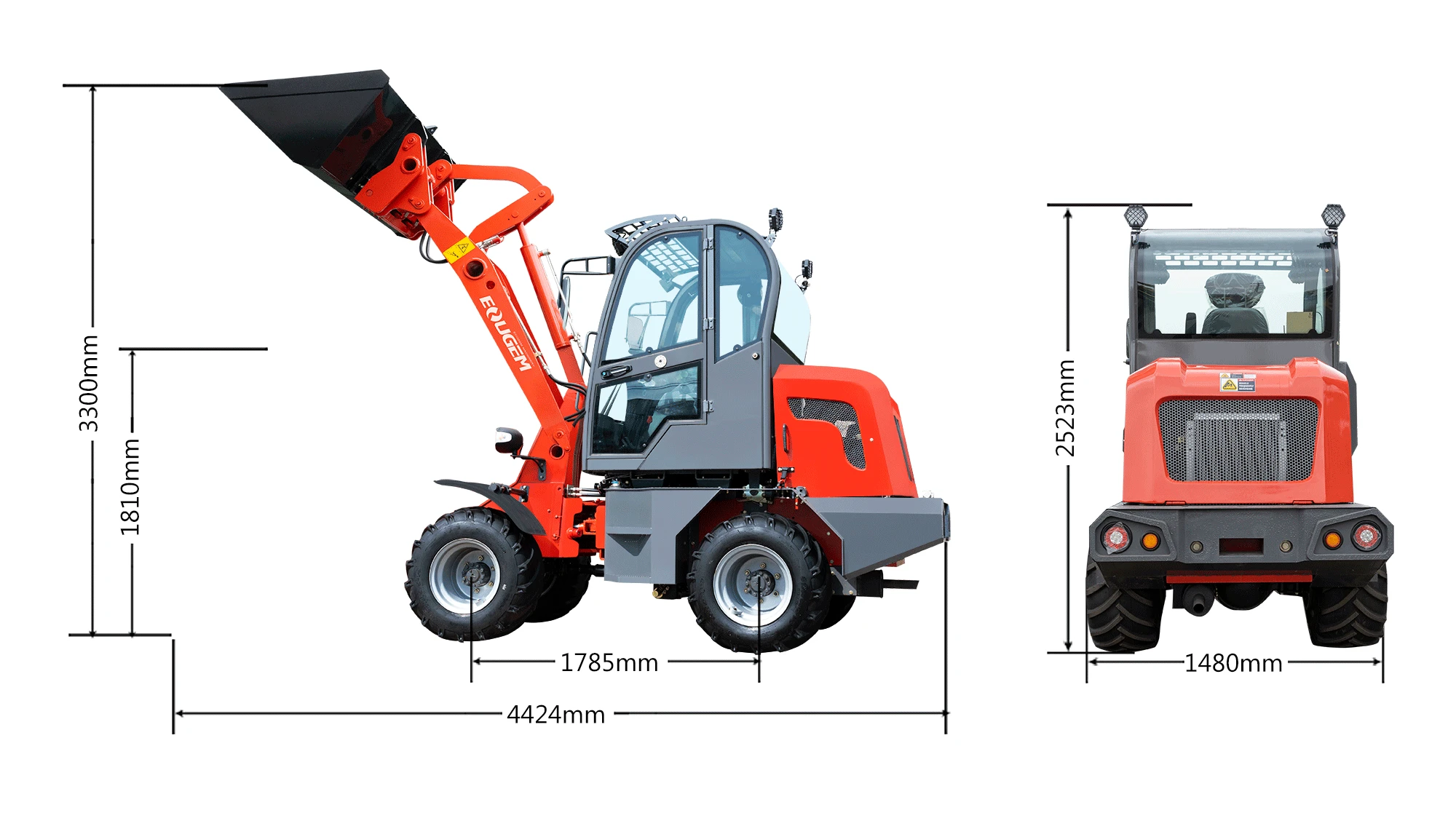

4.0 Overall Dimensions | ||
(1) Overall length(bucket on ground) | 4424mm | |
(2) Overall Height | 2523mm | |
(3) Overall width | 1480mm | |
(4) Dumping reach: | 640mm | |
(5) Dumping height: | 1810mm | |
(6) Lifting height: | 2443mm | |
(6) Wheel base: | 1785mm | |
5.0 Operating Specifications | ||
(1) Steering system: | Articulated frame with hydraulic power steering | |
(2) Max.turning radius: | 3328mm | |
(3) Driving system: | Hydraulic converter | |
6.0 Brake System | ||
(1) Service Brake | Brake caliper | |
(2) Parking Brake | Hand operated | |
7.0 Tyre | 750-16/31*15.5-15 | |
Product Advantages
■By sheet metal forming, the driving cab hood has the features of high transparency, anticorrosion and the color won’t wear out;with the international ultraviolet-proof all-steel cab of forming glass adopted, the driving cab is equipped with humanized adjustable seat, scuttle, making your vision broader and your driving safer; all those make the operation easy, natural and accurate, and relieve your fatigue as well.
■Equipped with the national famous brand engine, the heavier special drive bridge is adopted, the torque converter matching is optimized, the traction is greatly increased, strong ability to overcome obstacles, and large carrying capacity; energy-efficient,energy intensity is reduced.
■Optimally designed by the computer, the bucket realizes huge spading force, with single dump cylinder and the “Z” shape turning structure.
■Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there’ll be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.
■With the Great Wall, Kunlun and Korean GS hydraulic oil, diesel lubricant used, the service life of the engine is guaranteed.
■High efficiency.
■Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there’ll be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.
■With the Great Wall, Kunlun and Korean GS hydraulic oil, diesel lubricant used, the service life of the engine is guaranteed.
■High efficiency.
Fast action: it takes only 5 seconds to complete the “total cycle”
Flexible steering: small turning radius, full hydraulic steering, light weight and high efficiency
Enough power: with the engine of famous brand, the power will be used in a more fully way. Intensively high fuel efficiency, super overloading design. Front and back frames are with box structure, with thick plate and high strength. Finite element analysis is applied in all key structures to ensure that it can operate in every dangerous and heavy working condition. Large distance and wheel base between top and bottom hinged plates make the overall strength higher and the operation more stable.
Flexible steering: small turning radius, full hydraulic steering, light weight and high efficiency
Enough power: with the engine of famous brand, the power will be used in a more fully way. Intensively high fuel efficiency, super overloading design. Front and back frames are with box structure, with thick plate and high strength. Finite element analysis is applied in all key structures to ensure that it can operate in every dangerous and heavy working condition. Large distance and wheel base between top and bottom hinged plates make the overall strength higher and the operation more stable.
■Convenient maintenance
The refuel maintenance of the braking system is convenient and easy. The hydraulic valve is placed in a position that is easiest
to reach so that the check and maintenance will be convenient. The together placed grease filler plugs facilitate the hinge pin maintenance.
The refuel maintenance of the braking system is convenient and easy. The hydraulic valve is placed in a position that is easiest
to reach so that the check and maintenance will be convenient. The together placed grease filler plugs facilitate the hinge pin maintenance.
■All series have passed the EU CE certification, with high standard and high quality.

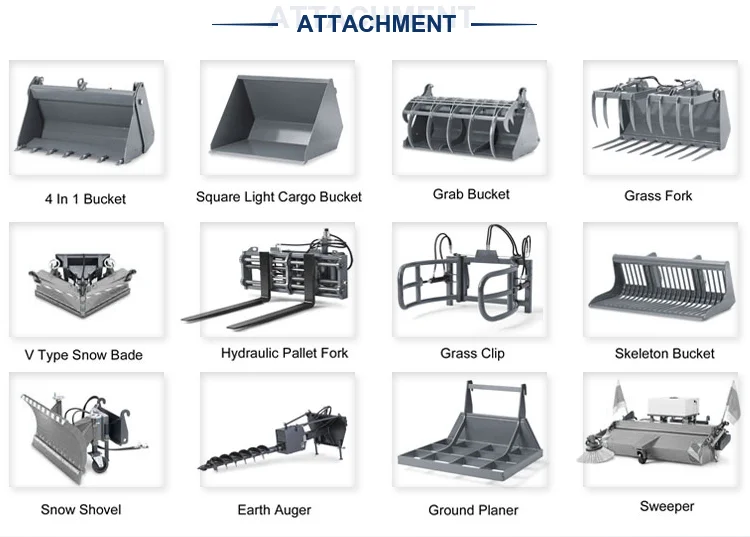

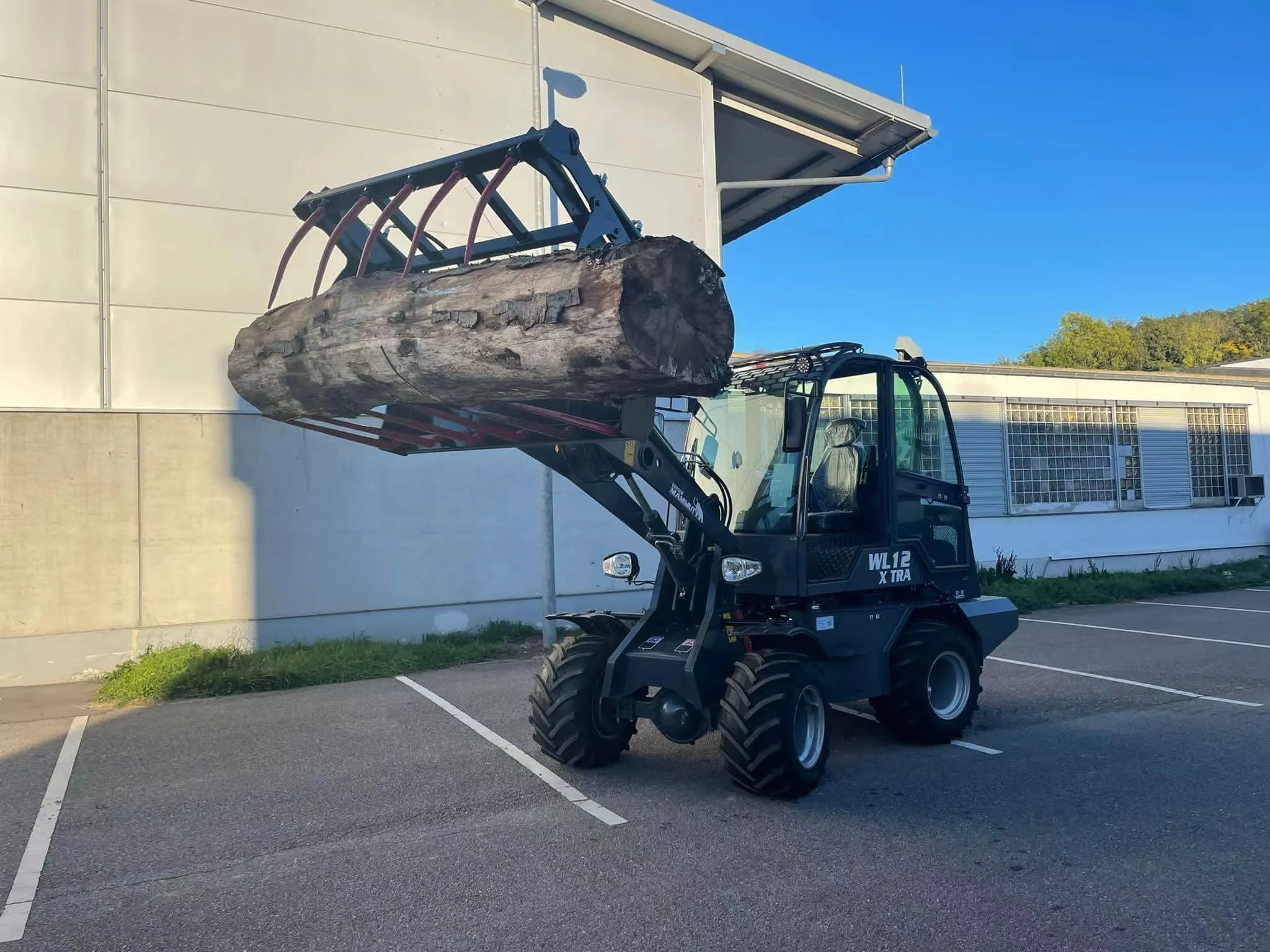

Product Attachment

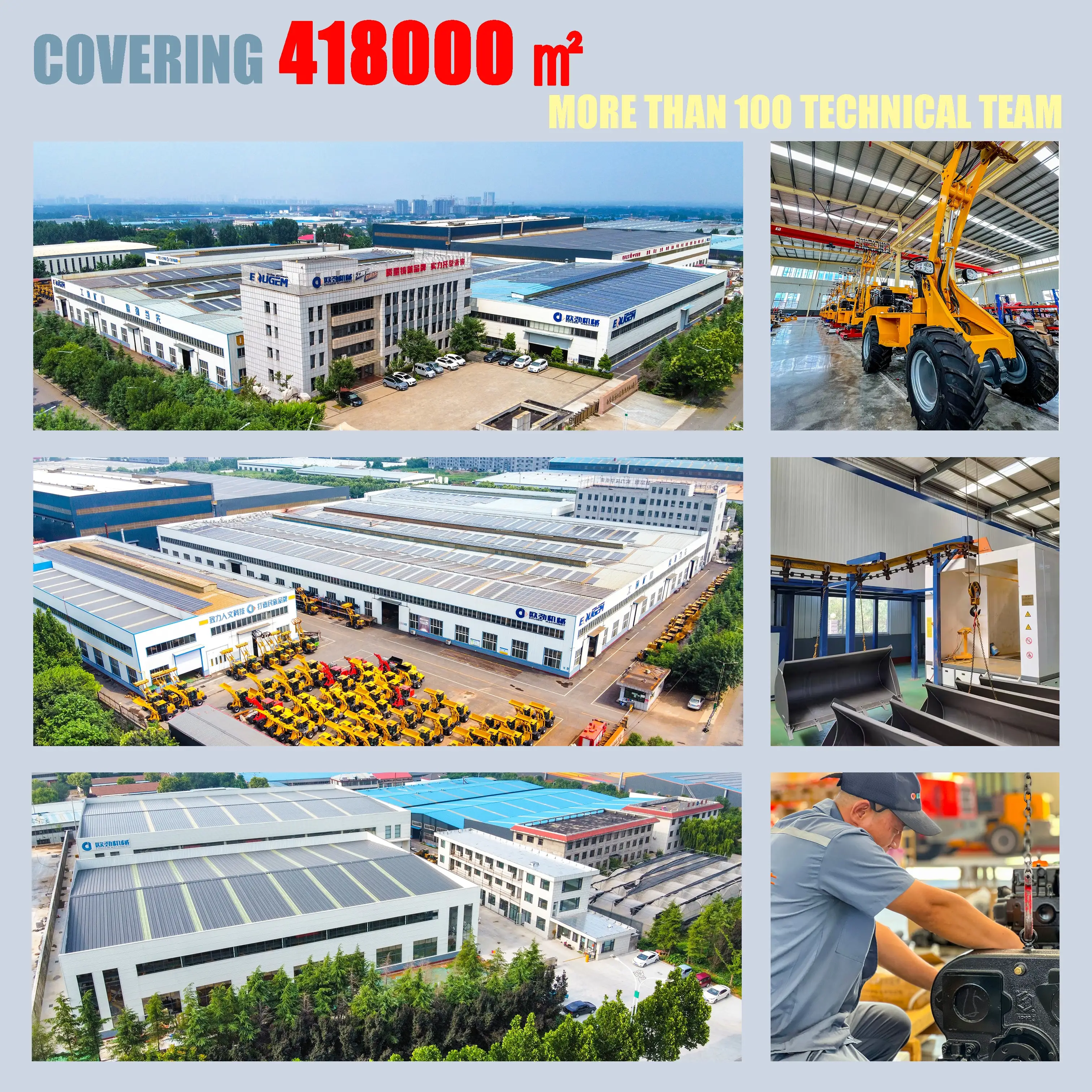

Company Profile
RFQ
1.Are you trading company or manufacturer?we are factory for 16 years.
2.What about warranty?One year or 2000hours.
3.Do you have after sales center?we have in Australia,Germany,South Africa etc..
