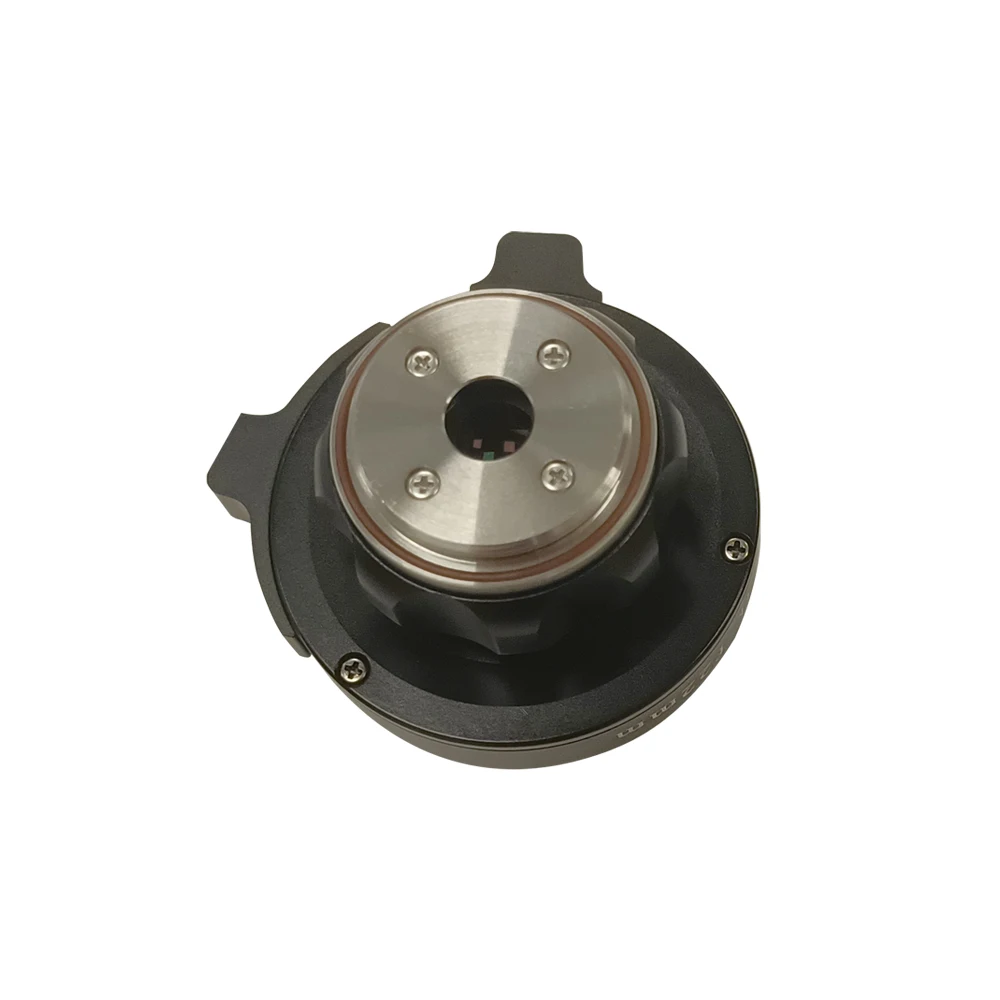

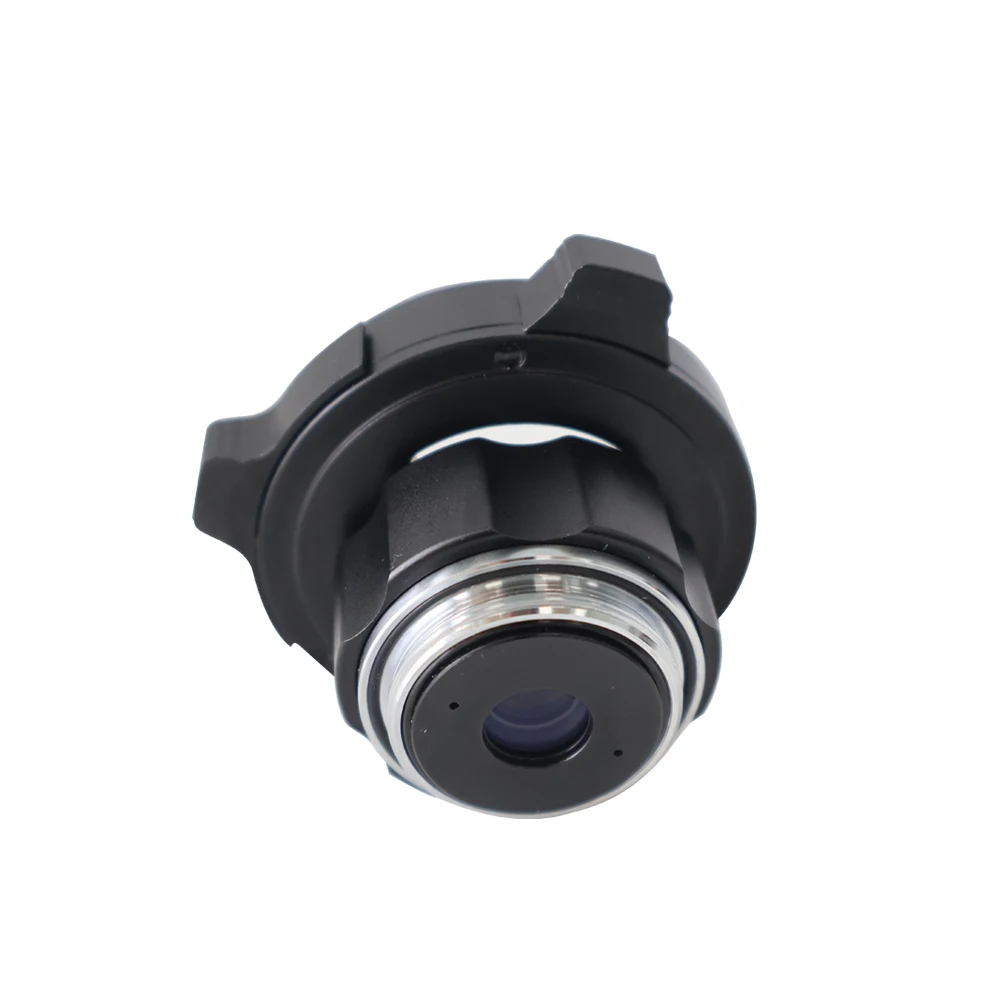

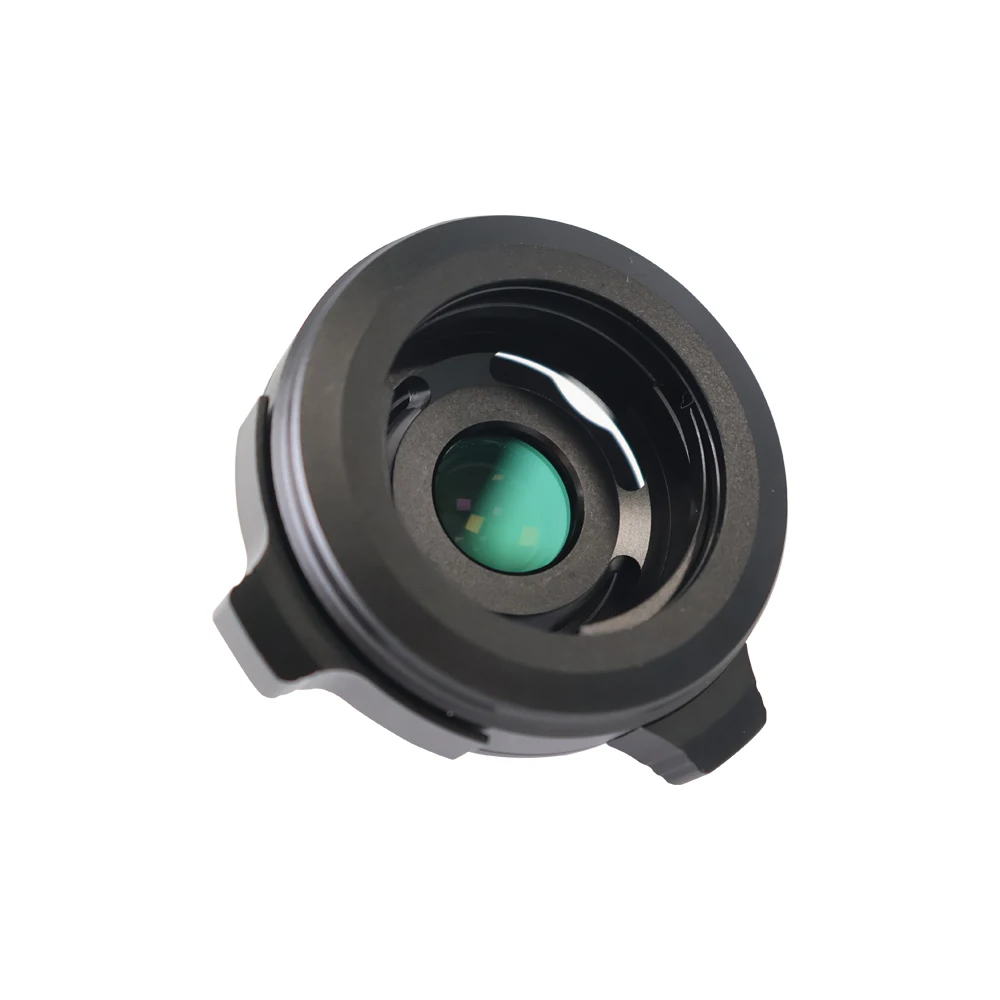

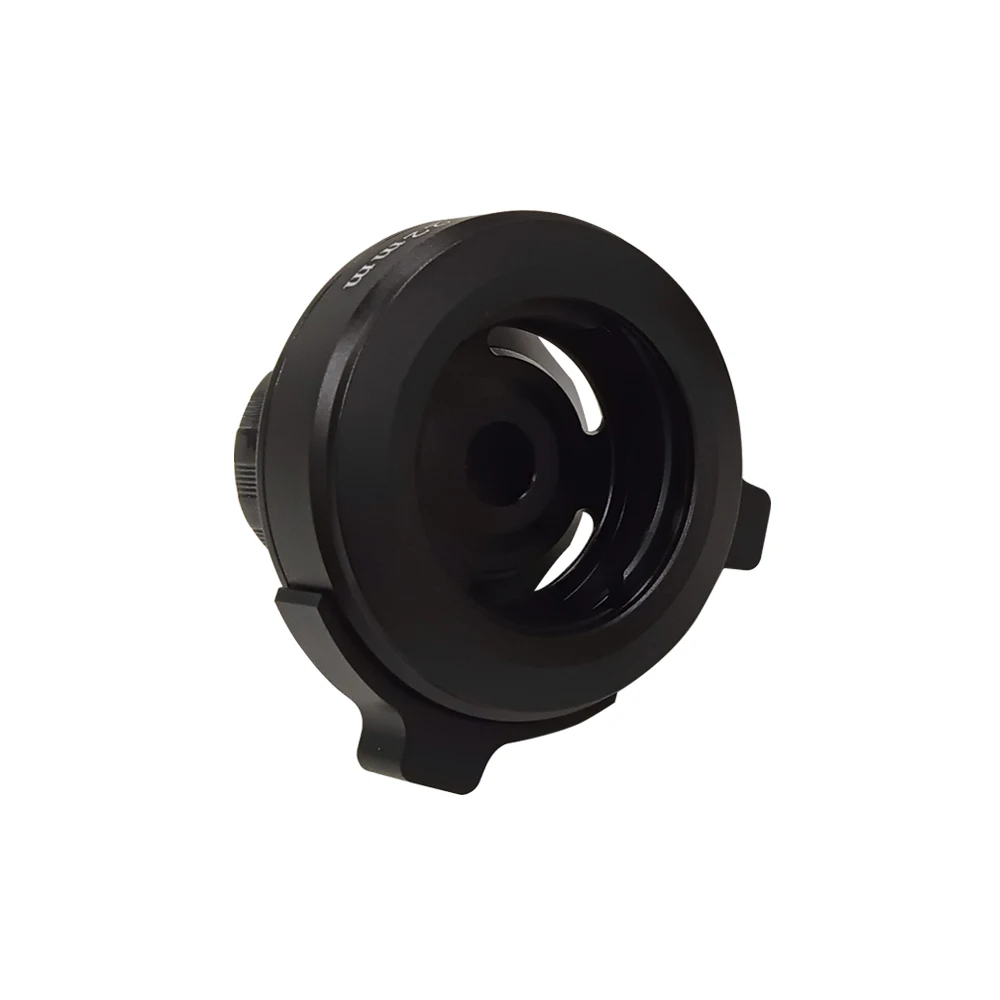

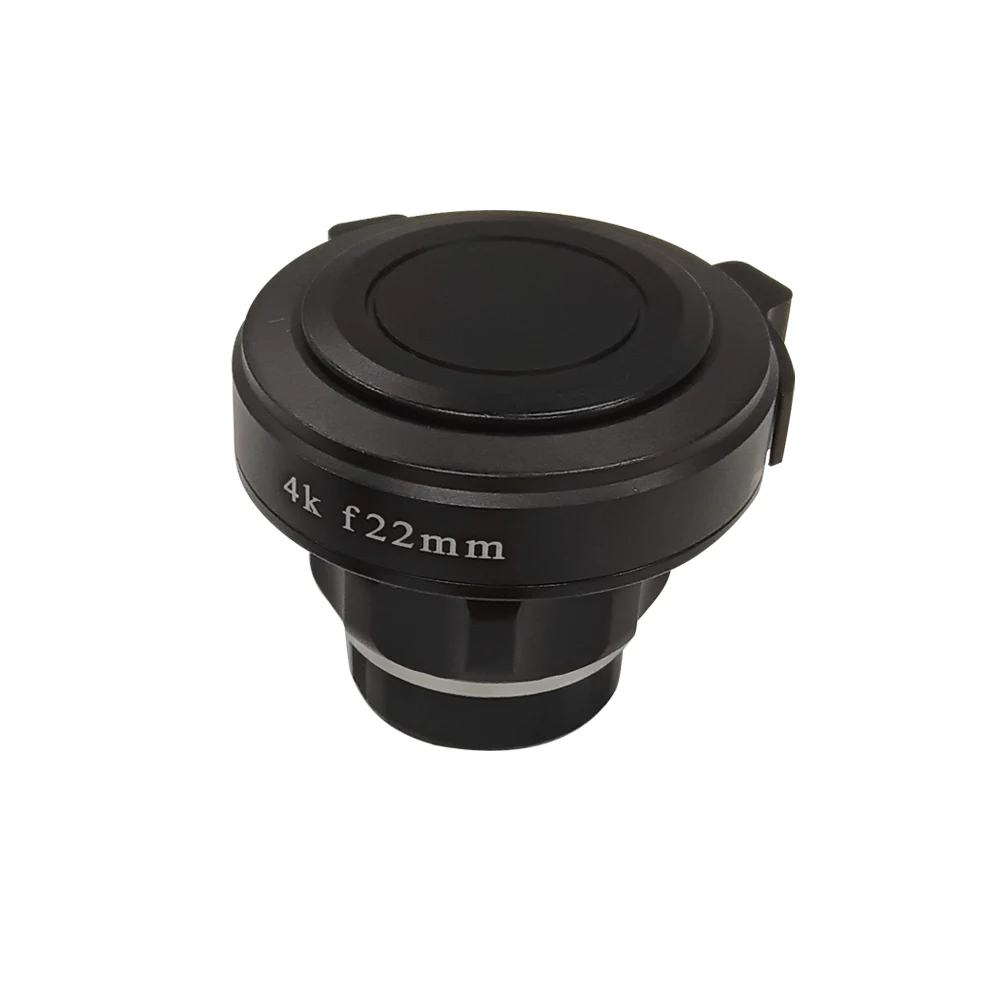

TUYOU High quality medical equipment accessories fixed coupler
- Category: >>>
- Supplier: SHENZHEN TUYOU MEDICAL IMAGING CO. LTD.SHENZHEN LTD.
Share on (1601277415887):
Product Overview
Description
Product Parameters
Product Item No. | TU-Y4HDSC |
Parameters | ||
Resolution | SDI:1080P@30fps,1080P@60fps | |
Output | DVI+HDMI+SDI+CVBS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
SDI | HD-SDI/EX-SDI switchable | |
IMAGE SENSOR | 1/2.8” or 1/1.8" SONY CMOS(IMX385) | |
BRIGHTNESS | 1-20 steps | |
SHARPNESS | 1-20 steps | |
BACKLIGHT | OFF/BLC/HLC/WDR | |
AWB | Preset/Purshing | |
FREZZ | SUPPORT | |
D-ZOOM | Image zoom in /out | |
Endoscope mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT | |
Working temperature | -10℃-+75 ℃ | |
LANGUAGE | CHINESE/ENGLISH....etc | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Power Supply | DC12V ±10%<1.7W | |
Power consumption | 1 .2 W（≤100mA ） | |
Working Current | 140mA±10mA | |
Processor Size | 2000x1700x170mm | |
Please Note | The optic endoscope is Recommend part. | |
Product Color | Black and Blue color is available. | |

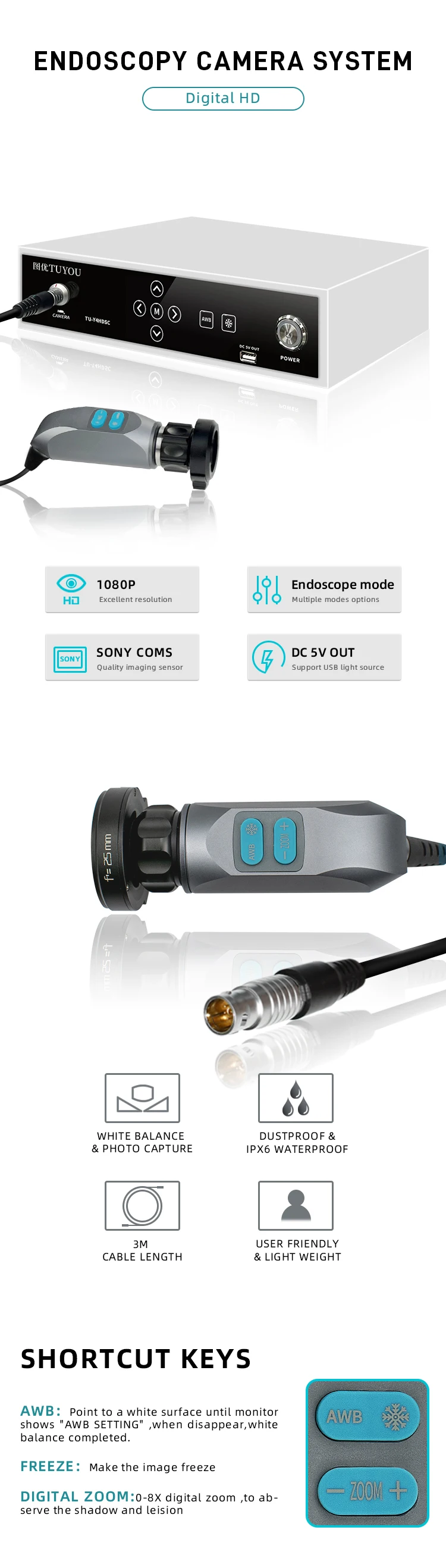

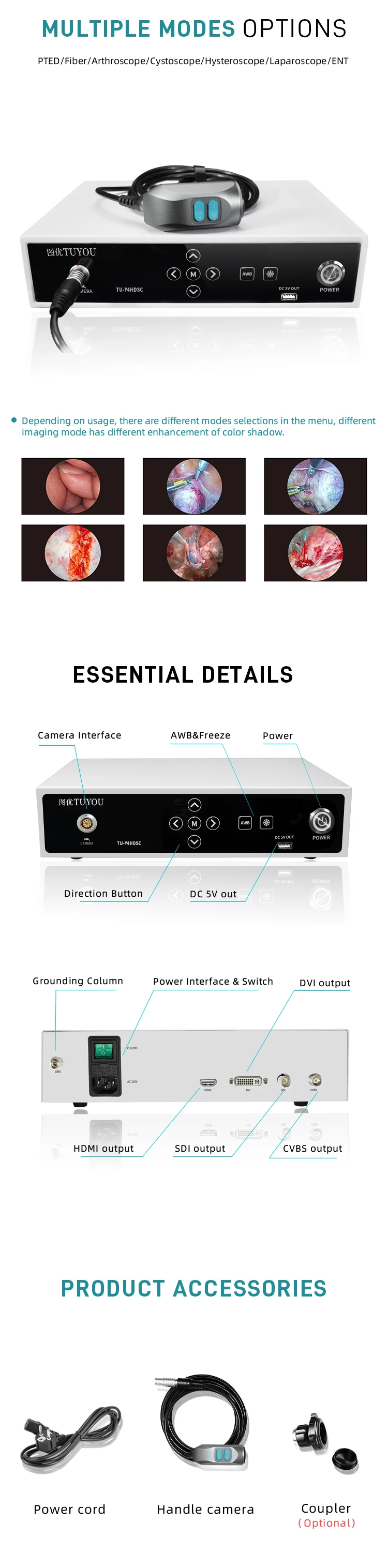

Product Description
Product Composition:
Endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical.
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function. Widely used in medical industry.
TU-Y4HDSC Features:
● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;
● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope,
Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
Endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical.
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function. Widely used in medical industry.
TU-Y4HDSC Features:
● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;
● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope,
Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
Notes: In different lens models, optical lenses should be matched. Some shots match as below:
SIZE | Laparoscopic | Synscope | Laryngoscope | Hysteroscope | Arthroscopye |
1/2" | 35mm | 28mm | 28mm | 28mm | 28mm |
1/3"(native) | 28mm | 22mm | 22mm | 22mm | 22mm |
1/4" | 22mm | 18mm | 18mm | 18mm | 18mm |
Customer Feedback
Company Profile
Shenzhen Tuyou Medical Imaging Co., Ltd. was established in 2005, with 3500 square meters automated SMT dust-free workshop and over 50 employees, specializing in R&D, production and sales of medical equipment. Depending on leading HD image technology and sincerely considerate service, our company has already earned customers' trust and built a good reputation in medical Industry both domestically and internationally.
We have successfully developed 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K/1080p medical endoscope camera and high quality endoscope camera cable, etc. So far, we can offer ONE-STOP medical solutions for our customers.
Tuyou brand comes from our boss Gordon's idea, the Chinese meaning is ‘perfect image’, at the same time, it also means providing high-quality medical products and reliable services to you (TUYOU) as our mission. Our vision is continuing to develop our products in order to meeting the needs of market and our customers, and achieving the win-win business with our customers together.
We have successfully developed 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K/1080p medical endoscope camera and high quality endoscope camera cable, etc. So far, we can offer ONE-STOP medical solutions for our customers.
Tuyou brand comes from our boss Gordon's idea, the Chinese meaning is ‘perfect image’, at the same time, it also means providing high-quality medical products and reliable services to you (TUYOU) as our mission. Our vision is continuing to develop our products in order to meeting the needs of market and our customers, and achieving the win-win business with our customers together.
