PN1250mm AWG PVC rewinding machine extruder ColumnType Cable Pay off And Take up Machine For Wire Feeding And Releasing
- Category: >>>
- Supplier: Shanghai Qi Pang Industrial Co. Ltd.
Share on (1601277427494):
Product Overview
Description

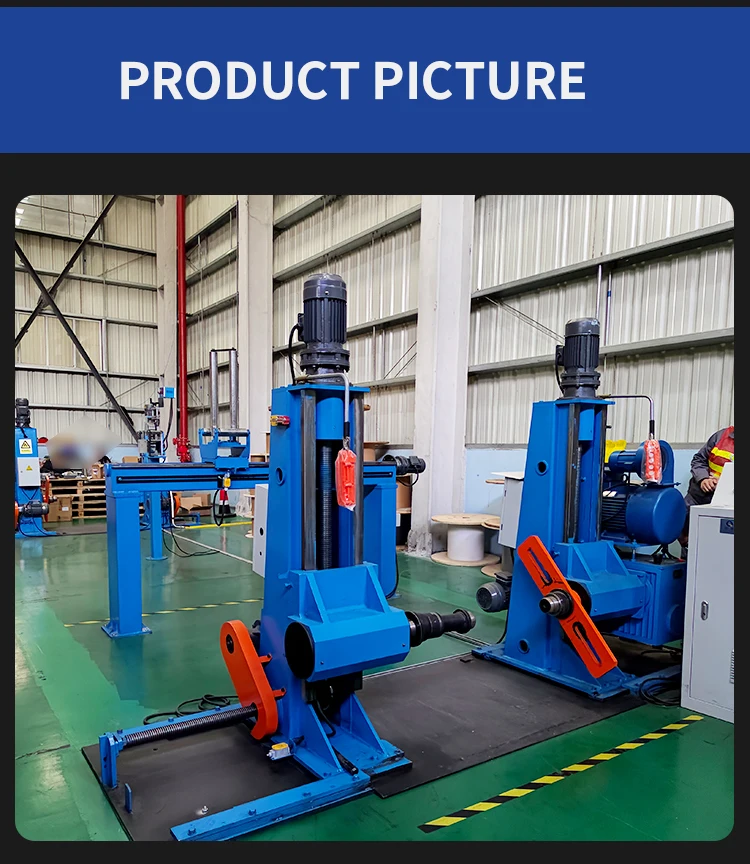

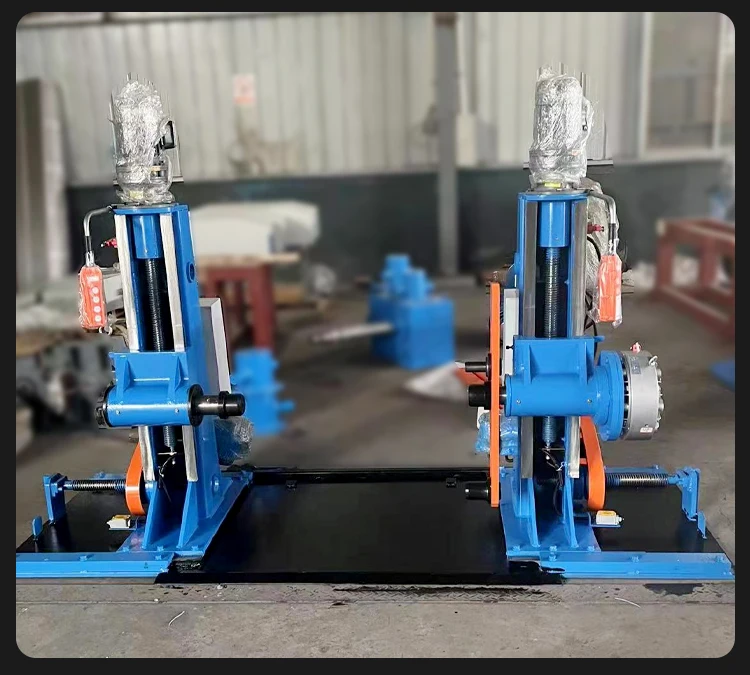

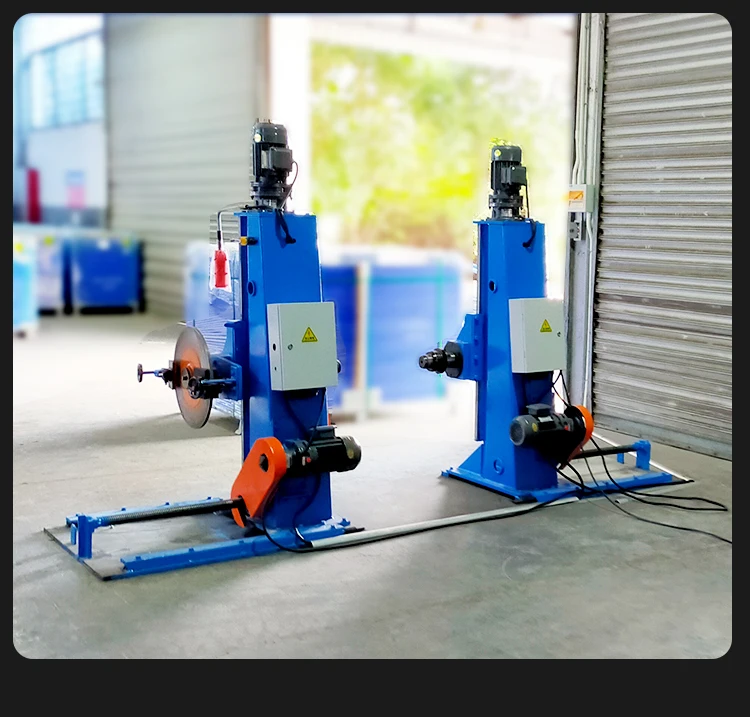

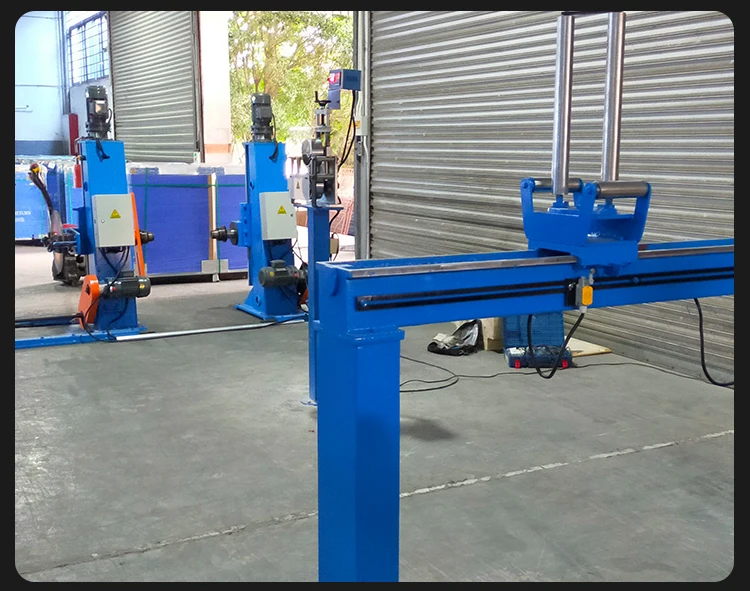

PN1250mm AWG PVC rewinding machine extruder ColumnType Cable Pay-off And Take-up Machine For Wire Feeding And Releasing
Product Description
End-shaft structure, the frame is made of bending and welding; the two tops of the wire reel are driven by two motors through a cycloidal reducer to drive the screw nut to rise and fall, each top seat can be raised and lowered separately or simultaneously, and is equipped with mechanical and electrical dual protection devices. When necessary, different specifications of top sleeves can be equipped to meet the installation of wire reels of different specifications
Specification
Model: | 1250mm Cable Pay-off And Take-up Machine |
Applicable Reel OD: | Φ800-Φ1600 |
Suitable Material Diameter: | Φ3--Φ60mm(Max) |
Take-up Speed: | 120m/min（max） |
Cable Arrangement Motor: | 0.75kw/1500 rpm AC motor + cycloidal pinwheel reducer |
Take-up Motor Power: | JLJ160-60-6 torque motor/ 5.5kw AC variable frequency motor |
Power supply: | Three-phase AC, 50HZ 380V |
