Plastic water cup making machine PP PET cup container production line thermoforming machine
- Category: >>>
- Supplier: Zhejiang Wylong Machinery Co. Ltd.
Share on (1601277459346):
Product Overview
Description
Plastic Disposable Water Drinking Cup Making Machine Thermoforming Machinery
Application
The thermoforming Machine Can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.PLC for program, manual interface for operation, stable, low noise, and high efficiency.
Our machine's Advantage
1,we manufacture plastic cup forming machine more than 15 years, working more stable .
2,Industrial manual interface and PLC of Panasonic(Japan) make the high degree automation ,accurate control and convenient operation .the document storage function simplifies the operational processes.
3,workung stations is driven by stable four guiding-pillars structure ,wear resistant and extend equipment life.
4,the heater added vacuum insulation cotton,which shows quick respinse rate ,short processsing time,and save energy
Specification
plastic cup forming machine | Model :ZH-750/450 |
Sheet Materials | PP.PS.PET.PE.ABS |
Sheet Width | 550-750mm |
Sheet Thickness | 0.3-2.5mm |
Max. Forming Area | 730*450mm |
Max. Cup Height | 170mm |
Forming Pressure | 0.5-0.8Mpa |
Productivity（cycles） | 10-35cycles/min |
Motor Power | 11kw |
Heading Power | 80kw |
Total Weight | 5ton |
Water Consumption | 35-40L/min |
Air Consumption | 2500-3500L/min |
Overall Dimensions | 4000*1700*2200MM |
spare parts
PARTS NAME | ORIGIN |
Oil Pump | USA (PARKER) |
Motor | CHINA |
Hydro-cylinder | JAPAN (Yuciyuken) |
Reversing Valve | JAPAN (Yuciyuken) |
Spill Valve | JAPAN (Yuciyuken) |
Magnetic Valve | Japan (SMC) |
Air Cylinder | China Taiwan （Airtac) |
Relay | Schneider |
Temperature controller | Japan (YAMATAKE) |
PLC | Japan (Panasonic) |
Touch screen | Taiwan (WeinView) |
Other Electrical equipment | Schneider |
Remarks: The standard offer does not include servo motor, if customer need to change to servo motor, the offer will be different, for Robot Hand System, it is the same case.
Machine Structure

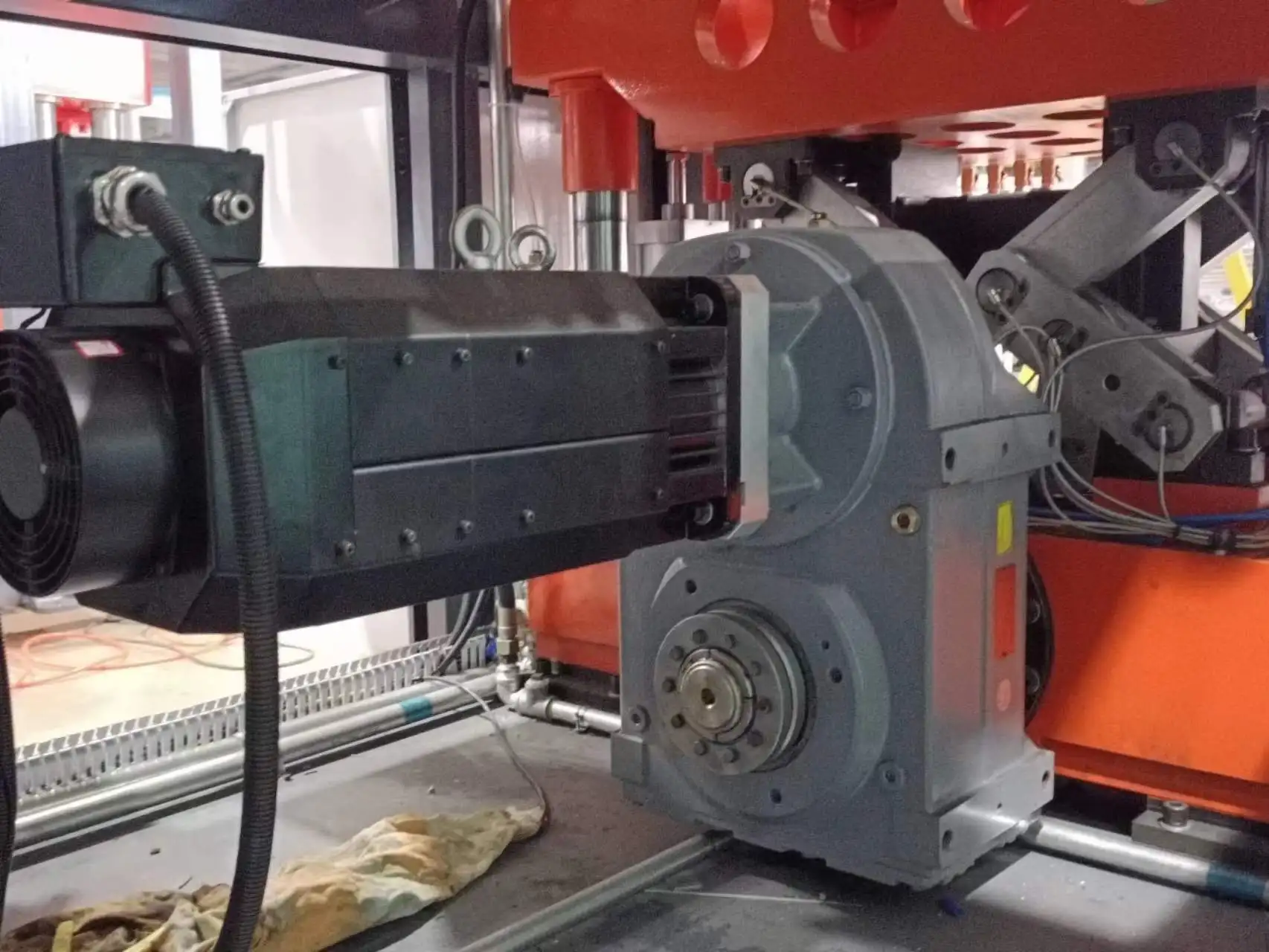

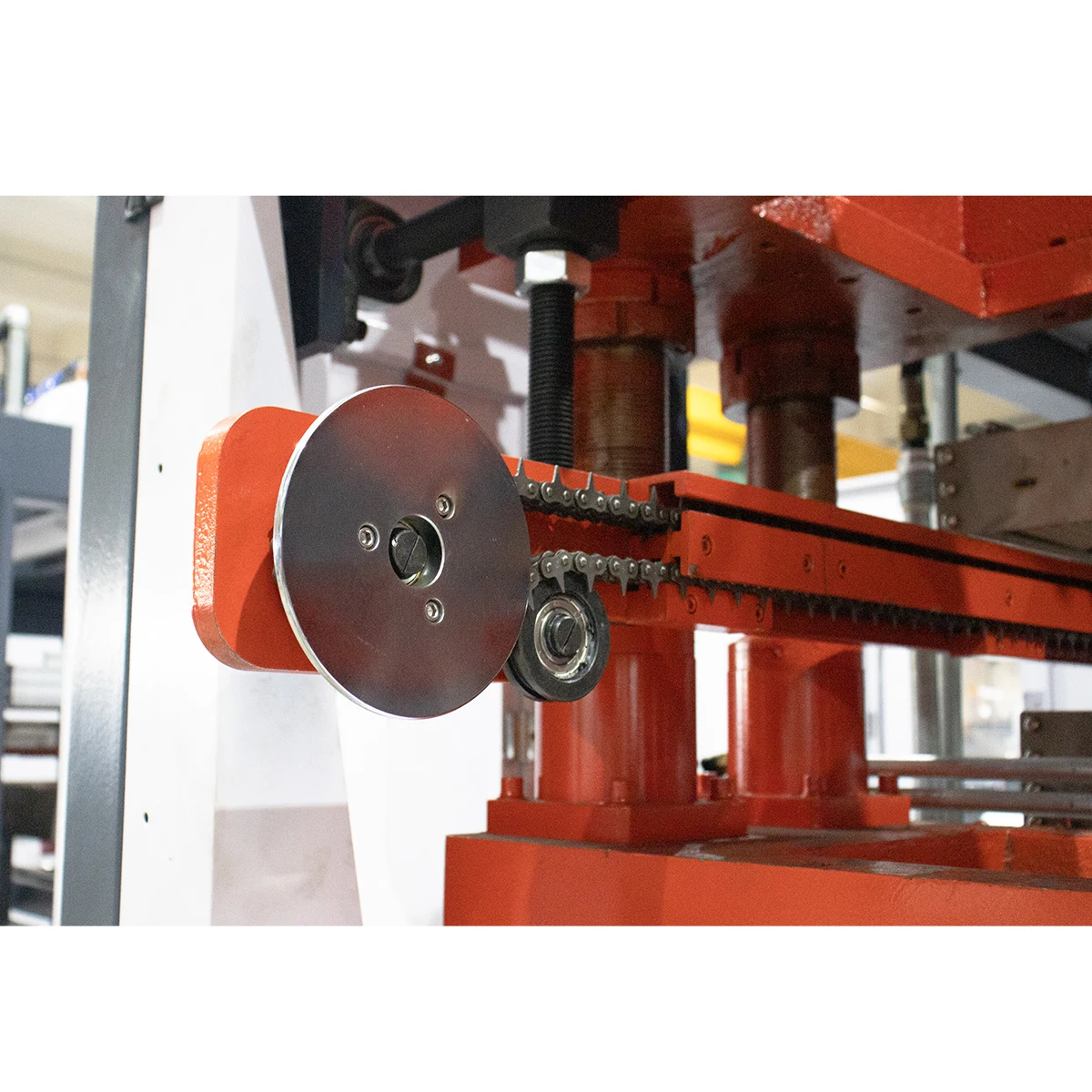

sheet feeding part (taiwan motor).aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor.
Heater:The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.

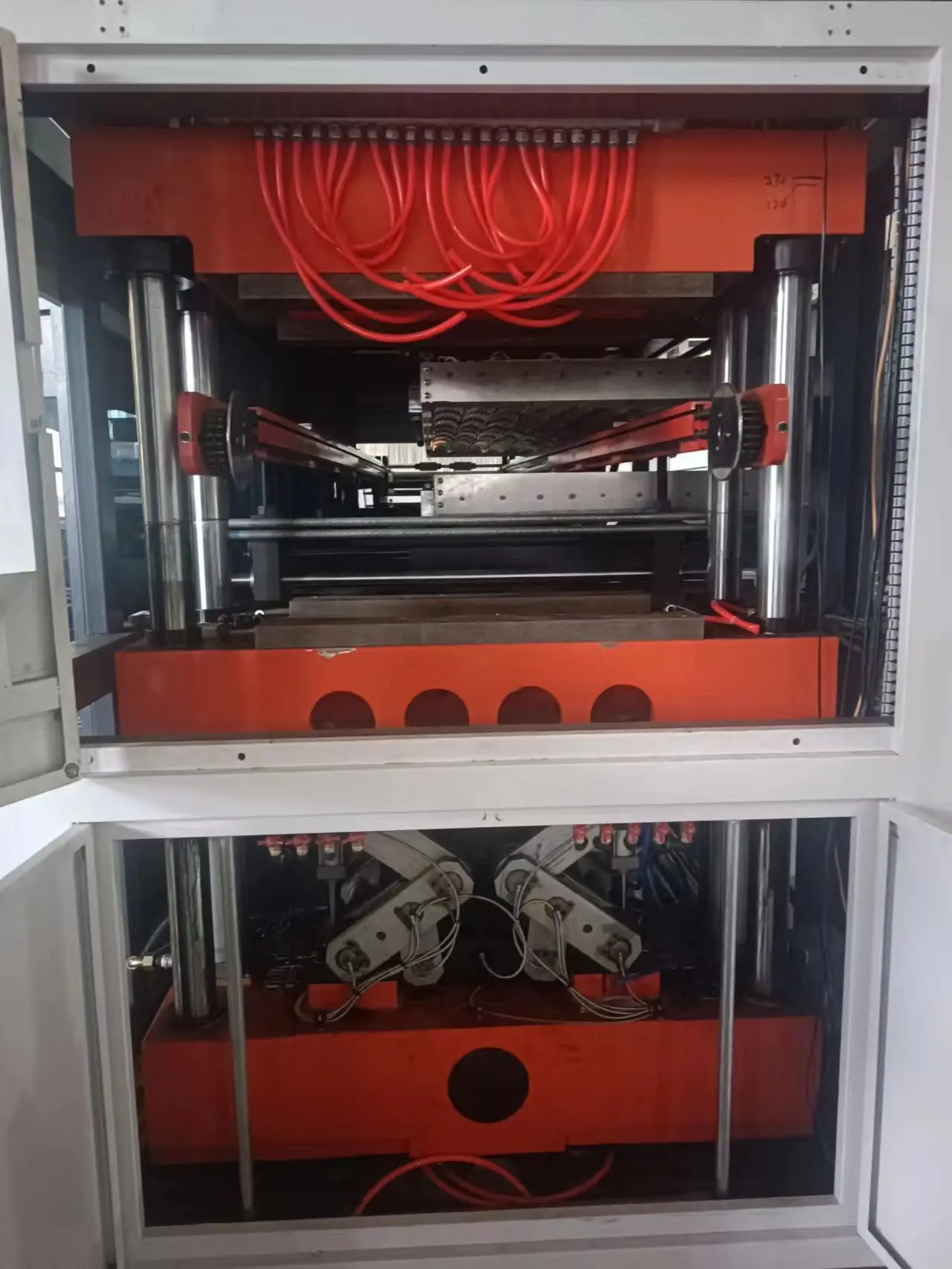

4 Pillars Construction can be performed for much better quality of products with different shapes (round, rectangular, oval, square shape with big sizes), highly increase the rate of finished products, and more steadily operation.
The whole part is driven by hydraulic system, which is reliable and steady,leads to excellent mould positioning precision.

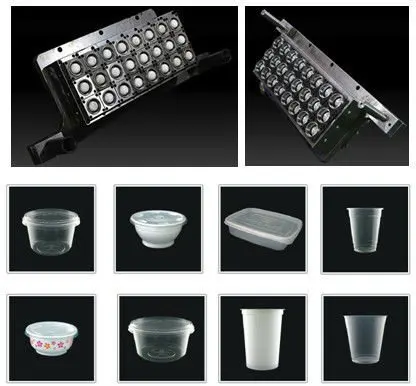

mould usage: One mould can only make one products, so if you need to make different products on one machine, you need extra moulds.
2.Material of mould frame: NO.45 Steel
3.Material of the cavity: aluminum
4.Material of the cutters: Cr12mo Steel
5.Material of base: NO.45 Steel
5.Material of base: NO.45 Steel

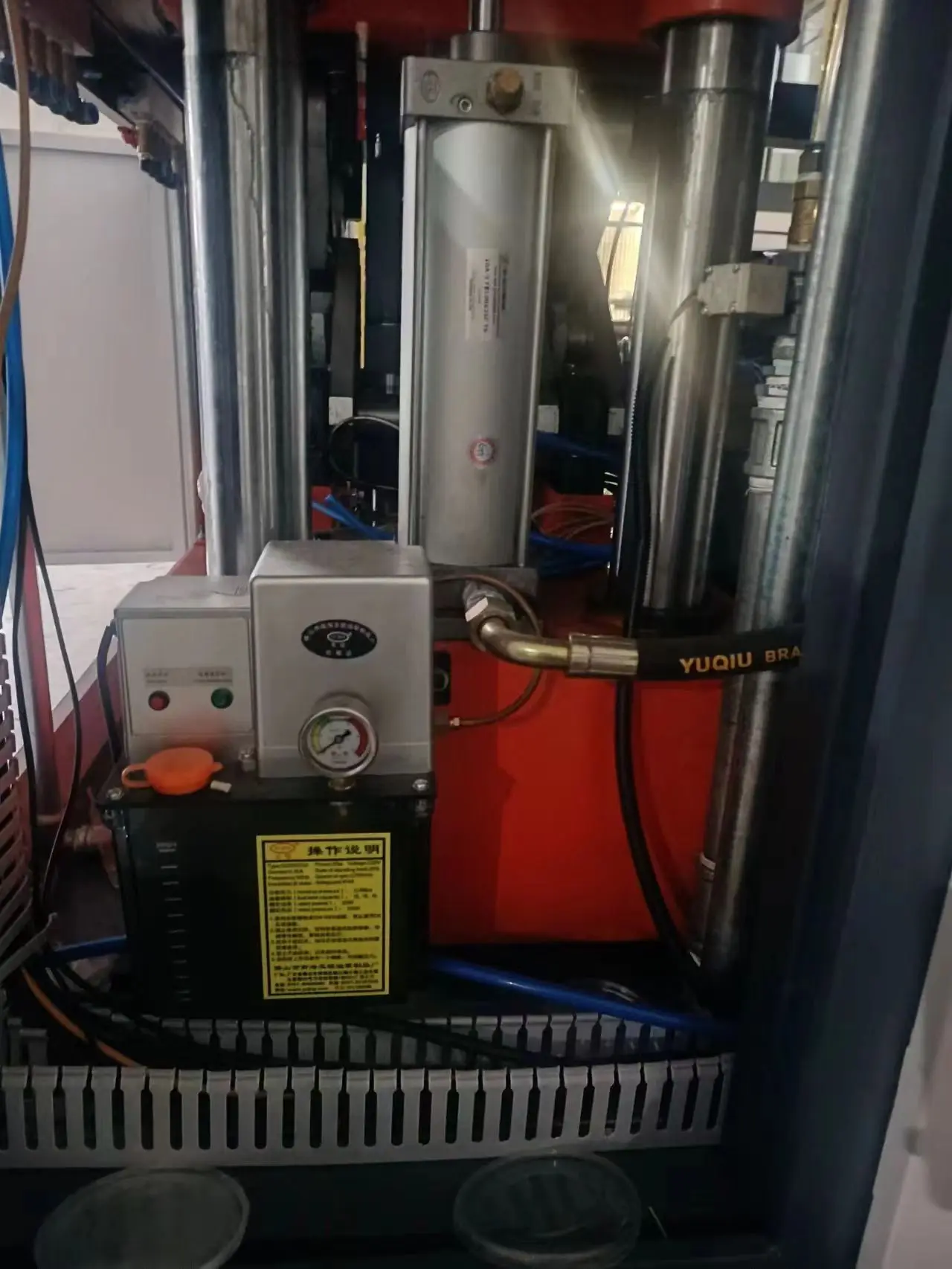

The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rotating part of the machine get proper and reasonable lubrication..
Hydraulic driven system can provide adequately movement speed and strongly punching power..
Stretching cylinder controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly.
Electrical:The layout of the electrical cabinet is reasonable, and it is easy to maintain. It can be upgraded and maintained remotely.

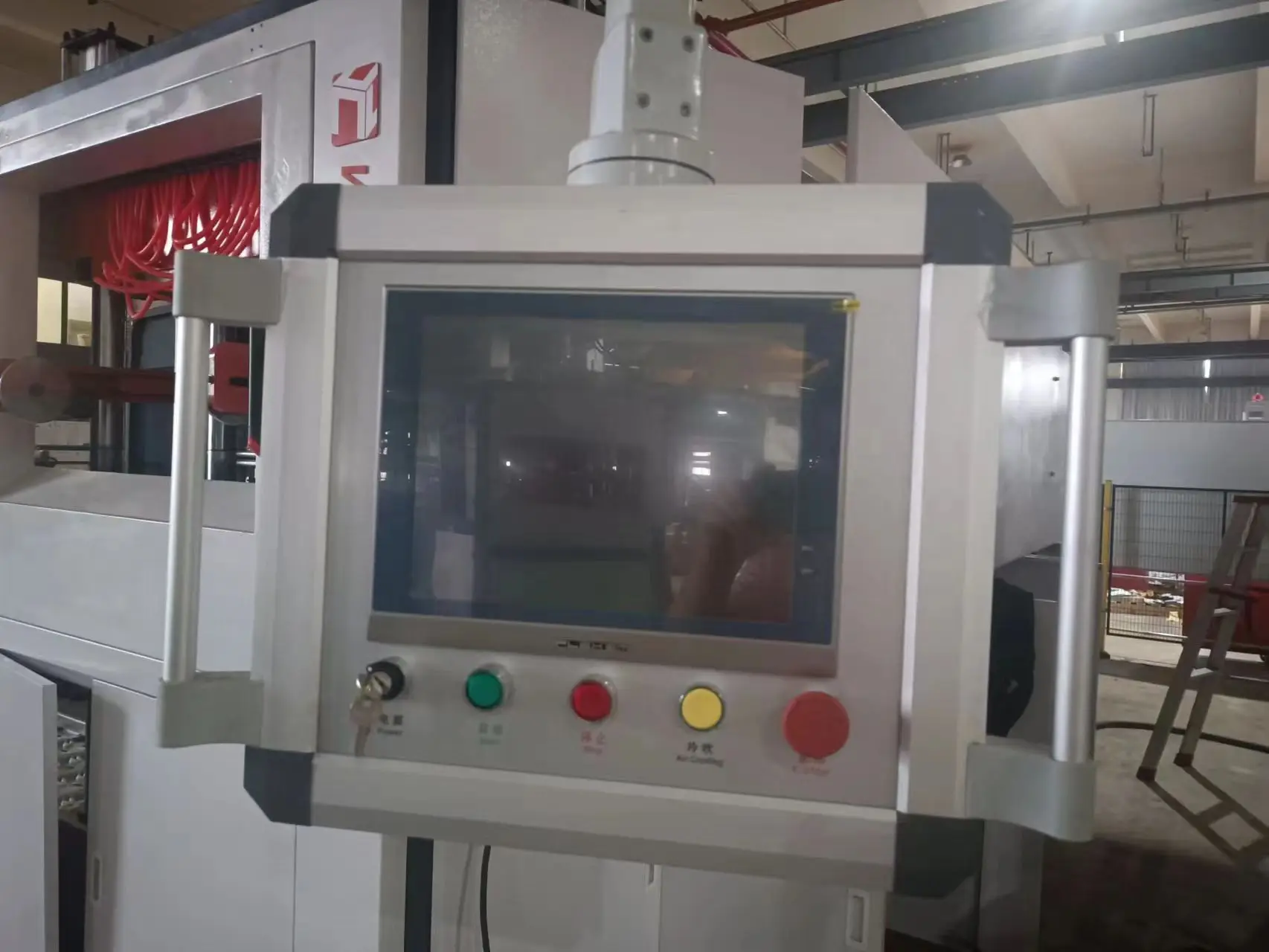

Touch Screen:Easy to operate, all-electric adjustments can be done on the touch screen.

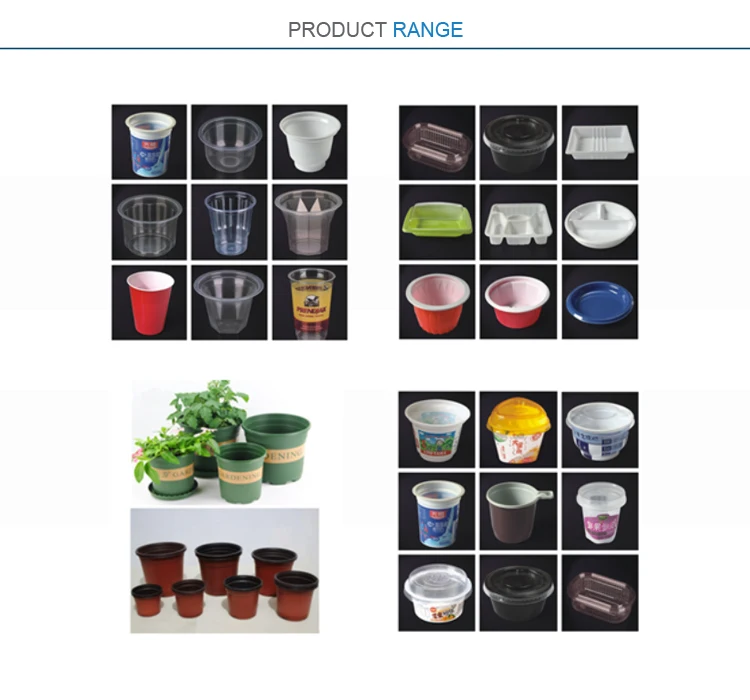

Product Range
Related product
Certifications
Company Profile
Packing and Delivery
FAQ
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime
overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation. Q5: What about the payment terms? Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation. Q5: What about the payment terms? Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Q6: What is the capacity of the thermoforming machine?
Reply: The accurate capacity depends on the size and material of the products.
Q7: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.
