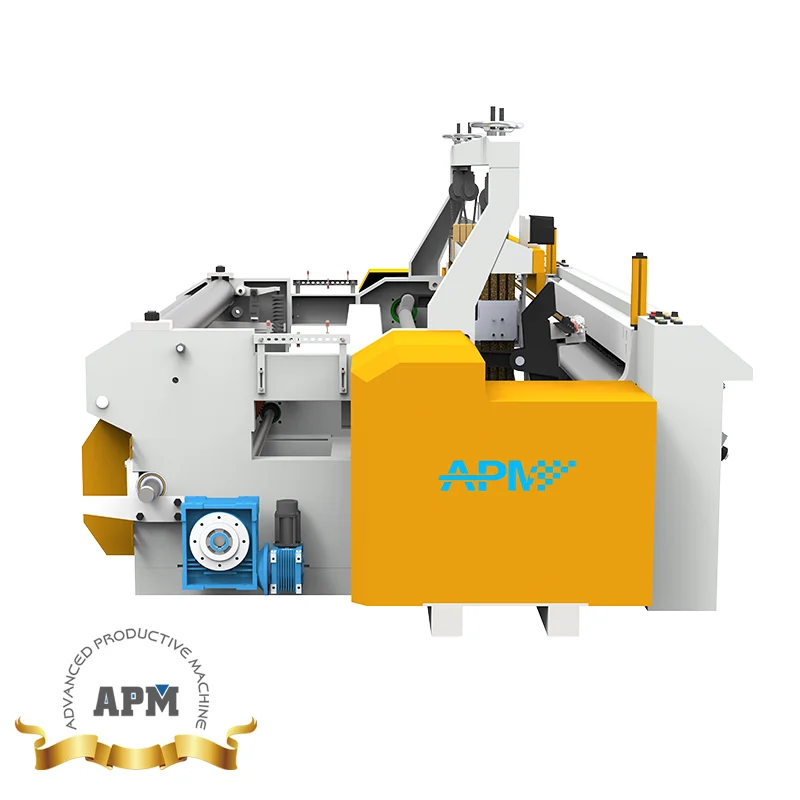

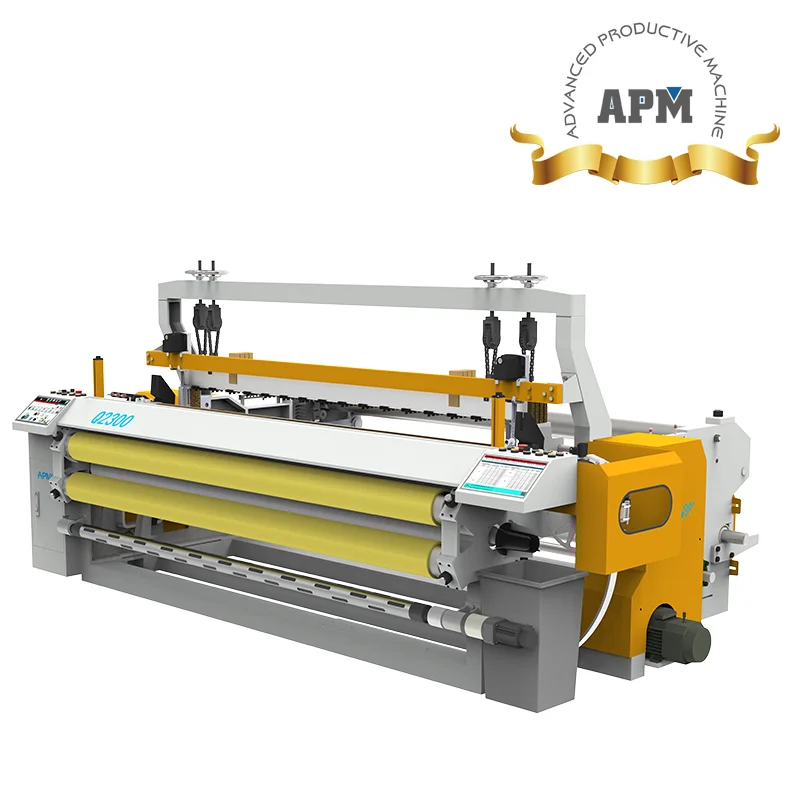

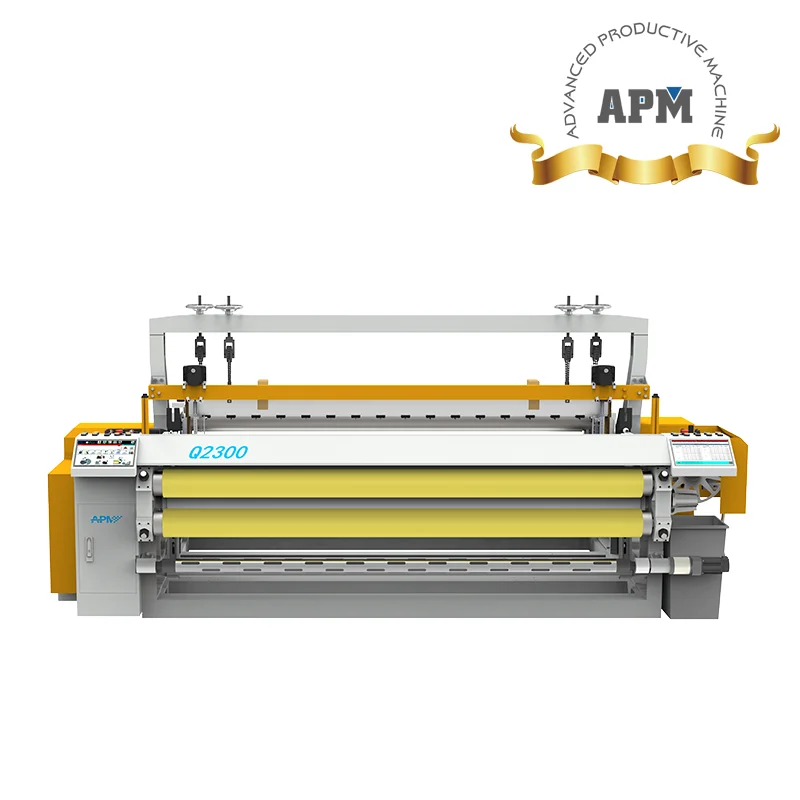

Weaving Machine New Stainless Steel Filter Screen Nickel Cloth Molybdenum Fabric Platinum Gear Core PLC Manufacturing Plant

Product Overview

Description

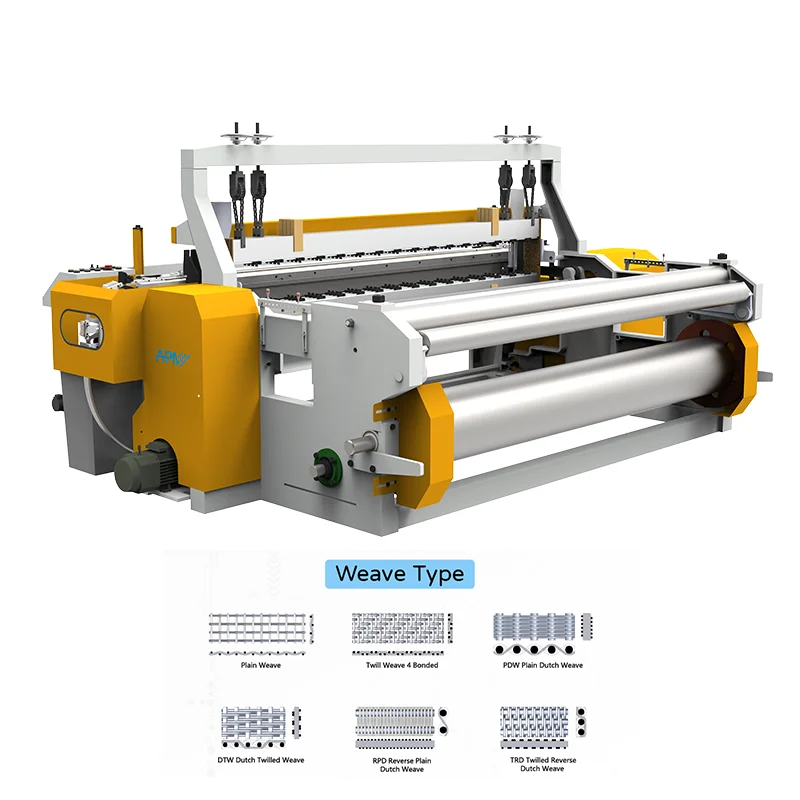

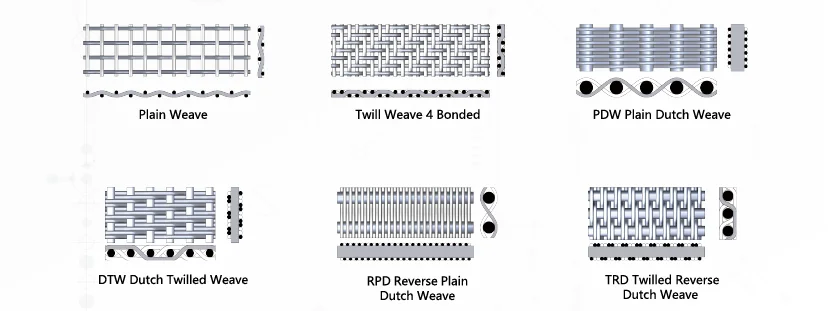

The machine adopts PLC programmable control system, through servo motor and turbine reducer control cloth take-up and warp let-off to achieve automatic mesh tension adjustment, so that the mesh precision is high. Which can be more accurate weaving 200 square mesh with the standard wire diameter and also weave up to 300 Dutch mesh, such as: plain weaving, Twill weave, Dutch weave and Reverse Dutch; The direct drive AC servo weft insertion can adjust the rapier return time and the length and time of the second pulling at will. The limit setting of the rapier belt not only effectively protects the rapier belt and head but also improves the safety factor of the rapier belt operation. The absolute encoder is used to prevent accidents and defects such as abnormal power failure, brake instability, and data loss resulting in the clamping of the rapier belt, making the operation more stable.

The woven metal mesh is widely used in petroleum, chemical, machinery,  aerospace and other industrial sectors of liquid, gas filtration and solid particle screening.

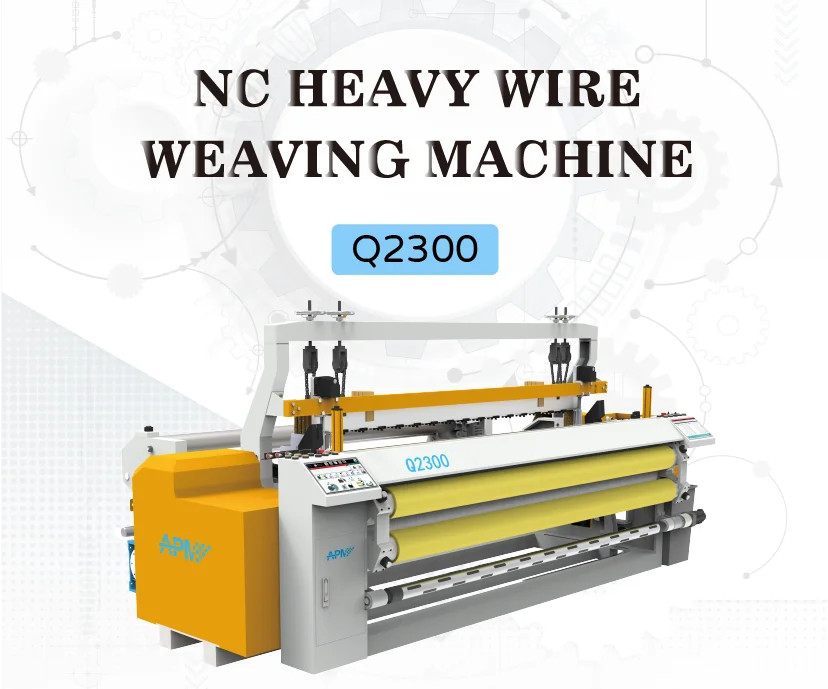

Machine Type	Q
Weaving Width	1000mm,1300mm,1600mm,2000mm,2500mm
Weaving Speed	Square Mesh: 0-120Mesh Dutch Mesh: 300Mesh
Warp/Weft Wire Range	Blow 0.60mm
Driver Way	Electromagnetic Brake Motor Driver, Variable frequency Speed Regulation
Heddle Frame	2,4

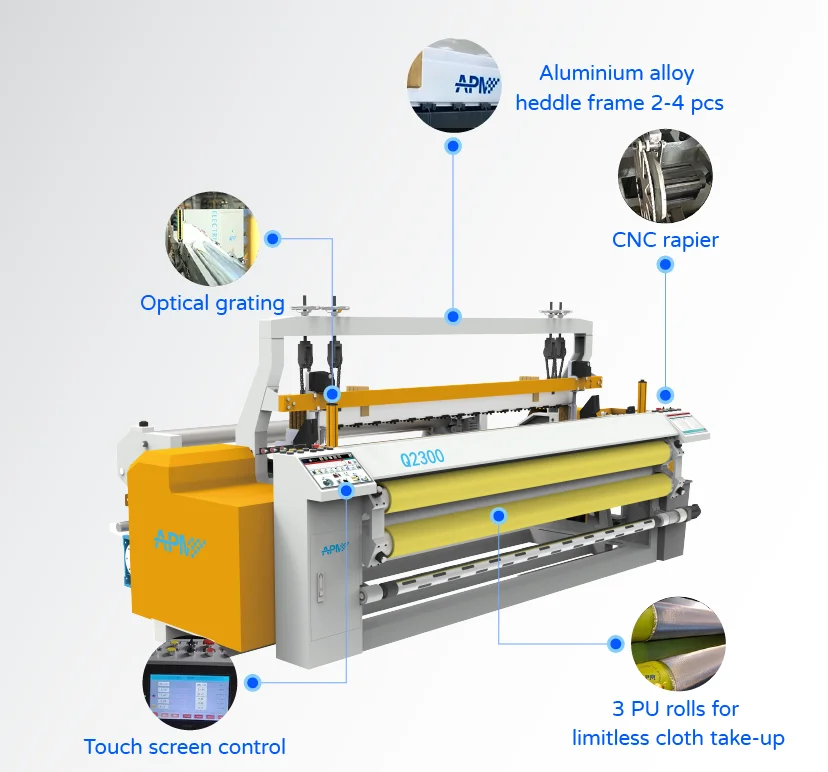

Shedding Mechanism	Aluminum heddle frame, Cam Shedding
Beating Mechanism	The crankshaft is a 75mm diameter, 45 (55) steel monolithic forging, and the slay (70 square steel) is made of carbon structural steel after heat treatment;
Weft Insertion	2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion
Warp let-off System	Servo motor drive, wire electronic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism
Cloth Take-up System	Servo motor drive, 3Pu coating beam unlimited cloth mechanism, digital display braid length
Control System	New weaving machine control system





























1.How about your machine’s working speed and output?

A:Please contact our professional salesman, you can get all the details.

2.How to learn the operation of your machine?

A: 1) We can send our engineer to your factory for training

  2) You can send your machine operator to our factory

  3) We can send you a video for learning

3.If the parts was broken, how about the solution?

A: 1)Non-artificial damage parts, within warranty period, can be provided free of  charge

   2)Custom-made parts with detailed drawing can be provided

4. Are you trading company or manufacturer ?

A: We are factory.

5. How long is your delivery time?

A: Generally it is 30-45 days. It is according to quantity.

6. Do you provide samples ? is it free or extra ?

A: No, we couldn't offer the sample for free charge but we can provide video

7. What is your terms of payment ?

A: Paymen 50% T/T in advance ,balance before shippment.

8.How to better recommend machines for you?

A:We need to know the below detail specification to recommend the right machine for you accordingly.

1.Opening range or mesh value

2.Wire diameter range

3.Weaving width

4.Raw material grade

5.Weaving types
