Hot selling small type vacuum forming machines thermoforming machine
- Category: >>>
- Supplier: Changzhou City Caihua Packaging Machinery Factory
Share on (1601277487594):
Product Overview
Description
Product Description

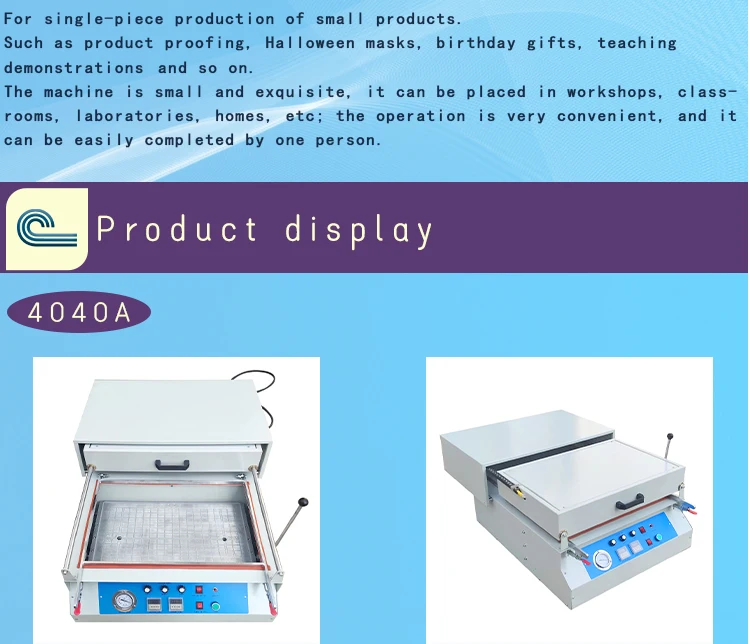

For single-piece production of small products. Such as product proofing, Halloween masks, birthday gifts, teaching demonstrations High school CNC education.Institute of industry technology education.and so on.

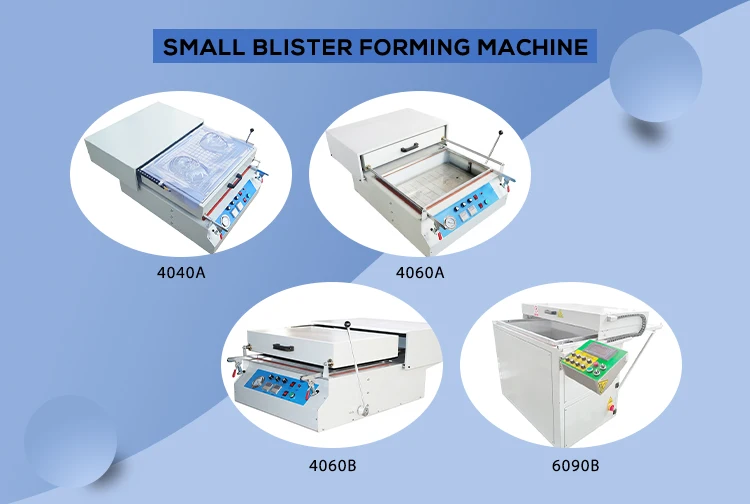

Model | 4040A |
Working Area | 400*400MM/15-3/4*15-3/4" |
Power Supply | 220V |
Max Power | 3.6KW |
Max Vacuum Deep | 150MM |
Machine Size | 1260*670*430MM/37-13/32*19-11/16*17-23/32" |
① Simple structure in linear type, easy in installation and maintenance.
② Single working station, heating box with protect lid.
③ Three separate heating zone, every zone has different temperature controller.
④ Hand leaver up, pump will be auto work.
⑤ Vacuum pump at the bottom of machine.
② Single working station, heating box with protect lid.
③ Three separate heating zone, every zone has different temperature controller.
④ Hand leaver up, pump will be auto work.
⑤ Vacuum pump at the bottom of machine.

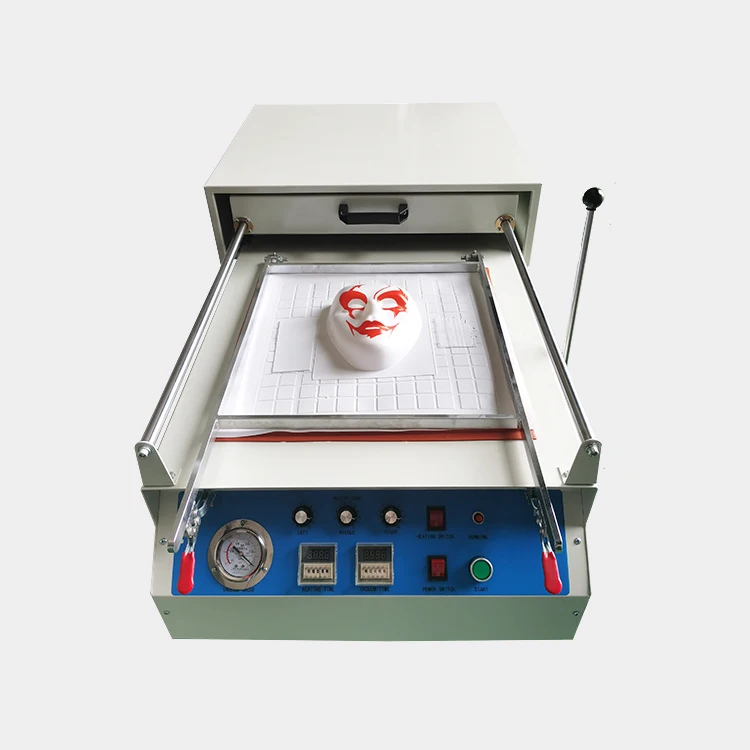

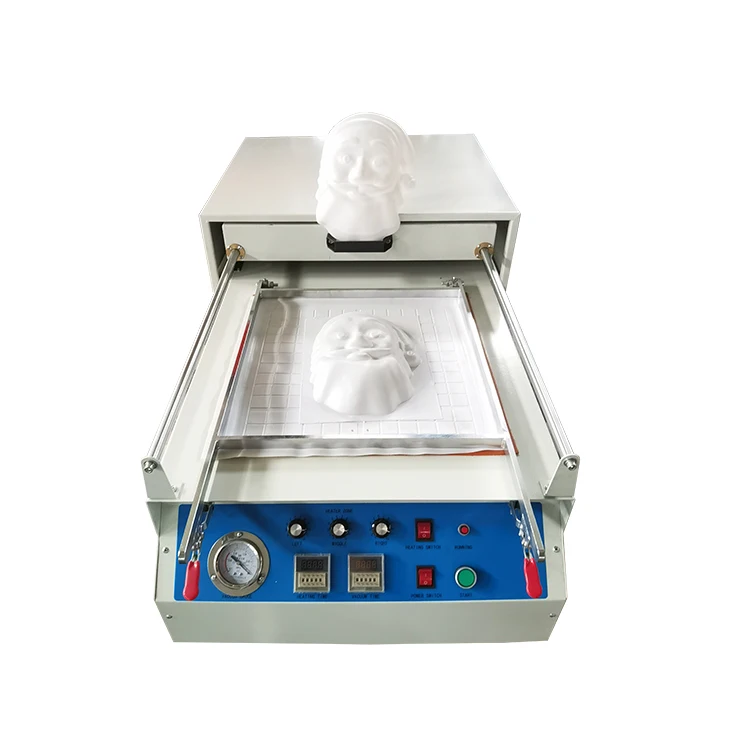

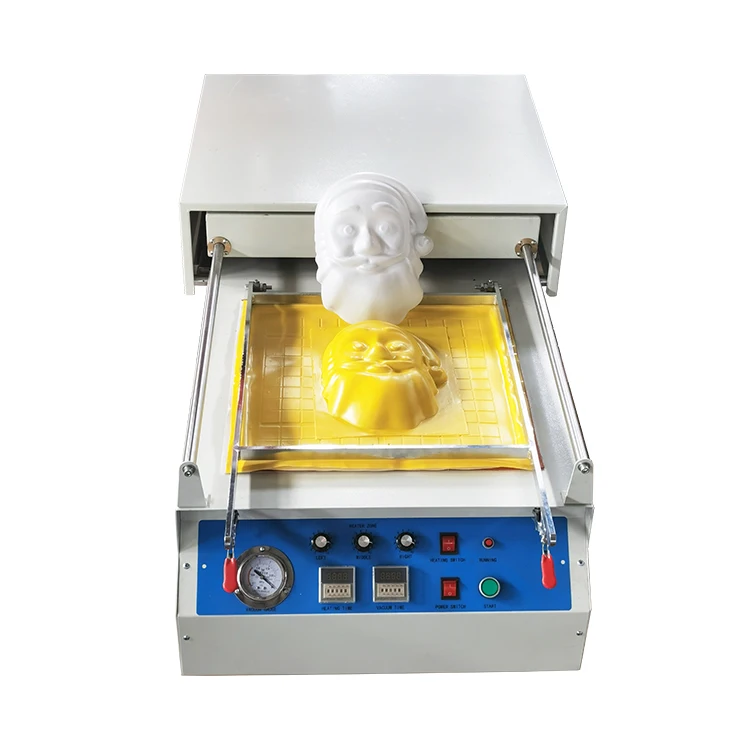

Machine structure
Working process of machine is: clamp sheet -- moved heating box -- heating -- taken heating box -- mould up -- cooling -- mould
down -- clips loose -- take finished products.
down -- clips loose -- take finished products.
structure:
1.heating box2. Guide rod of heating box
3. Clamp frame
4. Clips
5. Tray of mould

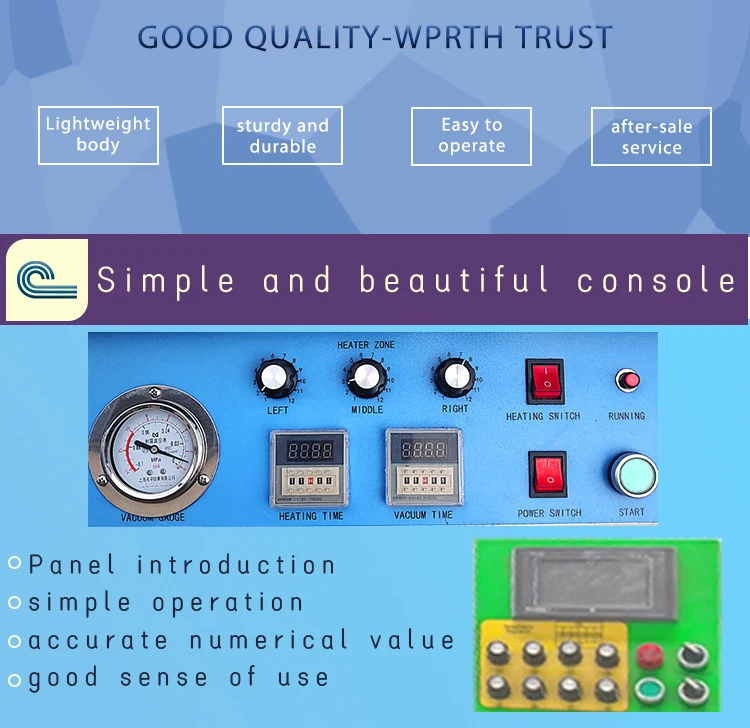

6.Control panel
7. Hand lever
Technique Data
Working Area :400*400MM/15-3/4*15-3/4"
Holding Material Size :450*450MM/17-23/32*17-23/32"
Max Power :3.6KW
Max Vacuum Deep :150MM/5-29/32"
Material :PMMA(acrylic),ABS,PVC,PET,PETG,EVA,XPE,PS
Max Thickness: 4MM/5/32"
Heating Temperature :0-300℃
Machine Size :950*500*450MM/37-13/32*19-11/16*17-23/32"
Weight :130KG/176.4lbs
Holding Material Size :450*450MM/17-23/32*17-23/32"
Max Power :3.6KW
Max Vacuum Deep :150MM/5-29/32"
Material :PMMA(acrylic),ABS,PVC,PET,PETG,EVA,XPE,PS
Max Thickness: 4MM/5/32"
Heating Temperature :0-300℃
Machine Size :950*500*450MM/37-13/32*19-11/16*17-23/32"
Weight :130KG/176.4lbs
Units
1). Complete vacuum system includes vacuum Tank, vacuum pump, vacuum storage gas pot, vacuum pipeline, adjustable air cleaner device and vacuum controlling unit.
2). Cooling system assemble air blower and spray gun. The spray gun could be adjusted according to different products making.
3). This machine controlled by electric control system and controls the operation of equipment. Operation panel installed at the left of front side and free to turn.
2). Cooling system assemble air blower and spray gun. The spray gun could be adjusted according to different products making.
3). This machine controlled by electric control system and controls the operation of equipment. Operation panel installed at the left of front side and free to turn.
Basic Units
1). Heater adopts infrared ray heating system.
2). Heater drives by cylinder to insure heater work fleetly and placidly.
3). The equipment with the safety and protection equipment.
4). Clamp unit, controlled by pneumatic solenoid valve. Clamping unit assembled synchronous unit for material pressing. This machine adopts iron clamp bracket, which can bear high temperature, avoid the clamp bracket metamorphosed and adjust width and length arbitrarily.
2). Heater drives by cylinder to insure heater work fleetly and placidly.
3). The equipment with the safety and protection equipment.
4). Clamp unit, controlled by pneumatic solenoid valve. Clamping unit assembled synchronous unit for material pressing. This machine adopts iron clamp bracket, which can bear high temperature, avoid the clamp bracket metamorphosed and adjust width and length arbitrarily.
Main Features

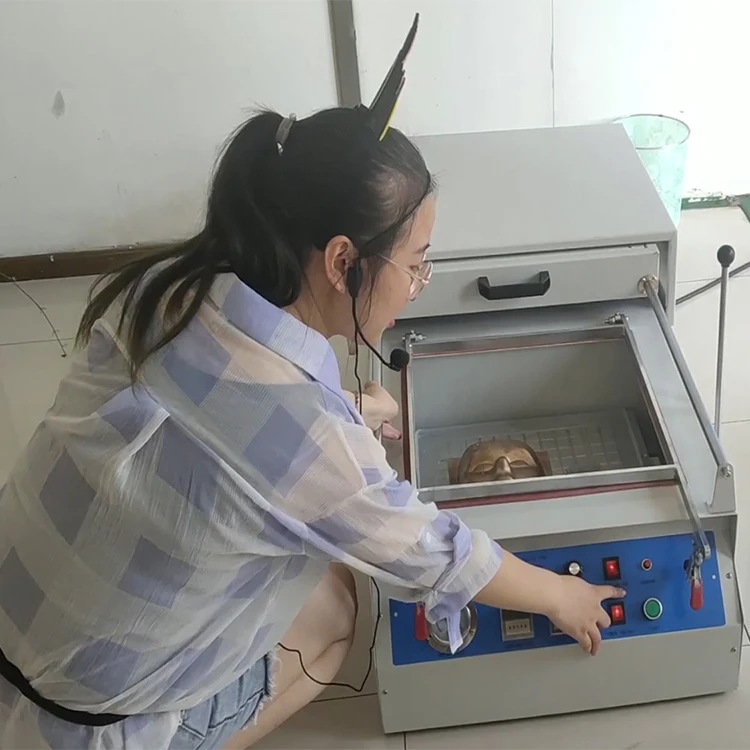

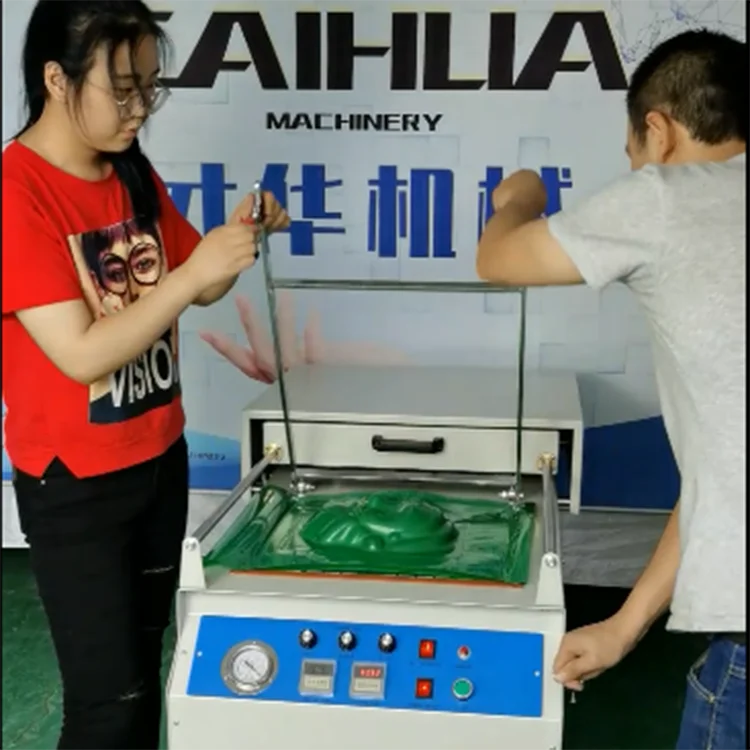

Carry materials by hand → clamp the materials → move the material into the oven, after the material to soft →take the material to
forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.
forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.
applacation
For single-piece production of small products. Such as product proofing, Halloween masks, birthday gifts, teaching demonstrations.High school CNC education.Institute of industry technology education.and so on. Advertising sign making , light box. Cake box,food box, packing box, transfer blister forming sheet.Garage DIY equipment ABS, PVC, PE, PET, Acrylic,Poly styrene, Poly propyleneand other materials apply, Many types of molds can be thermoformed. The machine is small and exquisite, it can be placed in workshops, classrooms, laboratories,homes, etc .; the operation is very convenient, and it can be easily completed by one person.
Related Products
Packing&Shipping
Company Introduction
Our Services & Strength
Have professional after-sales team.
FAQ
1. If I order this machine, and how can l learn to use it? Do you offer any help? Would it be charged?
Answer: Changzhou Caihua Packaging Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If instructions or videos do not help you, we will arrange for our engineers to contact you via face-to-face video. The above services are free of charge.
If overseas service is required, the service fee of the customer's country is not included, and the specific fee should be consulted with customer service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Changzhou Caihua Packaging Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you.
4.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you.
Answer: Changzhou Caihua Packaging Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If instructions or videos do not help you, we will arrange for our engineers to contact you via face-to-face video. The above services are free of charge.
If overseas service is required, the service fee of the customer's country is not included, and the specific fee should be consulted with customer service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Changzhou Caihua Packaging Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you.
4.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you.
