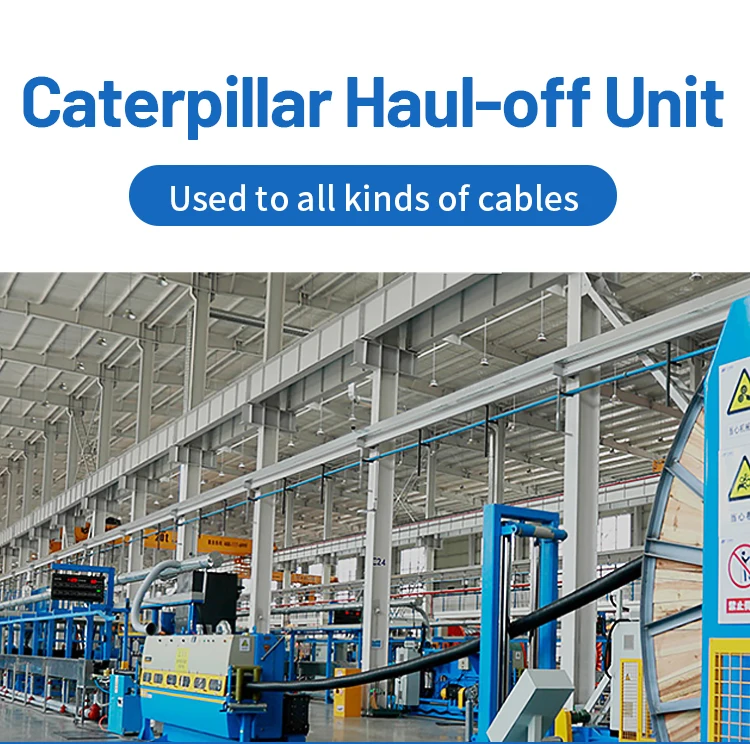

QIPANG TQD 1600 Haul off Cable Manufacturing Equipment Extruding Process Wire Pipe Pneumatic Crawler Traction machine
Performance and Introductions:
The frame of caterpillar is made be bending the thick otter board with the characteristic of large structure intensity and nice shape , The power system adopts four grades to adapt to the different production occasions, Main motor is DC motor with frequency control system.
Application:
1. The overall frame is made of high-quality steel plates bent and spliced, with a novel appearance.
2. This equipment adopts a motor transmission gearbox, a reduction gearbox, a hard disk drive structure of upper and lower spiral gears, and a crawler wheel, with stable transmission, large load-bearing capacity, and convenient maintenance.
3. The entire series has more than ten specifications from 300kg to 5000kg, and two types of Z4 DC motor speed regulation structure and variable frequency motor are available for users to choose.
4. Equipped with electronic instruments, it can display the line speed and instrument length in time.
5. It is equipped with a ground axis transmission structure, which can be used by users on cable, armored, copper tape shielding, winding and other production lines.
6. The tension traction machine adopts magnetic powder tension/gearbox speed control, which is used for traction insulation and sheath extrusion production lines. The tension is instantly adjustable to prevent wear in the cable trough after extrusion, effectively solving the synchronization problem. And the influence of uneven tension on the diameter of the steel wire.
7. The small tractor adopts an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improves the repeated service life of the crawler.
1. The overall frame is made of high-quality steel plates bent and spliced, with a novel appearance.
2. This equipment adopts a motor transmission gearbox, a reduction gearbox, a hard disk drive structure of upper and lower spiral gears, and a crawler wheel, with stable transmission, large load-bearing capacity, and convenient maintenance.
3. The entire series has more than ten specifications from 300kg to 5000kg, and two types of Z4 DC motor speed regulation structure and variable frequency motor are available for users to choose.
4. Equipped with electronic instruments, it can display the line speed and instrument length in time.
5. It is equipped with a ground axis transmission structure, which can be used by users on cable, armored, copper tape shielding, winding and other production lines.
6. The tension traction machine adopts magnetic powder tension/gearbox speed control, which is used for traction insulation and sheath extrusion production lines. The tension is instantly adjustable to prevent wear in the cable trough after extrusion, effectively solving the synchronization problem. And the influence of uneven tension on the diameter of the steel wire.
7. The small tractor adopts an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improves the repeated service life of the crawler.
Technical Parameters
type | Max traction force(kg) | Applicable cable outer diameter(mm) | Track contact length(mm) | Track width | Number of cylinder(pair) | Max Traction speed(m) |
TQD 300 | 300 | ≤Ø 15 | 390 | 60 | 3 | 200 |
TQD 500 | 500 | ≤Ø 30 | 850 | 80 | 3 | 150 |
TQD 800 | 800 | ≤Ø 40 | 1150 | 80 | 4 | 120 |
TQD 1250 | 1250 | ≤Ø 60 | 1600 | 120 | 5 | 100 |
TQD 1600 | 1600 | ≤Ø 80 | 1900 | 120 | 6 | 80 |
TQD 2000 | 2000 | ≤Ø 100 | 2300 | 120 | 7 | 80 |
TQD 2500 | 2500 | ≤Ø 120 | 2500 | 140 | 8 | 60 |
TQD 3200 | 3200 | ≤Ø 150 | 2800 | 140 | 9 | 60 |
TQD 4000 | 4000 | ≤Ø 180 | 3500 | 160 | 10 | 30 |
TQD 5000 | 5000 | ≤Ø 200 | 4000 | 180 | 11 | 30 |
Company Profie
Shanghai QIPANG Industrial co., LTD is a professional research and development, manufacturing, sales of wire and cable equipment of high and new technology enterprise companies adhering to the loyalty, integrity, wise spirit, advancing with The Times, continuous learning advanced foreign technology, as well as customer feedback in practical operation experience of information, to continuously improve product innovation, the company's main: polished rod line machine, straightening machine, take-up machine, feeding machine, such as wire and cable industry related equipment, as well as the peripheral equipment research and development and manufacturing.
We Recommend

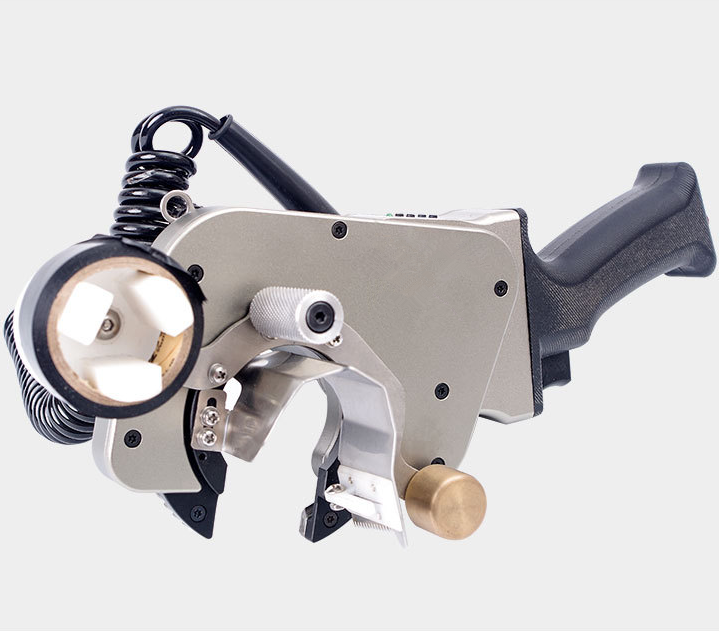

AT-100 automatic Handheld Tape Wrapping Machine Tape winding tool for cable
