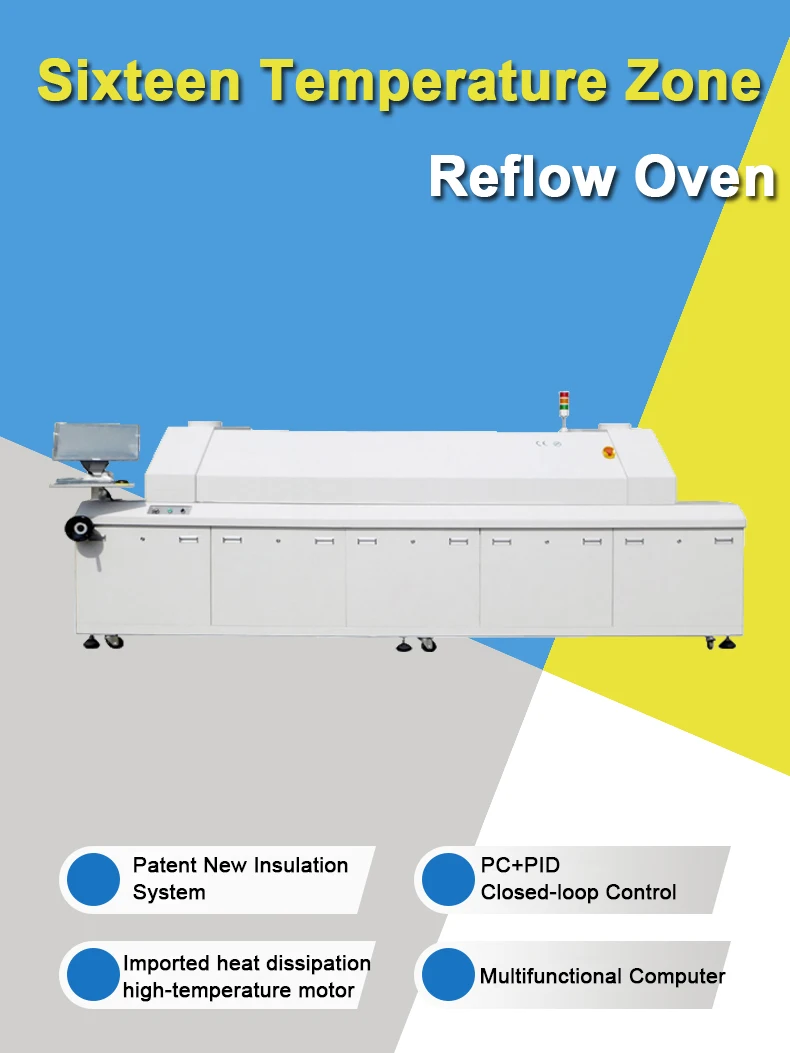

High Performance Automatic SMT YX1635 2900mm 300℃ Reflow Oven 8 8 Temperature PCB Pick and Place Machine Electronic Machine
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1601277590714):
Product Overview
Description
Product Description
Feature
·Patented innovative insulation system:Imported double-layer insulation material,Ensure that the reflow shell temperature is not higher than the room temperature during normal use.Greatly improve the heat utilization of reflow.Normal use than the same type of reflow power saving 40%, greatly reducing the cost of reflow welding power.
·The machine adopts precision PC+PID closed loop control, stable operation. Ensure zero failure rate of control system.
·Multi-point jet principle, the whole micro-circulation wind structure, up and down heating mode; The heating area has short wind distance and high heating efficiency.
·The whole adopts double electric screw open cover mode.The outstanding features of the electric screw are:No air source, low requirements for production facilities.Since the screw has a self-locking function, the top cover will not fall off when the power is off.Safe operation, low energy consumption and no noise. Use 24V DC power supply, no harm to human body.
·Powerful forced cooling system. The high pressure fan is used to strongly transport the cold air to the cooling area, which greatly improves the cooling rate and can effectively meet various lead-free processes.
·Heating adopts imported special long-life winding nickel-chromium heating hot wire,High thermal efficiency and sensitivity, small thermal inertia,Temperature control accuracy of each temperature zone ±1℃;Direct heating of circulating air, heating up quickly, from room temperature to set working temperature about 15 minutes.
·Adopt imported Taiwan Mitsuyue heat dissipation type high temperature motor, direct drive hot air heating, hot air balance, low noise, small vibration.
·Special transport guide rail, made of high temperature and wear resistant aluminum alloy, high rigidity without deformation.
·The whole machine is equipped with multi-function computer operation analysis software, with flexible curve testing and powerful dynamic curve analysis functions.And free upgrade. The main electrical components are imported, and all signal lines are screened to make the whole control system more stable and reliable.
The YX1635 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The YX1635 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Moder | YX1635 |
Temperature Control Mode | PC+PID Closed-loop Control |
The Opening Mode of The Upper Furnace | Double Electric Cylinder Jacking |
Heating Zone | Upper 8 / Down 8 Zones |
Heating Zone Length | 2900mm |
Heating Method | Heated Air Circulation |
Cooling Zone | Upper 1 / Down 1 zone |
Transport Direction | Left→Right (right→left optional) |
Transmission Belt Height | Mesh Transmission 880mm±20mm,Chain 900mm±20mm |
Transmission Type | Mesh 500mm / Rail Guide 350mm |
Transport Guide Rail Fixed Mode | Front End Fixation |
PCB Transmission Speed | 200-2000mm/min |
Power | 5-Wire 3-Phase 50/60HZ |
Power Supply Requirement | 38KW |
Starting Power | 20KW |
Normal Power Consumption | 6KW |
Heating Time | Approx.20min |
Temperature Control Range | Room Temperature -300℃ Can Be Set |
Temperature Control Accuracy | ±1℃ |
PCB Board Temperature Distribution Deviation | ±2℃ |
Abnormal Alarm | Temperature Anomaly |
Dimensions | L4600*W1200*H1450mm |
Weight | 1000KG |
Product Details
Company Information
Exhibition
Certifications

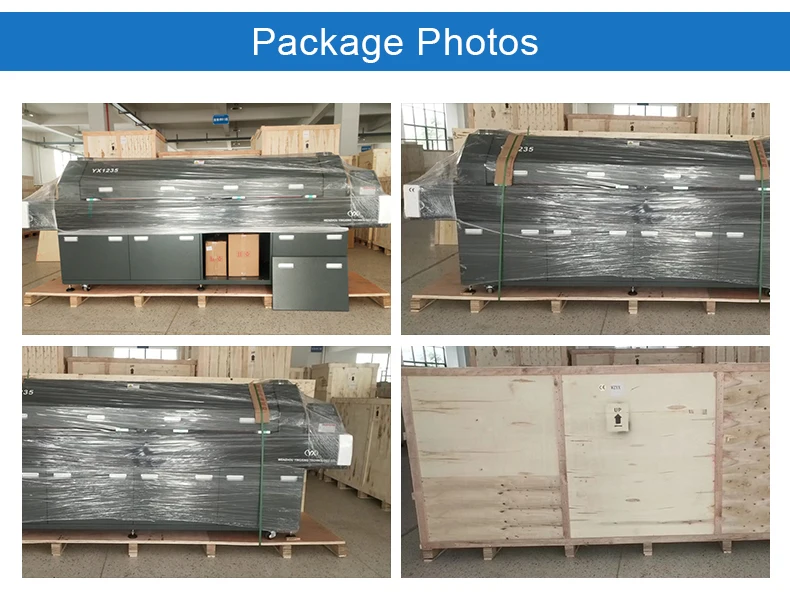

Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
