Hot Sale Line Striping Driver With Thermoplastic Road Marking Machine Road Marking Machines Sale In South Africa
- Category: >>>
- Supplier: Asian Construction Equipment Group Co. Ltd.
Share on (1601277597336):
Product Overview
Description
Product Overview

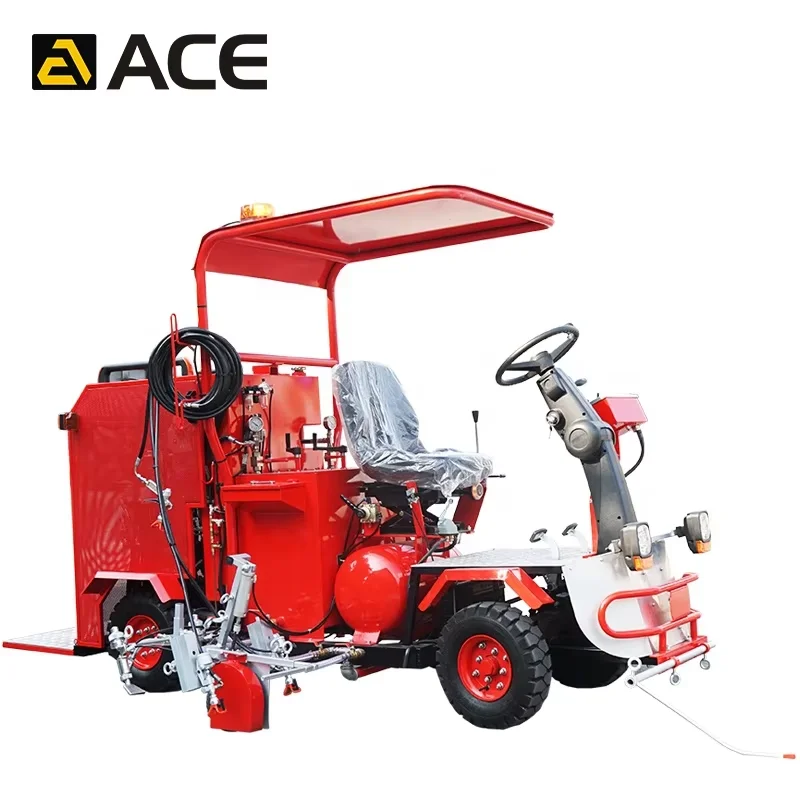

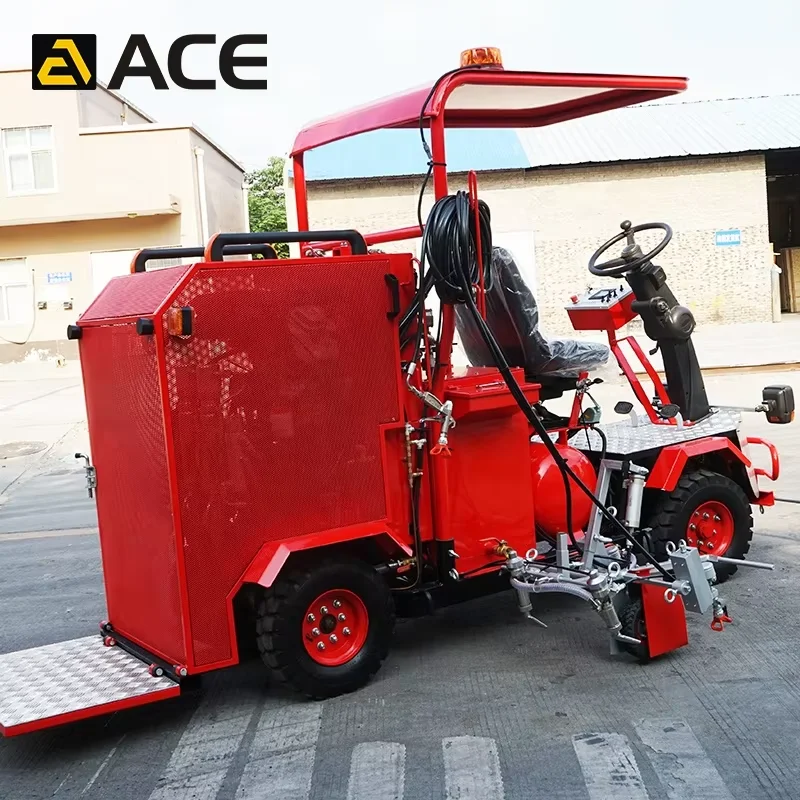

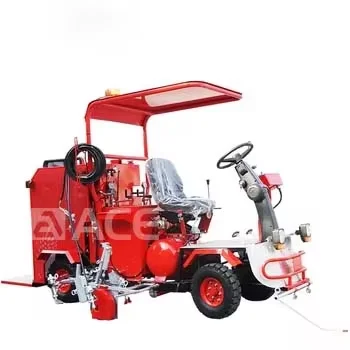

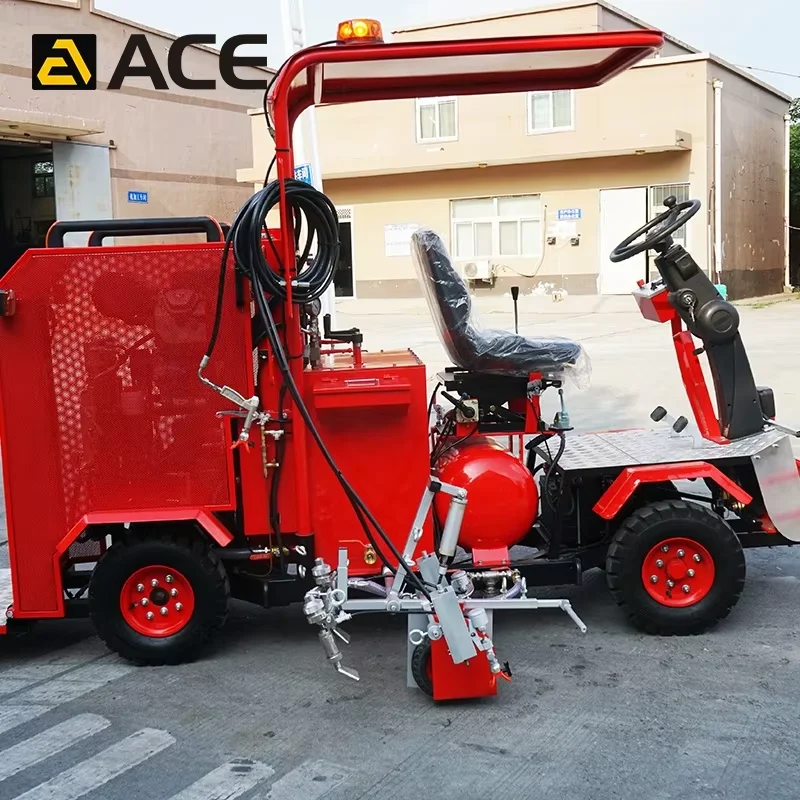

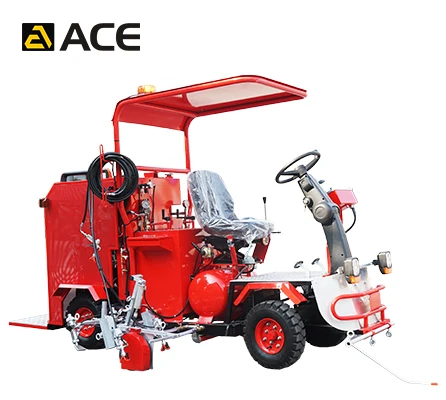

Driving-type Cold Paint Airless Road Marking Machine
Driving type cold paint airless road marking machine is a kind of driving type airless cold and tow-component road marking machine. Large capacity paint tank and glass beads bin make it suit for long distance and continuous marking work.
FEATURES AT A GLANCE
Paint tank capacity: 170L - 325L*2
Marking width: 50 mm - 1000 mm (adjustable)
Applied paint: Cold-solvent paint, water-based paint and two-component paint (optional)
Marking width: 50 mm - 1000 mm (adjustable)
Applied paint: Cold-solvent paint, water-based paint and two-component paint (optional)
Right elevation
Front elevation
Back elevation
PRODUCT SPECIFICATIONS
Product model | AC-BSAL-I/II | AC-MSAL-I/II | AC-SSAL-I/II | ||
Engine | 37 kW water-cooled four-cylinder diesel engine | 26 kW water-cooled three-cylinder gasoline engine | Kohler 18 HP or Honda 20 HP gasoline engine | ||
Air compressor | 0.6 m3/min | 0.6 m3/min | 0.6 m3/min | ||
Applied paint | Cold-solvent paint, water-based paint and two-component paint (optional) | Cold solvent paint, water-based paint (Model I) Cold solvent, water-based, two-component, two color paint (Model II) | |||
Paint tank capacity | 325 L * 2 | 260 L(Model I) / 130 L * 2(Model II) | 170 L(Model I) / 170 L * 2(Model II) | ||
Glass beads bin | 175 L | 55 L | 52 L | ||
Paint pump | Double high-pressure airless pumps; Maximum pressure: 20 MPa; Single pump flow: 20 L/min | Single high-pressure airless plunger pumps; Maximum pressure: 25 MPa; Single pump flow: 20 L/min Double high-pressure airless plunger pumps; Maximum pressure: 25 MPa; Single pump flow: 12.5 L/min | |||
Spray gun | Double pneumatic spraying guns(Model I), Four pneumatic spraying guns(Model II), single manual spraying gun, automatic gun rack | Double pneumatic spraying guns, single manual spraying gun | |||
Marking width | 50 mm - 1000 mm (adjustable) | 50 mm - 1000 mm (adjustable) | 50 mm - 1000 mm (adjustable) | ||

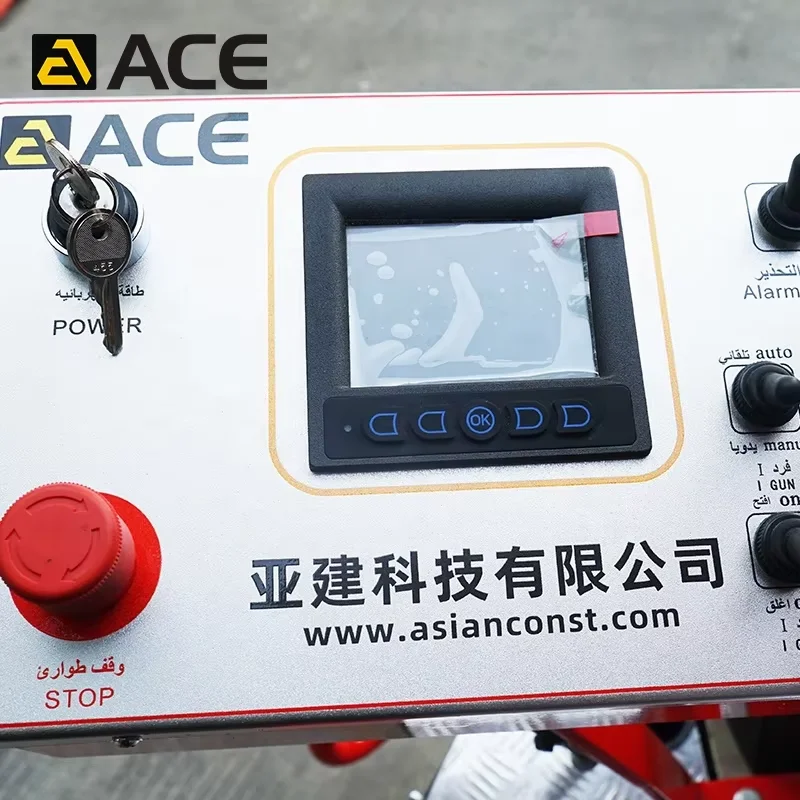

Control system | Digital intelligent control system | Digital intelligent control system | Digital intelligent control system | ||
Dimensions (L*W*H) | 5300 mm * 2200 mm * 2300 mm | 3700 mm * 1840 mm * 2450 mm | 2900 mm * 1600 mm * 2400 mm | ||
Weight | 2800 kg | 782 kg | 682 kg | ||
Optional system | Guide warning screen, pre-marking system, trailer, swing type, screeding type and two-component type | ||||
PRODUCT CONFIGURATION
Road Marking Machine Manufacturer
ACE is a leading road marking equipments manufacturer in China. We employ highly skilled staff, utilize high precision production
equipment, and produce our products in strict accordance with the ISO9001:2000 standard. In addition, key components of our products are imported from world renowned companies. We also conduct strict quality inspections during each production process. As a result, our products road marking machine, pre-heater, and other auxiliary road marking machinery, road marking paint and glass beads are high quality and CE, CCC certified.
equipment, and produce our products in strict accordance with the ISO9001:2000 standard. In addition, key components of our products are imported from world renowned companies. We also conduct strict quality inspections during each production process. As a result, our products road marking machine, pre-heater, and other auxiliary road marking machinery, road marking paint and glass beads are high quality and CE, CCC certified.

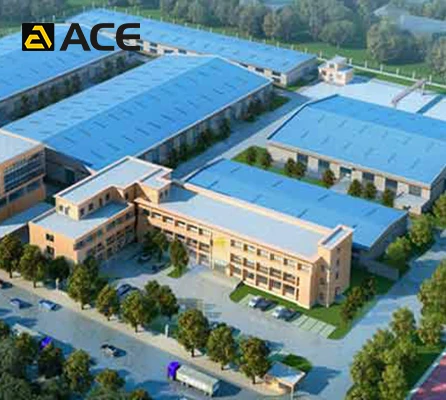

Office building
Factory
Workshop
Construction Case
Thermoplastic Road Marker
Thermoplastic Road Marker
Thermoplastic Road Marker
Cold Painter Road Marker
Cold Painter Road Marker
Cold Painter Road Marker
Road Marking Pre-heater
Road Marking Pre-heater
Road Marking Remover
