Gemma Mining Stone Crusher Machine jaw crusher for pebble crushing machinery
- Category: >>>
- Supplier: JJEM TRADINGJJEM TRADING
Share on (1601277606943):
Product Overview
Description
Product Overview
Jaw crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using
compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
Application：
1. Jaw crusher is mainly used for the medium and fine crushing of hard ores and rocks in metallurgy industry, mine industry,
chemical industry, cement industry, construction industry, refractory materials industry and other sectors.
2. Jaw crusher suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble,
calcite, granite, quartz, concrete, dolomite, blue stone, iron ore, limestone, iron ore,,
ferrosilicon, basalt, sandstone and etc.
chemical industry, cement industry, construction industry, refractory materials industry and other sectors.
2. Jaw crusher suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble,
calcite, granite, quartz, concrete, dolomite, blue stone, iron ore, limestone, iron ore,,
ferrosilicon, basalt, sandstone and etc.
Features of ore jaw crusher
1. Crushing chamber is deep without dead zone, increases feeding capacity and output.
2. Large crushing ratio, uniform particle size.
3. Gasket type discharge opening adjustment device is reliable and convenient, besides, adjustment range is big, increases the flexibility of the device.
4. Lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.
5. Simple structure, reliable operation, low operating costs
6. Equipment energy-saving: sing machine has energy-saving 15% to 30%; crushing system can save energy more than double of single one.
7. The adjustment range is range, can meet the requirements of different users.
8. Low noise, less dust.
2. Large crushing ratio, uniform particle size.
3. Gasket type discharge opening adjustment device is reliable and convenient, besides, adjustment range is big, increases the flexibility of the device.
4. Lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.
5. Simple structure, reliable operation, low operating costs
6. Equipment energy-saving: sing machine has energy-saving 15% to 30%; crushing system can save energy more than double of single one.
7. The adjustment range is range, can meet the requirements of different users.
8. Low noise, less dust.

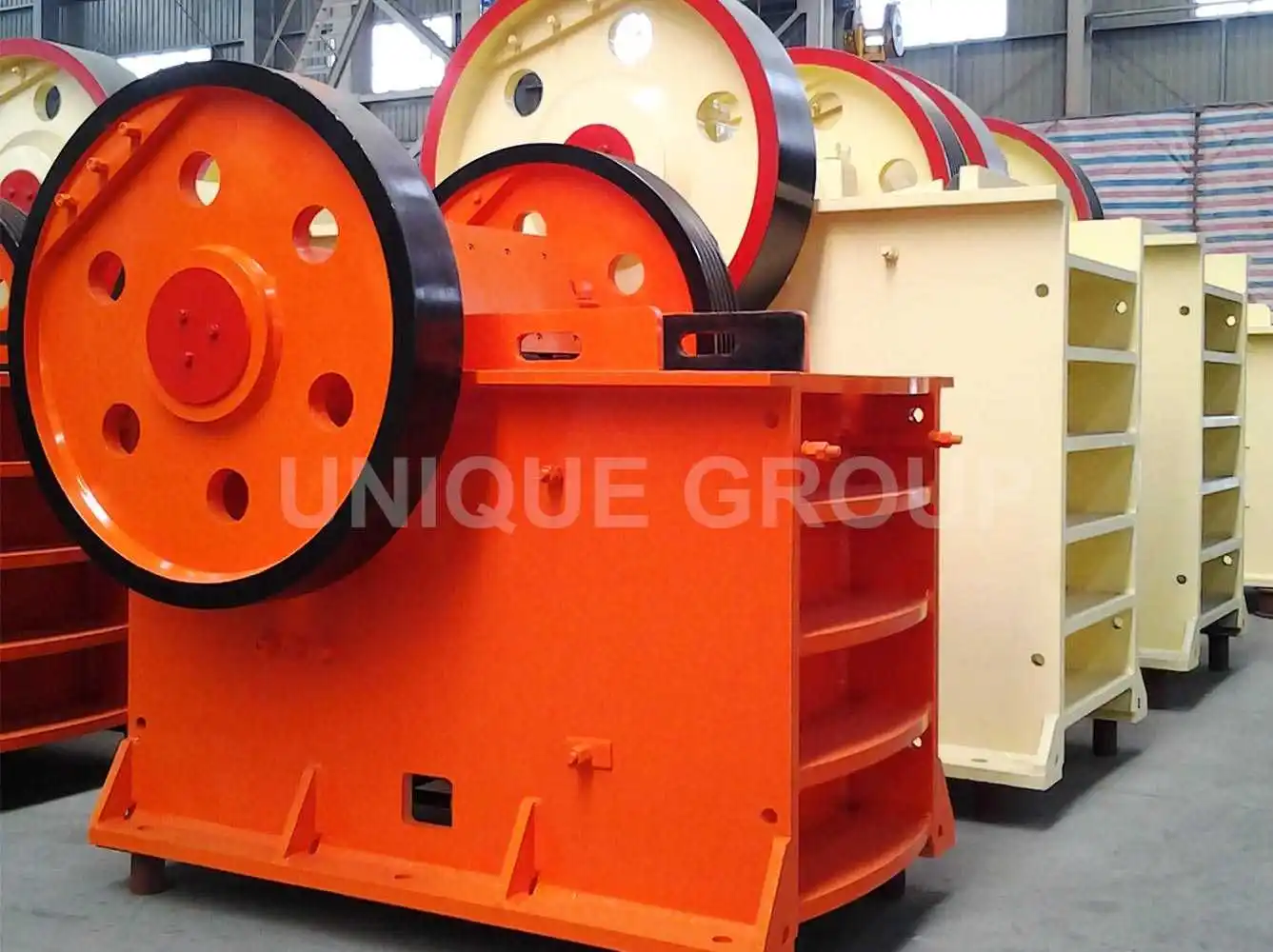

Working Principle of Our Stone Jaw Crusher for River Rock

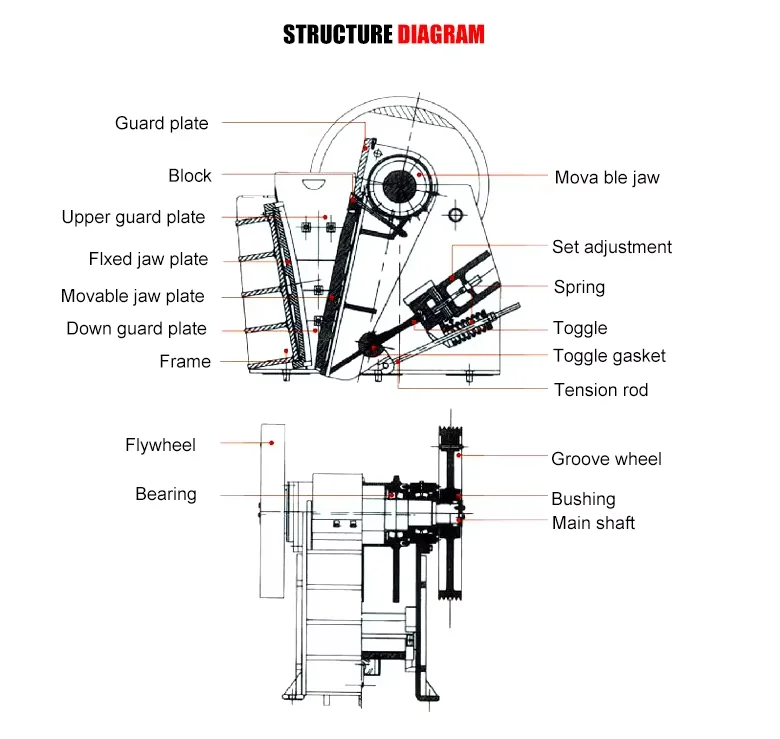

It is driven by motor. The eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. The materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and cheek plate can be crushed and discharged through discharging opening
Product Paramenters
Model | Max feeding Size (mm) | Adjusting range of discharge opening(mm) | Capacity (t/h) | Motor power(kw) | Total weight(t) | Dimensions (L*W*H)(mm) |
PE-150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720*660*850 |
PE-250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE-500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE-600*900 | 500 | 65-160 | 50-180 | 55 | 17 | 2190*2206*2300 |
PE-750*1060 | 630 | 80-140 | 110-320 | 90-110 | 29 | 2660*2430*2800 |
PE-900*1060 | 685 | 230-290 | 230-390 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 750 | 95-165 | 220-450 | 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 850 | 195-265 | 315-500 | 110 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 | 4200*3300*3500 |
PEX-150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 210 | 25-60 | 13-35 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 210 | 25-60 | 16-52 | 30 | 7 | 1560*1950*1390 |
PEX-250*1200 | 210 | 25-60 | 20-61 | 37 | 9.7 | 2140*1660*1500 |

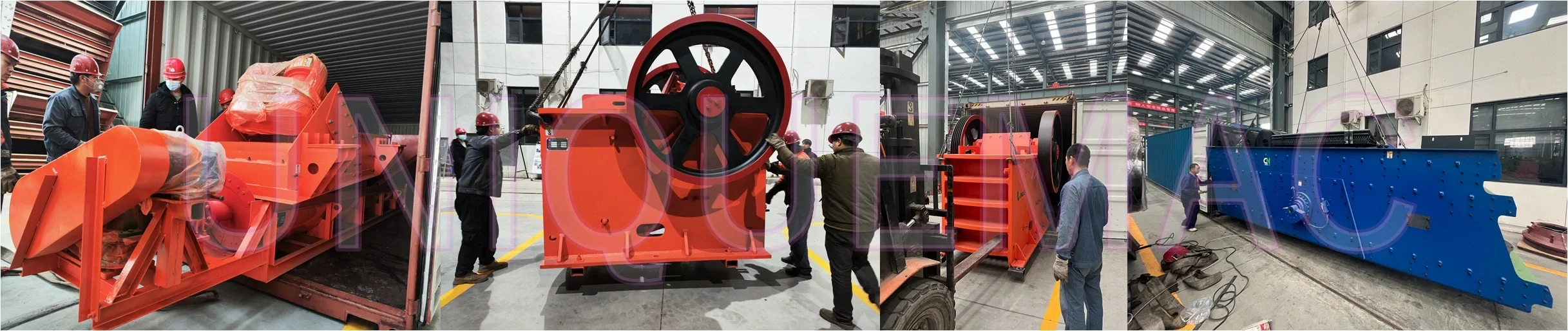

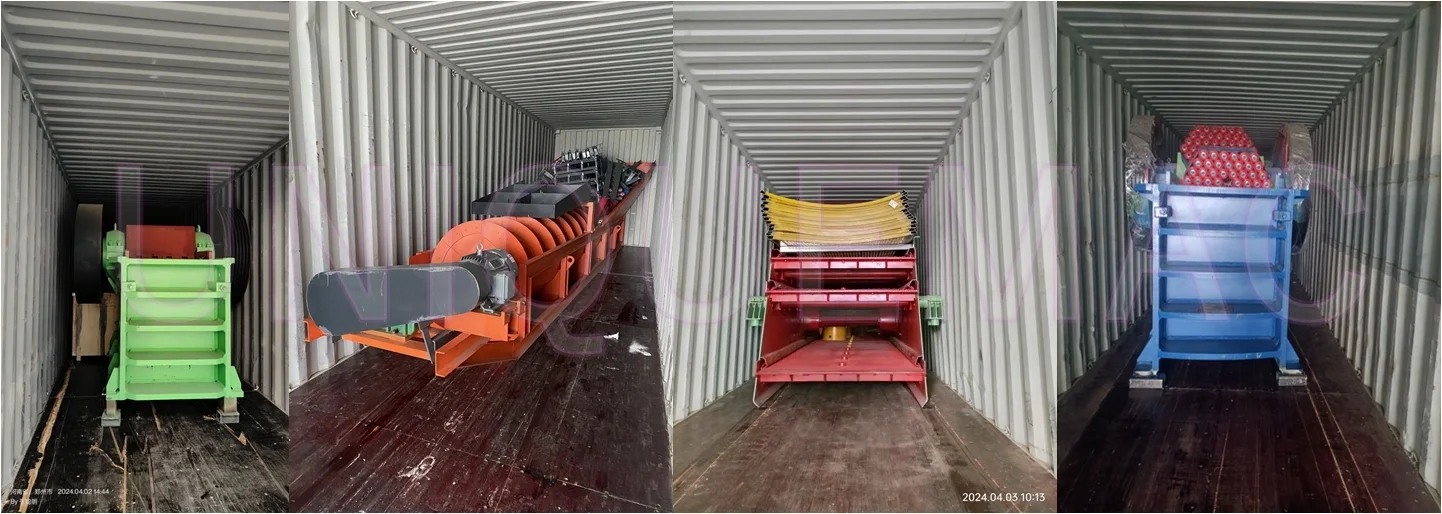

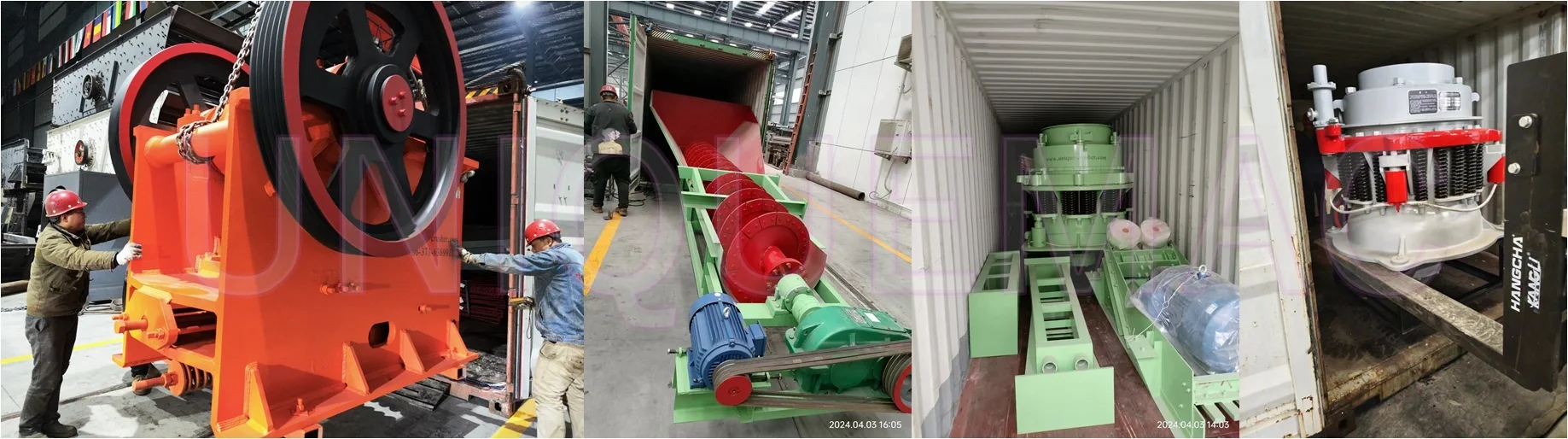

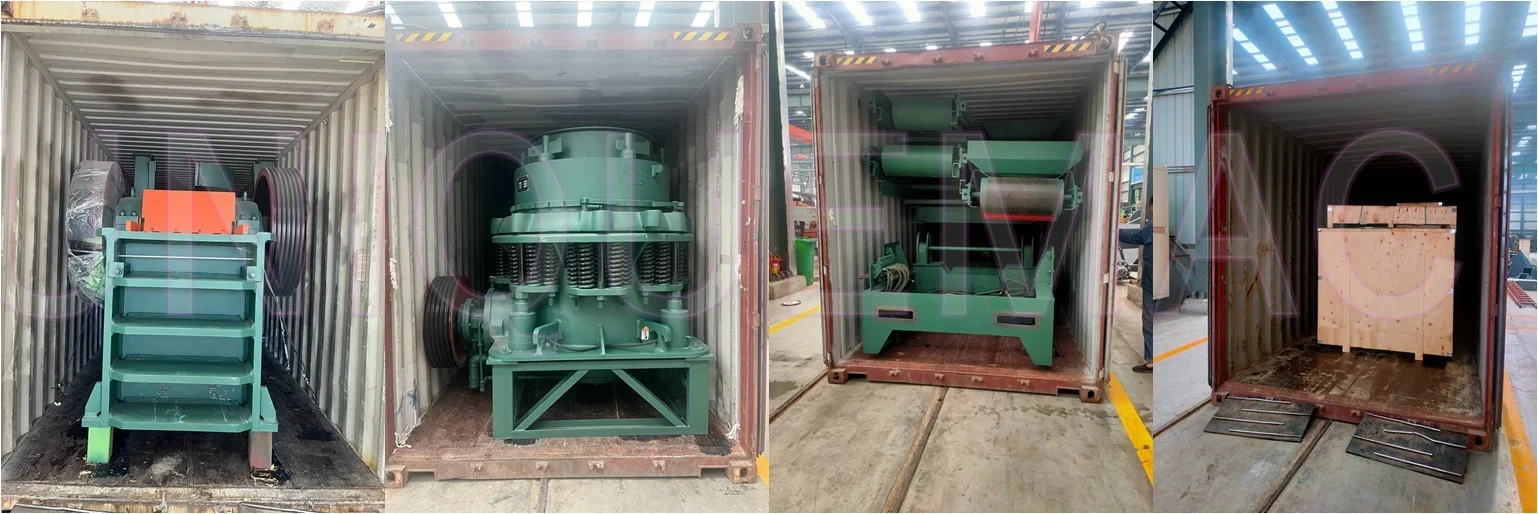

Product packaging
Packaging:standard Container, standard Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transportation and shipment.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.

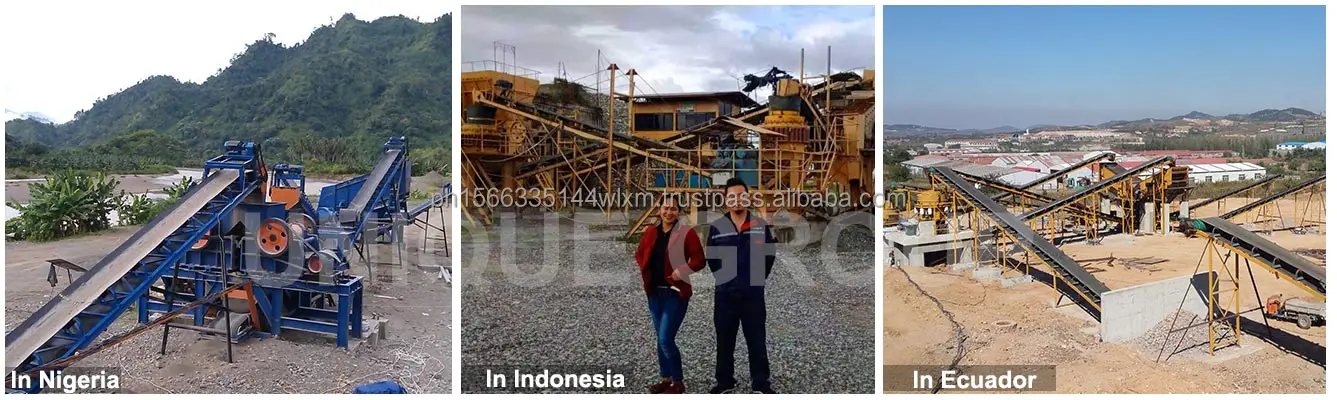

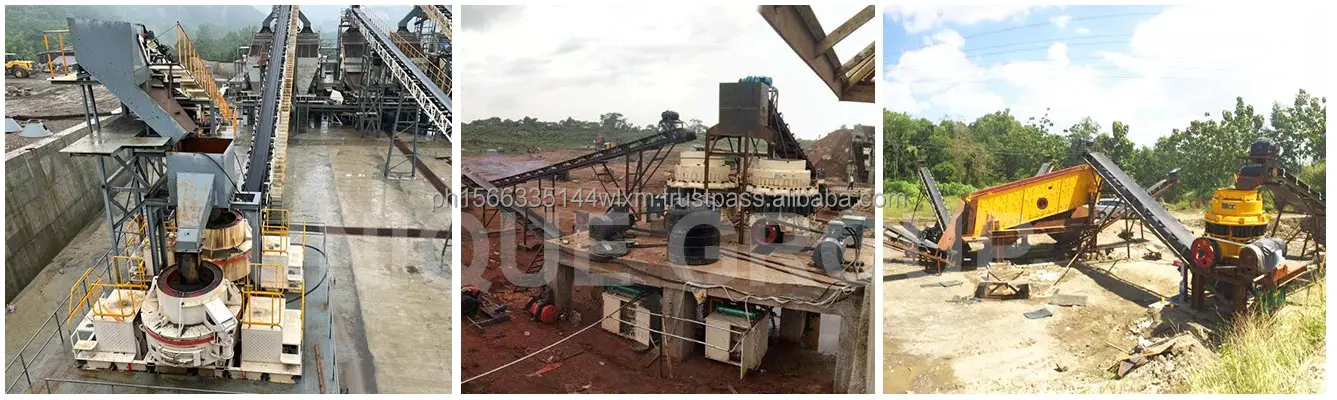

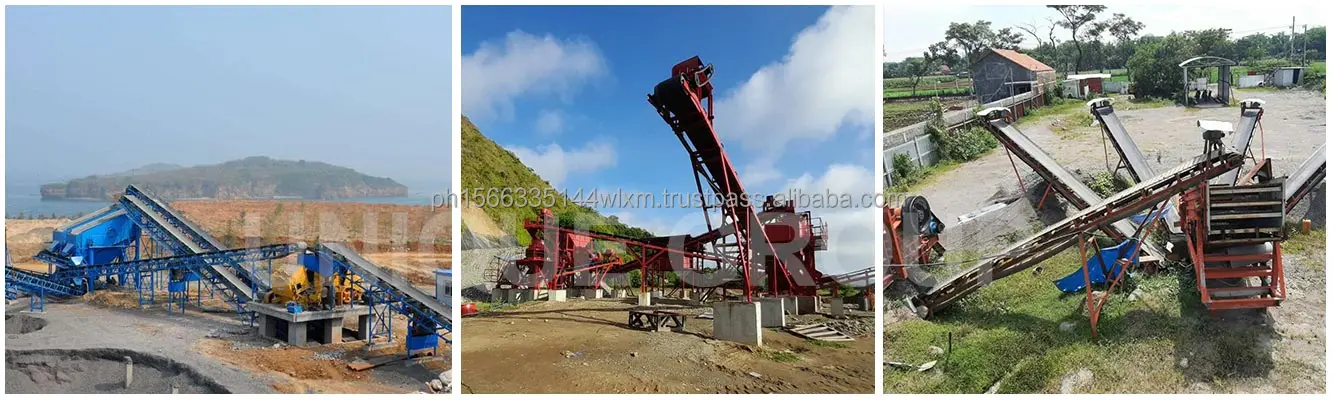

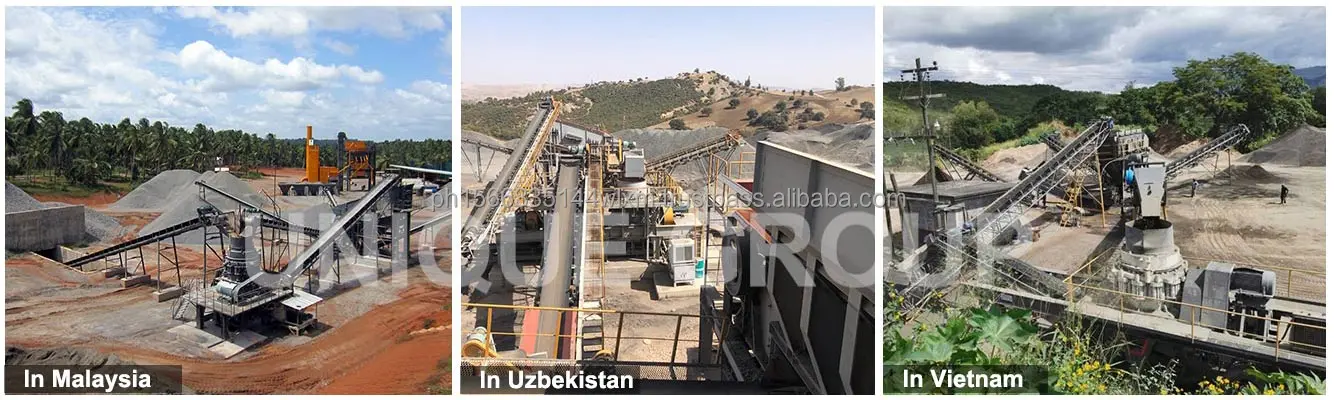

Successful Project
Project in nigeria
Project in Oman
Project in philippines
Exhibition

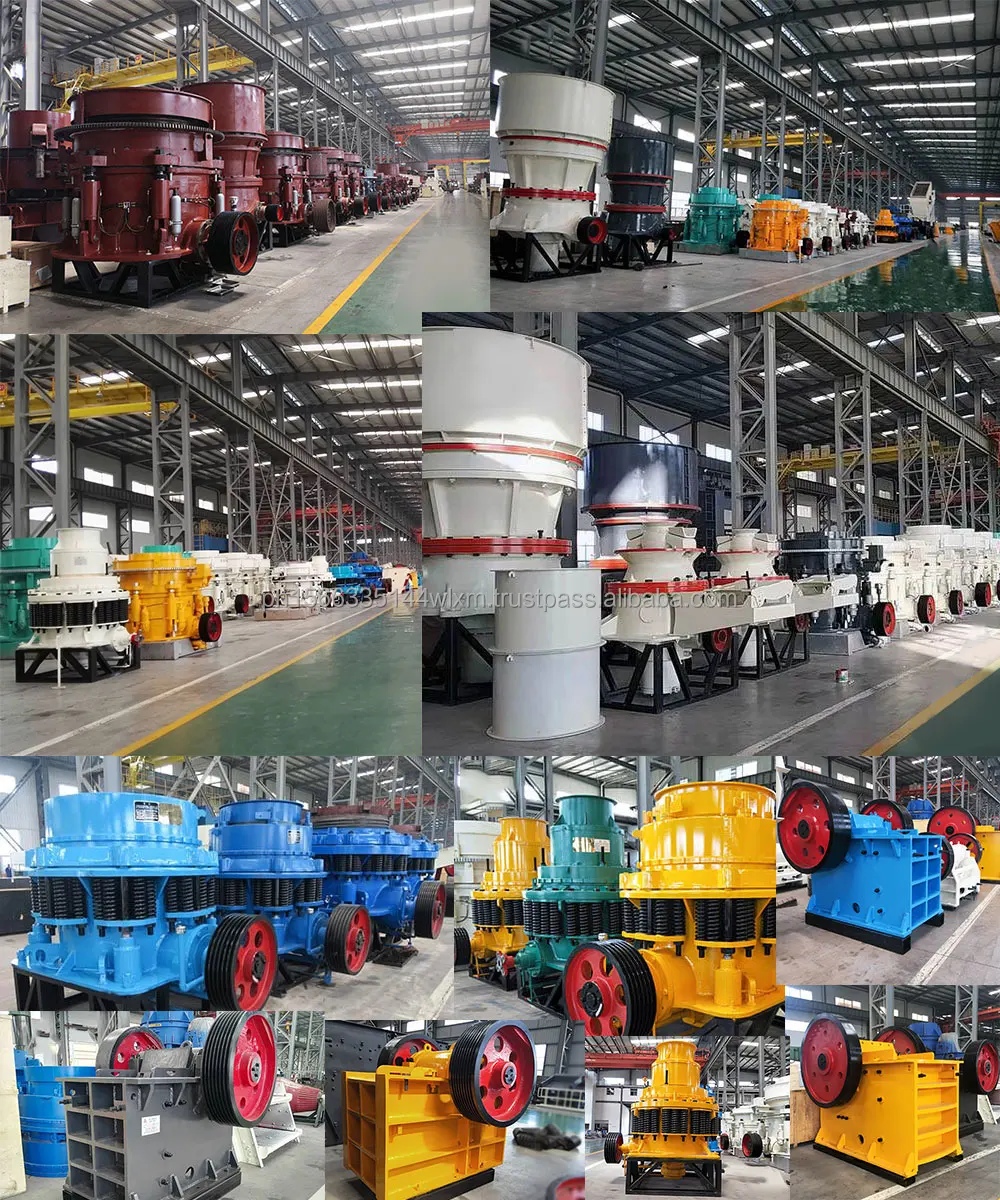

Company Profile
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China.Our products comprise three categories: Stone Crushing & Screening, Portable Crushing Plant, and Complete Crushing Plant. Our primary products are Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder, Portable Crushing Plant and Aggregate Crushing Plant. Our vast line of products is available for countless uses, meeting any and all of our customers' special needs.
FAQ
Q1. How long is the warranty of your equipment? Does your company supply the spare parts?
The warranty period of crusher equipment is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3. Can you test our samples?Do you provide benefit flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores benefit, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipment.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
Any questions , please contact us freely.
OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing
plant.
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill.
The warranty period of crusher equipment is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3. Can you test our samples?Do you provide benefit flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores benefit, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipment.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
Any questions , please contact us freely.
OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing
plant.
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill.
