Product Overview
Description
Products Description

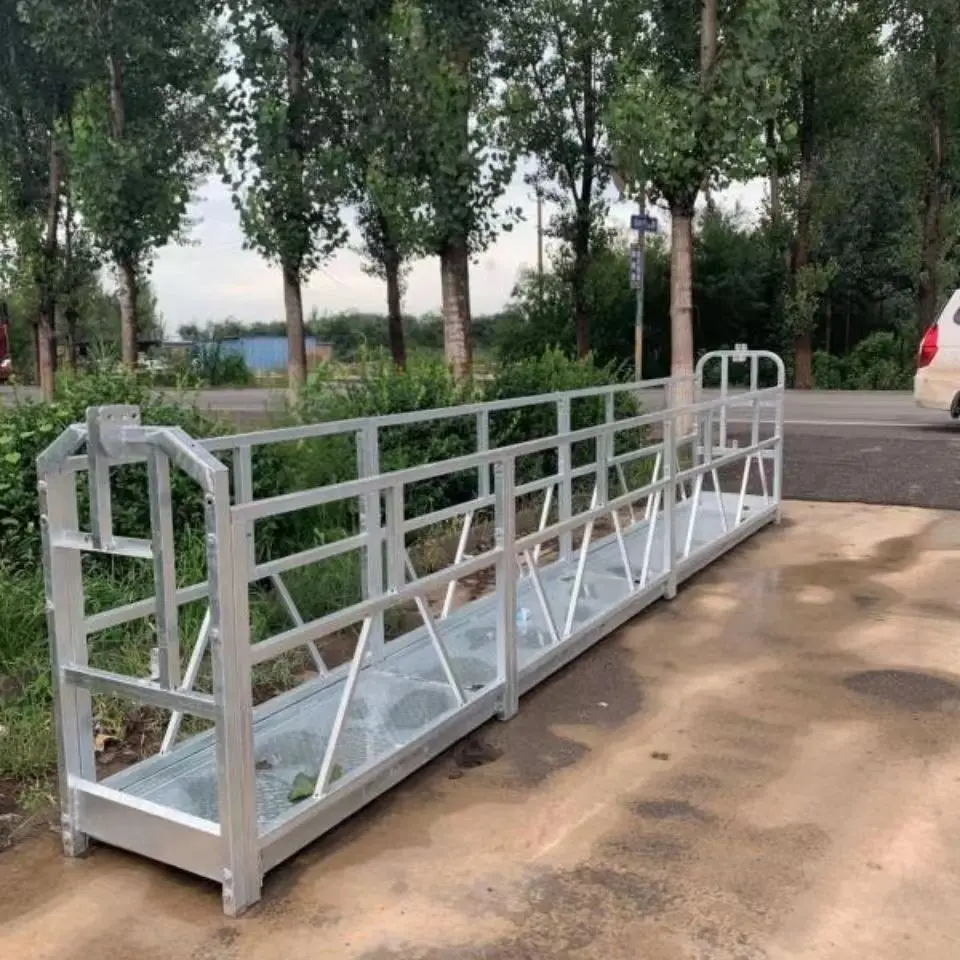

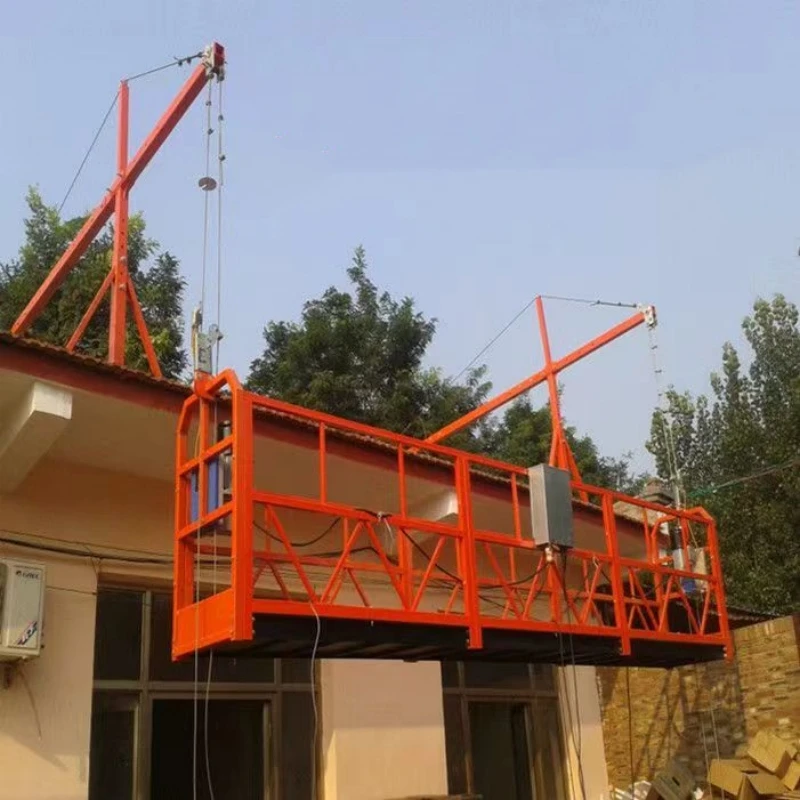

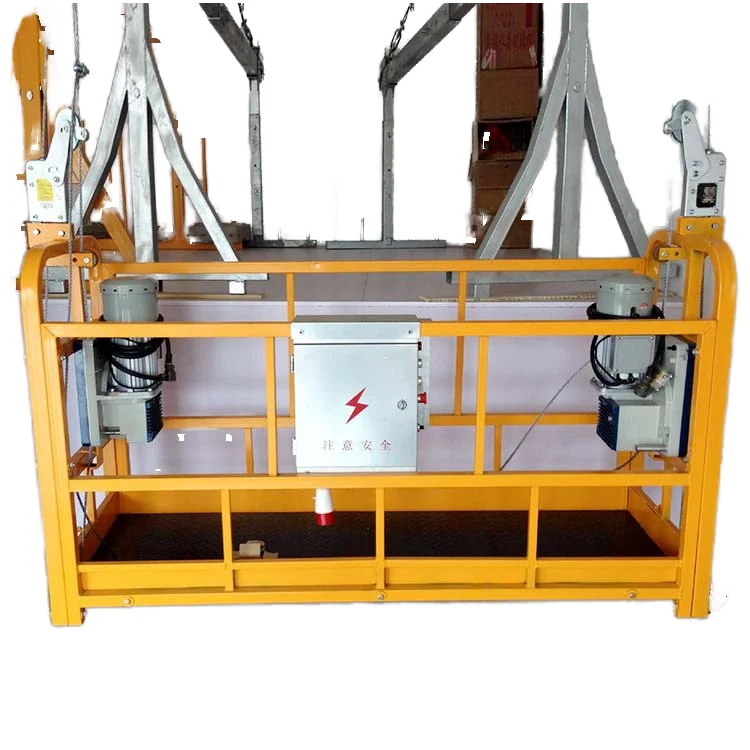

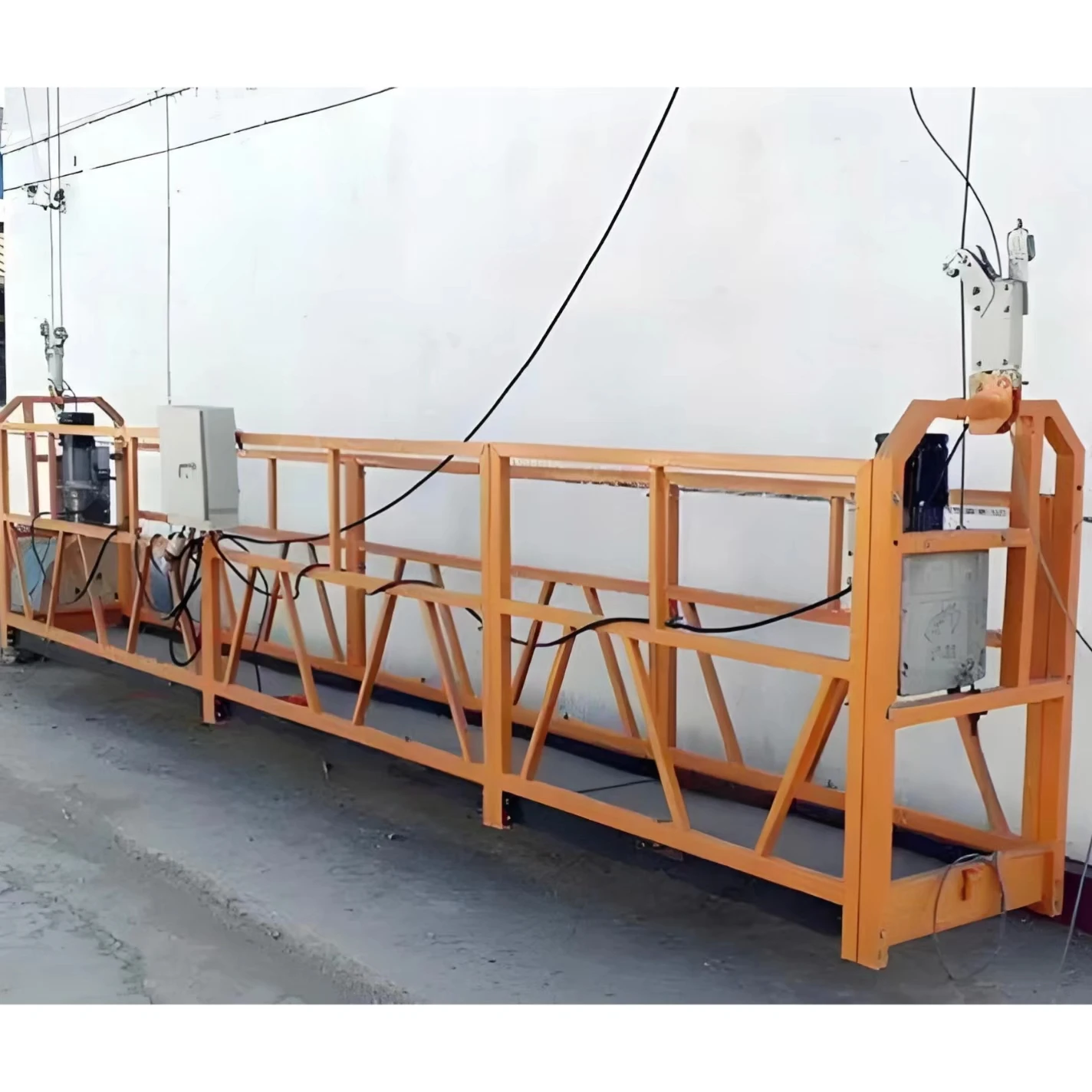

Suspended working platform
The suspended working platform produced by Woheng Metal Products Co., Ltd. is equipped with an advanced control system and a sensitive anti-tilt protection device. The company is equipped with four national-level quality inspection equipment, including crane power detectors and safety lock detectors, to ensure the quality of factory products.

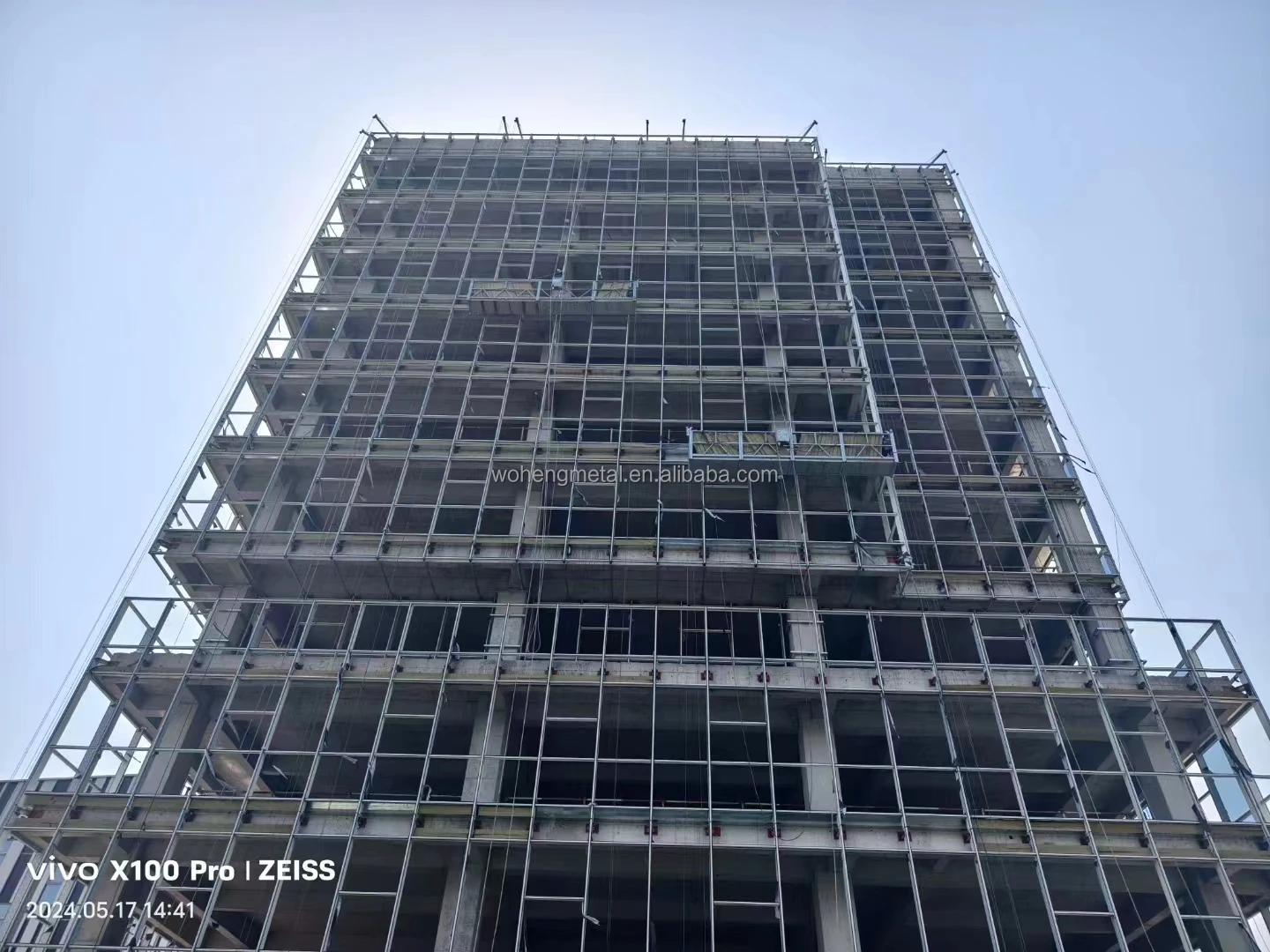

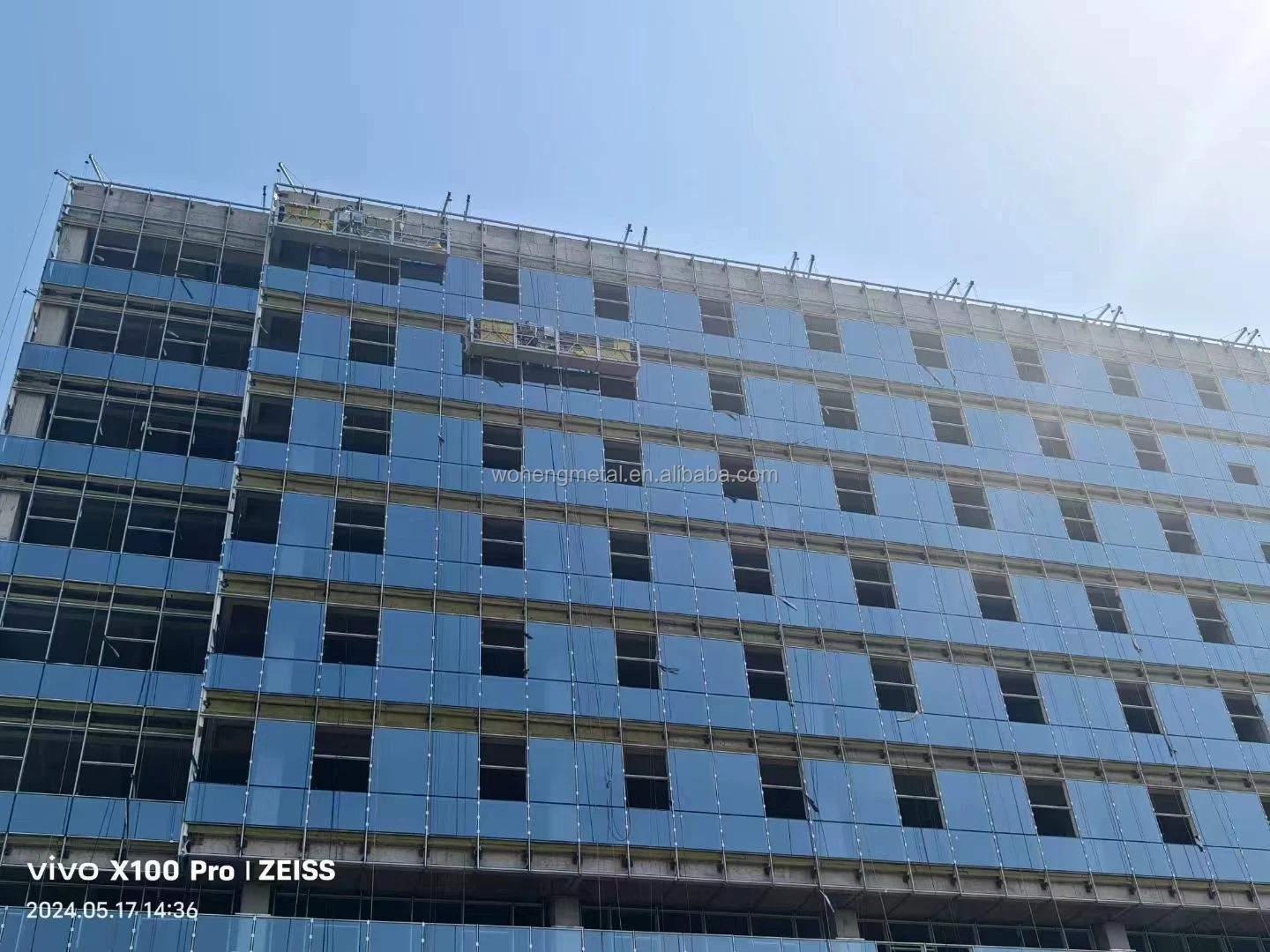

The suspended working platform is an electromechanical system that can be easily constructed at heights that are difficult to reach with traditional assembled scaffolding. It is widely used in exterior wall construction of high-rise buildings, glass curtain wall installation, cleaning and maintenance, as well as large storage tanks, bridges, dams, etc. Project construction. As an alternative to traditional scaffolding, the system can be reused many times and can reduce construction costs by 70%. Effectively reduce workers' workload and improve work efficiency.
For more product information, please consult us. We welcome your inquiries and inspections.
Recommend Products
Product Paramenters
Model | ZLP630 | ZLP800 | ZLP1000 |
Rated Capacity | 630kg | 800kg | 1000kg |
Lifting Speed | 9-11m/min | 8-10m/min | 8-10m/min |
Rated Power | 1.5kw * 2 | 1.8kw * 2 | 2.2kw * 2 |
Allowable Voltage | 380/220/110V | 380/220/110V | 380/220/110V |
Hoist Model | LSF30 | LSF30 | LSF30 |
Front beam supports height adjustmeng | 1.3-1.8m | 1.3-1.8m | 1.3-1.8m |
Counter weight | 800kg | 1000kg | 1250kg |
Product Details

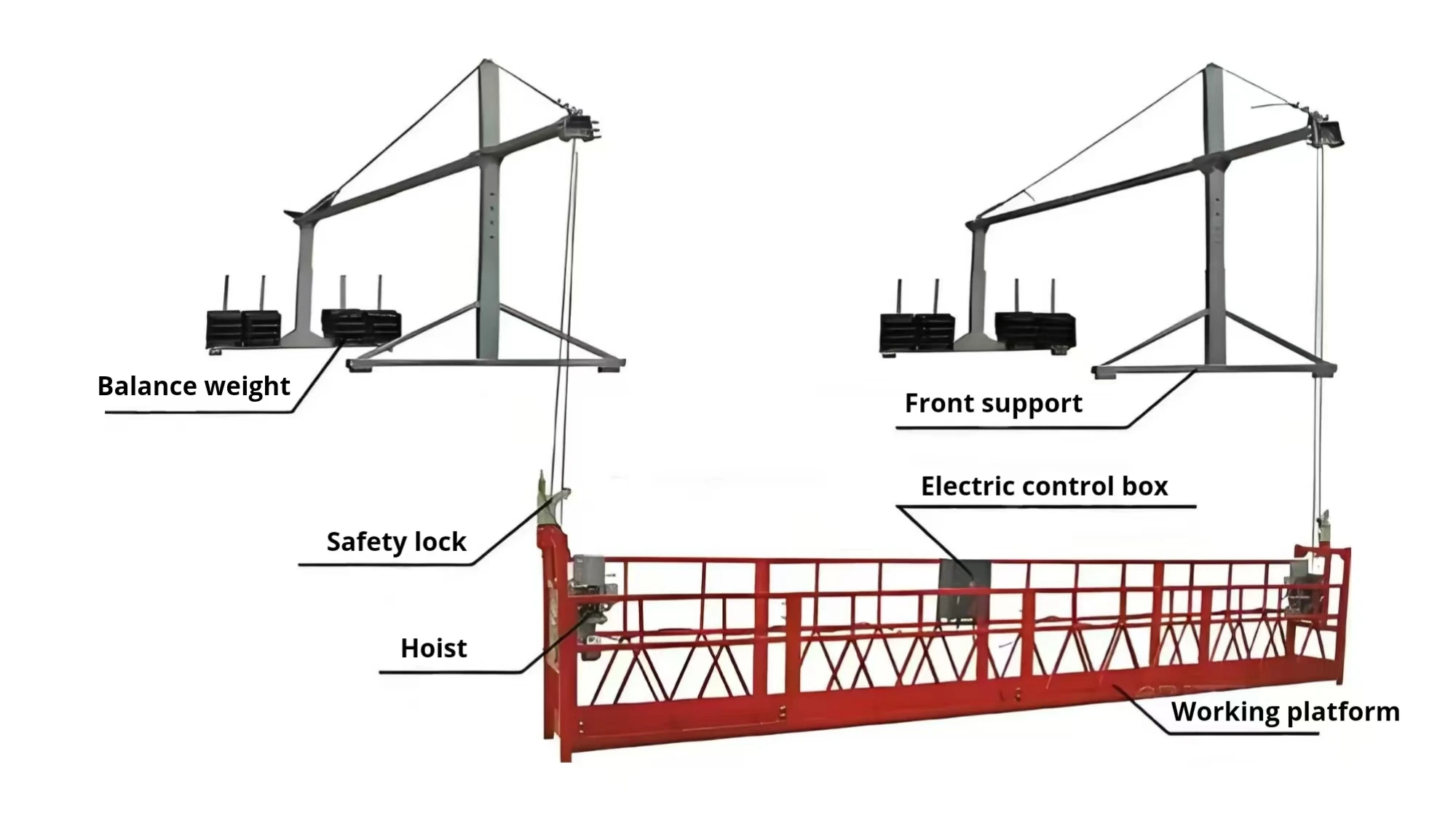

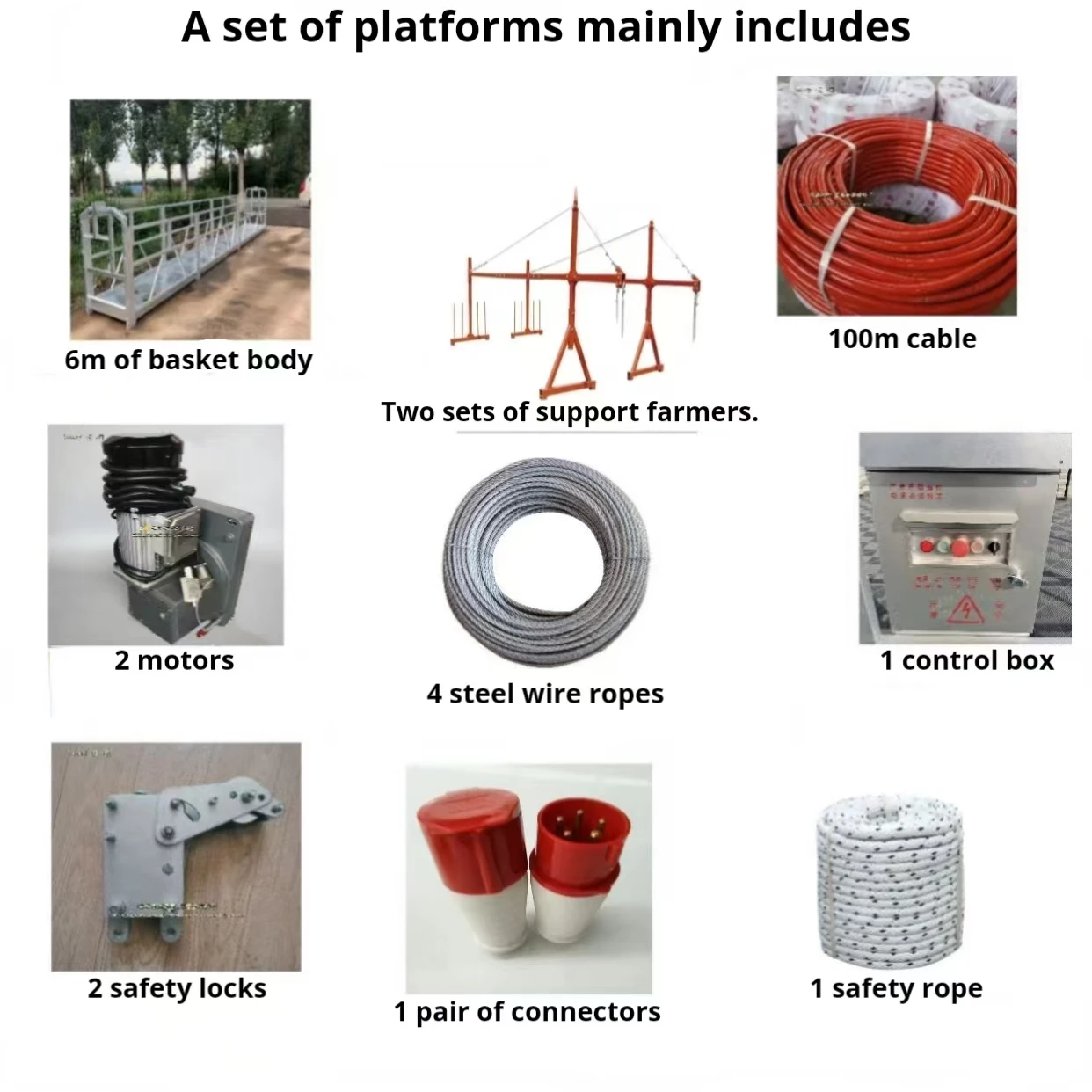

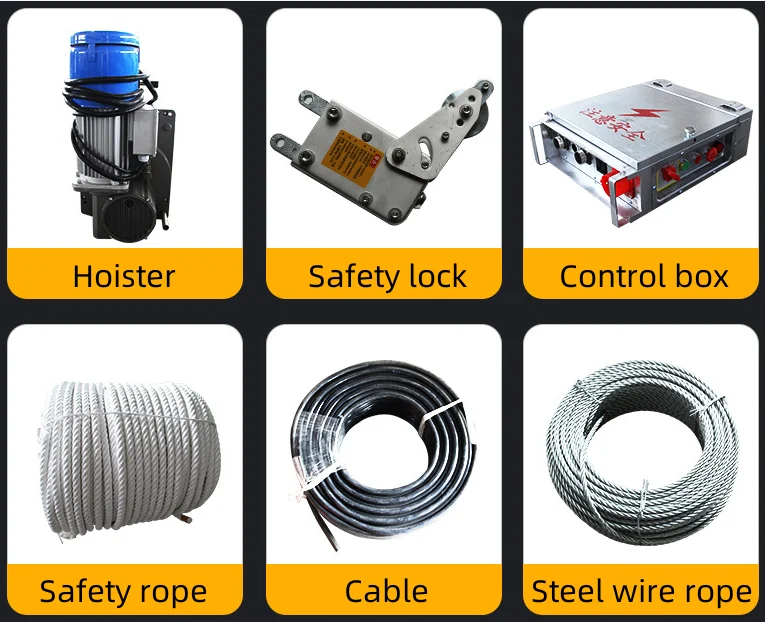

The entire suspension platform system consists of the following five parts

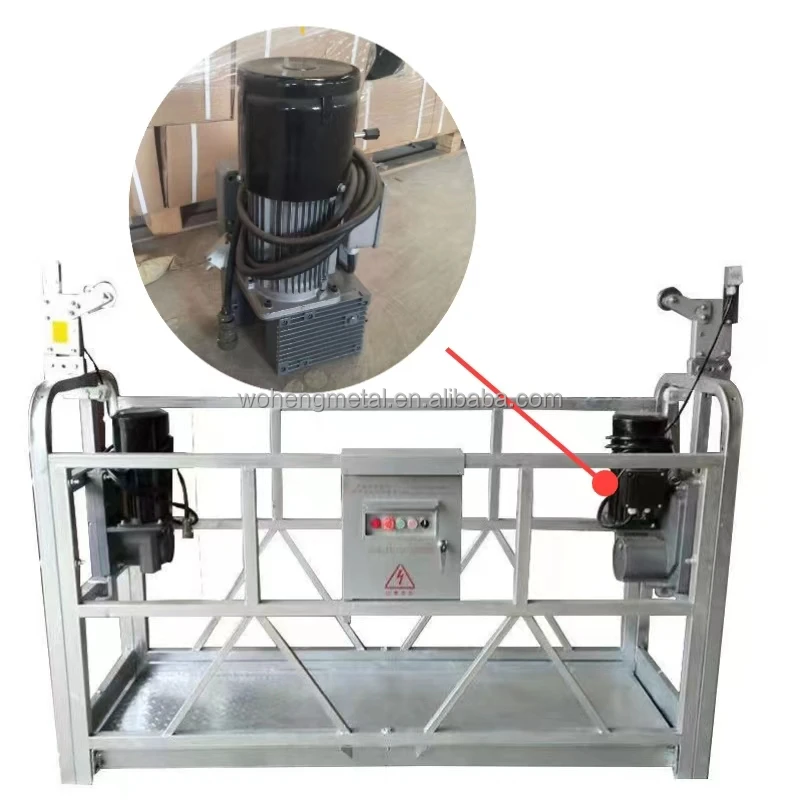

(1) Hanging work platform (2) hoist (3) safety device

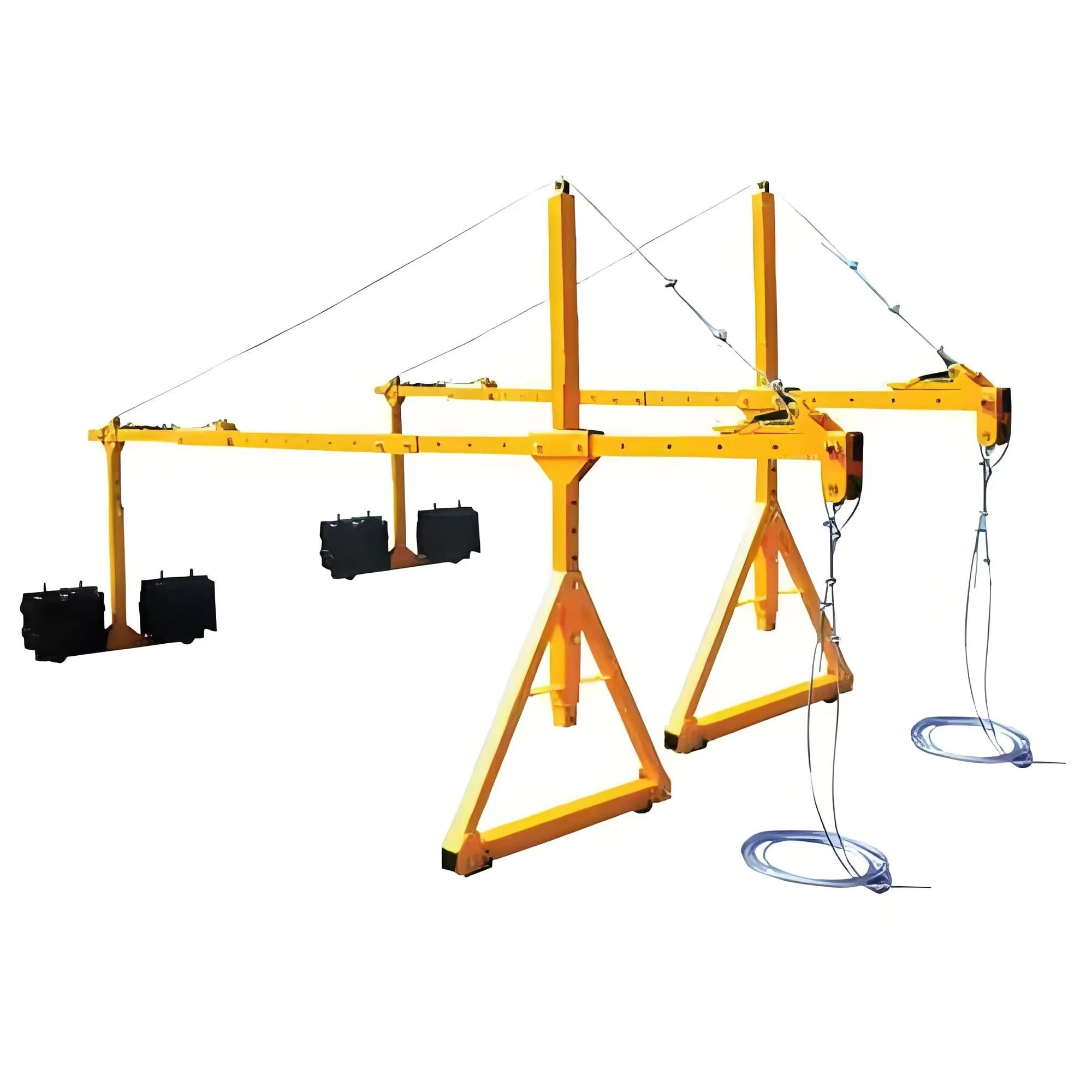

(4) electrical system (5) supporting suspension mechanism
Characteristics and advantages of suspended work platforms:
Characteristics:

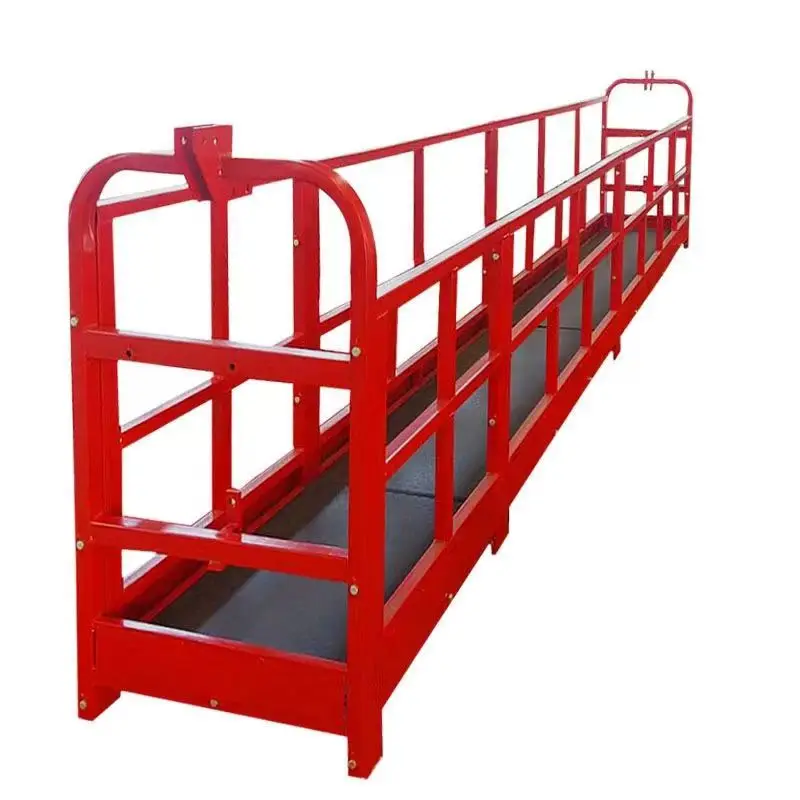

a. The suspended work platform is a frame type steel structure composed of welded components fixed by bolts.b. The suspended channel platform has a higher rated load-bearing capacity and is designed with better anti sway and anti rollover performance.
c. The product is coated with various colors of spray painted steel, spray painted steel, and hot-dip galvanized steel for you to choose from.
advantages:
a. The design length of each section of the work platform is 1m, 1.5m, 2m, and 2.5m. Customers can choose configurations according to their actual needs.
b. The suspended work platform is a frame type steel structure composed of welded components fixed by bolts
c. 360 ° flip casters can be configured for easy movement of suspended work platforms.
efficiency.

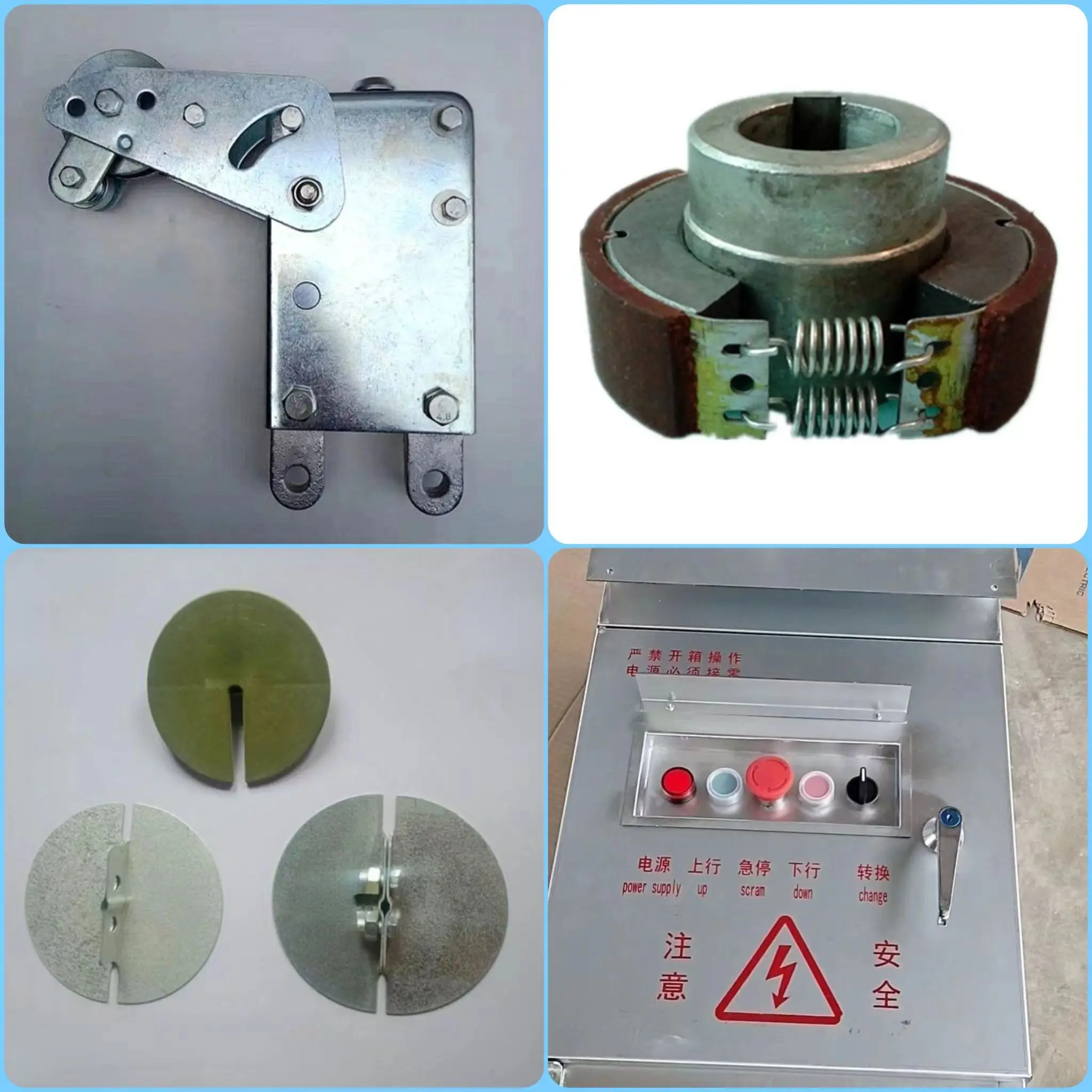

a. Safety lock and safety wire rope: There is a safety lock and a safety wire rope on each side of the suspended channel platform.
If the working wire rope breaks or one side of the platform tilts, the safety lock will lock the safety wire rope to prevent the platform from descending.b. Safety rope: Safety rope, also known as lifeline, is made of high-strength filament with a diameter of 16-18mm. When the
suspension platform falls due to a malfunction, the safety rope will be tightened to prevent construction personnel from falling.
c. Limit plate: There are two materials, steel and plastic. The two devices will trigger the limit device when the suspension
platform rises to the limit height, thereby stopping the platform hoist and avoiding accidents.
d. Electromagnetic brake: When the circuit fails or the power is cut off, it will keep the work platform suspended.
e. Centrifugal speed limiting device: This device is located at the connection between the motor and the lifting body, ensuring that the descent speed of the suspended platform is not higher than 1.5 times the rated lifting speed, making the platform more stable.
f. Manual lifting device: In the event of a power outage or electrical failure, users can use both sides of the device
simultaneously to lower the suspended work platform and safely return workers to the ground.
g. Emergency stop button: Pressing this button will turn off the main power and control power, stopping the movement of the platform.
e. Centrifugal speed limiting device: This device is located at the connection between the motor and the lifting body, ensuring that the descent speed of the suspended platform is not higher than 1.5 times the rated lifting speed, making the platform more stable.
f. Manual lifting device: In the event of a power outage or electrical failure, users can use both sides of the device
simultaneously to lower the suspended work platform and safely return workers to the ground.
g. Emergency stop button: Pressing this button will turn off the main power and control power, stopping the movement of the platform.

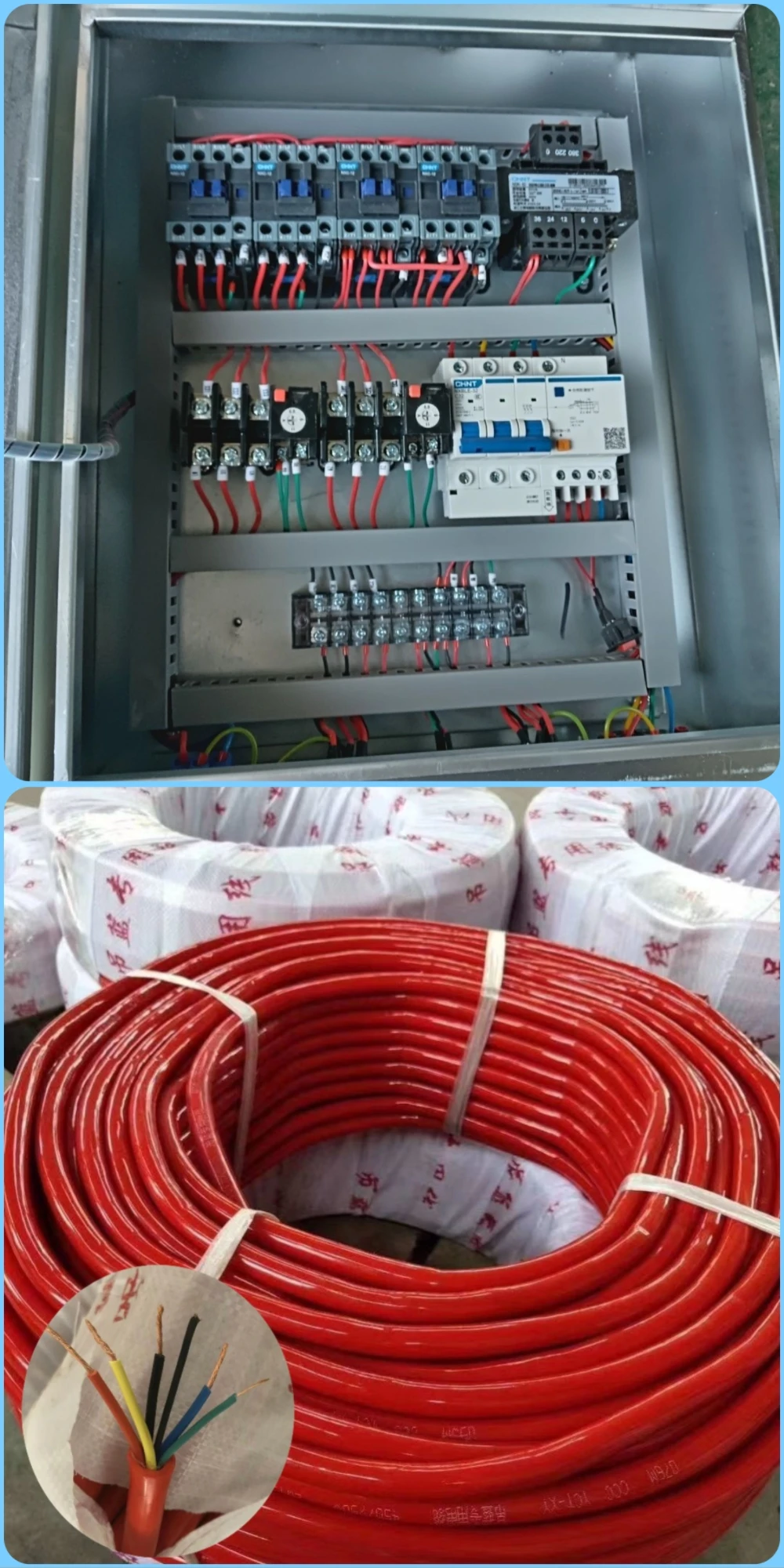

Electrical system:
The electrical system of our suspended work platform mainly includes electrical control boxes, cables, transformers, leakage protectors, and other controllers and switches.
a.The control panel of the control box can be set in Chinese, English, Russian or other languages according to customer
requirements.
requirements.
b.The cable we use is a six core cable that meets the national standard of 3 × 2.5 ²+2 × 1.5 ². There is a thin steel wire rope inside the cable, which provides higher tensile strength and longer service life for electricity consumption.

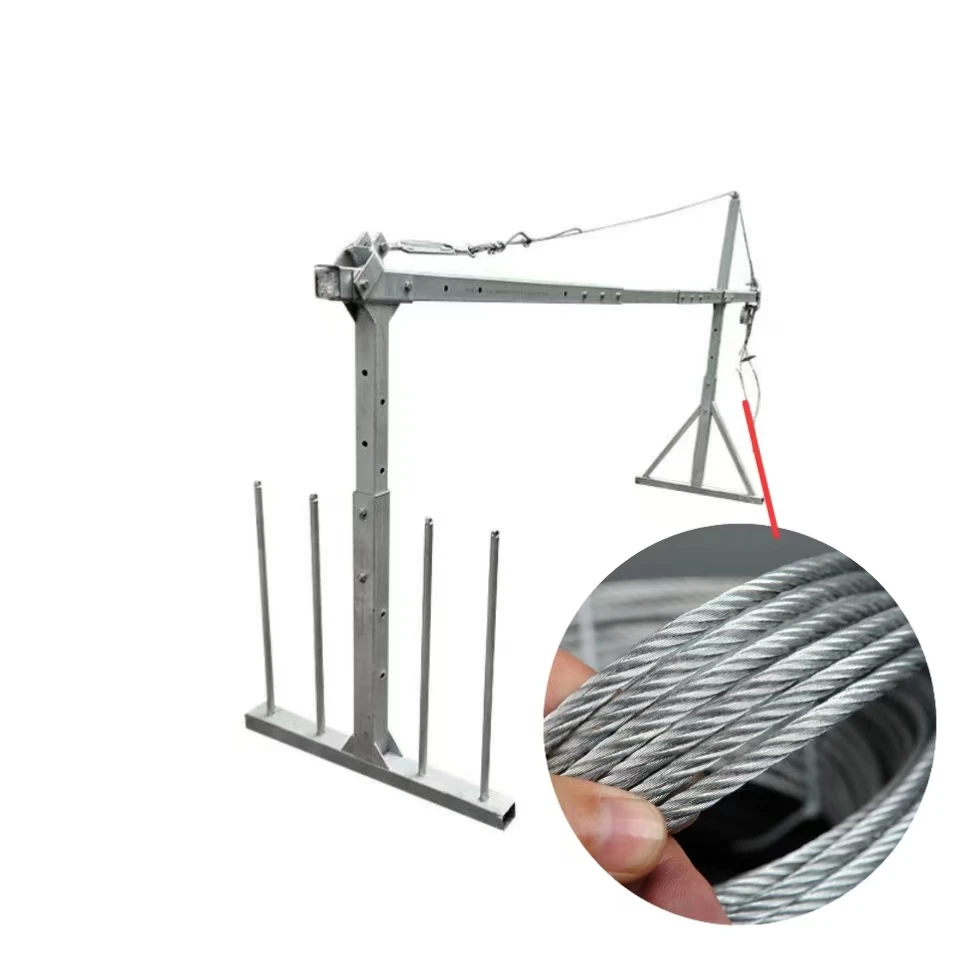

independent steel frames and steel wire ropes. The length and height of the extension can be adjusted to adapt to more application
scenarios.

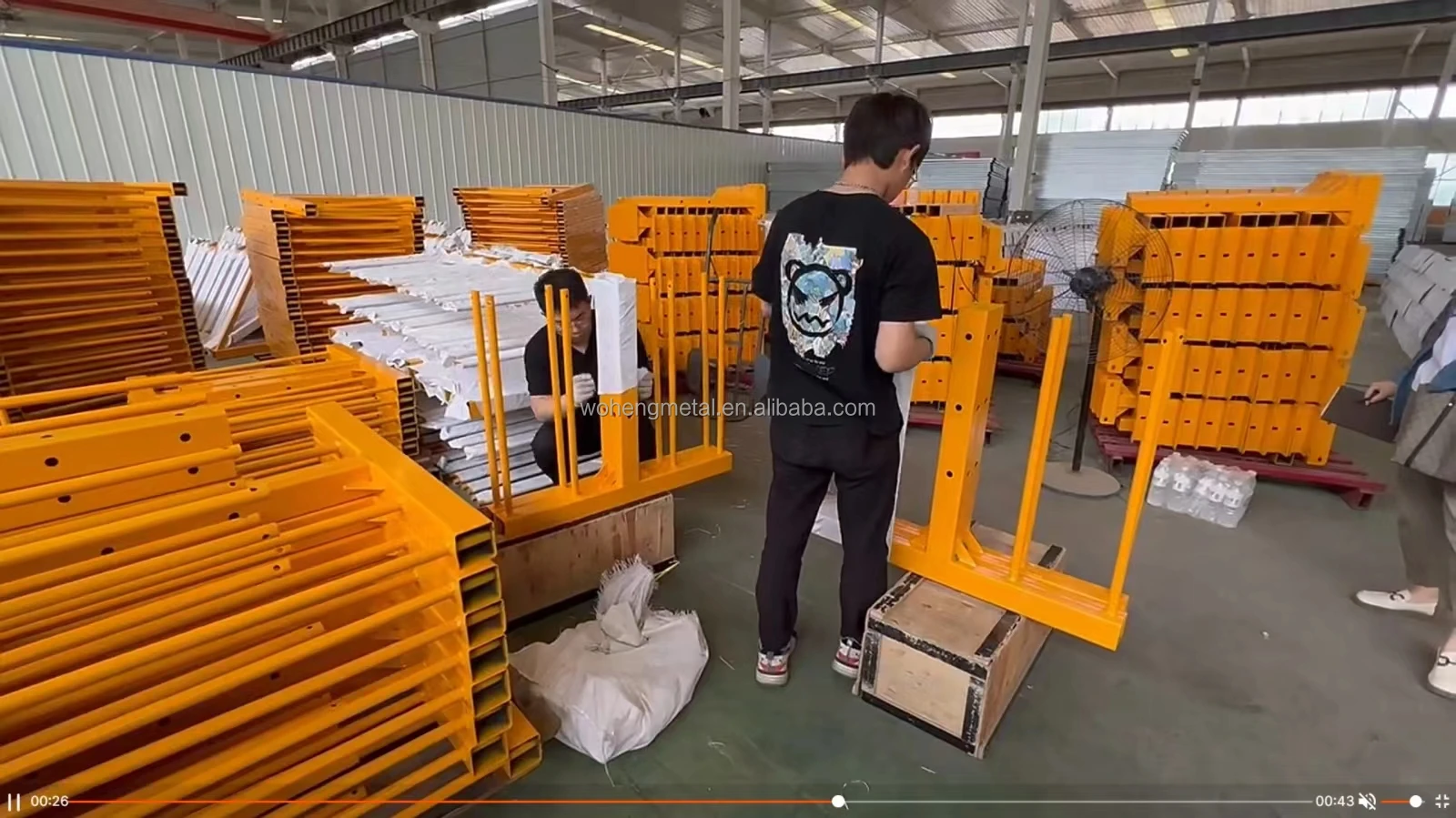

Quality control
Our company conducts strict testing of the purchased raw materials to ensure a solid foundation of product quality. We have four sets of national testing equipment including tilt testing machine.
Static load testing machines, hoist power detectors, safety lock detectors, horizontal testing racks, metal flaw detectors, etc., to ensure that the factoryproducts meet customer needs.

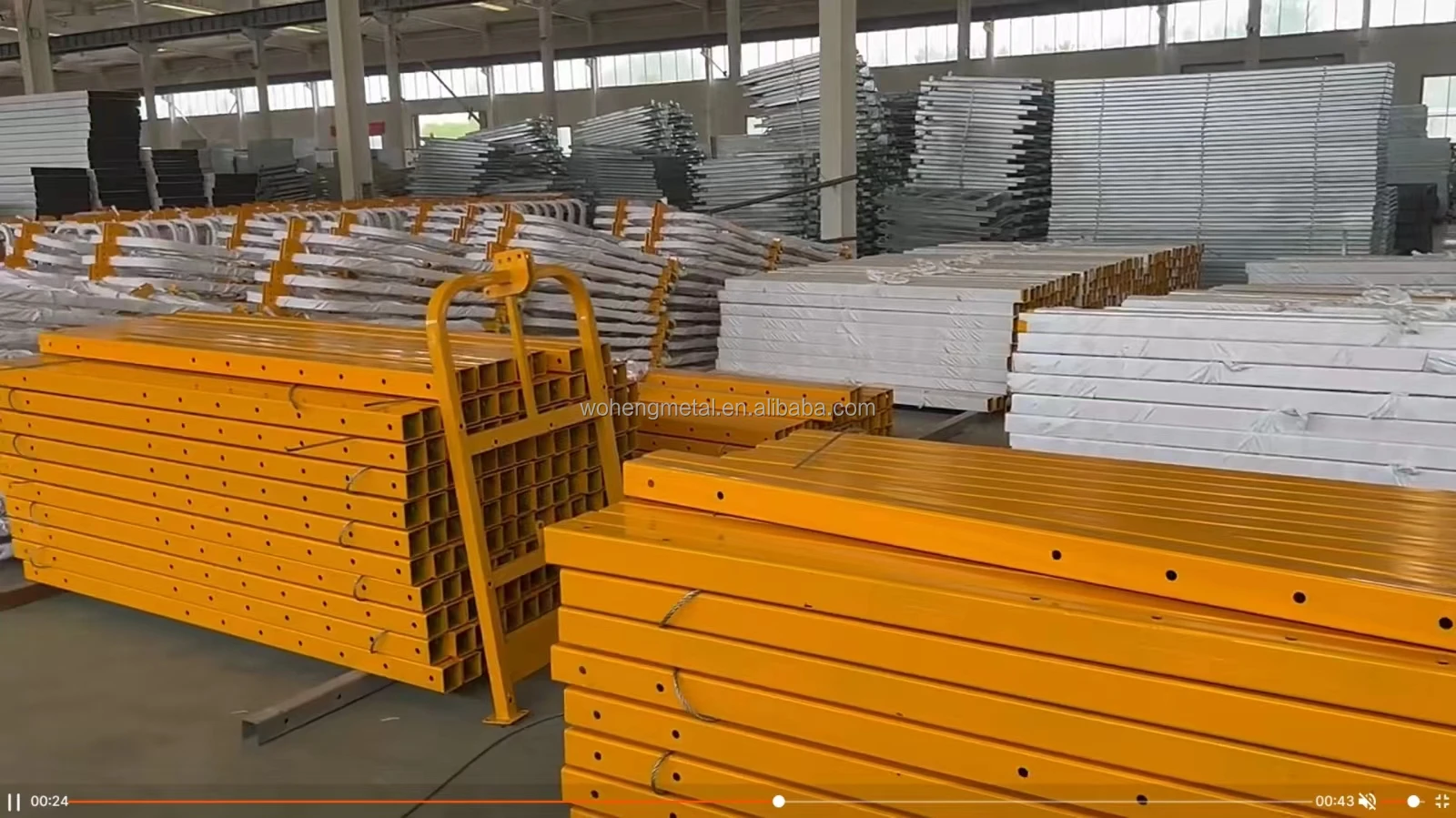

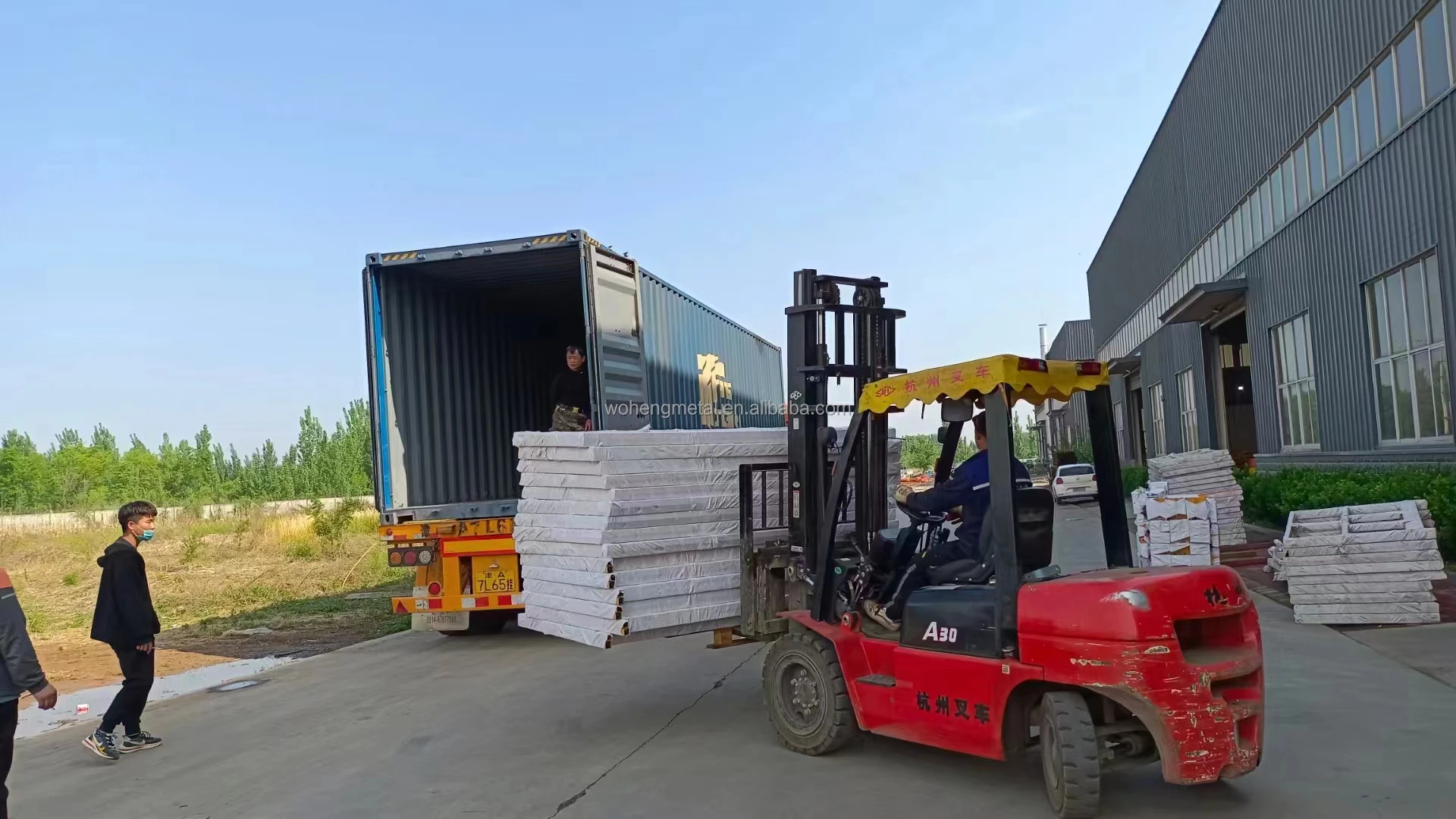

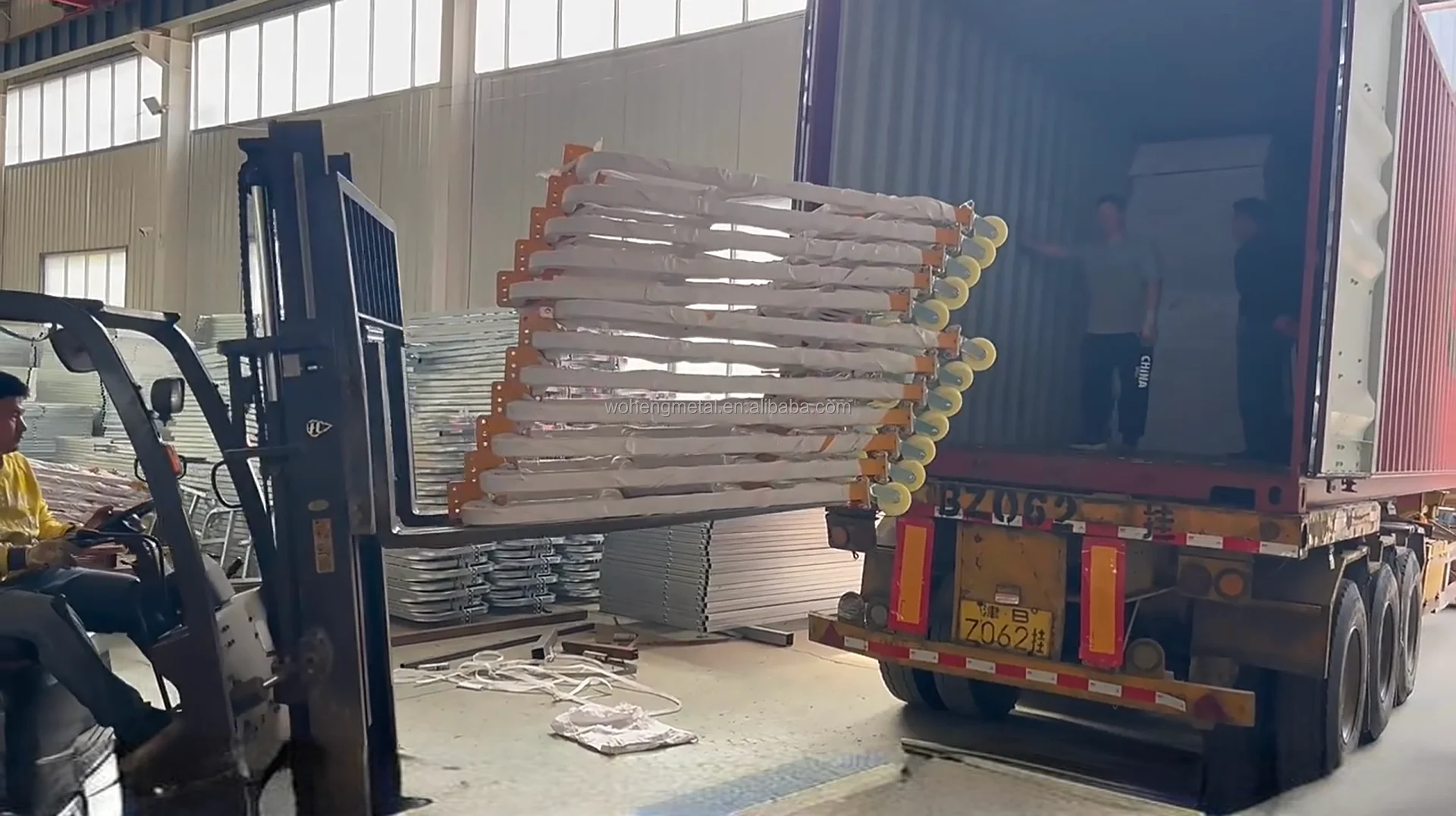

Product packaging

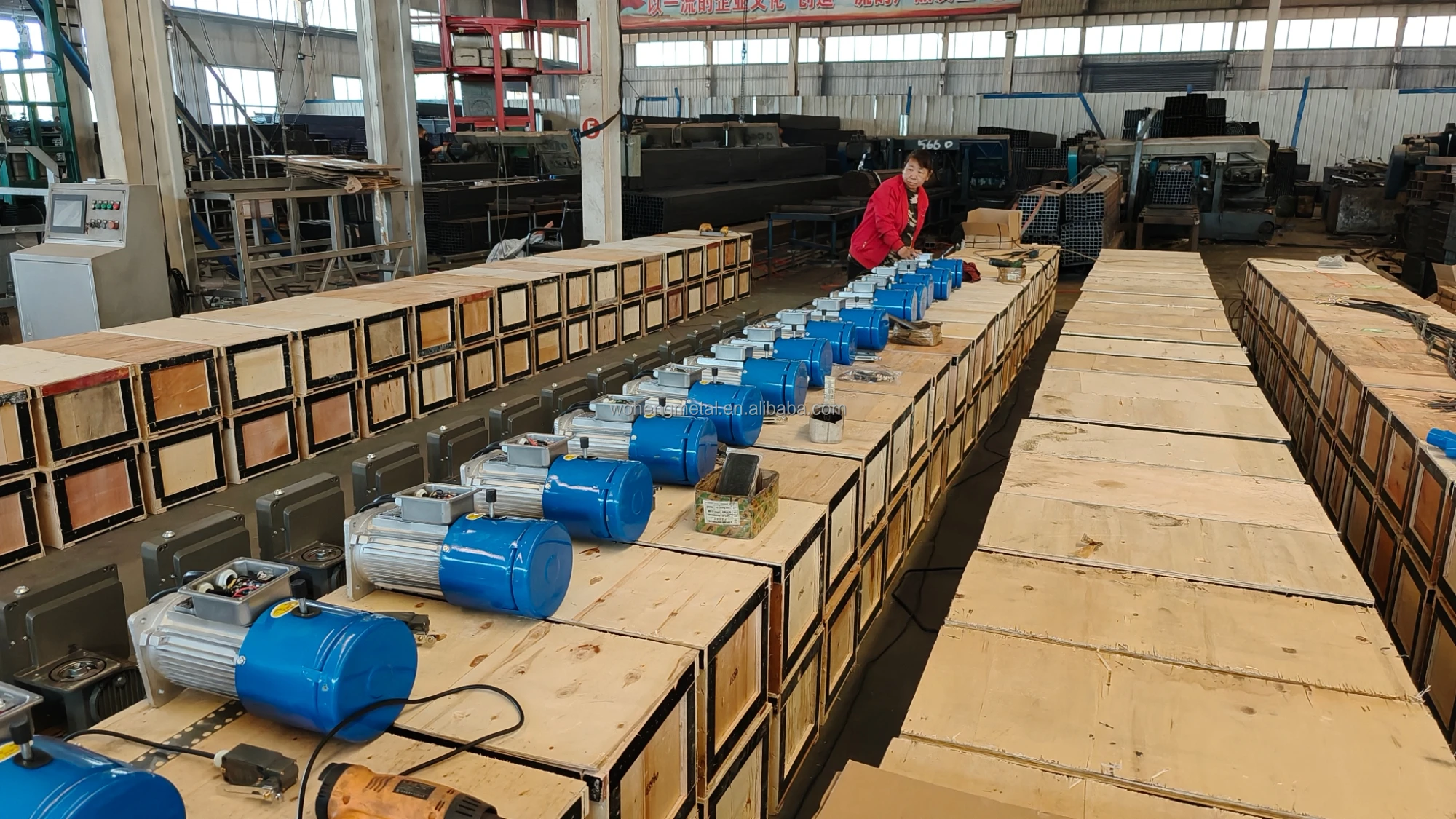

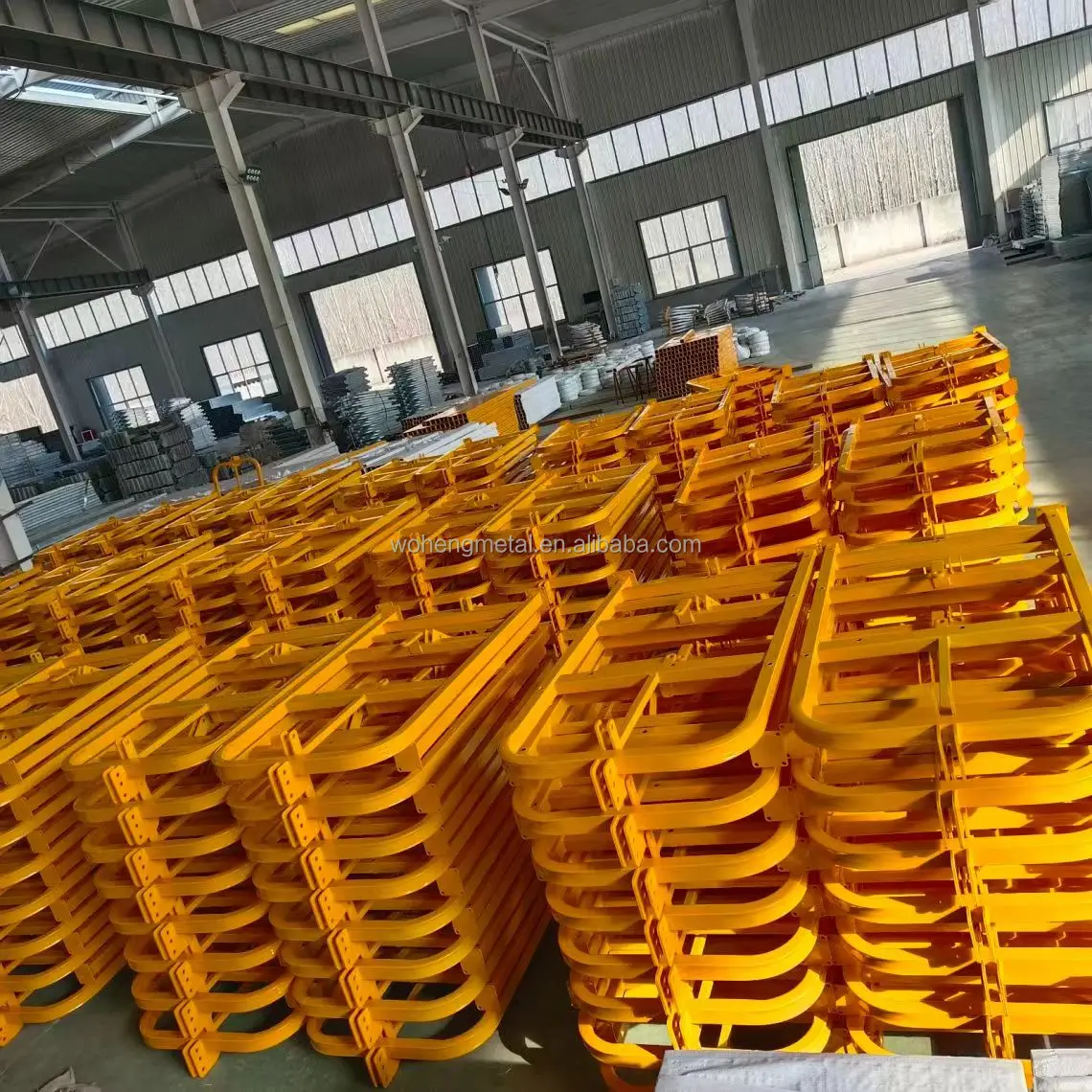

Powerful factory with stable production capacity, ensuring timely delivery
Item | Value |
Type | ZLP630/ZLP800 |
3Warranty | 5 years |
After-sale Service | Online technical support |
Project Solution Capability | Graphic design, 3D model design, total solution for projects |
Application | Exterior wall construction, cleaning，high altitude transportation |
Place of Origin | China |
Brand Name | Wohengmetal |
1: Are you a manufacturer?
Yes,we have specialized in this field for about 10 years experience.
2: Could you provide sample?
Yes,we can provide sample together with our catalogue.
3: What information should I provide,if I want a lowest quotation?
The specifications of wire diameter. length, quantity, packing, etc.
4: How does your factory do regarding quality control?
We are very proud to let you know that, we use the best raw material,have at least 5 years experienced workers, the advanced
machine and specialized team to assure the quality.We perform Quality Control Inspections on 100%of our products.
5: How is your delivery time?
We always prepare enough stock material for your urgent requirement.The delivery time is 7days for all the stock material. We
will check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
6:Whats the payment term?
We usually use the T/T,L/C,D/P,Western union.
Yes,we have specialized in this field for about 10 years experience.
2: Could you provide sample?
Yes,we can provide sample together with our catalogue.
3: What information should I provide,if I want a lowest quotation?
The specifications of wire diameter. length, quantity, packing, etc.
4: How does your factory do regarding quality control?
We are very proud to let you know that, we use the best raw material,have at least 5 years experienced workers, the advanced
machine and specialized team to assure the quality.We perform Quality Control Inspections on 100%of our products.
5: How is your delivery time?
We always prepare enough stock material for your urgent requirement.The delivery time is 7days for all the stock material. We
will check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
6:Whats the payment term?
We usually use the T/T,L/C,D/P,Western union.
