600Tph Mobile Crushers For Mining Mobile Big Jaw Stone Rock Crusher Machine For Price
- Category: >>>
- Supplier: Hebei Zhongke Jiantong Machinery Equipment Co. Ltd.
Share on (1601277637678):
Product Overview
Description
Product Description

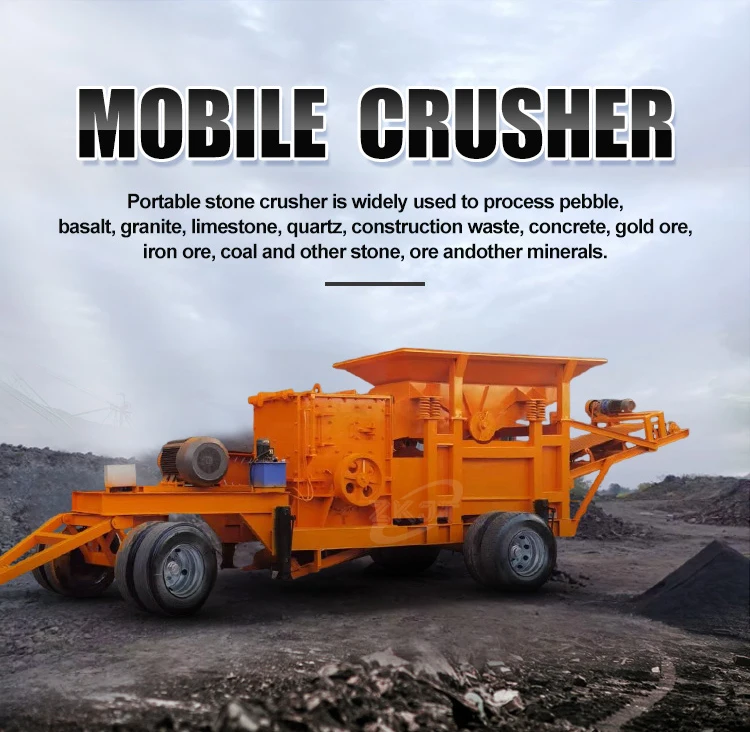

Mobile crusher has been widely used. It expands the usage scope of crushing & screening operation. To remove customers’ operation obstacles caused by space and environment is our fist solution. To supply efficient and cheap crushing &screening system is our responsibility. The mobile crushing plant can be used on various crushing and screening spots, the customer can select one set or several different usage station according to requirements. We can also design kinds of mobile plants to meet special requirement.

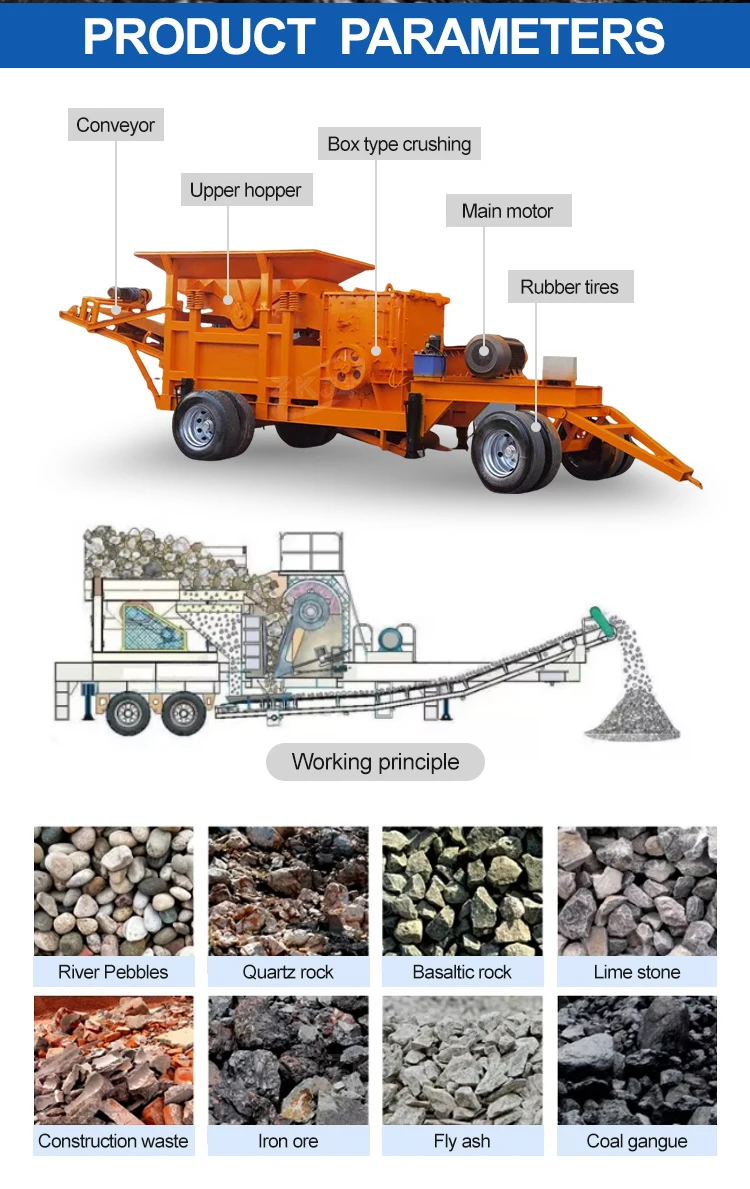

Product parameter
| model | 800*800 | 800*1000 | 1000*1200 | 1200*1200 | 1200*1500 | 1400*1600 |
| Motor power | 90kw*4G | 110kw*4G | 132kw*4G | 160kw*4G | 185kw*4G | 250kw*4G |
| Diesel engine model | 6110 | 6110 | 615 | 618 | 618 | 612 |
| Diesel engine kilowatt | 150 kW | 150 kW | 200 kW | 250 kW | 250 kW | 300 kW |
| Diesel engine horsepower | 195 horsepower | 195 horsepower | 260 horsepower | 330 horsepower | 330 horsepower | 400 horsepower |
| Hopper length x width x thickness | 3.5m * 1.8m * 8mm thick | 3.6m * 2.2m * 8mm thick | 3.6m * 2.2m * 8mm thick | 3.8m * 2.2 m * 8mm thick | 3.8m * 2.2m * 8mm thick | 4m * 2.4m * 10mm thick |
| Feeder thickness | 0.8mm | 0.8mm | 0. 8mm | 0. 8mm | 1.0mm | 1.0mm |
| Hammerhead weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Quantity of sand making hammers | 16 of them | 20 of them | 20 of them | 24 of them | 24 of them | 24 of them |
| Quantity of stone hammer heads | 8 of them | 10 of them | 10 of them | About 16t | 12 of them | 12 of them |
| Total weight of the aircraft | About 10t | About 12.5t | About 14t | About 16t | About 18t | About 26t |
| Conveyor belt length x width | 7m * 0.8m | 8m * 0.8m | 8m * 1m | 8m * 1m | 8m x 1.2 m | 9m * 1.2m |
| Conveyor power | 5. 5kw | 5.5kw | 7. 5kw | 7. 5kv | 7. 5kw | 7. 5kw |
| Number of tire models * | 1100 * 8 pieces | 1100 * 8 pieces | 1100 x 8 pieces | 1000x12 pieces | 1100x12 pieces | 1100x12 pieces |
| Thickness of steel plate for crushing box | 16mm | 6mm | 16mm | 18mm | 18mm | 18mm |
| I-beam chassis | 250 I-beam | 250 I-beam | 250 I-beam | 320 I-beam | 320 I-beam | 400 I-beam |
| Sand production (ton) | 30 | 45 | 55 | 65 | 80 | 100 |
| Stone production output (ton) | 50 | 70 | 80 | 90 | 120 | 180 |
| Length, width, and height (meters) | 10*2.8*3.5 | 11*2.8*3.5 | 11.5*2.8*3.5 | 12*3*3.6 | 12*3*36 | 13*3.2*3.7 |

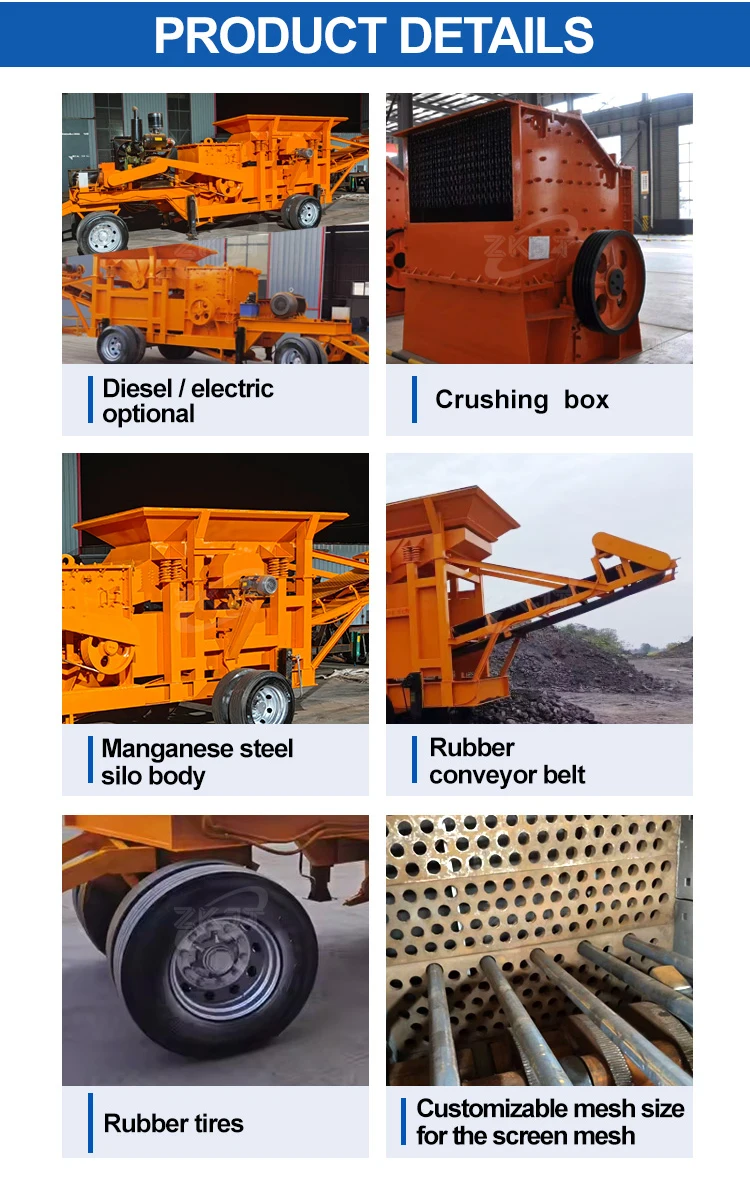

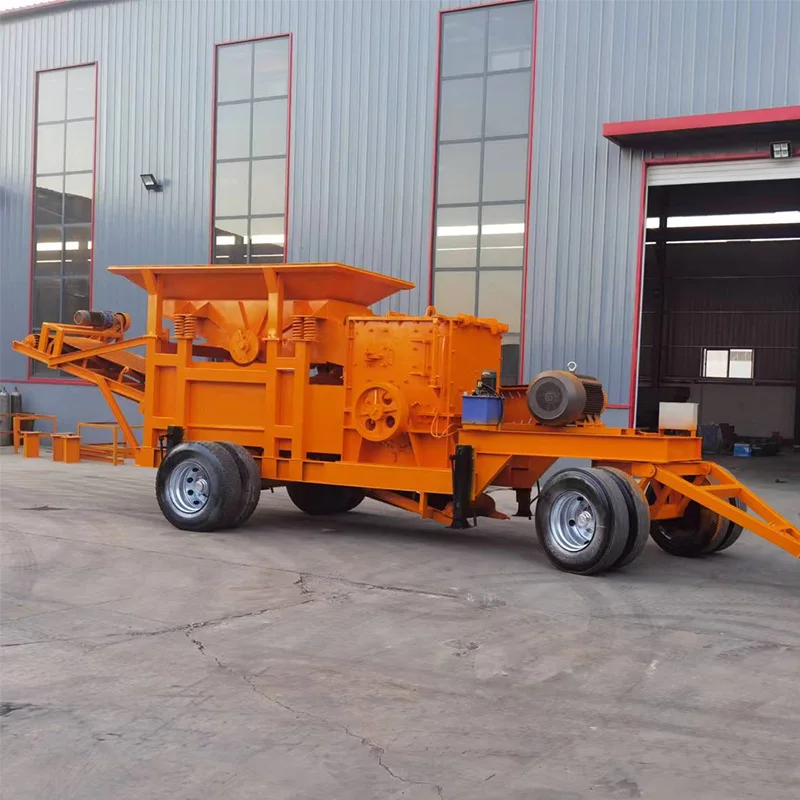

Product Details

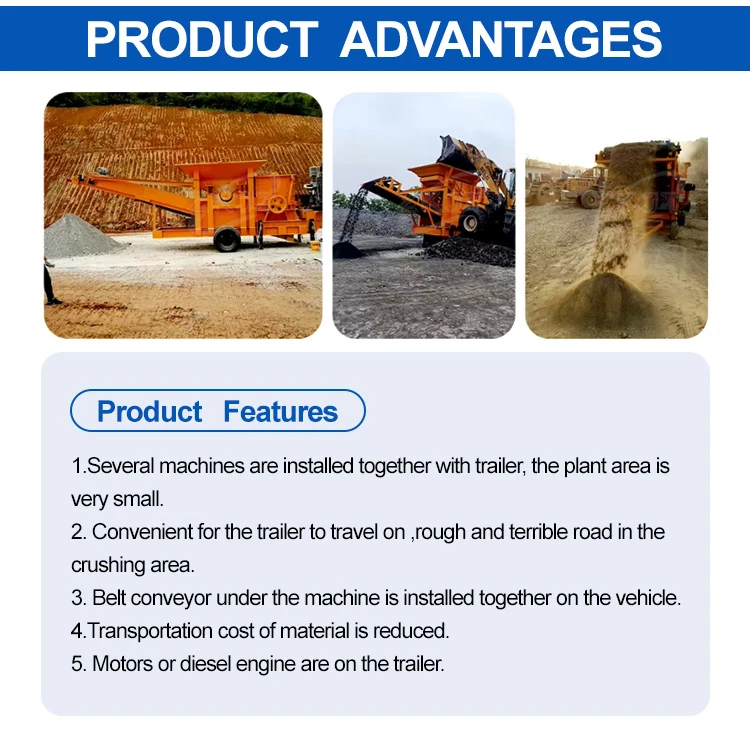

Advantage

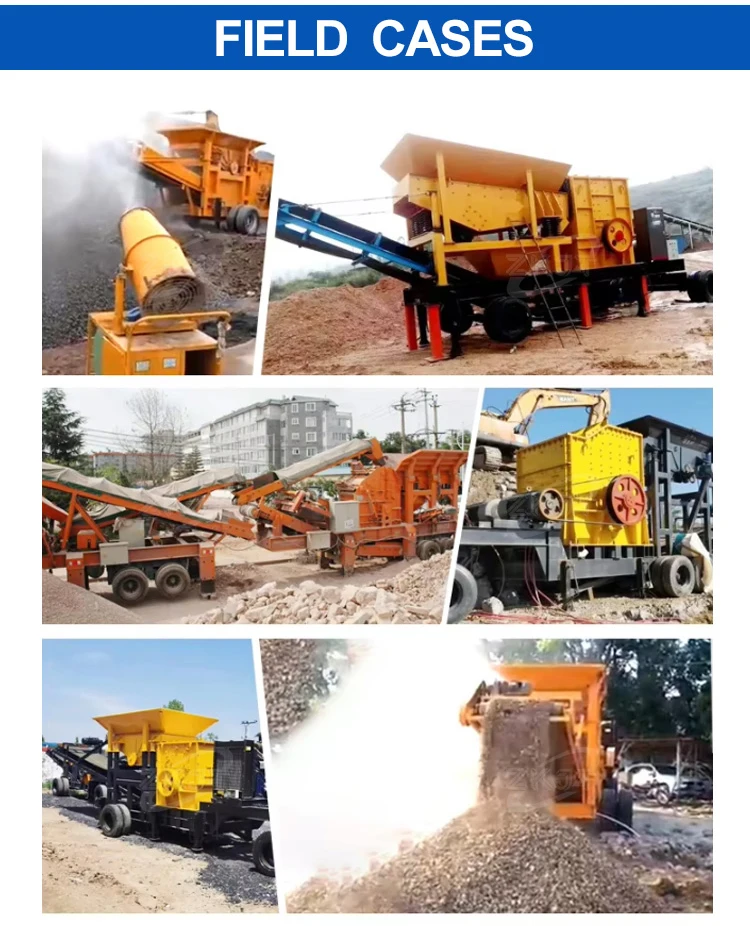

Field Application

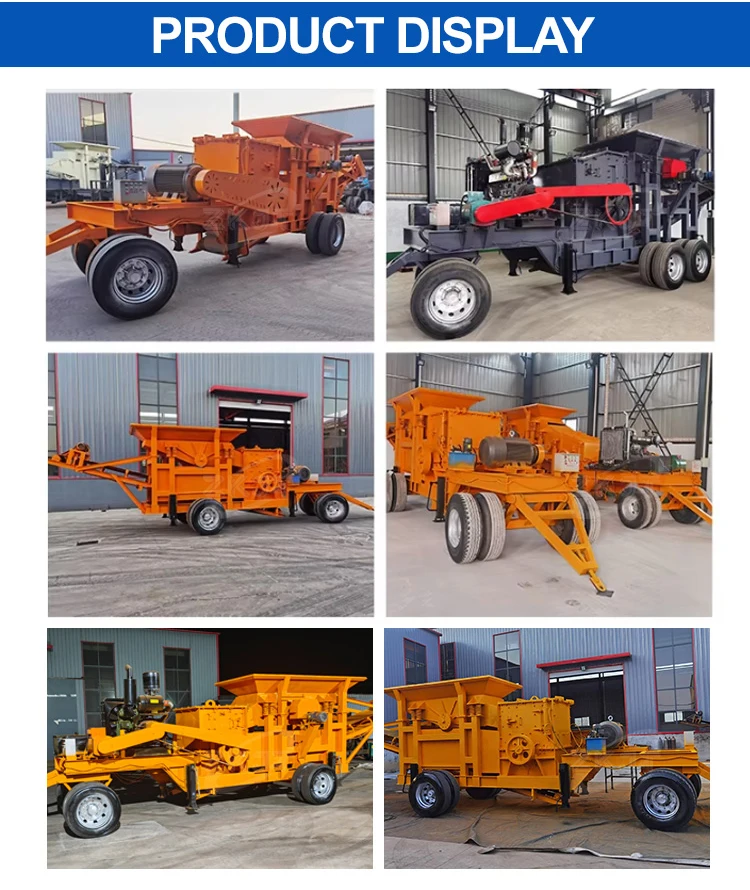

Product Display
Customer Feedback
Company Information
Q1. Are you made in the original factory?
Yes, we are the manufacturer.
Q2. When is the delivery time?
We generally need 7-10 days to prepay the production of the machine, if there is stock, we will ship within 1-3 days.
Q3.What about the warranty?
We offer a 3-year warranty.
Q4. What if the machine breaks down?
You can send us the video and our technicians will analyze the cause of the problem based on the video. Or send a technician to your house
Q5. What if the parts are broken?
We recommend that customers purchase some traditional accessories (at our expense) according to their country and environment. If other parts are broken, we will ship them to you free of charge by sea or air, or with the next order
Q6. What payment methods can we accept?
Wire transfer, letter of credit, Western Union will do.
Q7. Do you support customization?
Yes, Sir. No problem.
Q8.How do you pack these machines?
Generally speaking, we use export wooden cases to ensure the safety of transportation. Customization is also supported.
