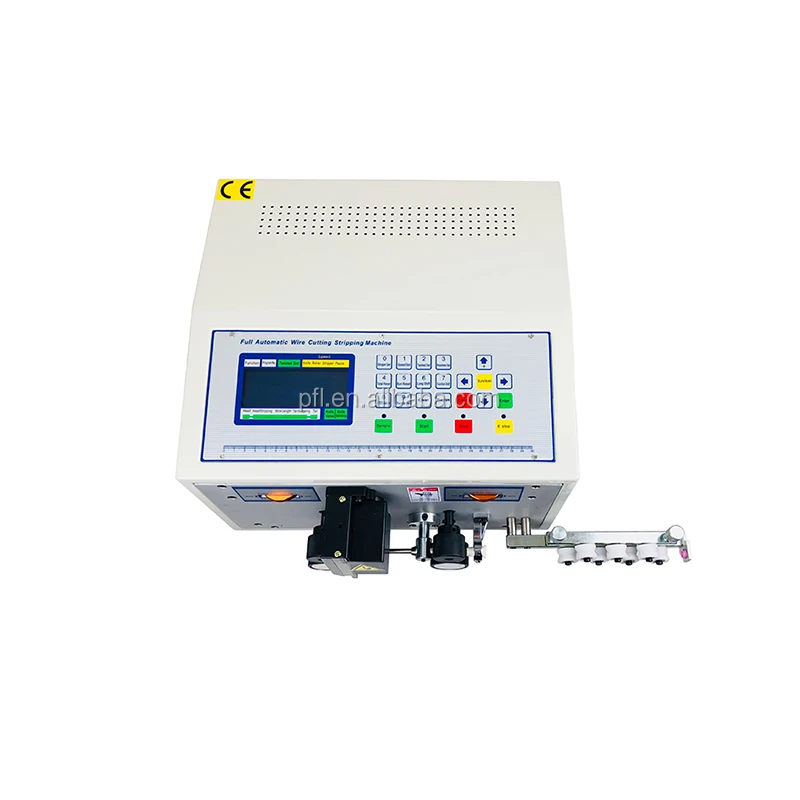

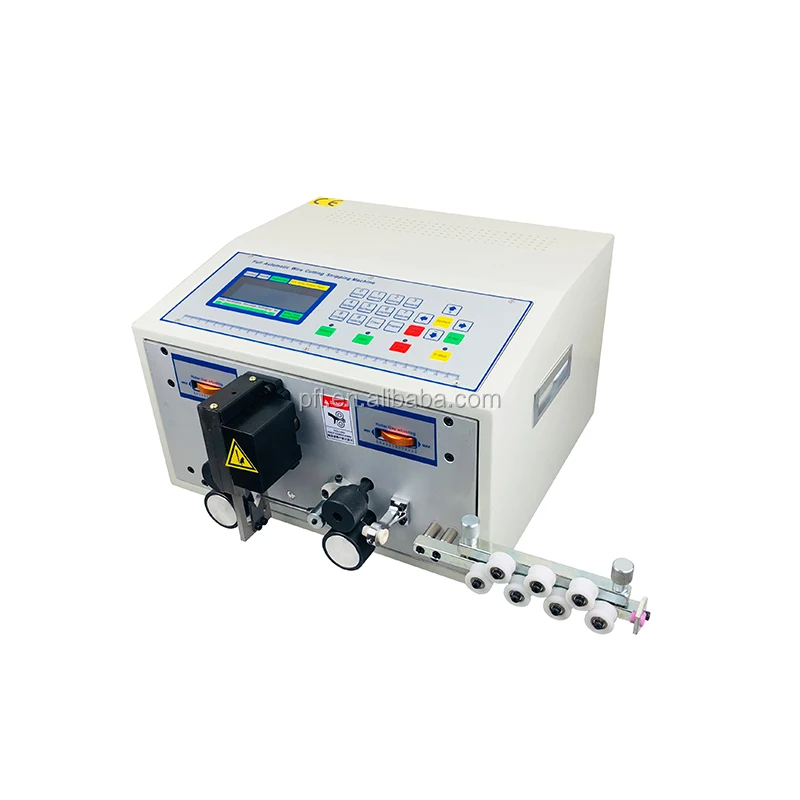

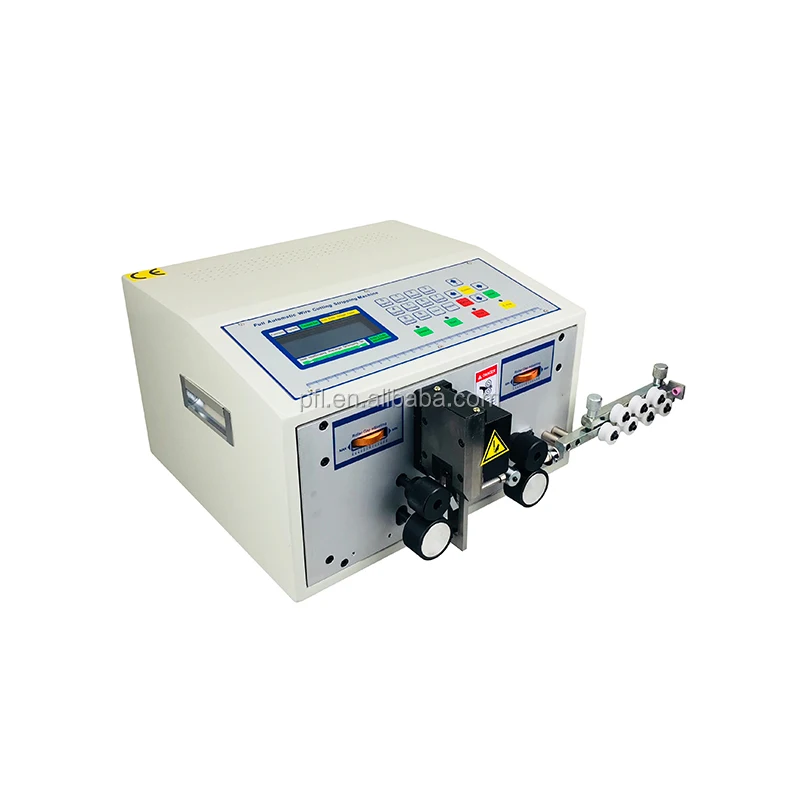

PFL 01 Factory Price Electric Glass Fiber Coaxial Wire Stripping Cutting Machine
- Category: >>>
- Supplier: Kunshan Pingfenglong Trade Co. Ltd.
Share on (1601277662829):
Product Overview
Description
Product Information
| Features: |
Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment.
| Apply for: |
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Specification: |
| Available Wire Cross-Section Range: | 0.1~2.5mm2 | |
| Conduit Diameter: | 6mm | |
| Cutting Length: | 1~9999mm | |
| Cutting Tolerance: | ±(0.002×L) (L=Cutting Length) | |
| Stripping Length: | Head 0~35mm, Tail 0~15mm | |
| Middle Stripping Section: | Max 11 | |
| Speed: | 3000-8000pcs/h | |
| Display Way: | English LCD display | |
| Drive Mode: | 2 Drives | |
| Blade Material: | Hard tungsten steel | |
| Appropriate Wire: | Small electrical wires,PVC tubes,PVC wires | |
| Power Supply: | 220V/50Hz 110V/60Hz | |
| Power Rating: | 160W | |
| Measurement: | 390*350*255mm | |
| Weight: | 29kg | |
| Samples: |

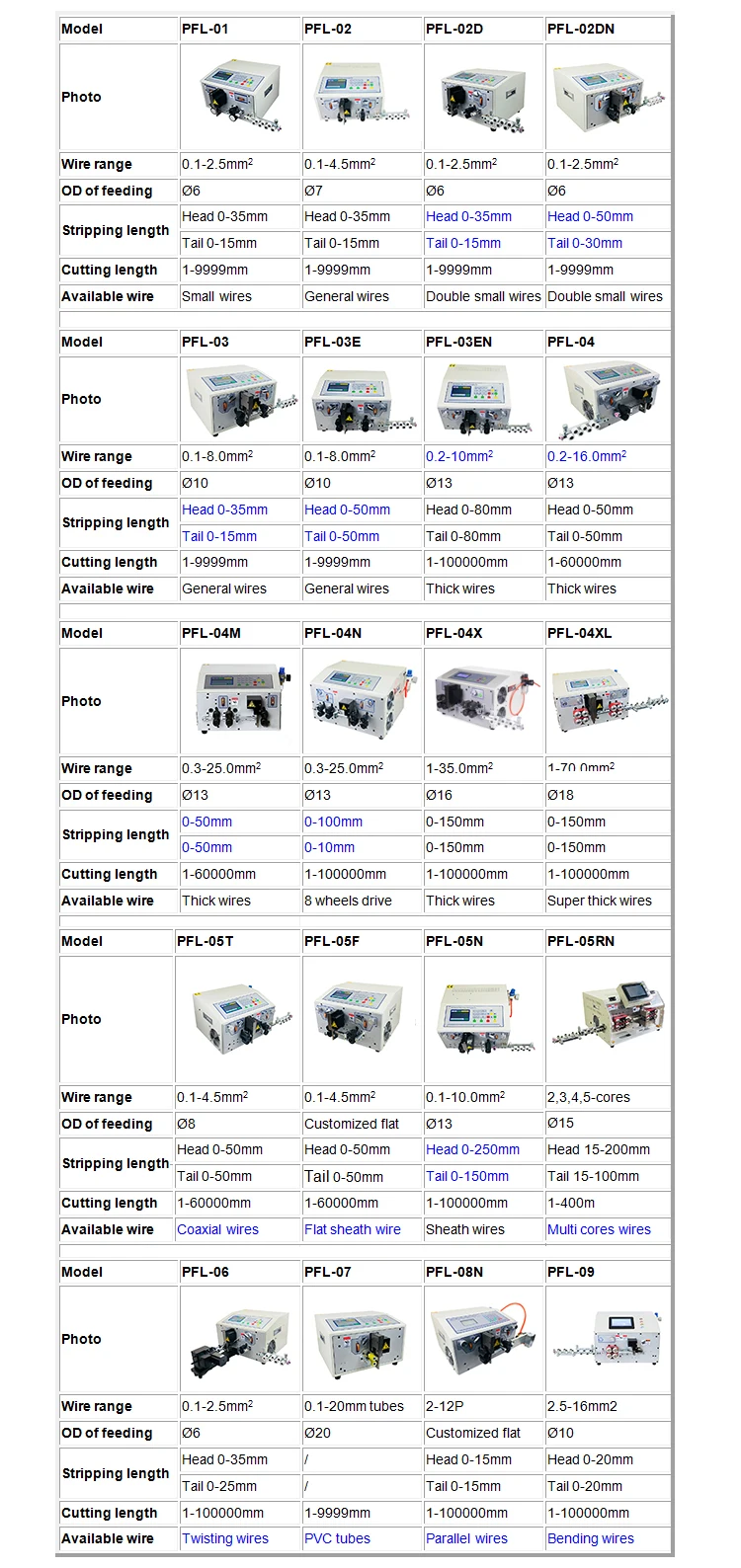

| All Models: |
