Price:$499.00-559.00

Quantity:


Product Overview

Description



Products Description








Technical Parameter


Model
ET-51.2V100Ah-HV
Battery type
LiFePO4
Module Energy
5.12kwh
Module Nominal Voltage
51.2V
Module Capacity
100Ah
Module Dimension
355*567*150(W/D/H,mm)
Module Weight
42.5kg (Approximate)
Battery Module Qty In

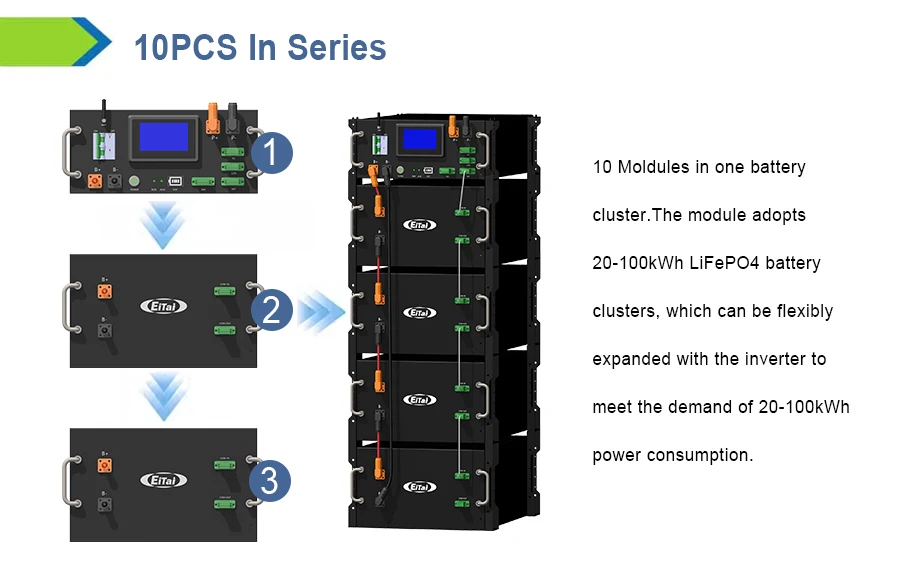

Series(Optional)
4
5
6
7
8
9
10
System Nominal Voltage
204.8V
256V
307.2V
358.4V
409.6V
460.8V
512V
System Operating Voltage
185.6~
230.4V
232~
288V
278.4~
345.6V
324.8~
403.2V
371.2~
460.8V
417.6~
518.4V
464~
576V
System Energy
20.48kwh
25.6kwh
30.72kwh
35.84kwh
40.96kwh
46.08kwh
51.2kwh
System Usable Energy(kwh)(90%DOD)
18.43
23.04
27.65
32.26
36.86
41.47
46.08
Charge/Discharge Current
Recommend:50A Max:50A
Working Temperature
0~60 (°C)
Cooling Mode
Natural Cooling
Communication Port
CAN/RS485
Humidity
5%~85%RH
Altitude
≥2000m
IP Rating of Enclosure
IP21
Dimension
 (w/D/H,mm)
355*567*830
355*567*1000
355*567*1170
355*567*1340
355*567*1510
355*567*1680
355*567*1850
Weight Approximate
185kg
227.5kg
270kg
312.5kg
355kg
397.5kg
440kg
lron Frame Dimension
355*567*1370(W/D/H,mm)
355*567*2050(W/D/H,mm)
lron Frame Weight
45kg (Approximate)
56kg (Approximate)
Installation
Stack Mounting, lron Frame Mounting
Storage Temperature
0~35(°C)
Cycle Life
≥6000 times
Warranty
10 years (5+5)
Certification
UN38.3,MSDS,CE,ROHS
The current is affected by temperature and SOC


Model
ET-51.2V200Ah-HV
Battery type
LiFePO4
Module Energy
10.24kwh
Module Nominal Voltage
51.2V
Module Capacity
200Ah
Module Dimension
383*605*240(W/D/H,mm)
Module Weight
77kg (Approximate)
Battery Module Qty In
Series(Optional)
4
5
6
7
8
9
10
System Nominal Voltage
204.8V
256V
307.2V
358.4V
409.6V
460.8V
512V
System Operating Voltage
185.6~
230.4V
232~
288V
278.4~
345.6V
324.8~
403.2V
371.2~
460.8V
417.6~
518.4V
464~
576V
System Energy
40.09kwh
51.2kwh
61.44kwh
71.68kwh
81.92kwh
92.16kwh
102.4kwh
System Usable Energy(kwh)(90%DOD)
36.86
46.08
55.3
64.51
73.73
82.94
92.16
Charge/Discharge Current
Recommend:80A Max:100A
Working Temperature
0~60 (°C)
Cooling Mode
Natural Cooling
Communication Port
CAN/RS485
Humidity
5%~85%RH
Altitude
≥2000m
IP Rating of Enclosure
IP21
Dimension
 (w/D/H,mm)
383*605*1190
383*605*1450
383*605* 1710
(383*2)*
605*1020
(383*2)*
605*1190
(383*2)*
605*1280
(383*2)*
605*1450
Weight Approximate
323kg
440kg
477kg
554kg
631kg
708kg
785kg
lron Frame Dimension
383*605*1880(W/D/H,mm)
(383*2)*605*1880(W/D/H,mm)
lron Frame Weight
64kg (Approximate)
64*2 kg (Approximate)
Installation
Stack Mounting, lron Frame Mounting
Storage Temperature
0~35(°C)
Cycle Life
≥6000 times
Warranty
10 years (5+5)
Certification
UN38.3,MSDS,CE,ROHS,IEC62619
The current is affected by temperature and SOC

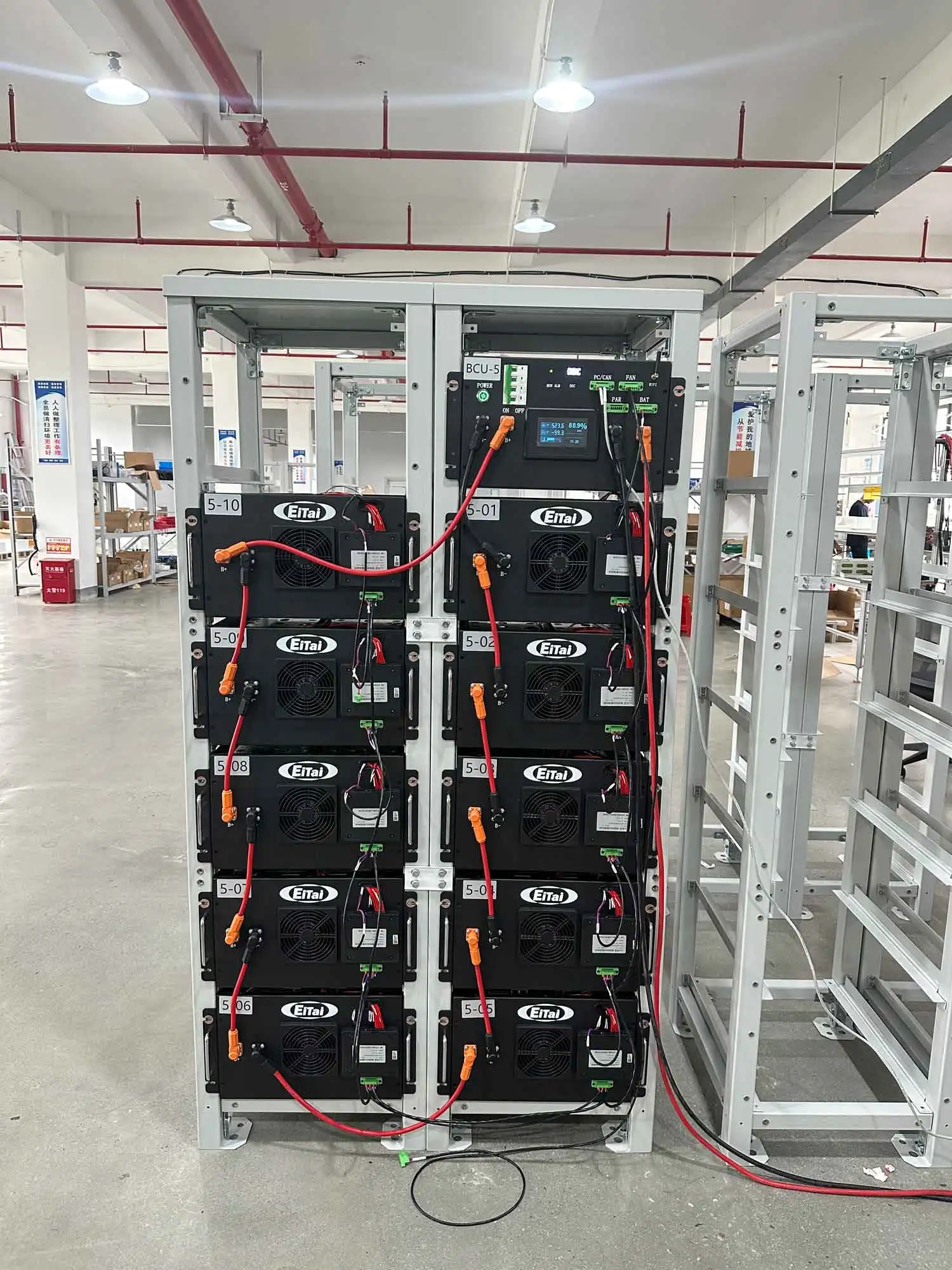

Product Feature



51.2V/204.2V (20.48~102.4kWh)
Battery Cabinet (Connect in Parallel)
☆ Adopts modular design, higher integration.
☆ Adopts high performance lithium iron phosphate cathode material, good core
consistency.
☆ Design service life of more than 10 years
Card.
☆ Factory Price.

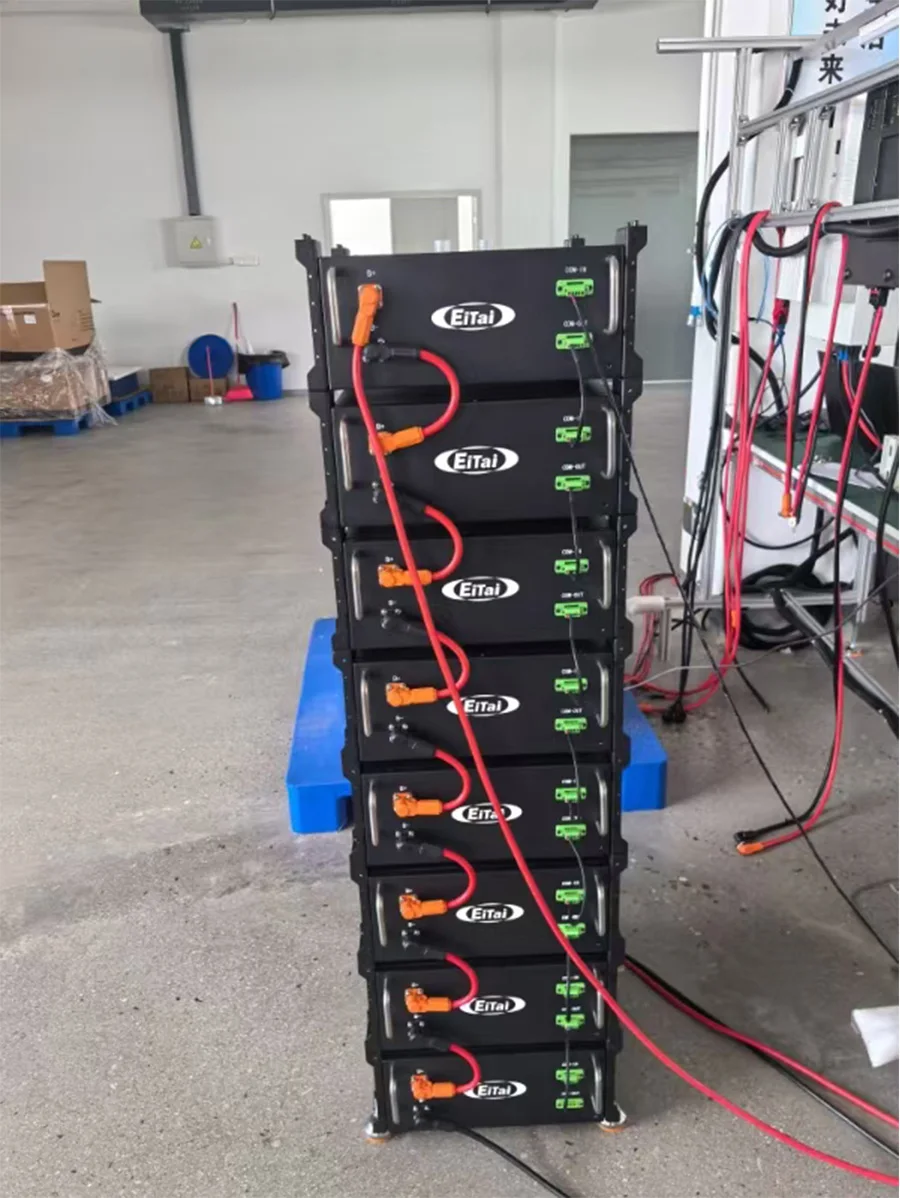

EITAI High Voltage Lifepo4 Battery（Support OEM）



51.2V/204.2V (20.48~102.4kWh)
Battery Cabinet (Connect in Parallel)

☆ Ground Installation
☆ Cycle Life:≥6000
☆ Communication Port:CAN/ RS485

☆ Easy to install
☆ Safe and reliable
☆ Intelligent control System
☆ Simple operation

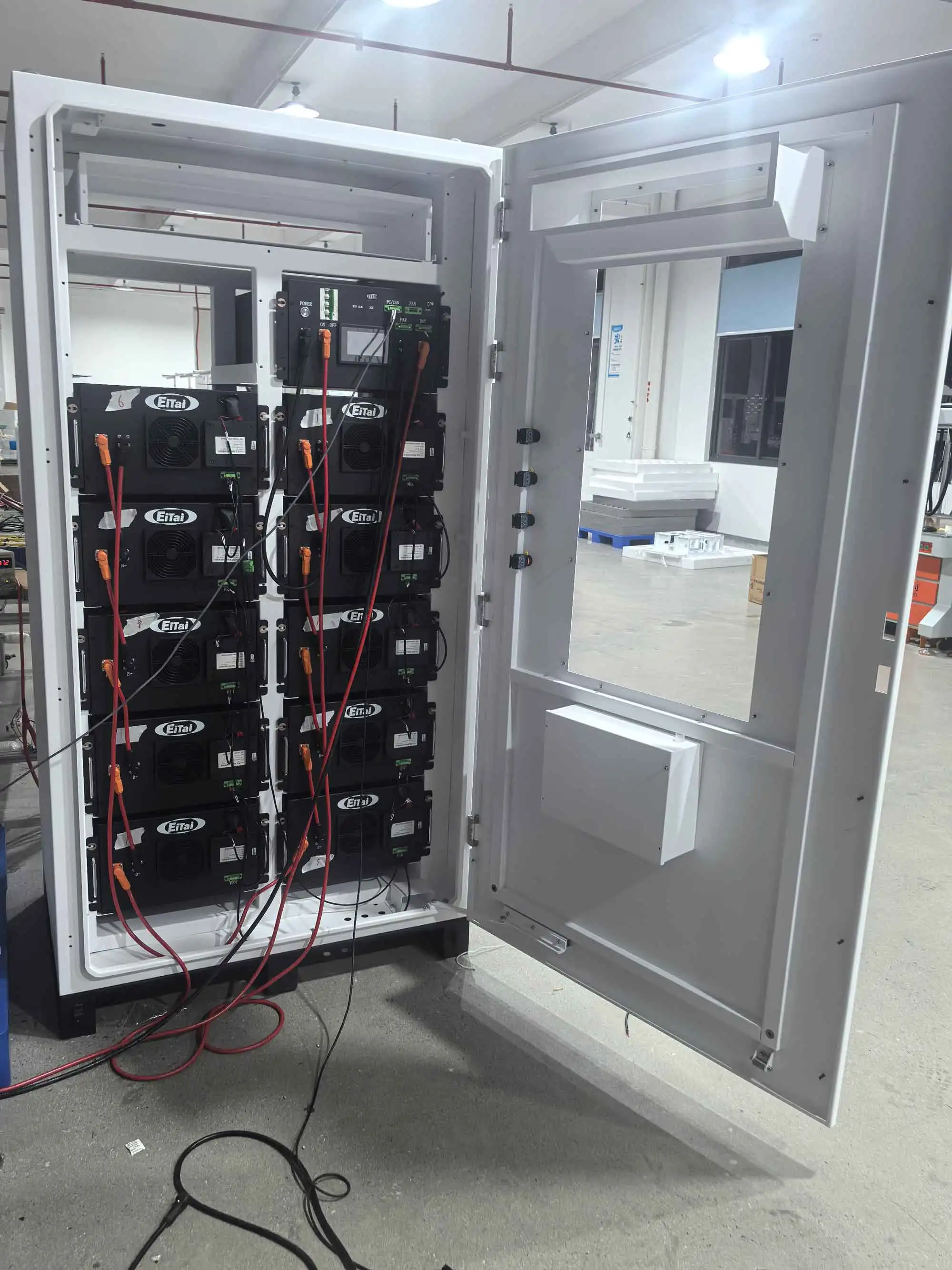

51.2V/204.2V (20.48~102.4kWh)
Battery Cabinet (Connect in Parallel)
☆ High Volt or High amp Lithium Battery Cabinet can choose according your needs.
☆ supporting free system solutions.

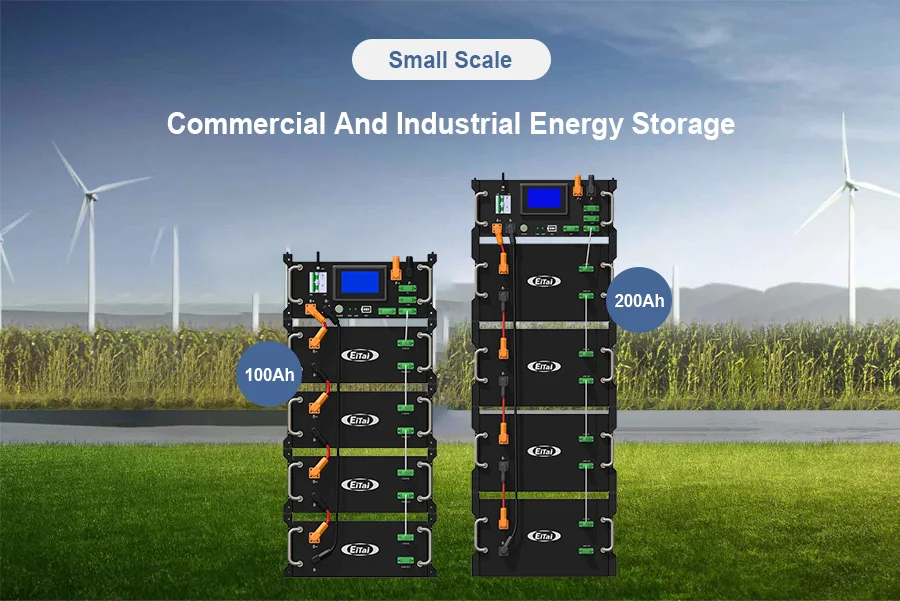

Industrial And Commercial Energy Storage Echelon Utilization






Recommend Products

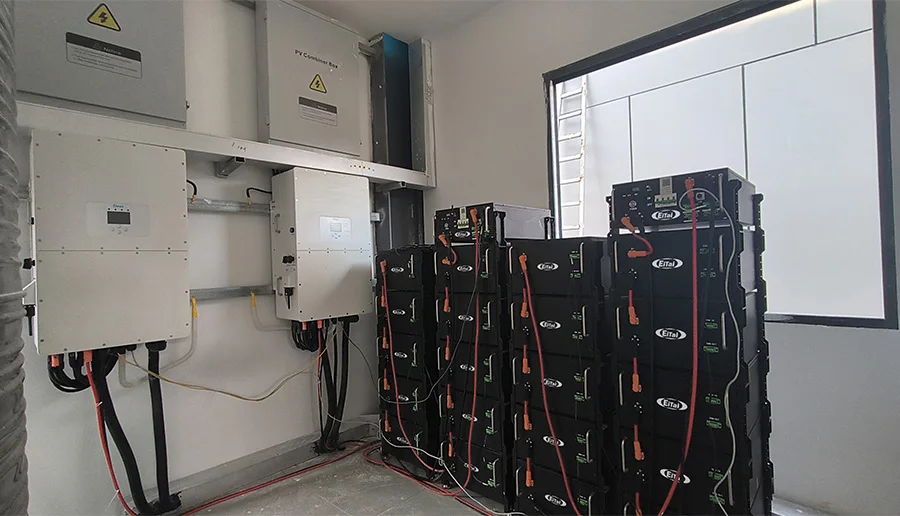

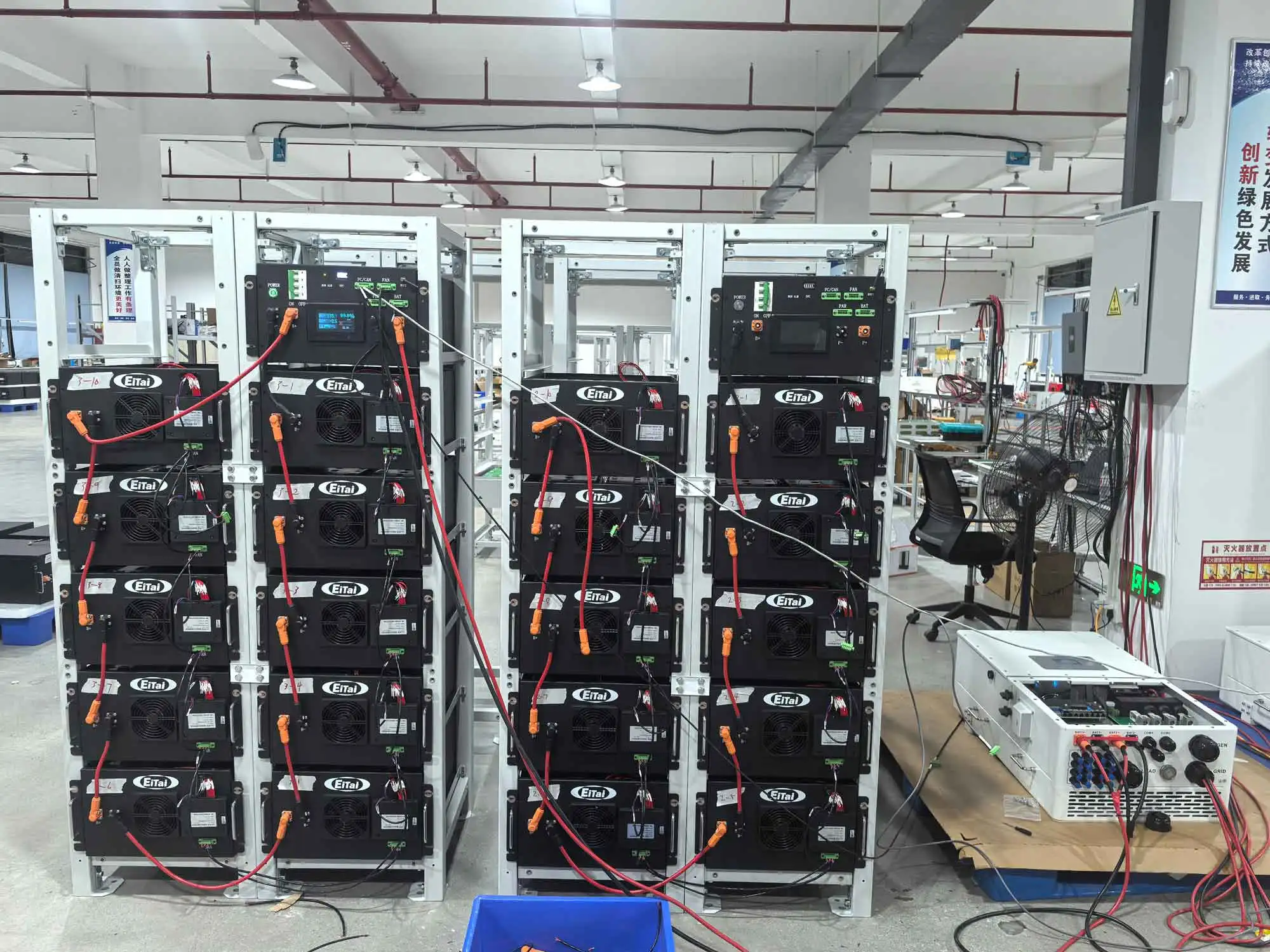

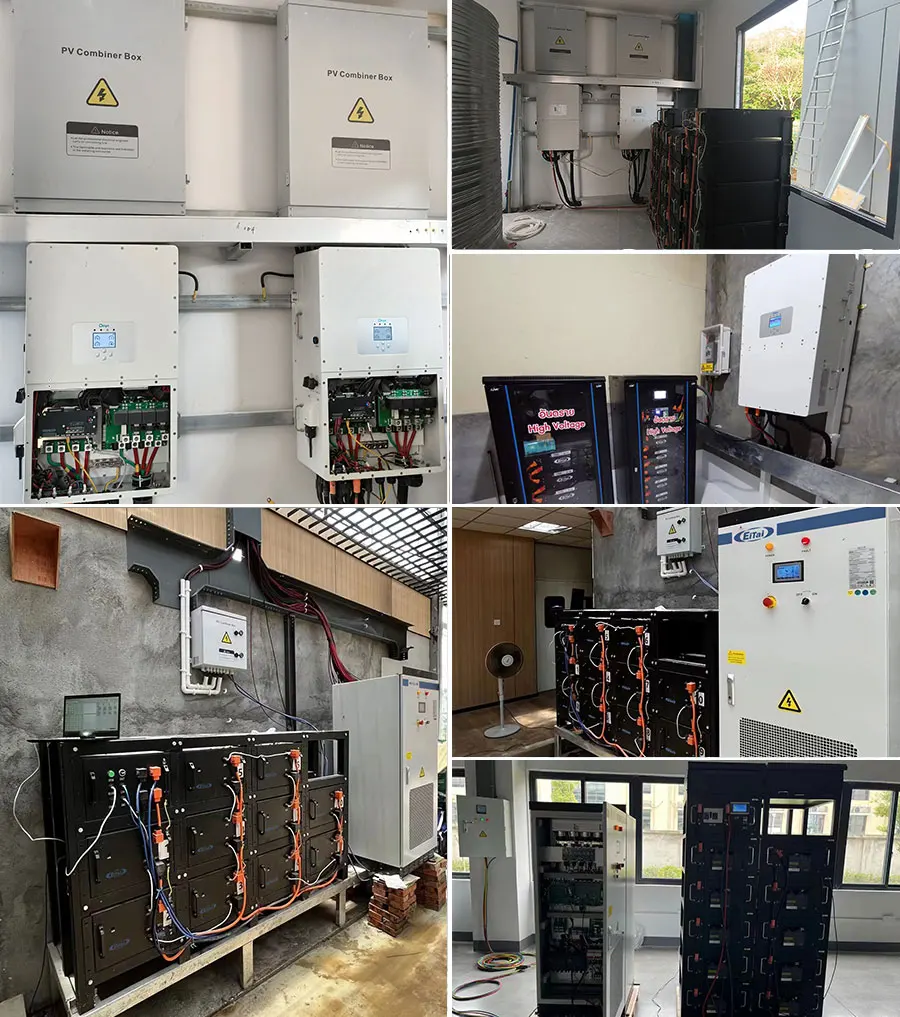

Project Cases


Home High Voltage Energy Storage Lithum Lifepo4 Battery Solar Storage 20 Kwh 30Kw 30 Kw 40Kw 50Kw 100Kw High Voltage

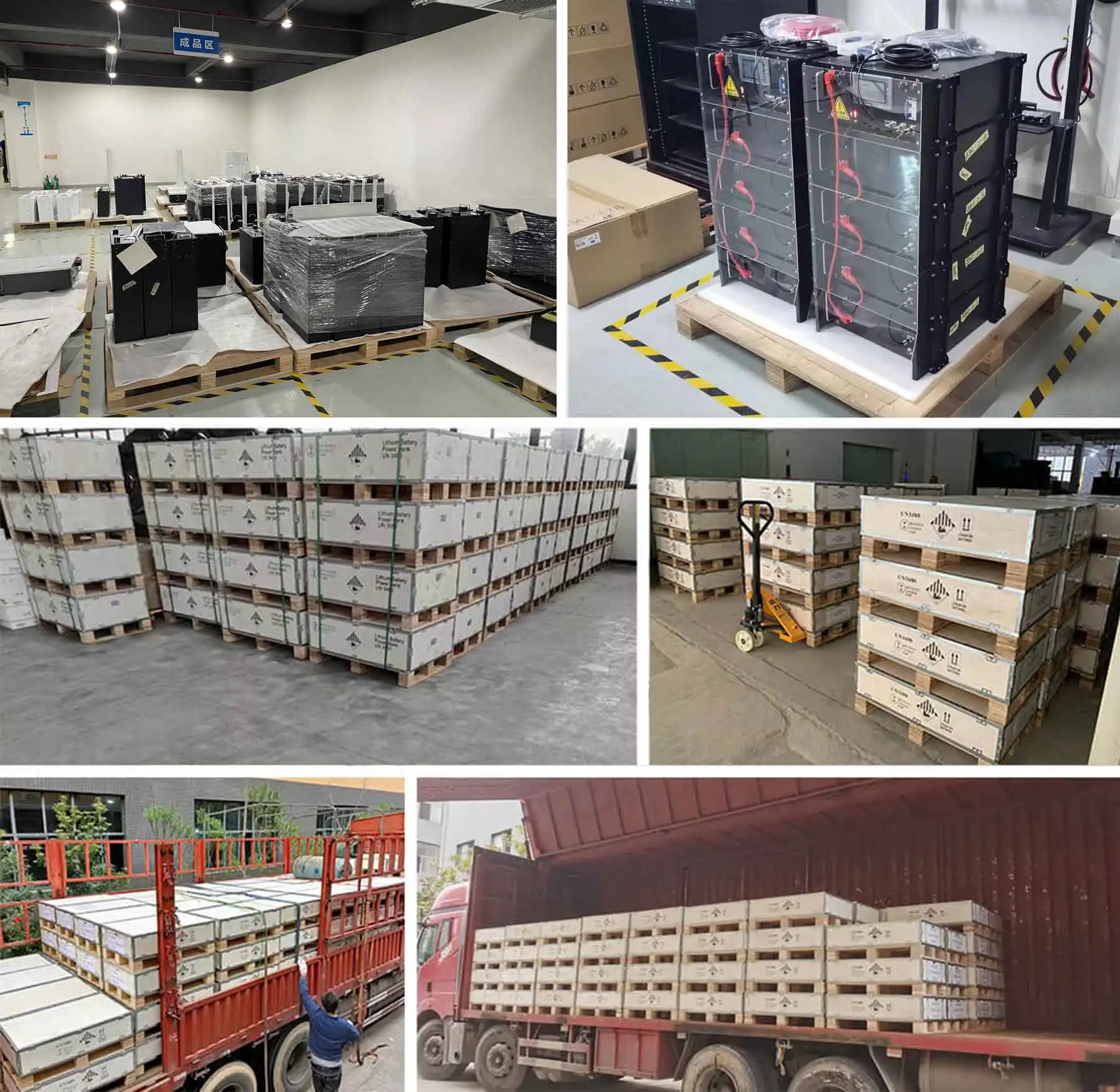

Package & Delivery&Payment








Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
