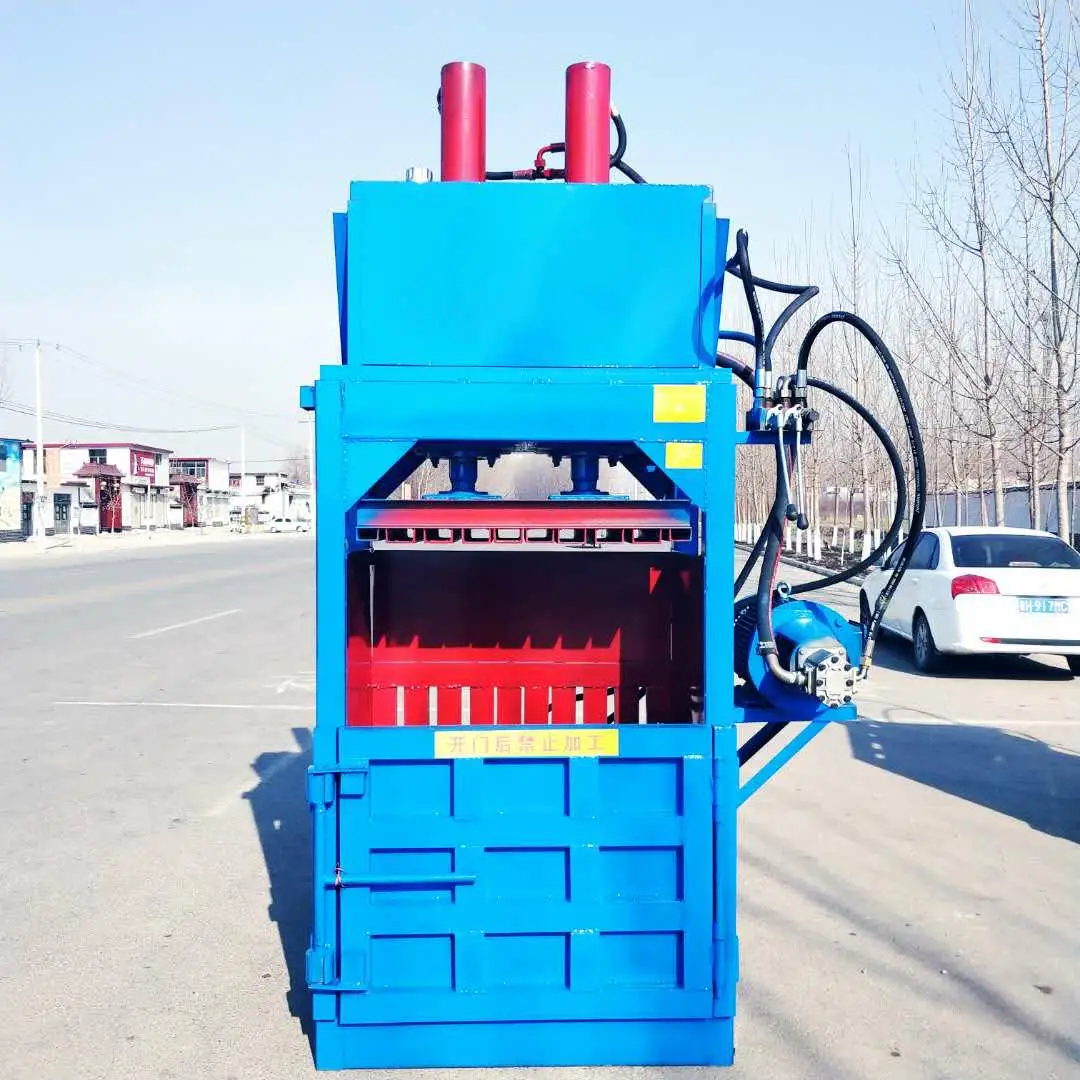

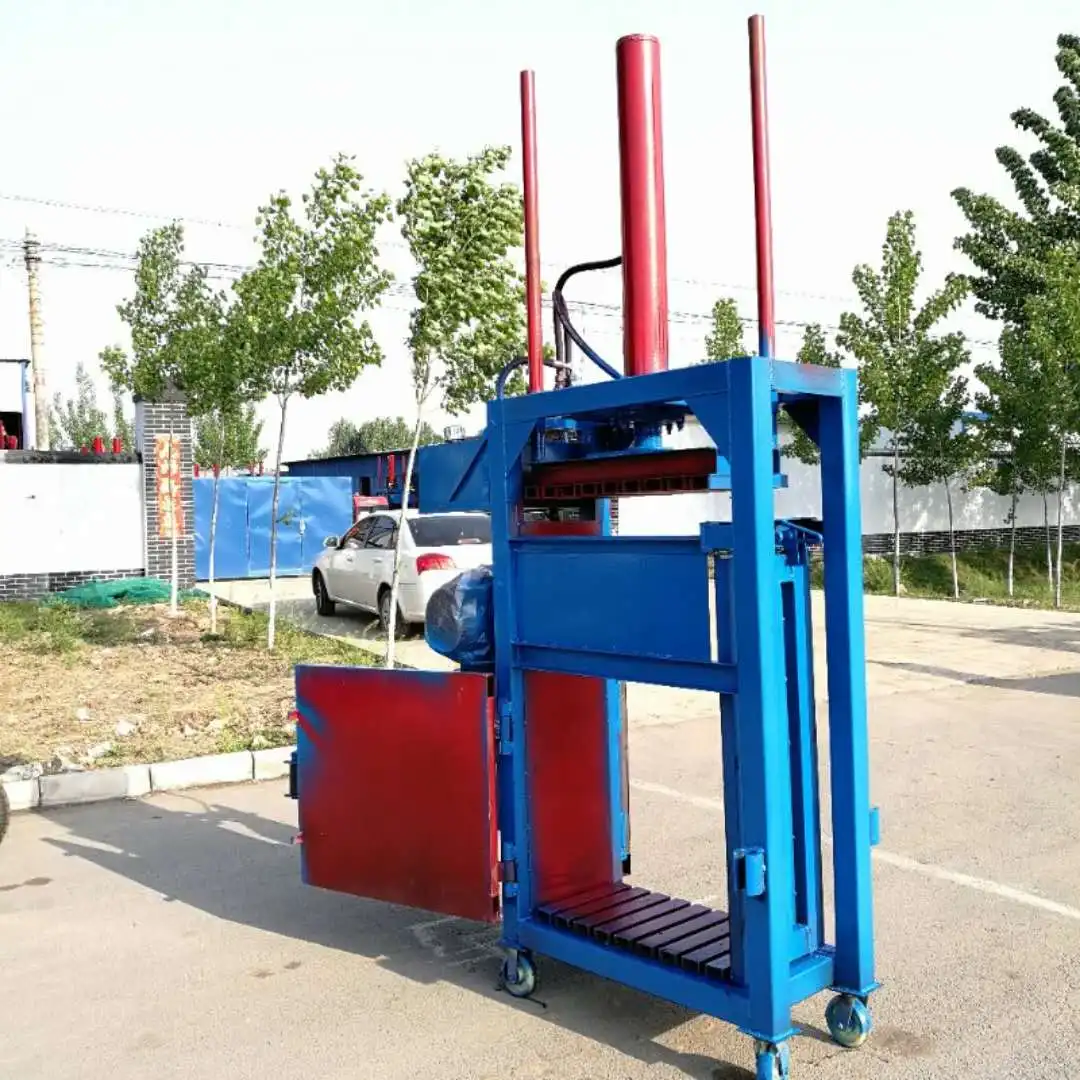

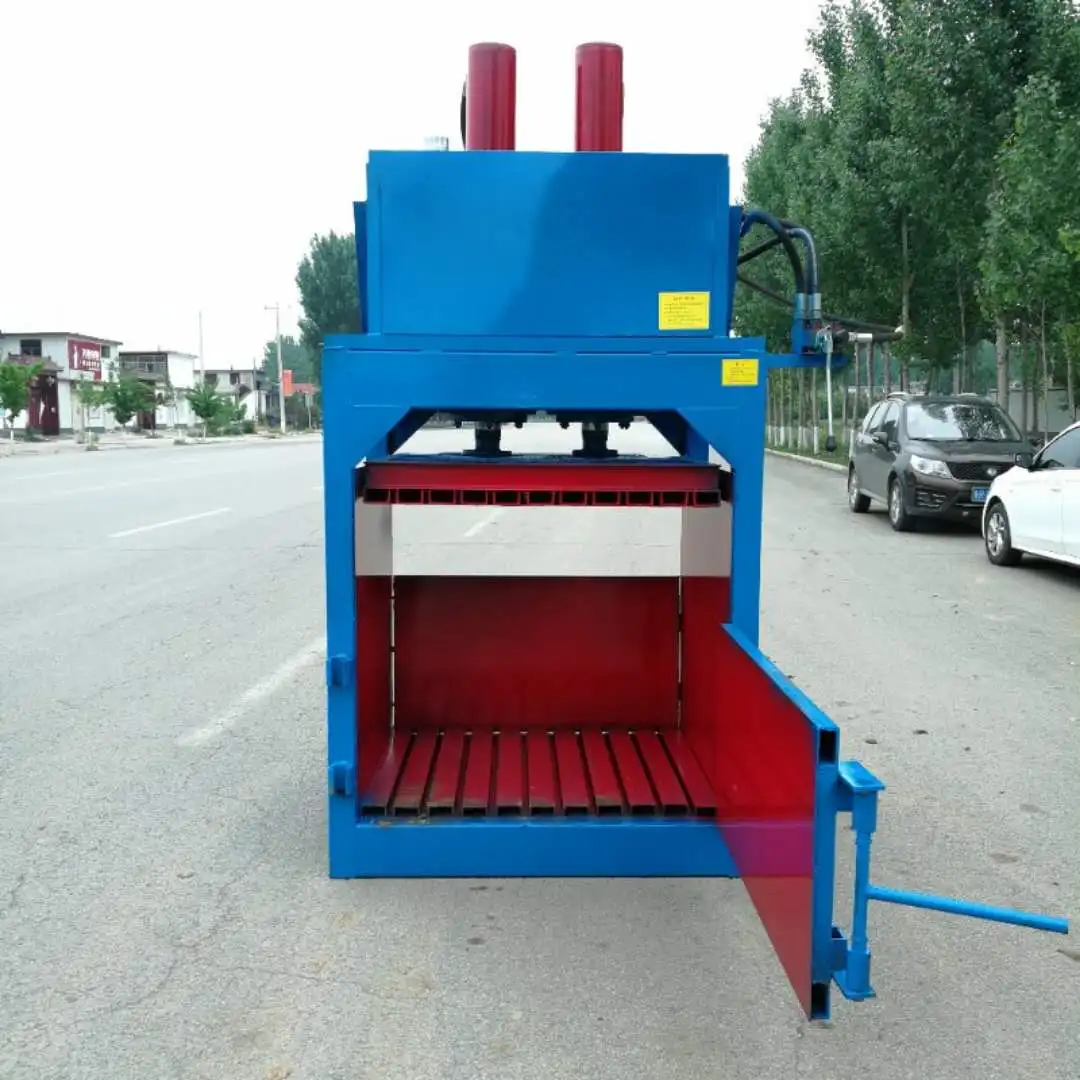

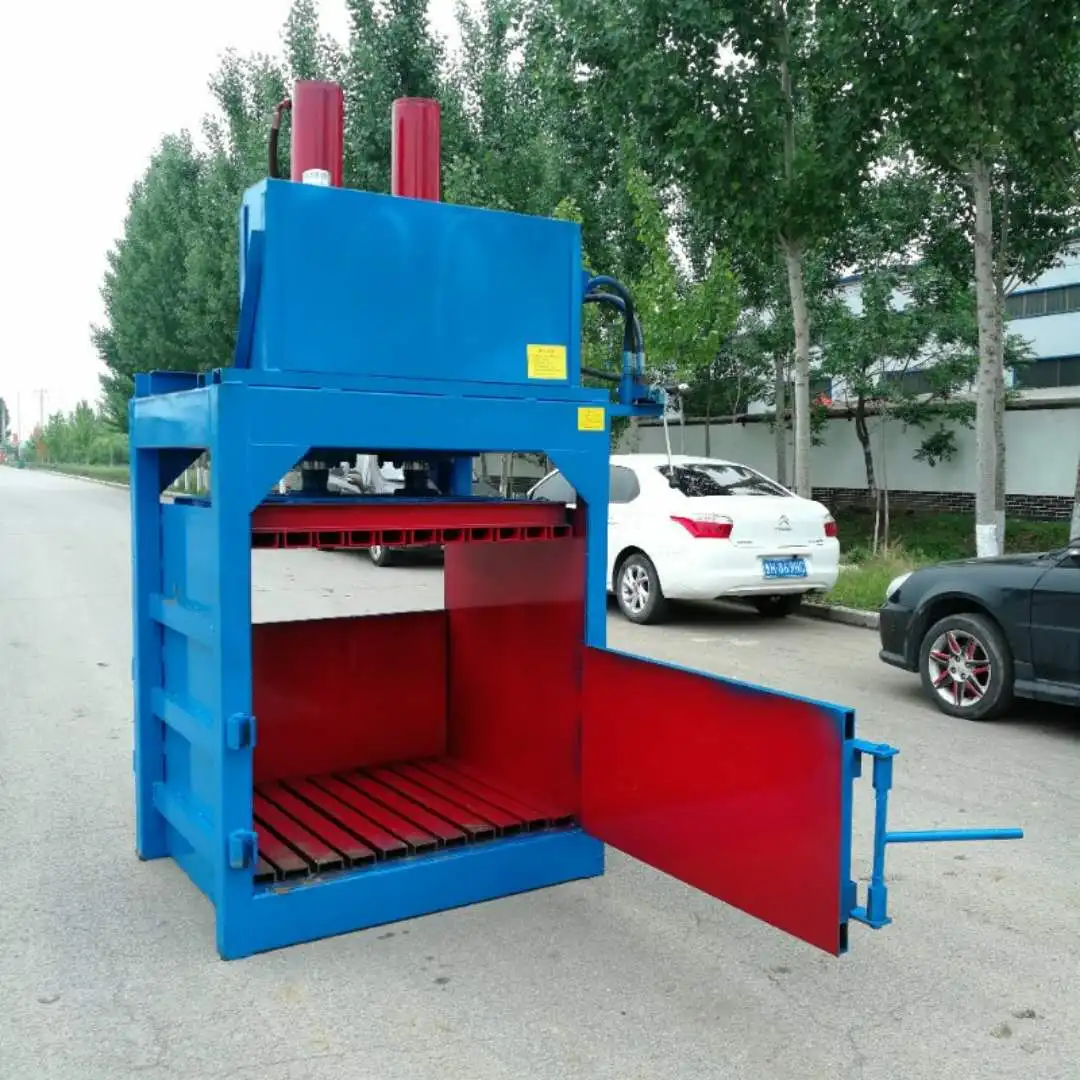

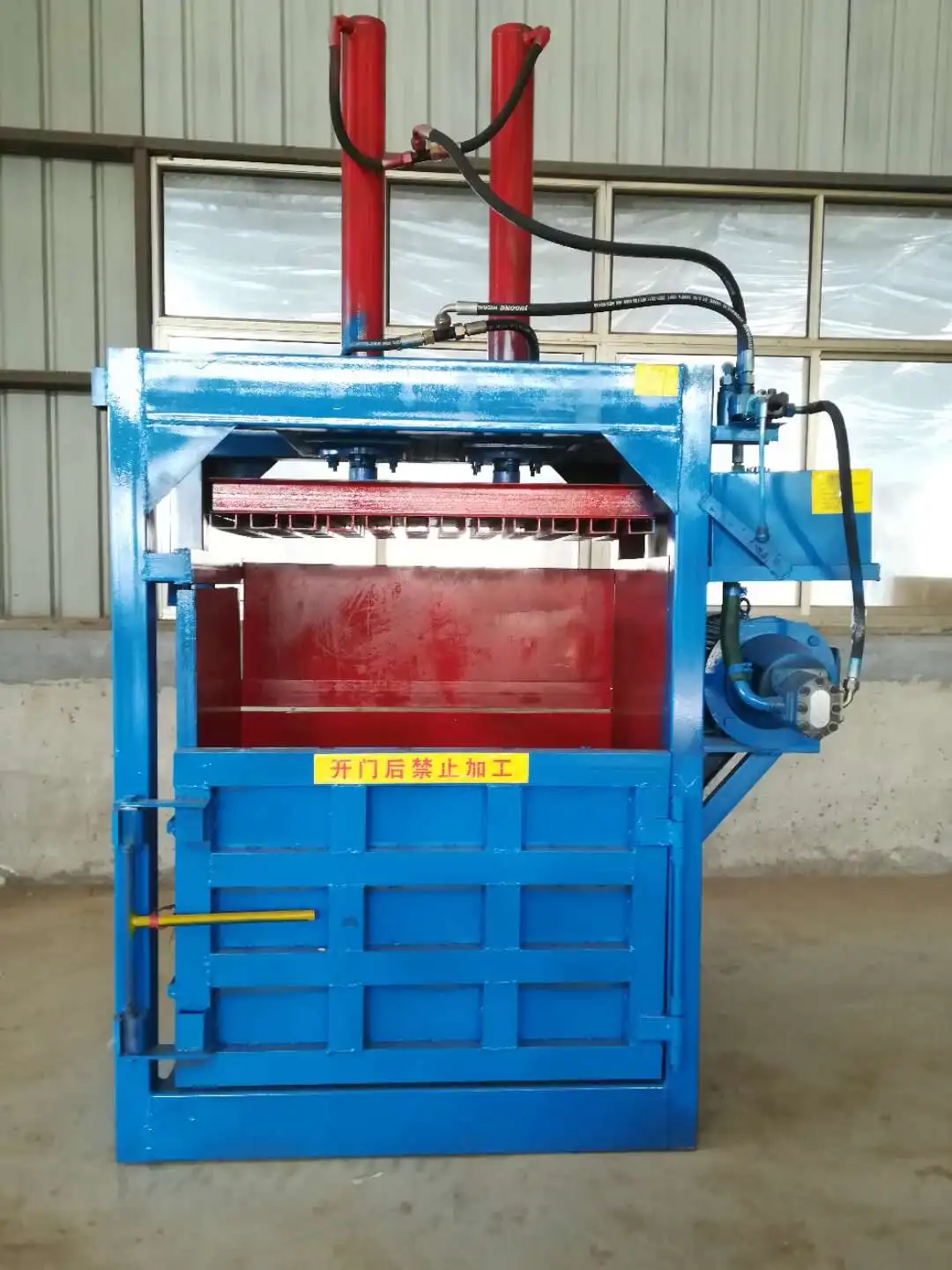

Hay Baler Hydraulic Vertical Compressing Machine Cotton baling Machine
- Category: >>>
- Supplier: Jining Honor Machinery Co. Ltd.
Share on (1601277703529):
Product Overview
Description
Product Description
Specification
10 tons horizontal bar | 20 tons horizontal bar | 30 tons parallel bars | 40 tons parallel bars | |
Pressure T | 10 | 20 | 30 | 40 |
Cylinder stroke cm | 90 | 90 | 90 | 105 |
Oil cylinder diameter mm | φ114 | φ140 | φ160 | φ140*2 |
Push bag cylinder stroke cm | / | / | / | / |
Push package cylinder diameter mm | / | / | / | / |
Motor power kw | 7.5 | 7.5 | 7.5 | 11 |
Gear pump | 316 | 325 | 532 | 550 |
Packing size cm | 80*40*70 | 80*40*70 | 100*50*80 | 110*60*80 |
Packing weight kg | 40-50 | 100-120 | 100-120 | 150-200 |
Overall dimensions cm | 130*70*270 | 130*70*270 | 150*80*280 | 160*90*280 |
Total Weight | 400 | 550 | 700 | 900 |
60 tons parallel bars automatic push package | 80 tons parallel bars automatic push package | 100tons parallel bars automatic push package | 120tons parallel bars automatic push package | |
Pressure T | 60 | 80 | 100 | 120 |
Cylinder stroke cm | 100 | 100 | 160 | 160 |
Oil cylinder diameter mm | φ160*2 | φ180*2 | φ180*2 | φ180*2 |
Push bag cylinder stroke cm | 100 | 100 | 100 | 100 |
Push package cylinder diameter mm | φ100 | φ100 | φ100 | φ100 |
Motor power kw | 15 | 15 | 18.5 | 18.5 |
Gear pump | 563 | 580 | 580 | 580 |
Packing size cm | 120*80*100 | 130*100*100 | 150*100*100 | 150*80*100 |
Packing weight kg | 200-300 | 300-350 | 300-400 | 300-400 |
Overall dimensions cm | 160*120*280 | 180*130*280 | 180*130*290 | 180*130*290 |
Total Weight | 1300 | 1800 | 2300 | 2300 |
Product Application
Product Display
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
FAQ:
Q: How long is the delivery date?
A: In general, we can ship the goods within 30days after receiving your payment.
Q:Do you have after-sales service?
A: Yes, The component manufacturer provides a warranty of up to 12 months for the core accessories of our machines. After being identified as a non-human damaged part, we will provide you with free repair parts (excluding freight) and remote technical support during the warranty period of the parts.
Q:Can you print my brand name on it?
A: Of course, you just need to send us the picture of your brand.
Q:what’s your payment term?
A:100% payment security T/T, letter of credit, Western Union.
Q: How long is the delivery date?
A: In general, we can ship the goods within 30days after receiving your payment.
Q:Do you have after-sales service?
A: Yes, The component manufacturer provides a warranty of up to 12 months for the core accessories of our machines. After being identified as a non-human damaged part, we will provide you with free repair parts (excluding freight) and remote technical support during the warranty period of the parts.
Q:Can you print my brand name on it?
A: Of course, you just need to send us the picture of your brand.
Q:what’s your payment term?
A:100% payment security T/T, letter of credit, Western Union.
