UPVC Vinyl Window Copy Router and Lock Hole Processing Machine
- Category: >>>
- Supplier: Shandong Zhengke Automation Co. Ltd.
Share on (1601277707084):
Product Overview
Description
Product Description

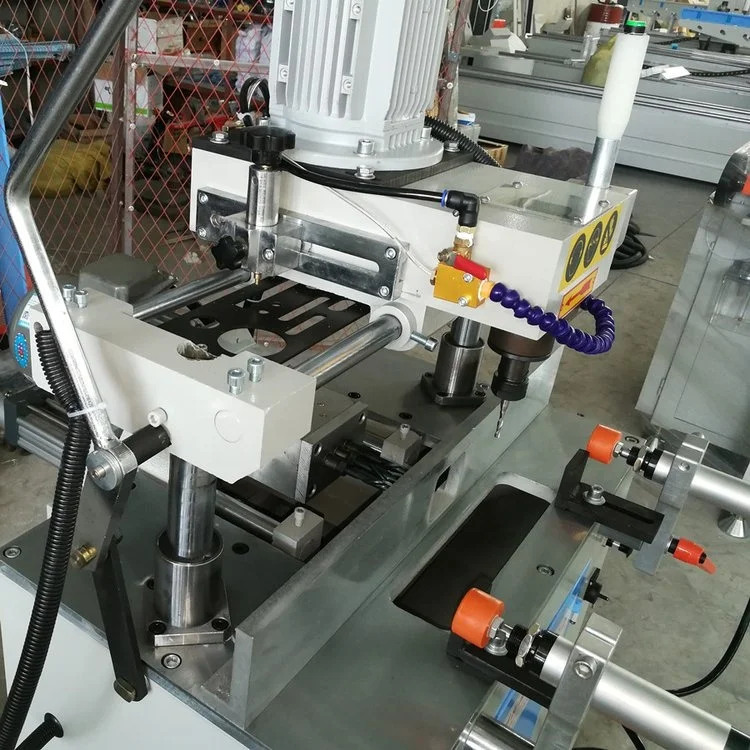

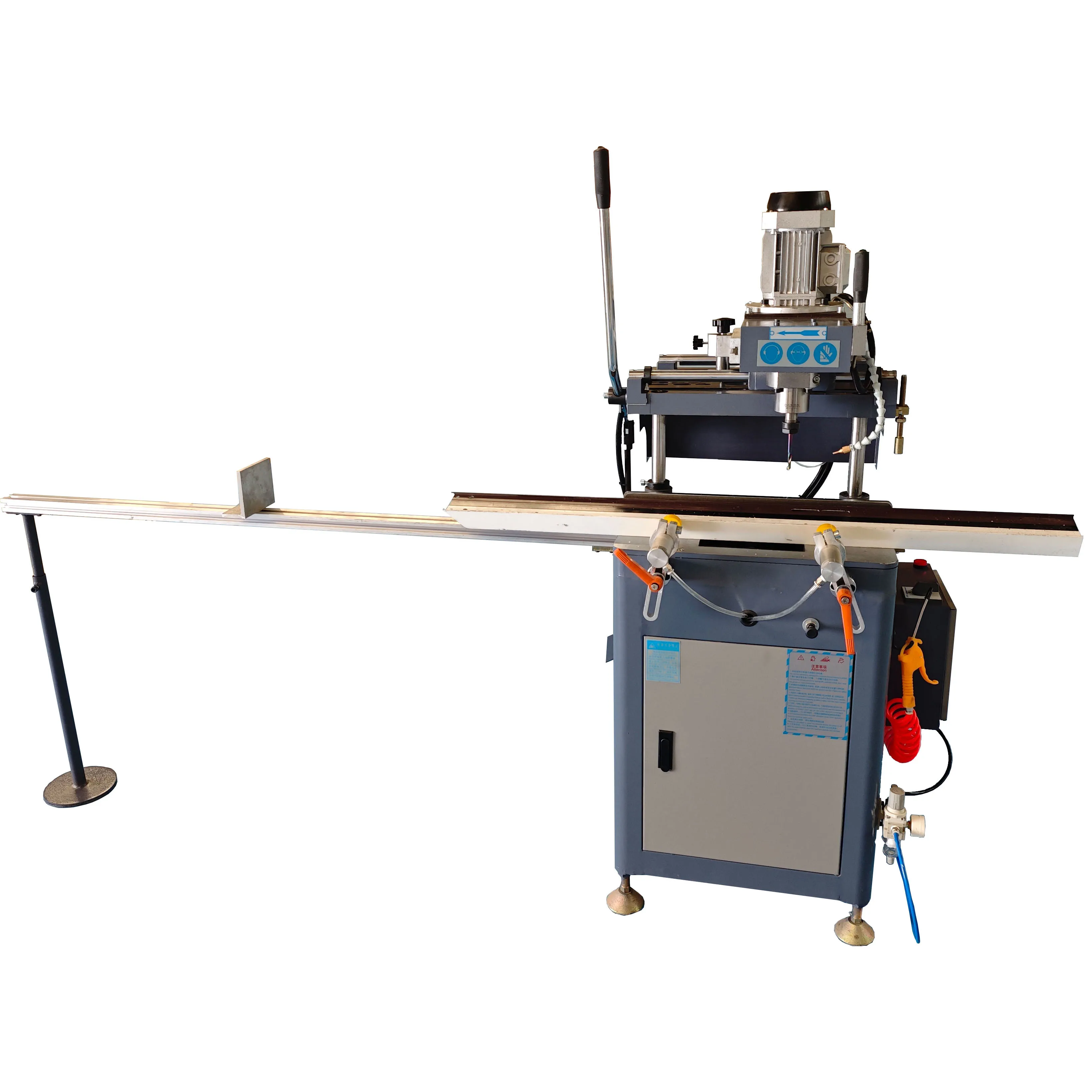

Single Head Copy Router for Aluminum Window and Door(Manual Type)
Electric power | 380V 50Hz 1.1kw |
Milling cutter diameter | φ5φ8mm |
Operating air pressure | 0.6~0.8MPa |
Profiling range | 235*100mm |
Weight | 161kg |
Overall dimensions | 870 *700 *1500mm |
Features
1. This machine has a compact structure, high motor power, and the copying needle rotates with the shape; as per 1:1 ratio copy template to process work piece
2. Universal milling cutter, expanding the milling cutter diameter range;
3. The spindle can be disassembled and assembled as a whole, which improves the concentricity and clamping force of the milling cutter and reduces the copying error;
4. With self-locking function, it saves time and effort, and can process slots of different shapes.
1. This machine has a compact structure, high motor power, and the copying needle rotates with the shape; as per 1:1 ratio copy template to process work piece
2. Universal milling cutter, expanding the milling cutter diameter range;
3. The spindle can be disassembled and assembled as a whole, which improves the concentricity and clamping force of the milling cutter and reduces the copying error;
4. With self-locking function, it saves time and effort, and can process slots of different shapes.
Details Images

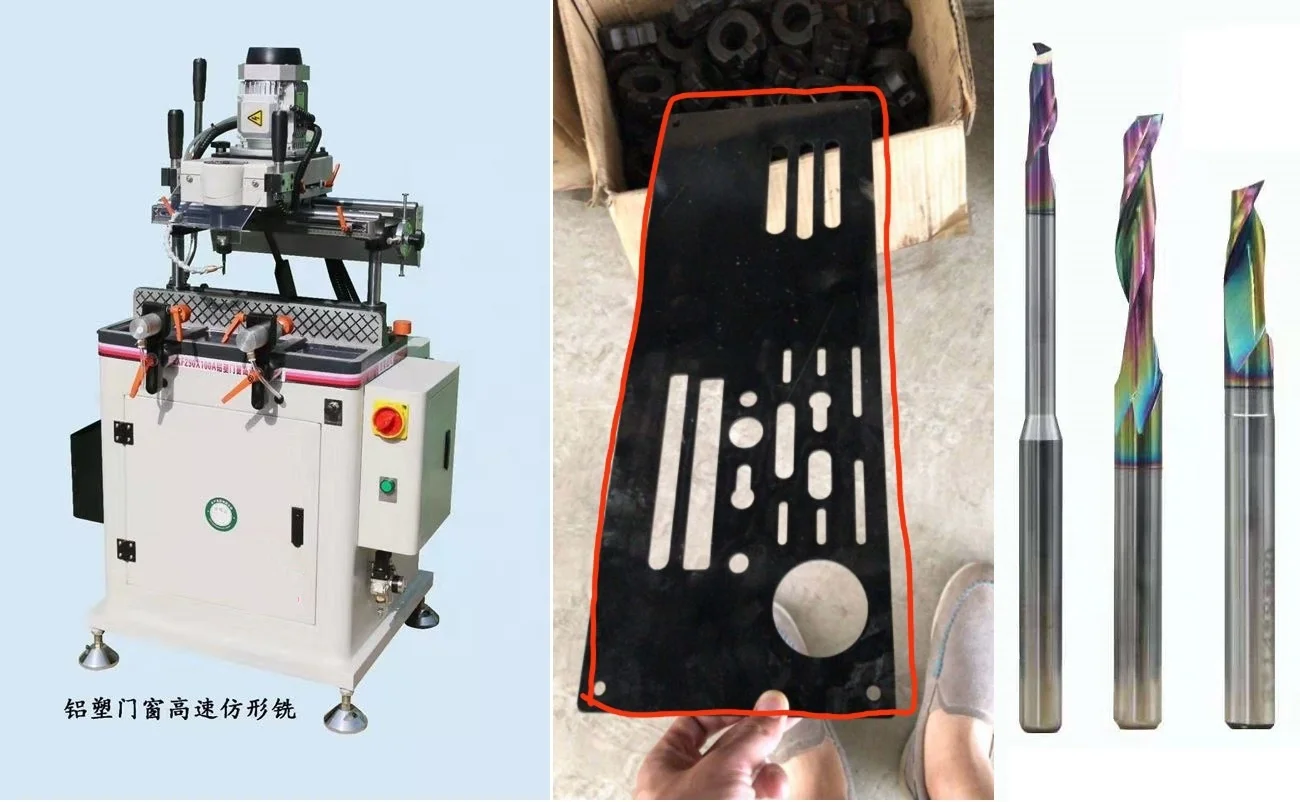

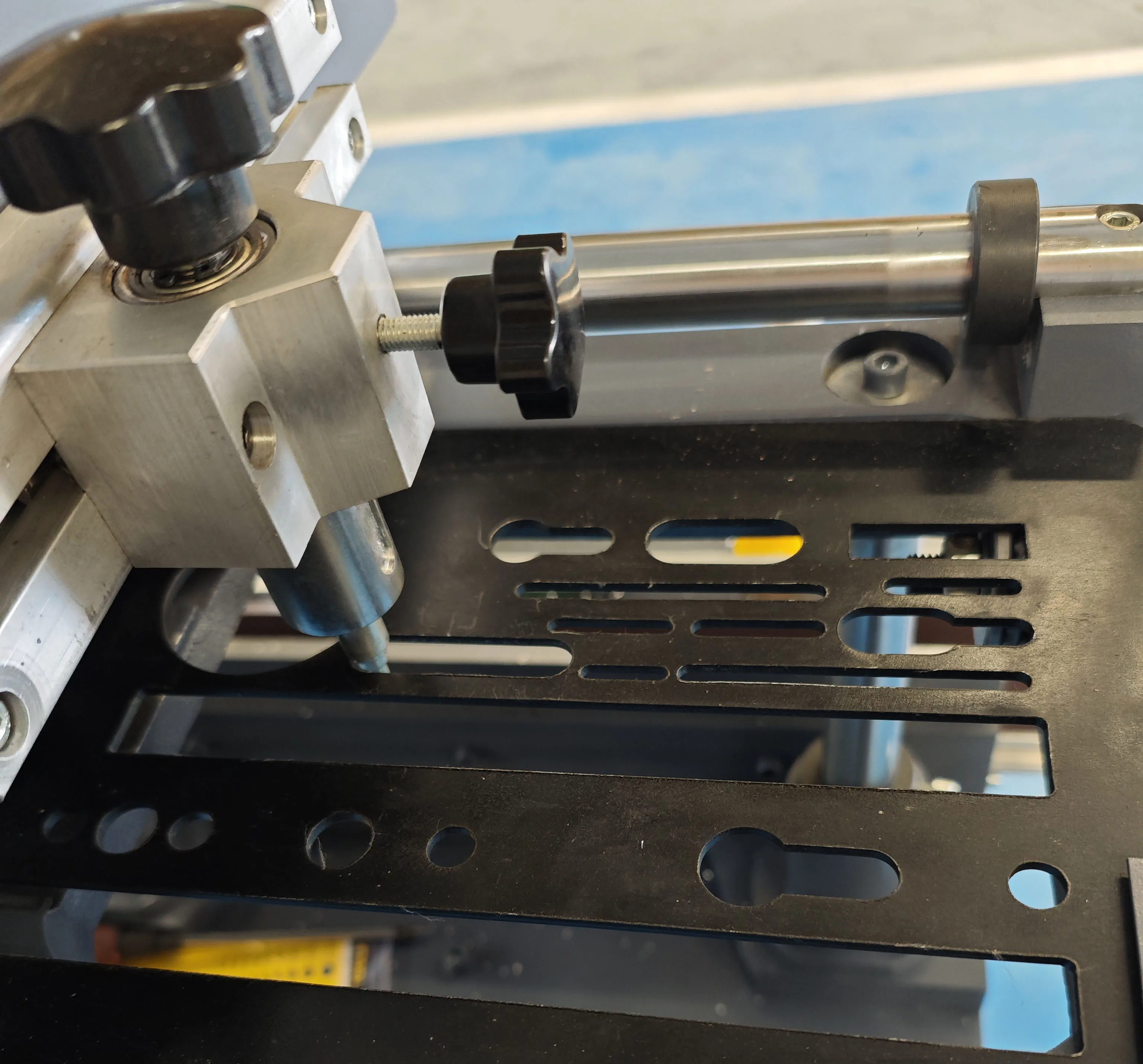

Customized templet

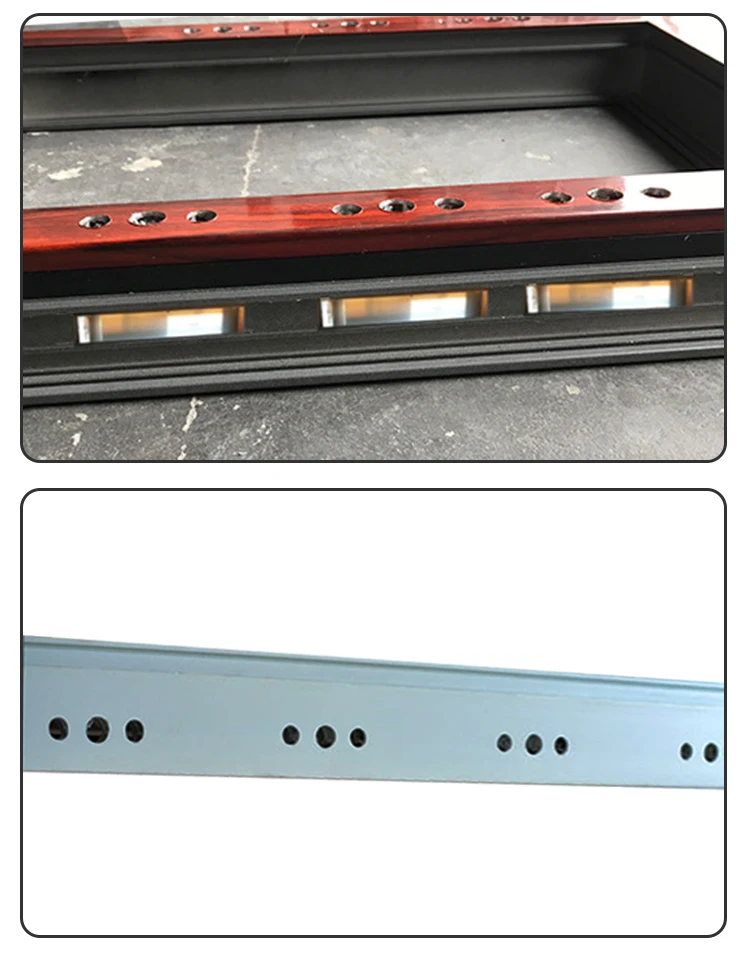

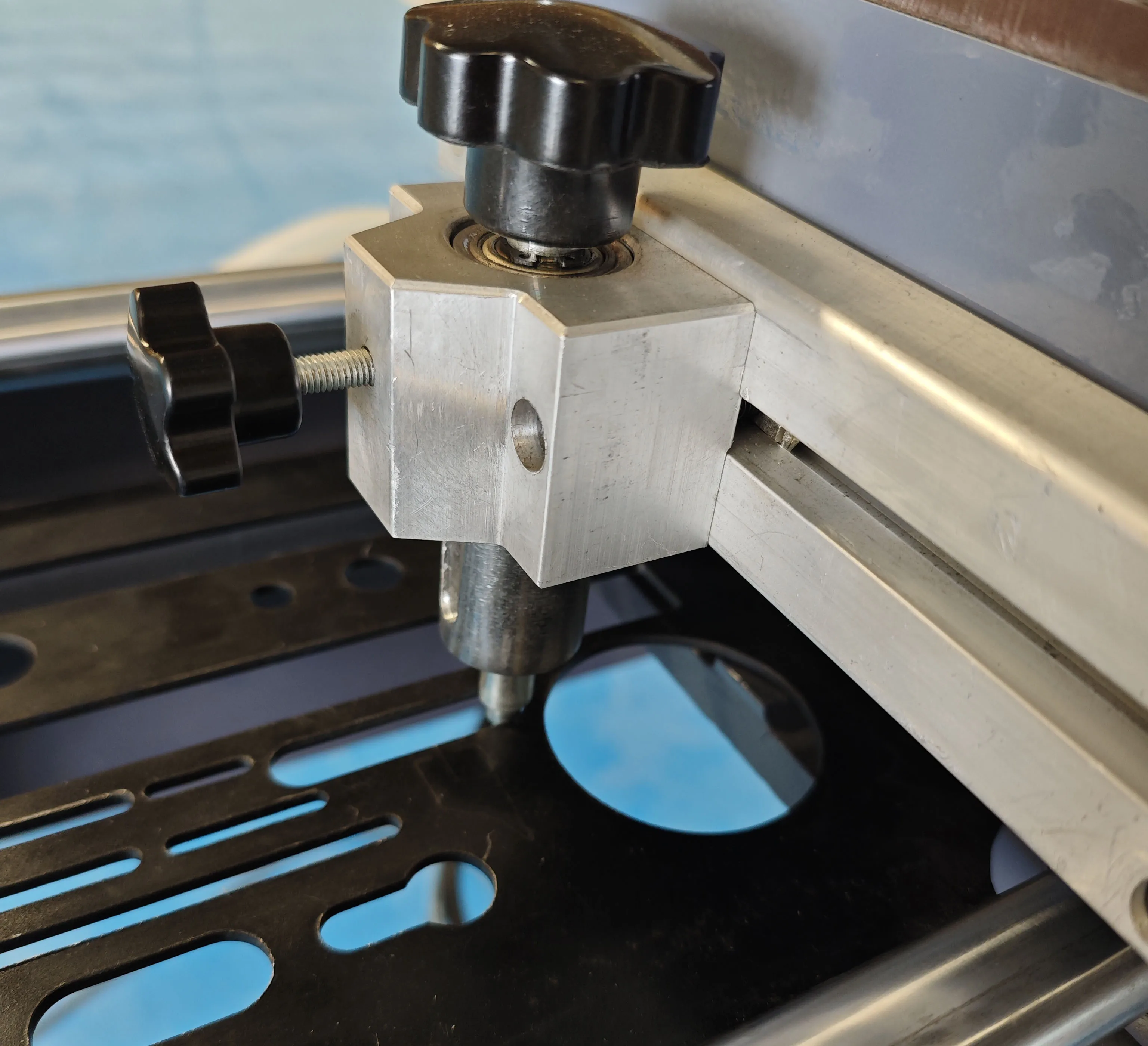

The unique rotatable design of the copying needle uses high-quality materials and exquisite manufacturing technology to ensure that it will not deform during long-term use. Various hole patterns on the profiling template can be customized to meet a variety of customer needs.

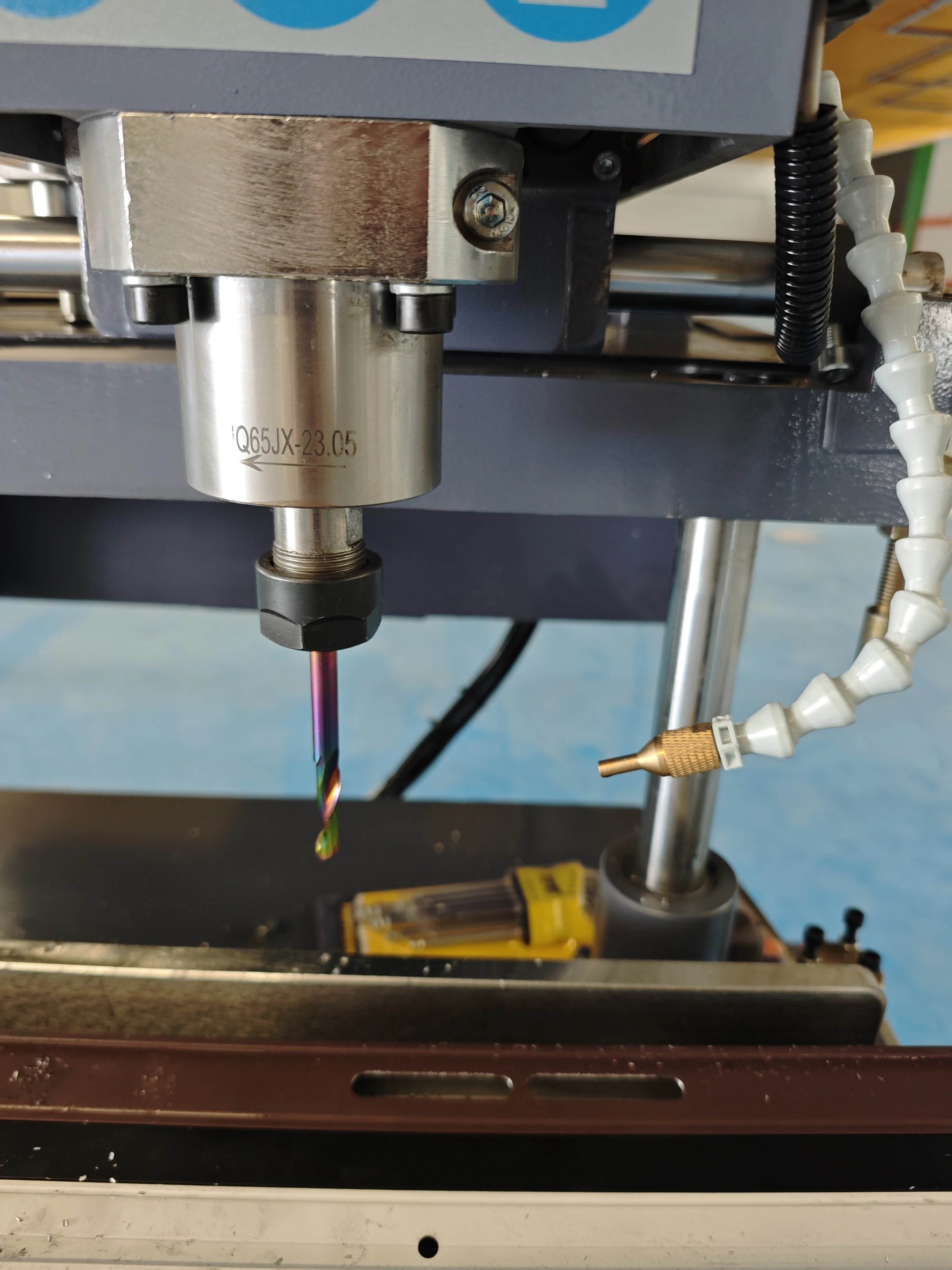

High speed spindle
Our spindles are capable of high-speed rotation, with speeds up to 11000 per minute, making every cut fast and precise. This ultra-high speed not only greatly shortens the processing time, but more importantly, it can reduce thermal deformation and vibration during the cutting process, thereby significantly improving the processing accuracy.

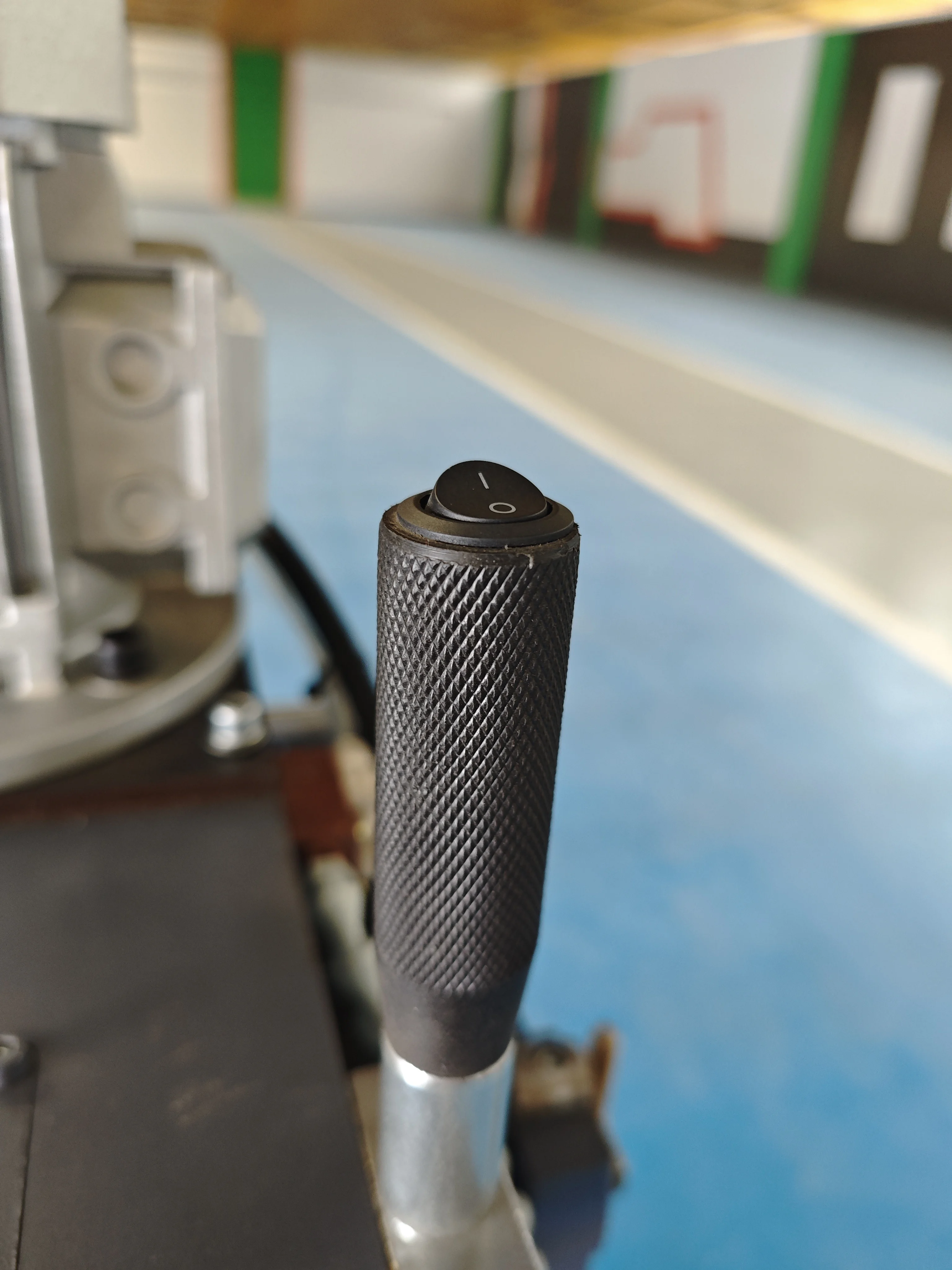

Self-lock button
Long-term high-intensity operation with both hands can easily lead to fatigue and damage. With the self-locking button, the
involvement of one hand is reduced, the labor intensity is greatly reduced, and your work is more relaxed and comfortable, even if
you work for a long time, you can maintain a good condition.
involvement of one hand is reduced, the labor intensity is greatly reduced, and your work is more relaxed and comfortable, even if
you work for a long time, you can maintain a good condition.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
WORKSHOP IMAGE
COMPANY PROFILE
Shandong Zhengke Automation Co., Ltd. was founded in 2014, located in Jiyang Industrial Park, Jinan, Shandong Province. The company covers an area of 5000 square meters, the core team of 50 people.Have independent technology design, research and development team. Have modern office space. Is the domestic professional glass
machinery high-tech enterprises.
The company focuses on window and door fabricating machinery and glass machinery, such as glass cutting machine.glass edging machine.glass washing machine.glass tempering machinery.insulating glassmachine.glass tempering machine.laminated glass machine...etc. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of glass two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production machine.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not only to provide customers with high quality glass machine, but also to provide you with case debugging machine, technical consulting guides, staff operation training and other comprehensive after-sales service.
machinery high-tech enterprises.
The company focuses on window and door fabricating machinery and glass machinery, such as glass cutting machine.glass edging machine.glass washing machine.glass tempering machinery.insulating glassmachine.glass tempering machine.laminated glass machine...etc. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of glass two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production machine.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not only to provide customers with high quality glass machine, but also to provide you with case debugging machine, technical consulting guides, staff operation training and other comprehensive after-sales service.
Exhibition
Certifications
Patent and Certification
In the future, we will continue to uphold the spirit of innovation, increase investment in R&D, continue to explore and make breakthroughs, contribute more to the development of the industry, and repay the support and love of our customers with better products and services!
FAQ
What is your core products?
Complete sets of aluminum and UPVC window and door fabricating machinery and glass machinery.
Where is your company located?
Our company is located in Jinan city, Shandong Province.
What is the delivery time?
For regular machine, we deliver within 15 working days and for customized machine, we deliver within 30 working days
Do you provide spare parts?
Yes, we do. We always keep amount of inventory of sparts parts all year round. We can send to customers at the first time.
Do you provide after-sale service abroad?
Yes, we do. We have professional after-sale team. They can go abroad to provide installation and commission service.
