13.56MHz Smart Ticketing RFID Tag NFC Sticker MIFARE Ultralight EV1 Ultralight C Chip Support Customization
- Category: >>>
- Supplier: Cardy Intelligent Co. Ltd.
Share on (1601277713611):
Product Overview
Description
Product Information
Material | Paper/PVC/PET | ||||||
Size | Customized | ||||||
Thickness | 0.35mm or customized | ||||||
Chip | Refer to the RFID chip options as below. Please contact our sales team for more information. | ||||||
Printing | CMYK printing (Heidelberg offset printing machine) | ||||||
Crafts | a. Anti-metal layer, 3M adhesive b. Serial data and UID printing c. Encoding and encryption | ||||||
Packing&Shipping | 2000pcs or 3000pcs/roll for tags 5000pcs/roll for inlay(dry inlay or wet inlay) Anti-static bag vacuum packing, waterproof, anti-static, anti-collision | ||||||
Certification | RoHS/CE/ISO | ||||||
Lead time | 8-10 working days | ||||||
RFID Chip Options - NXP
Work Frequency | Protocol | Chips available | Memory | Remark |
125KHz | ISO14223 | HITAG® µ | 128 bits/512 bits/1760 bits | |
HITAG® S 256 | 256 bits | |||
HITAG® S 2048 | 2048 bits | |||
HITAG® RO64 | 64 bits | |||
HITAG® 1 | 2048 bits | |||
HITAG® 2 | 256 bits | |||
HF 13.56MHz | MIFARE Classic® EV1 Mini | 320 bytes | MIFARE® and MIFARE Classic® are trademarks of NXP B.V. Cardy is a Registered MIFARE® Partner. | |
MIFARE Classic® EV1 1K | 1K bytes | |||
MIFARE Classic® EV1 4K | 4K bytes | |||
MIFARE Ultralight® | 64 bytes | MIFARE® and MIFARE Ultralight® are registered trademarks of NXP B.V. and are used under license. Cardy is a Registered MIFARE® Partner. | ||
MIFARE Ultralight® C | 192 byte | |||
MIFARE Ultralight® EV1 | 48 bytes/128 bytes | |||
MIFARE Ultralight® Nano | 56 bytes | |||
MIFARE Ultralight® AES | 144 bytes | |||
MIFARE® DESFire® Light | 640 bytes | MIFARE® and MIFARE® DESFire® are registered trademarks of NXP B.V. and are used under license. Cardy is a Registered MIFARE® Partner. | ||
MIFARE® DESFire® EV1 2K | 2K bytes | |||
MIFARE® DESFire® EV1 4K | 4K bytes | |||
MIFARE® DESFire® EV1 8K | 8K bytes | |||
MIFARE® DESFire® EV2 2K | 2K bytes | |||
MIFARE® DESFire® EV2 4K | 4K bytes | |||
MIFARE® DESFire® EV2 8K | 8K bytes | |||
MIFARE® DESFire® EV3 2K | 2K bytes | |||
MIFARE® DESFire® EV3 4K | 4K bytes | |||
MIFARE® DESFire® EV3 8K | 8K bytes | |||
MIFARE Plus® S 2K | 2K bytes | MIFARE® and MIFARE Plus® are registered trademarks of NXP B.V. and are used under license. Cardy is a Registered MIFARE® Partner. | ||
MIFARE Plus® S 4K | 4K bytes | |||
MIFARE Plus® SE 1K | 1K bytes | |||
MIFARE Plus® X 2K | 2K bytes | |||
MIFARE Plus® X 4K | 4K bytes | |||
MIFARE Plus® EV1 2K | 2K bytes | |||
MIFARE Plus® EV1 4K | 4K bytes | |||
MIFARE Plus® EV2 2K | 2K bytes | |||
MIFARE Plus® EV2 4K | 4K bytes | |||
ISO/IEC 14443 A NFC Forum T2T/ T4T | NTAG® 213 | 144 bytes | NTAG® is a registered trademark of NXP B.V. and are used under license. | |
NTAG® 215 | 504 bytes | |||
NTAG® 216 | 888 bytes | |||
NTAG® 424 DNA | 416 bytes | |||
NTAG® 424 DNA TT | 416 bytes | |||
ISO/IEC 18000-3 | ICODE® SLIX-L | 256 bits | ||
ICODE® SLIX | 896 bits | |||
ICODE® SLIX-S | 1280 bits | |||
ICODE® SLIX2 | 2528 bits | |||
ICODE® SLI | 1024 bits | |||
ICODE® SLI-S | 2048 bits | |||
ICODE® DNA | 2016 bits | |||
ICODE® ILT-M | 512 bits | |||
860-960MHz | UCODE® 7 | 0 bits | UCODE® is a registered trademark of NXP B.V. and are used under license. | |
UCODE® 7m | 32 bits | |||
UCODE® 7xm | 2048 bits | |||
UCODE® 7xm+ | 2048 bits | |||
UCODE® 8 | 0 bits | |||
UCODE® 8m | 32 bits | |||
UCODE® 9 | 0 bits | |||
UCODE® 9xe | 0 bits | |||
UCODE® DNA | 3072 bits | |||
UCODE® G2iM | 320/640 bits |

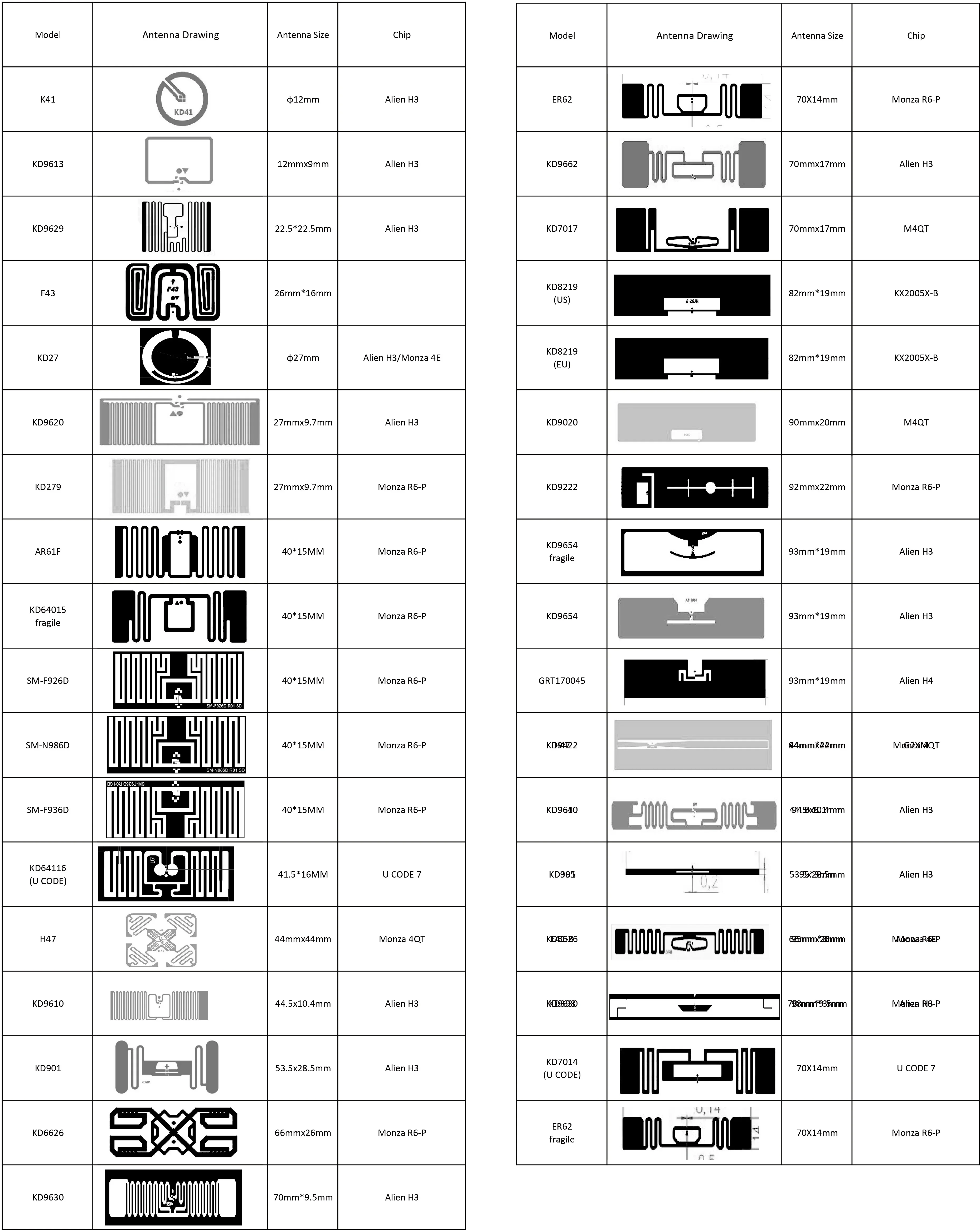

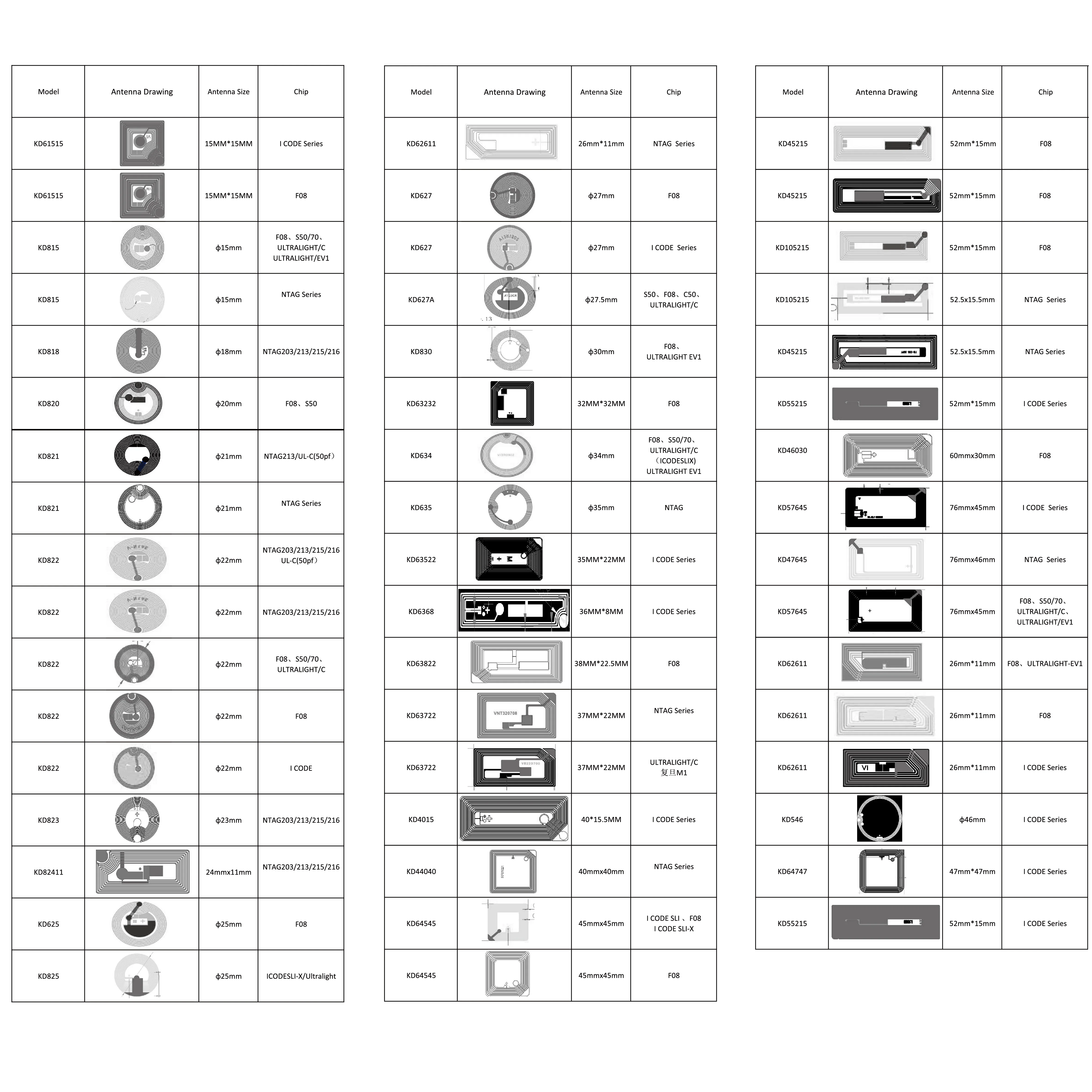

Antenna Options
Application
Why Choose Us ?
Advantage
* 20+ YEARS
Self-owned brands (KD, CARDY) have a good reputation in IoT industry since 2004
* LARGE PRODUCTION CAPACITY
100 million pcs products per year
* R&D
Devotes more than 30% of the company's profits to R&D and improve equipment
30 patents and software copyrights
* QUALITY CONTROL
100% inspection for the IPQC and QA
* SHORT PRODUCTION TIME
24 hours uninterrupted production line with three shifts
1 million products can be finished within 2 weeks
* ORIGINAL FACTORY PRICES
8000㎡ factory with full automatic production lines
* PREMIUM SERVICES
24 hours online services
Trade assurance
* 20+ YEARS
Self-owned brands (KD, CARDY) have a good reputation in IoT industry since 2004
* LARGE PRODUCTION CAPACITY
100 million pcs products per year
* R&D
Devotes more than 30% of the company's profits to R&D and improve equipment
30 patents and software copyrights
* QUALITY CONTROL
100% inspection for the IPQC and QA
* SHORT PRODUCTION TIME
24 hours uninterrupted production line with three shifts
1 million products can be finished within 2 weeks
* ORIGINAL FACTORY PRICES
8000㎡ factory with full automatic production lines
* PREMIUM SERVICES
24 hours online services
Trade assurance
Company Profile
Shenzhen Cardy Intelligent Co., Ltd.

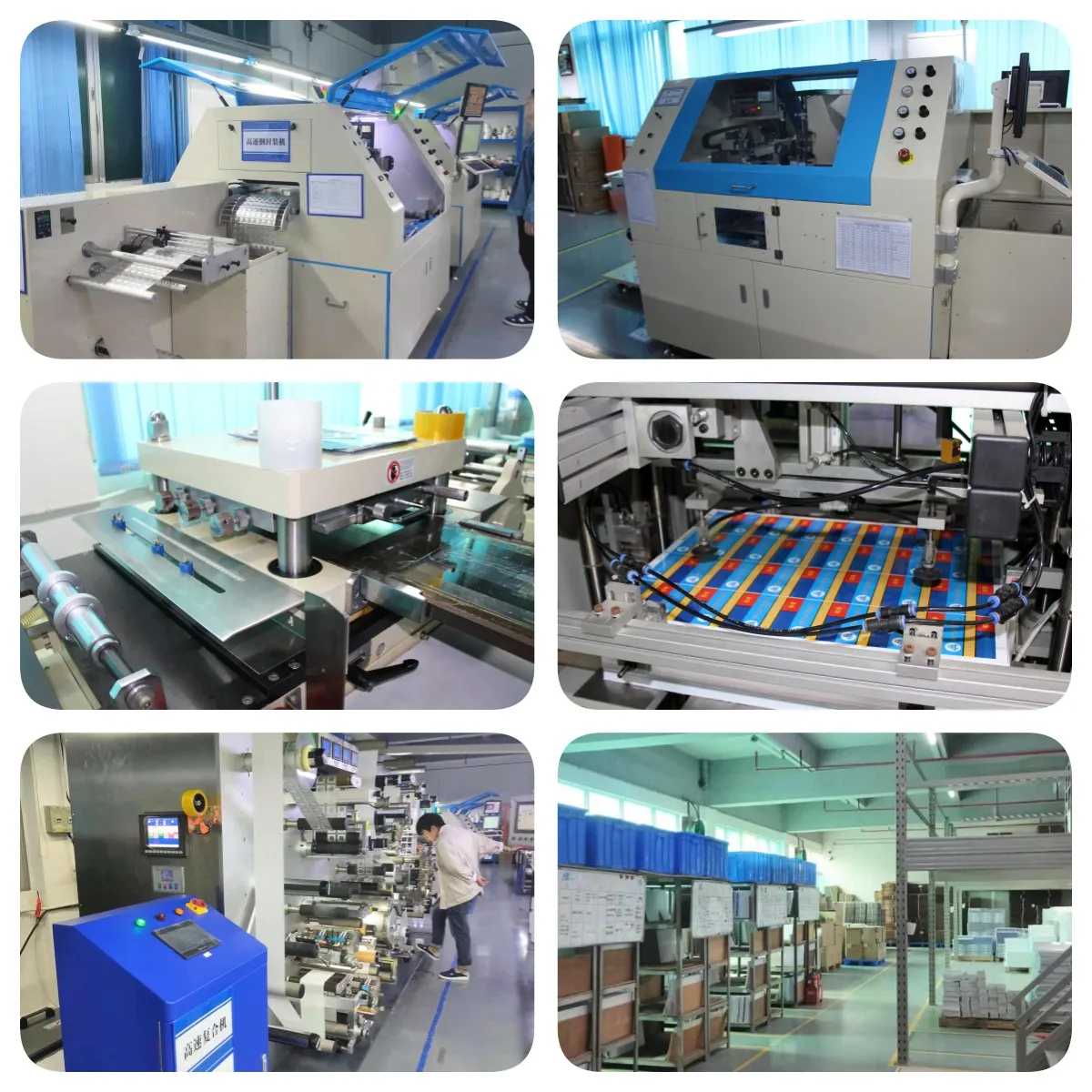

We have a modern production base of 8,000 square meters, 33 Full- Automatic Inlay Production Lines, Independent COB Binding Department, Full- Automatic Punching Machine, Full-Automatic Laminator, Capable of producing and an annual production capacity of more than 100 million pieces.Well- Equipped Machine, Professional Workers and Strict QC can ensure our goods quality !
With excellent quality, reasonable price, innovative design and effective service, our products have won a good reputation all over the world.
Packaging & Shipping
FAQ
1. Why consult us?
- With over 20 years of experience in factory production, we offer strong customization abilities to cater to your specific
needs.
- Our reliable material suppliers and strict quality control ensure timely and optimal product performance.
- With over 20 years of experience in factory production, we offer strong customization abilities to cater to your specific
needs.
- Our reliable material suppliers and strict quality control ensure timely and optimal product performance.
- Our efficient technical team addresses challenges promptly and develops cutting-edge RFID products.
2. Can you provide free samples?
- Sure, we'd gladly send you free samples for your reference. You'll only need to take care of the shipping.
3. Can you customize products?
- Our products are fully customizable, including materials, sizes, thicknesses, and logos. We offer ODM and OEM
4. What is the production time?
- Sample time: 1-5 days. Bulk orders will take 7-15 days.
- If you require a larger order quantity, kindly contact our seller. We offer flexible production times to support your
schedule.
- Sample time: 1-5 days. Bulk orders will take 7-15 days.
- If you require a larger order quantity, kindly contact our seller. We offer flexible production times to support your
schedule.
5. How to solve the quality problem of the product?
- Rest assured, we conduct a meticulous 100% QC check on every product before shipment to ensure perfection in quality. We prioritize your satisfaction and will always address any issues that may arise after the sale.
