Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Fiber Laser Cutting Machine Economical Metal Laser Cutting 3015 1313 1500*3000mm 3000W Machine For Fiber Laser Cutter
- Category: >>>
- Supplier: Jinan Looke Intelligent Equipment Co. Ltd.
Share on (1601277728082):
Product Overview
Description

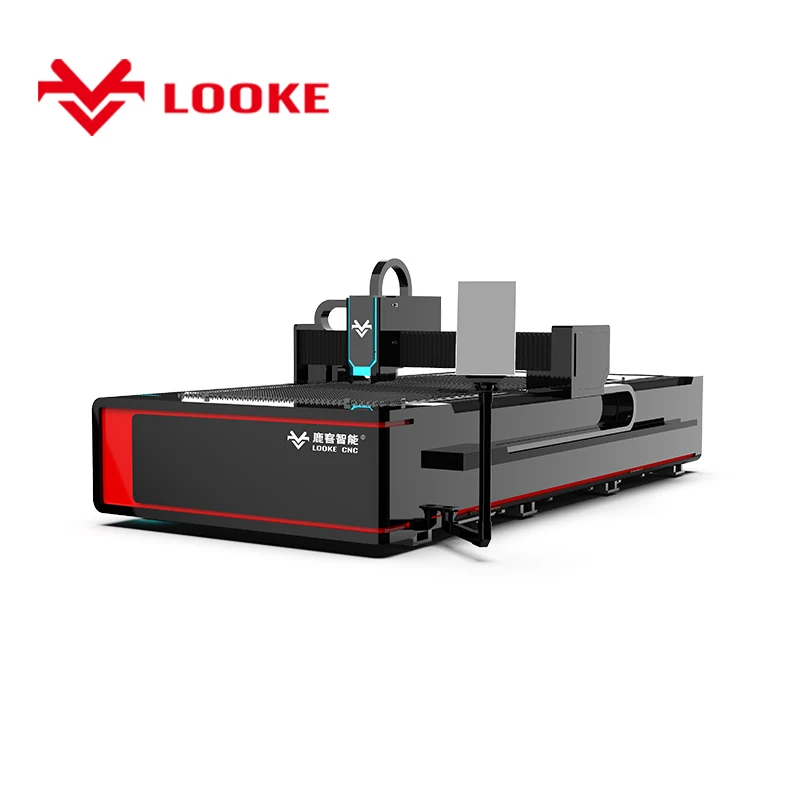

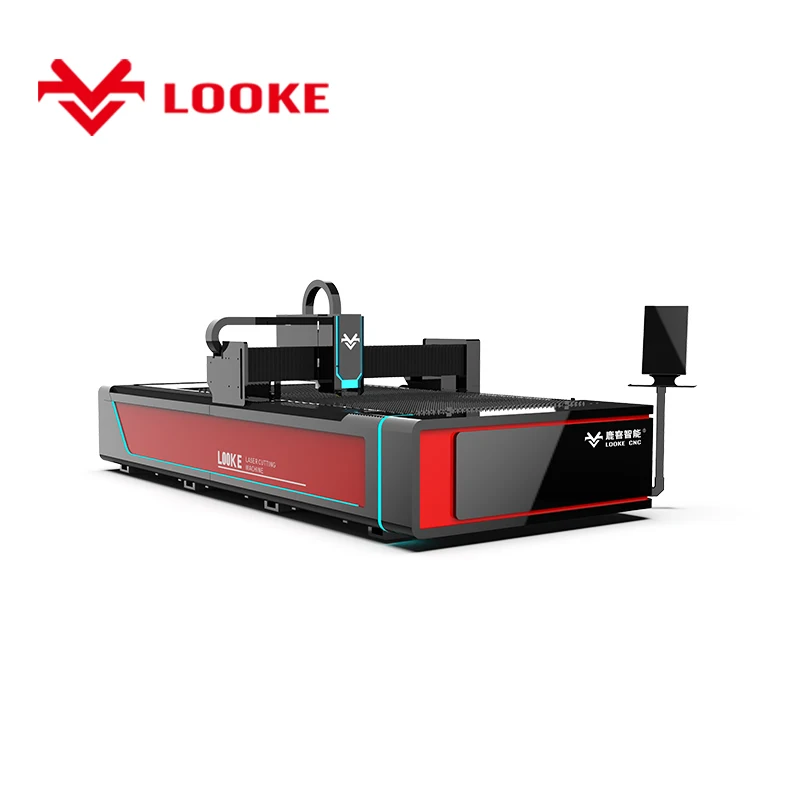

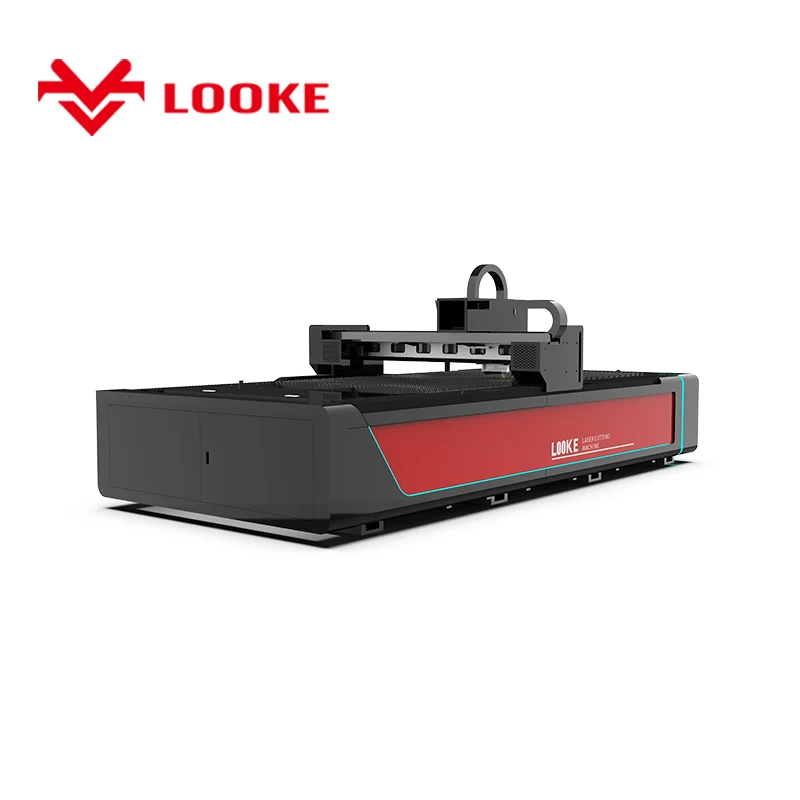

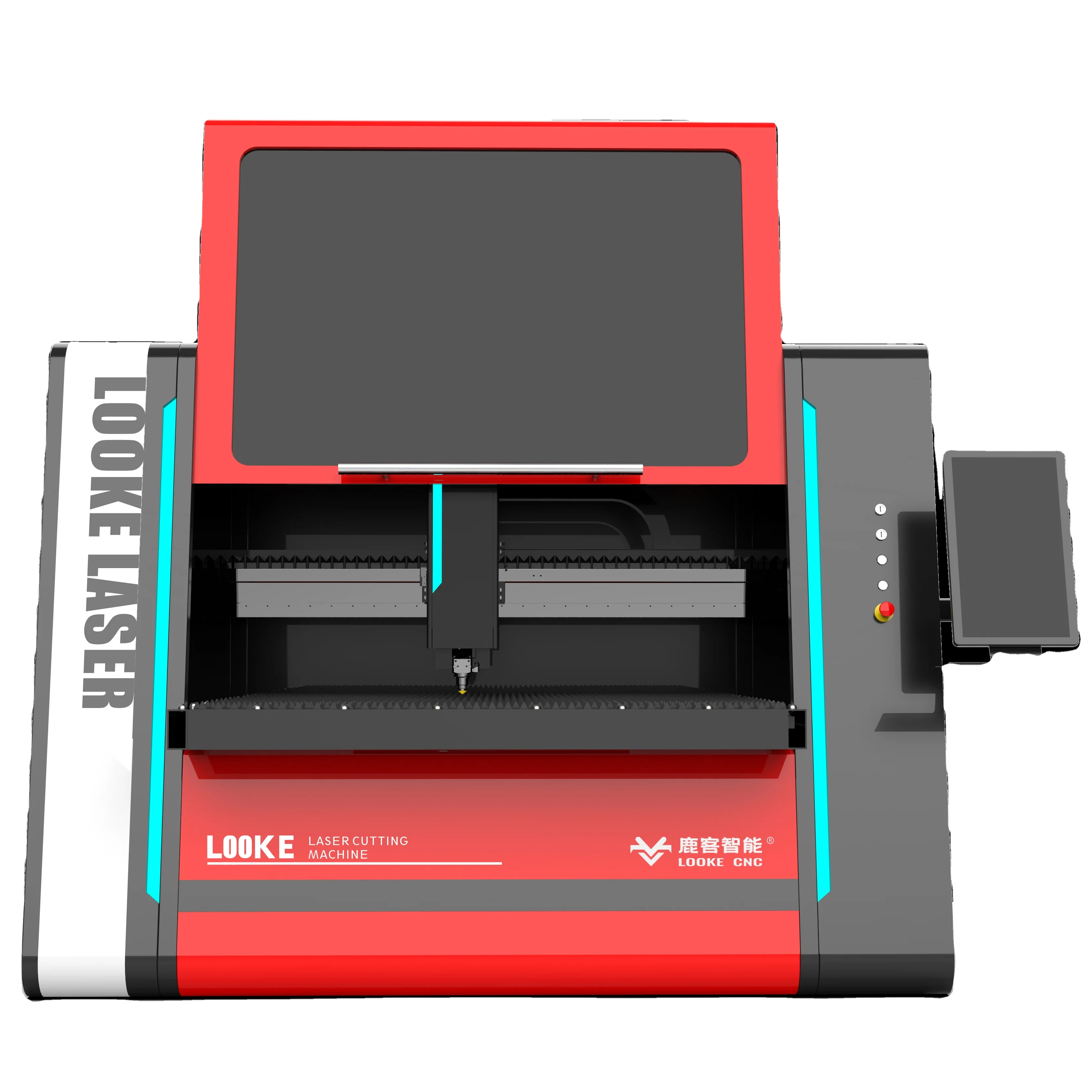

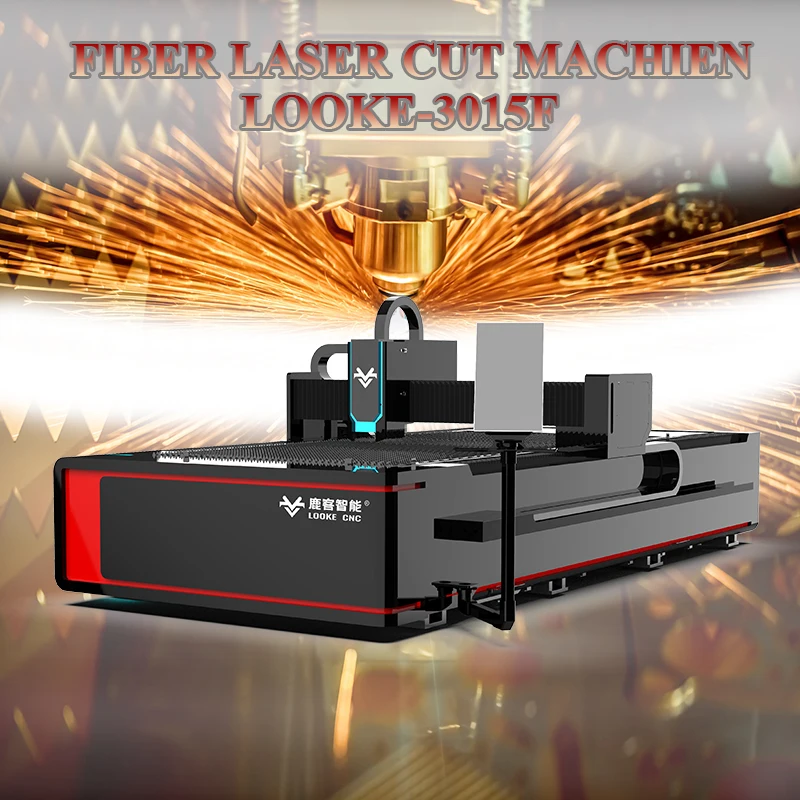

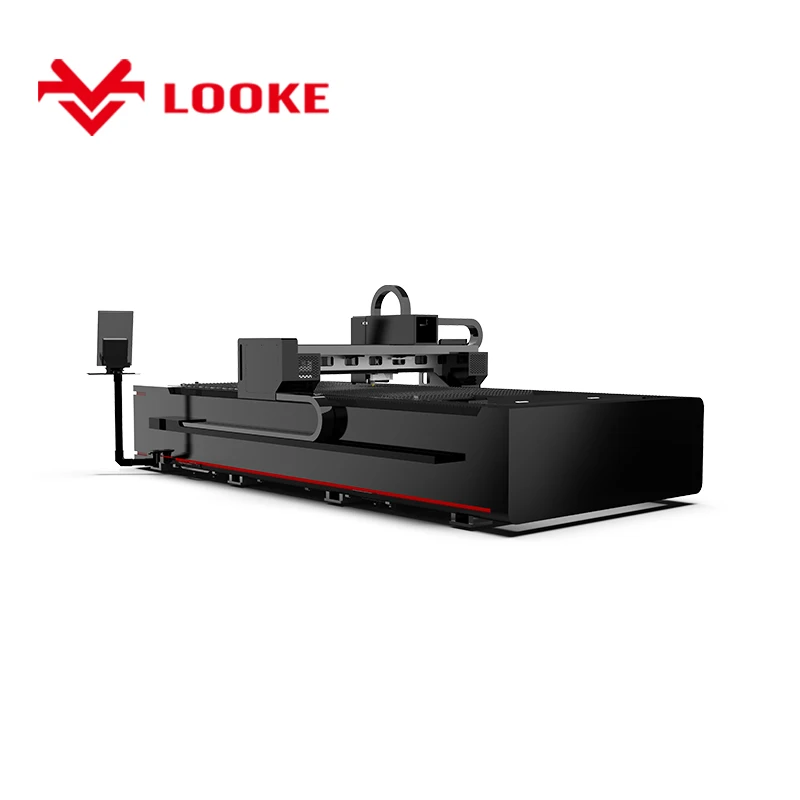

Fiber Laser Cutting Machine Economical Metal Laser Cutting 3015 1313 1500*3000mm 3000W Machine For Fiber Laser Cutter
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system,it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber ,it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Product Description

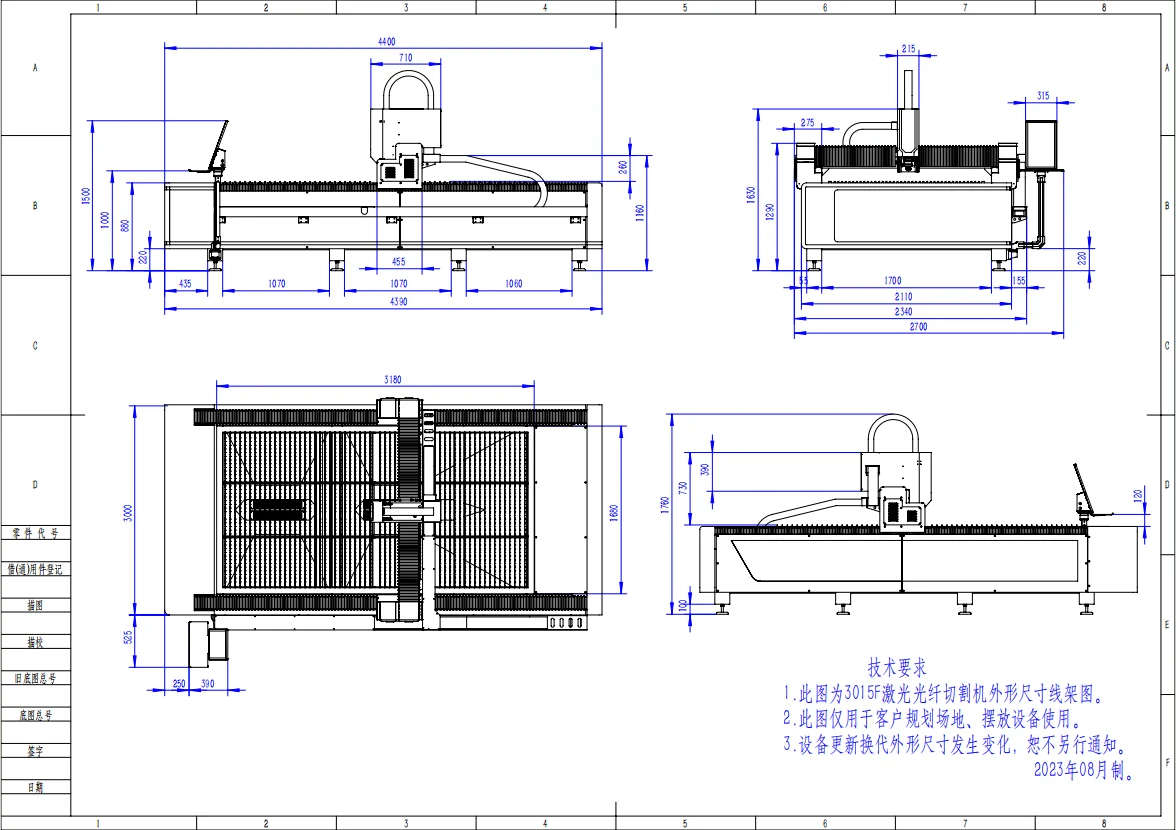

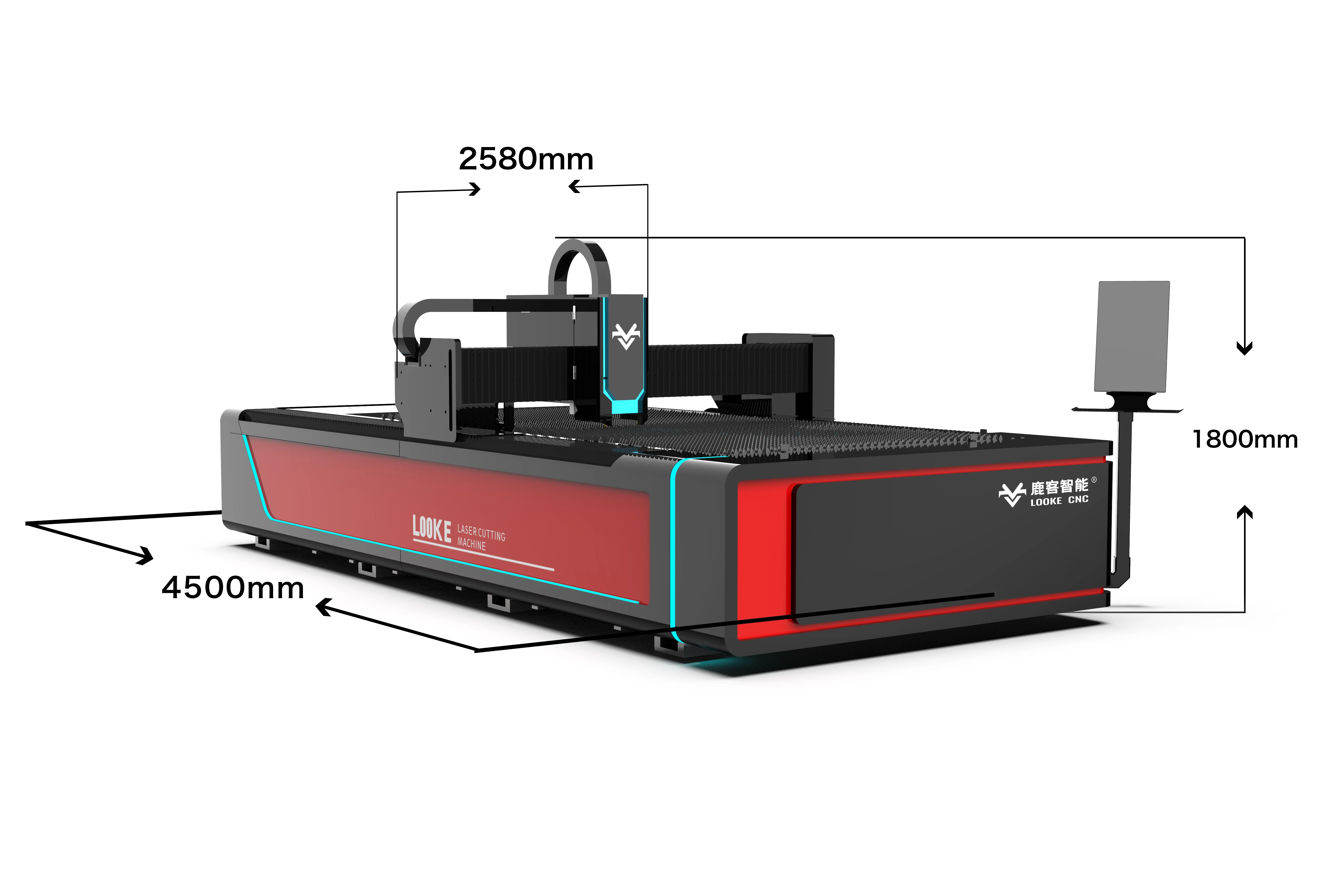

LOOKE-L3015 fiber laser metal cutting machine outline dimension wire frame diagram
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD
Specification
Model | LOOKE-3015F Fiber Laser Cutting Machine |
Effective working area | (X=1500mm)*(Y=3000mm) |
Bed structure | High rigidity welded steel framework |
Table surface | Blade table |
Laser Source | 1000/1500/2000/3000W Raycus/ MAX fiber laser source |
Laser cutting head | Raytools or WSX laser head |
Guide Rail | Taiwan Hiwin square linear guide rail 25# |
Transmission | X,Y with YYC helical gear rack ,Z with TBI ball screw |
Motors and drivers | FUJI servo motor & driver, X,Y axis 750w, Z axis 400w |
Control system | FSCUT 1000S/2000C control system |
Chiller | S&A, Dual Temperature Control |
Reducer | Japan imported SHIMPO reducer |
Lubrication system | Automatic lubrication system |
Electronic Proportional Valve | PMC |
Max. idling speed | 80m/min |
Positioning Accuracy | ±0.03mm |
Re-Positioning Accuracy | ±0.02mm |
Working voltage | AC220V, single phase /AC380V, 3 phase,50-60hz |
Others | Tool box, English Manual, cutting nozzle, protection mirrors etc |

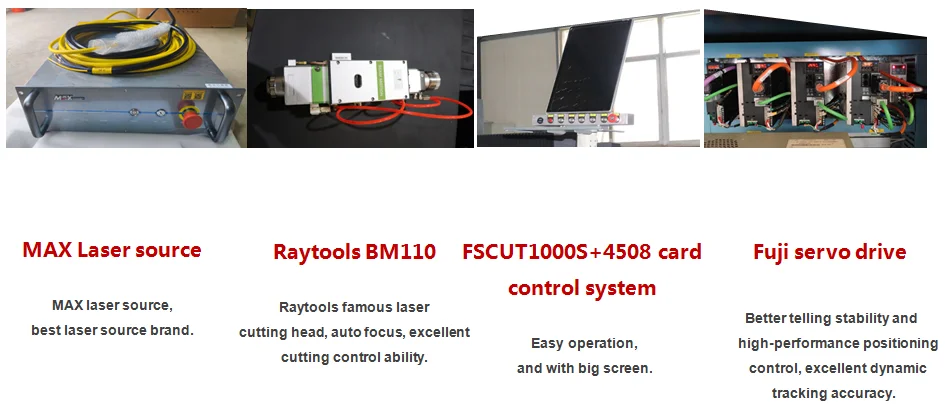

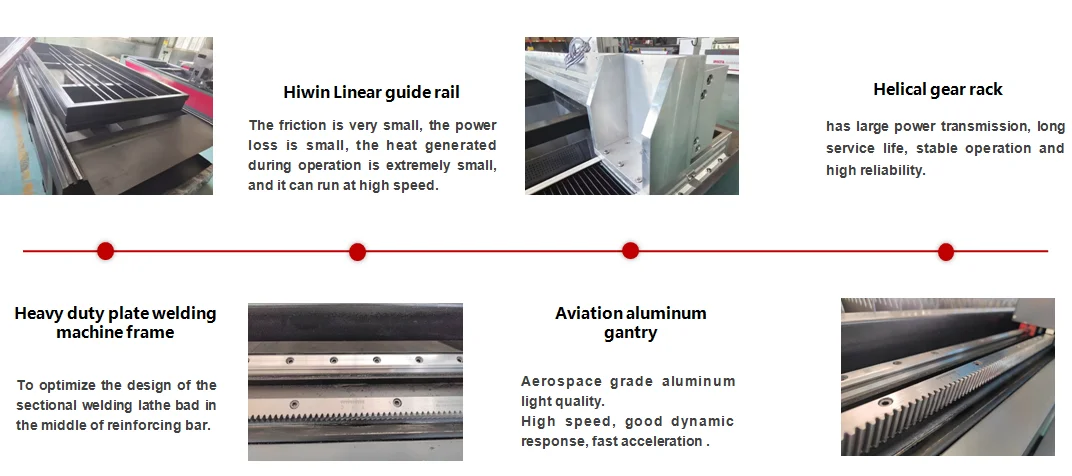

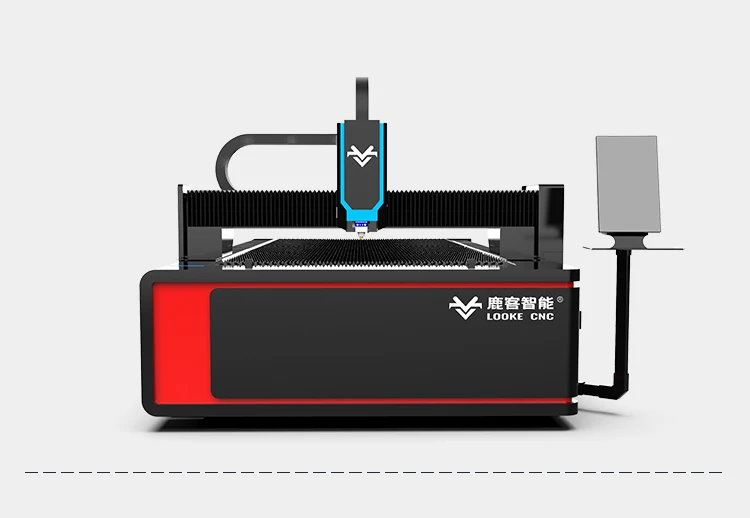

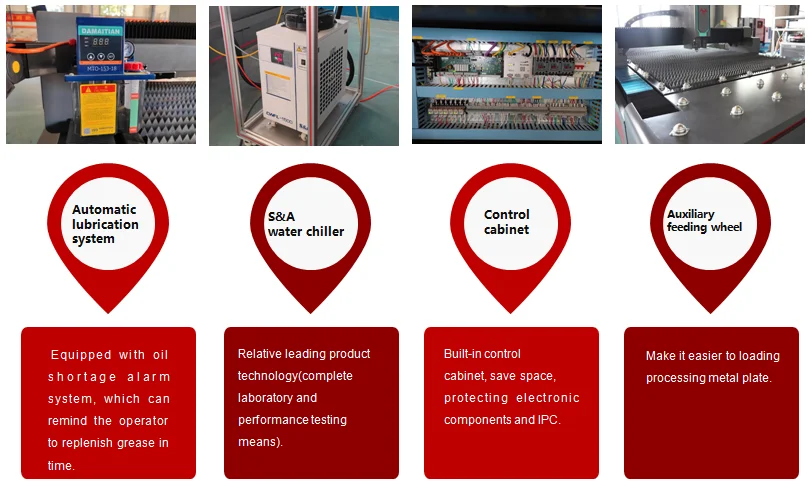

Machine details
Our Advantages
Performance feature
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.

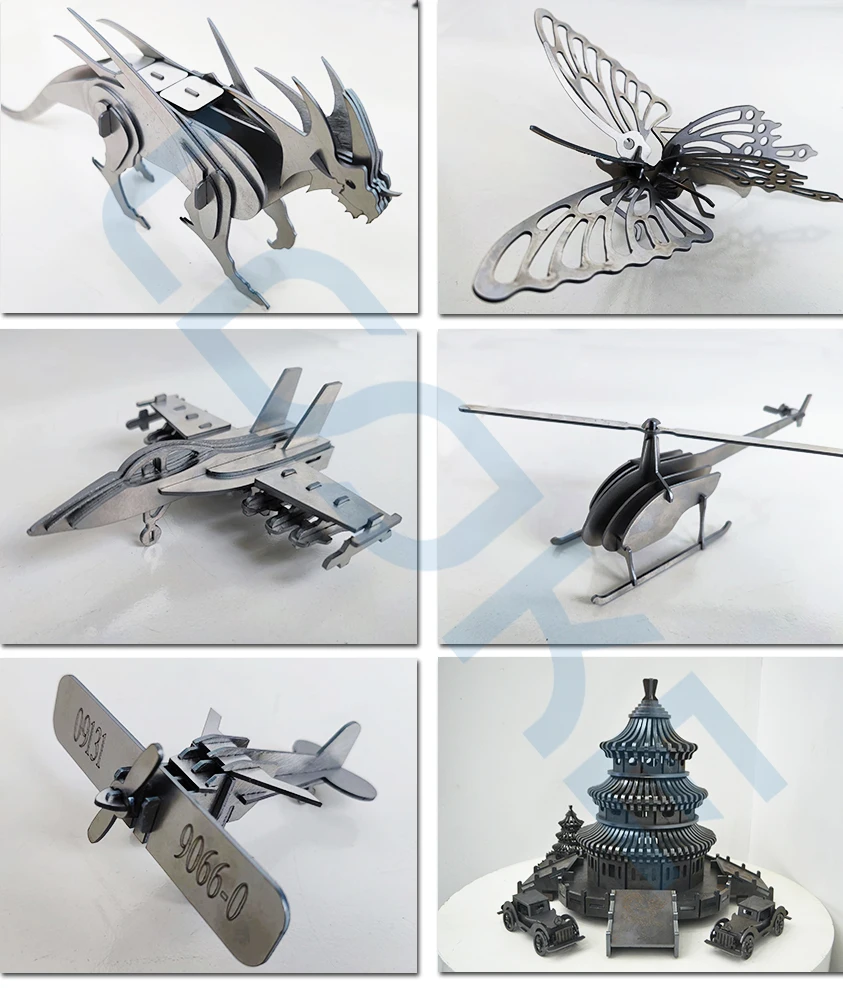

Sample exbition
Packing & Delivery
We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.
Related machine
Company Profile
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in fiber laser cutting machine, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
