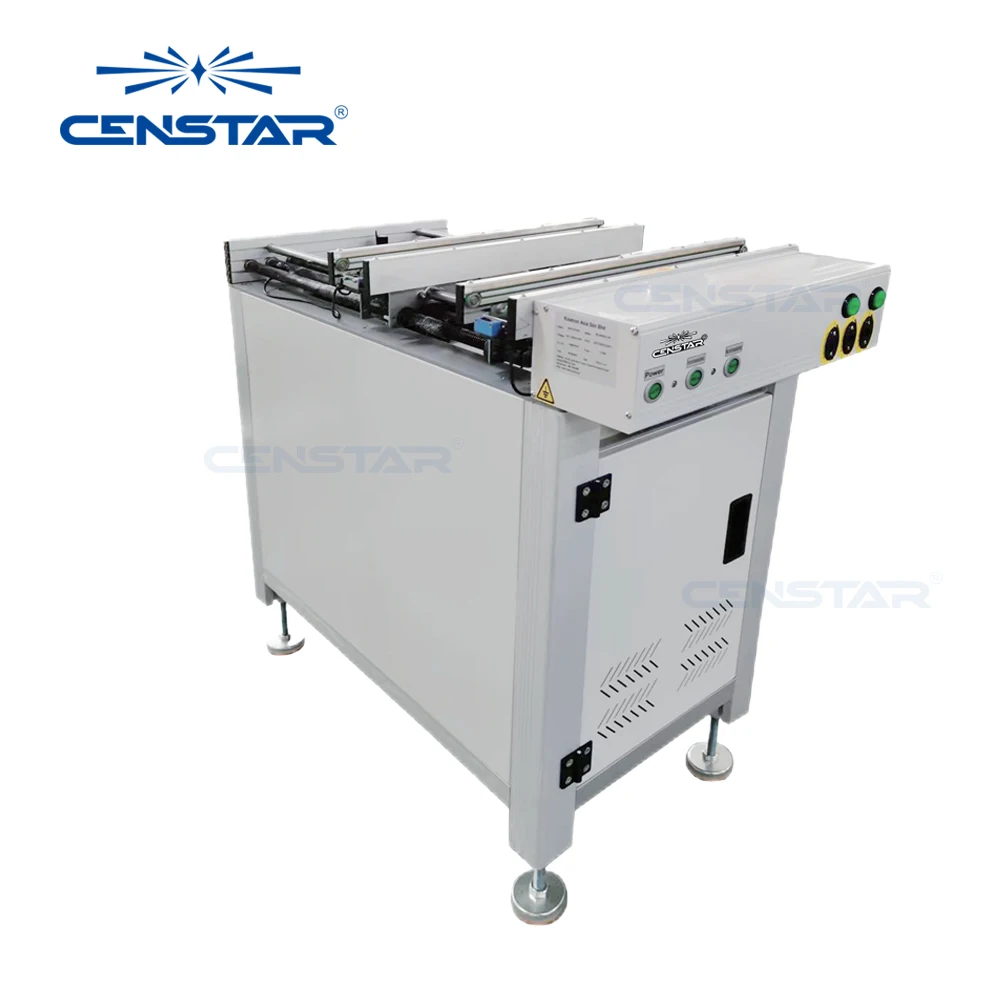

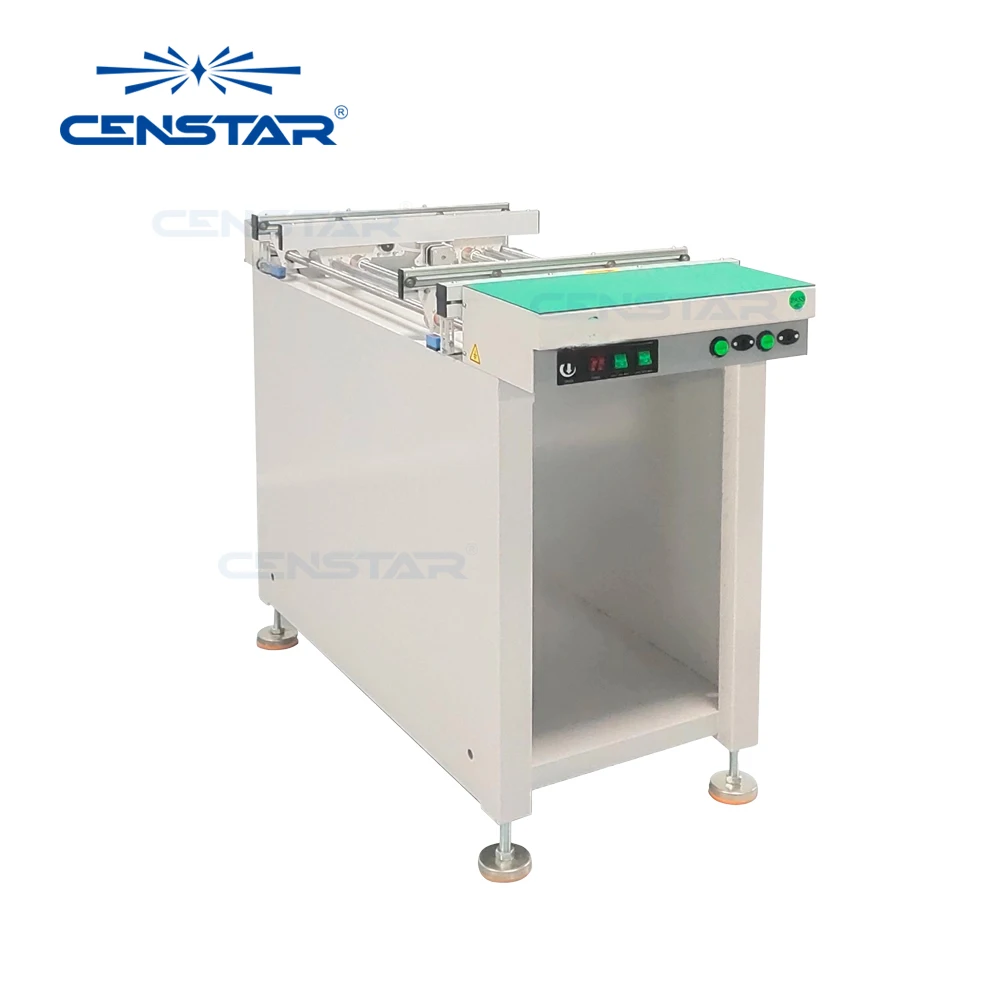

Professional PCB Dual Rail Linking Conveyor SMT Conveyor Equipment With Customized Size For SMT Line
- Category: >>>
- Supplier: Shenzhen Censtar Technology Co. Ltd.
Share on (1601277739317):
Product Overview
Description
Contact information
Description
Using SMEMA interface, this unit successfully links any SMT machine, this system can work
on inspection & linking mode.
on inspection & linking mode.

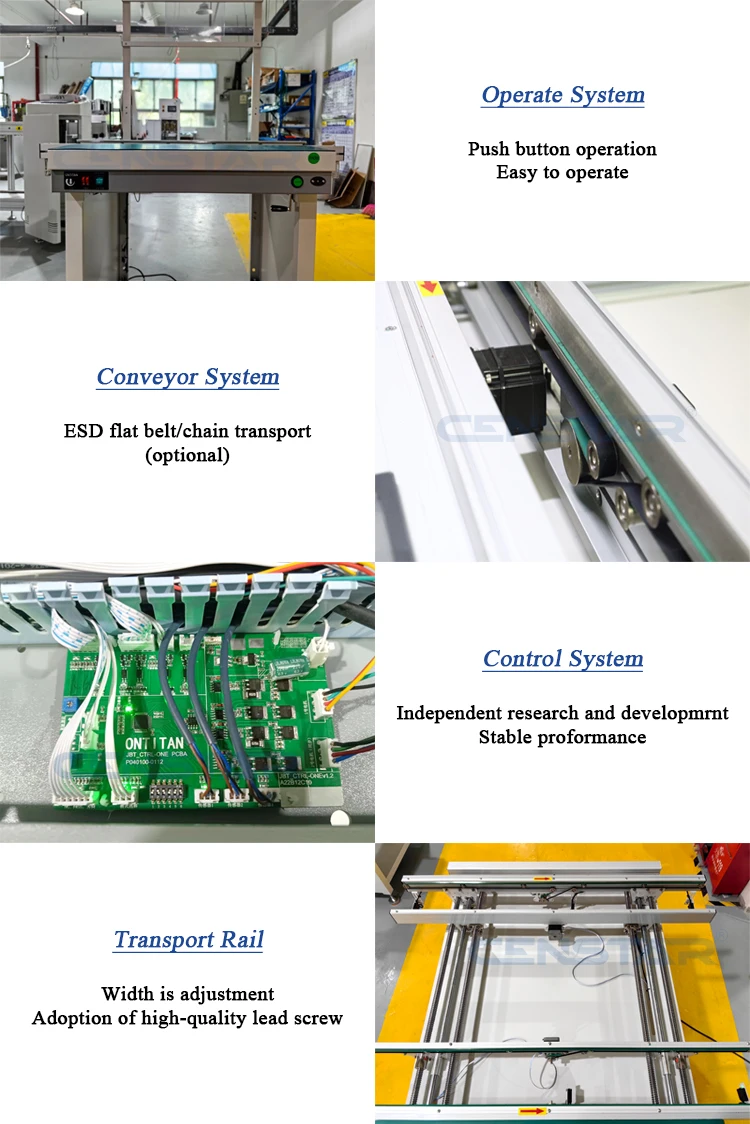

Features
1.PCB card control.
2.By-pass mode, inspection mode selectable
3.Conveyor width adjustment by using hand crank.
4.Heavy bottom design to prevent shifting.
5.Conveyor motor is using with stepper motor
6.PCB flow direction flows can be customized
7.Smooth and parallel width adjustment.(lead screw).
8.SMEMA compatible.
Technical Parameters | ||||||||
Model | DC-050M-N | BC-050XL-N | DC-100M-N | BC-100XL-N | ||||
Dimension(L*W*H) | 500*1046*900mm | 500*786*900mm | 1000*1046*900mm | 1000*786*900mm | ||||
PCB size(L*W) | 50*50-330*250mm | 50*50-460*460mm | 50*50-330*250mm | 50*50-530*460 | ||||
Transport height | 900±20mm | |||||||
Transfer direction | L-R or R-L | |||||||
Operation side | Front of the machine | |||||||
Fixed rail | Front of the machine | |||||||
InterfaceInterface | SMEMA | |||||||
Conveyor belts | ESD flat belt | |||||||
Belt speed | 0.5-20m/min adjustable | |||||||
PCB edge support | 4mm | |||||||
PCB thinckness | 0.6mm min | |||||||
Components clearance | 25mm below | |||||||
PCB weight | 2kg max | |||||||
Control | PCB card | |||||||
Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||||||
Power consumption | 100VA max. or specify | |||||||
Weight | 80kg | 70kg | 95kg | 95kg | ||||
Our Company

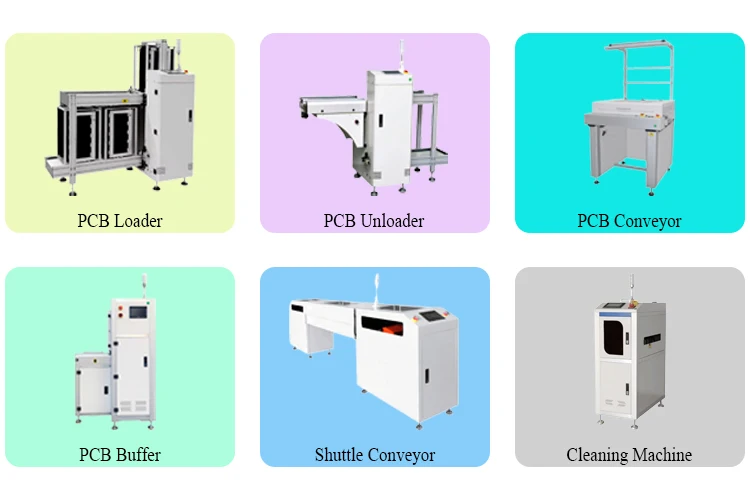

Welcome to Shenzhen Censtar Technology Co., Ltd., your premier source for high-quality SMT & DIP assembly line machines. With a specialized engineering team dedicated to designing and manufacturing our products. We have over 13 years of experience in designing and manufacturing SMT Assembly Machine, and PCB Handling Machine. We are experts in customized solutions for PCB Conveyor, PCB Loader, PCB Unloader, PCB Buffer, PCB reject conveyor, PCB inverter, PCB stacker, Wave Solder Infeed/Outfeed, Surface Cleaning Machines, PCB Shuttle Conveyor, Solder Paste Printers, Reflow Oven, Wave Soldering machine and much more. We provide Full SMT & DIP Production Line Solutions. Our machines are built to the highest standards, using the latest technology and materials to ensure their durability and long lifespan. Our knowledgeable and friendly staff is always on hand to provide the support and expertise you need to get the most out of your investment.
Our success is a result of our dedication to quality and customer satisfaction. We have served customers in 40 countries throughout Europe, America, the Middle East, Southeast Asia, Africa, etc. We help many customers establish factories in LED, TV, Phone, Router, EMS, and other industries all over the world and train over 450 experts and technicians. We are committed to being our customers' most reliable Chinese partner, providing them with the support they need to achieve their goals.
At Shenzhen Censtar Technology Co., Ltd., we take pride in our attention to detail and commitment to delivering reliable and high-performing products. We not only provide SMT & DIP Line equipment, but also provide technical support and services, Besides we give our customers more reasonable and professional suggestions. Our experienced team of engineers and technicians work tirelessly to ensure that every product is manufactured to the highest quality standards, and we provide comprehensive after-sales support to ensure that our customers are completely satisfied with their purchase.
Whether you are looking for customized solutions for your PCB assembly line or simply seeking advice and support, we are here to help. Contact us today to learn more about how we can help you achieve your goals and take your business to the next level!
Our success is a result of our dedication to quality and customer satisfaction. We have served customers in 40 countries throughout Europe, America, the Middle East, Southeast Asia, Africa, etc. We help many customers establish factories in LED, TV, Phone, Router, EMS, and other industries all over the world and train over 450 experts and technicians. We are committed to being our customers' most reliable Chinese partner, providing them with the support they need to achieve their goals.
At Shenzhen Censtar Technology Co., Ltd., we take pride in our attention to detail and commitment to delivering reliable and high-performing products. We not only provide SMT & DIP Line equipment, but also provide technical support and services, Besides we give our customers more reasonable and professional suggestions. Our experienced team of engineers and technicians work tirelessly to ensure that every product is manufactured to the highest quality standards, and we provide comprehensive after-sales support to ensure that our customers are completely satisfied with their purchase.
Whether you are looking for customized solutions for your PCB assembly line or simply seeking advice and support, we are here to help. Contact us today to learn more about how we can help you achieve your goals and take your business to the next level!
Packing Details: Plywood case, for export!
Port: Shenzhen
Delivery Details: About 10-15 working days.
Port: Shenzhen
Delivery Details: About 10-15 working days.
