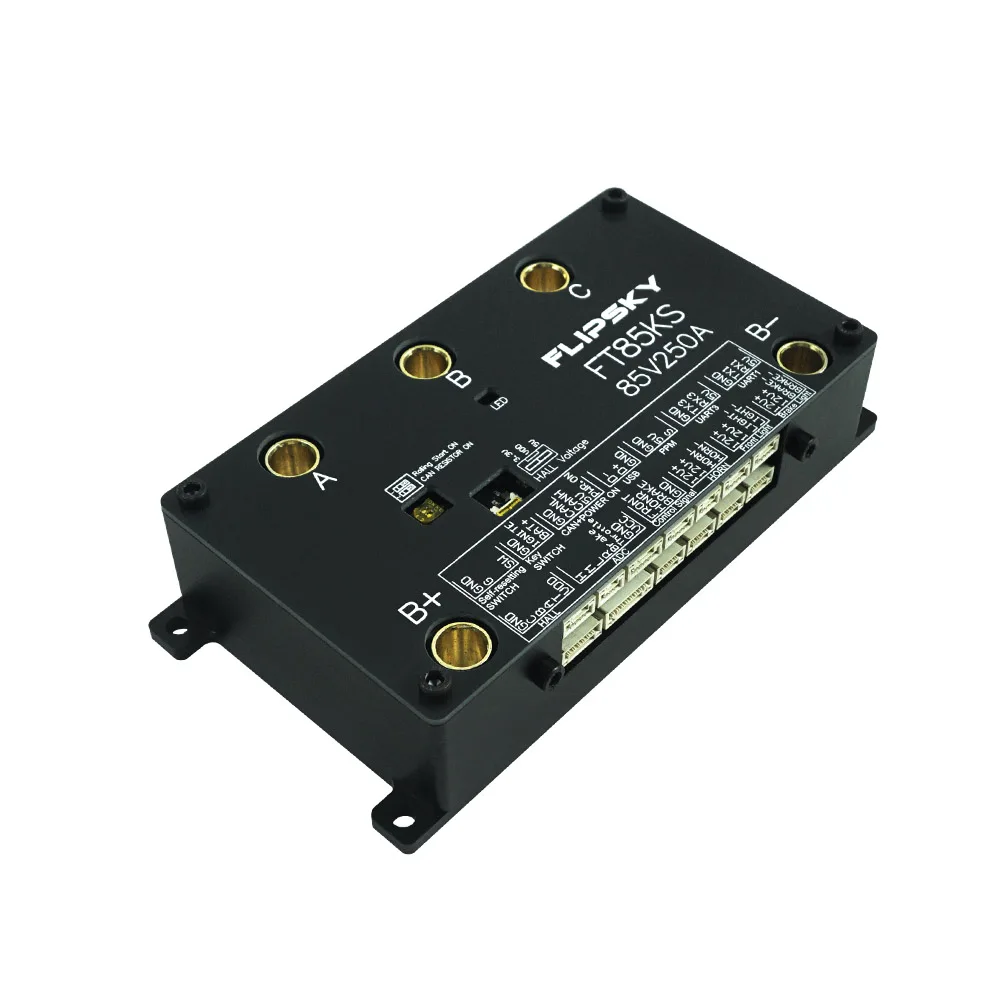

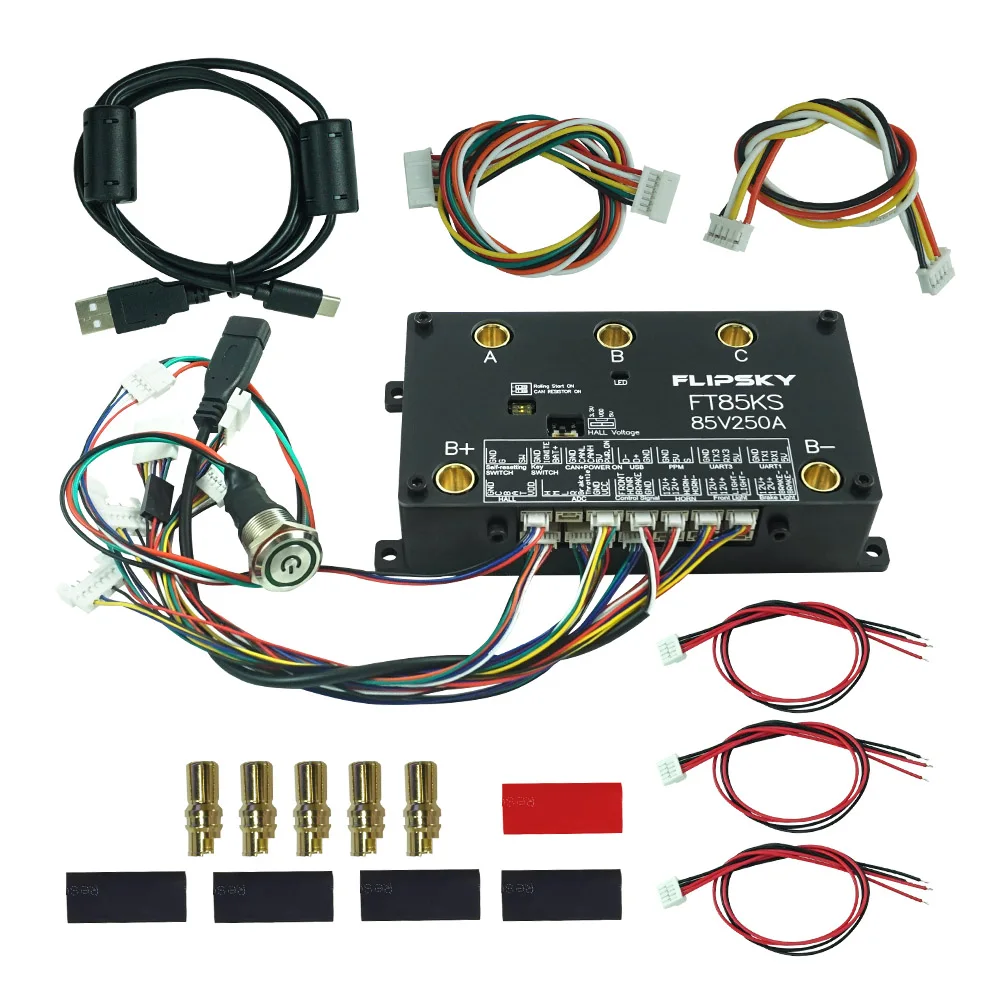

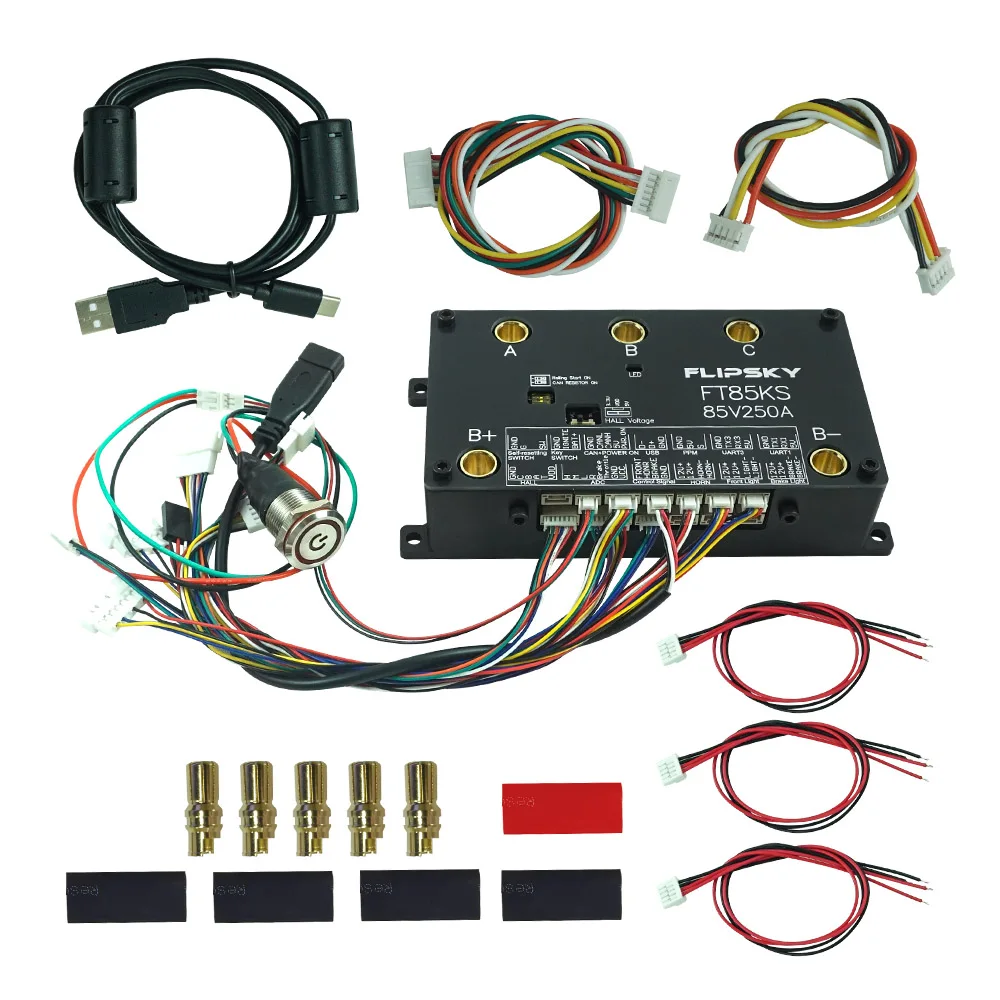

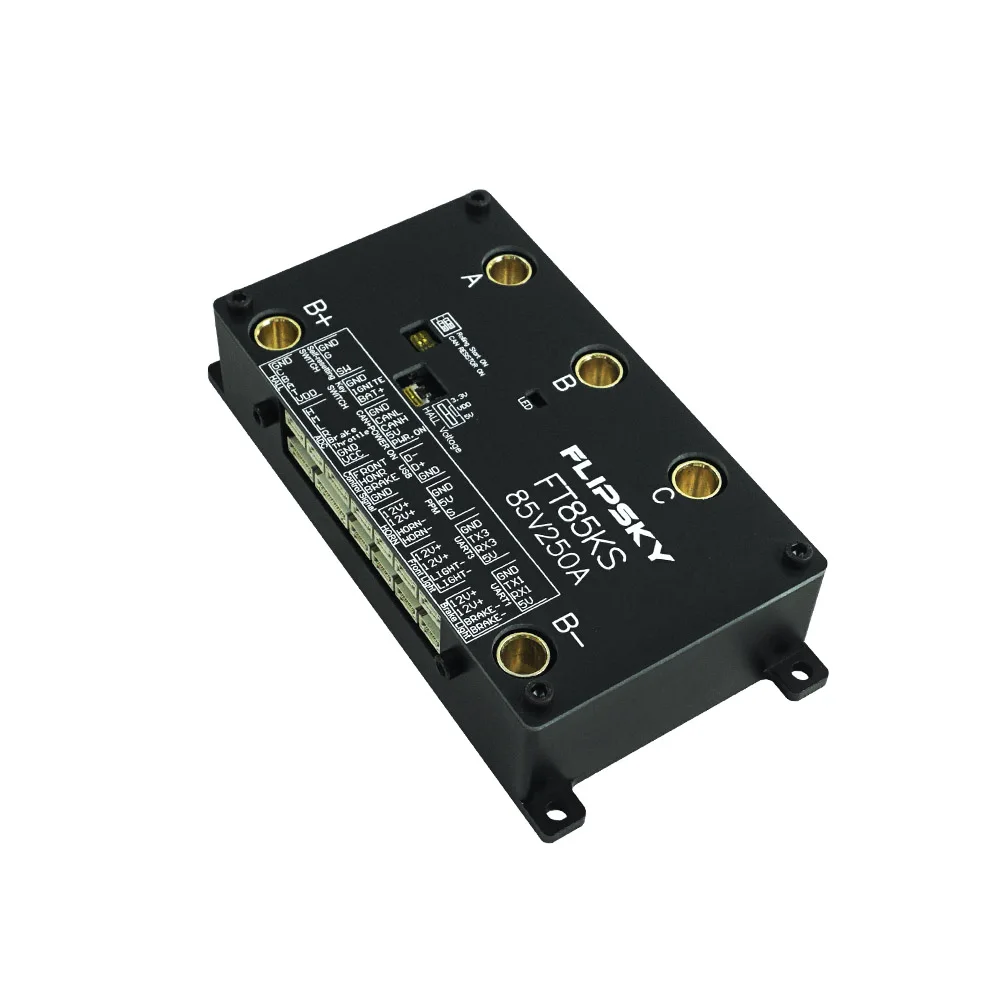

FLIPSKY FT85KS 85V 250A ESC supports ordinary upgrade switch and smart switch NON VESC For ESK8/ Scooter/ Electric Motorcycle

Features:

• Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.


• 240MHz and the max PWM switching frequency 25KHz improves the motor RPM


• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways


• Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.4.0 or above).


• Supporting motor FOC with low working noise and smooth starting.


• Supporting Real-time data and fault alerts.


• Supporting adaptive variable PWM frequency control


• Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).


• Supporting control types: Current, Duty Cycle, Speed control, Position Control


• Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.

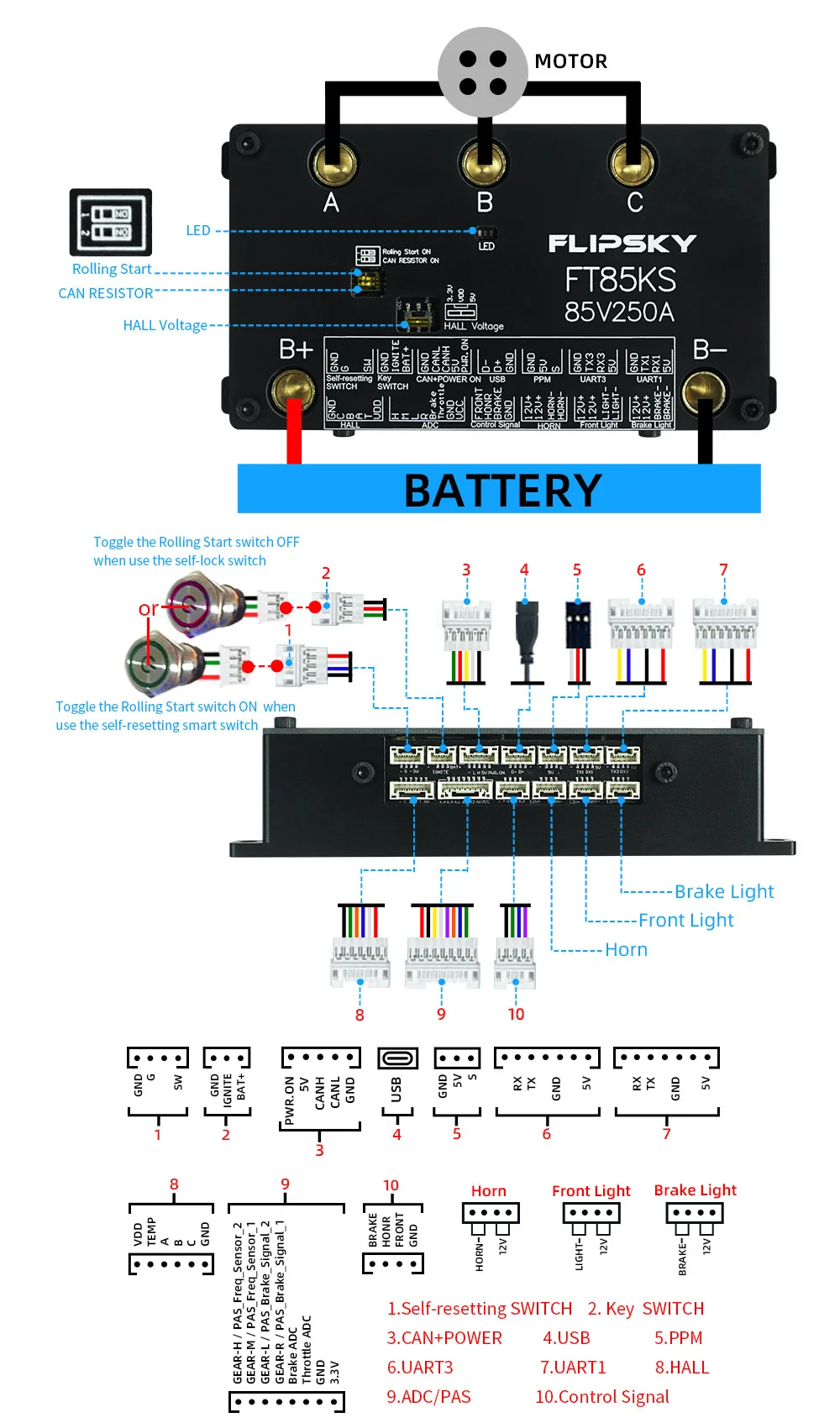

• Supporting extra interfaces like front lights, brake lights and horn fixtures (12V 3A) which can be controlled by remote VX4 or external switches.


• Supporting various motor temperature sensor types such as NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on.
