High speed 1300mm sliitting rewinding machine 400m/min with unloading arm

Product Overview

Description

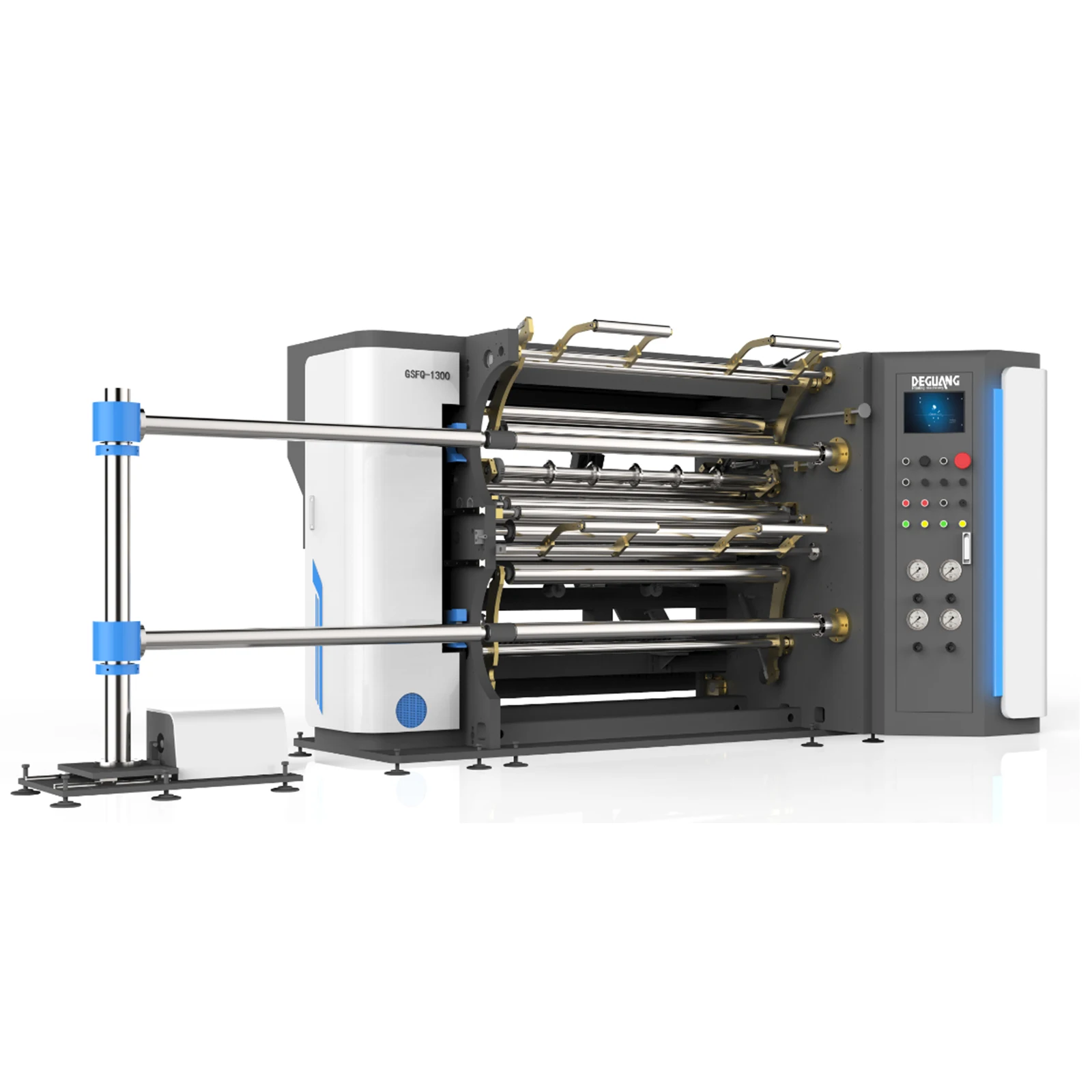

GSFQ-1300 High Speed Slitting and Slitting Machine



Configuration

Unwind

1. Pneumatic brake system to control the unwinding tension precisely

2. Shaftless unwinding, 3 and 6 inch paper core.

3. Hydraulic loading

4. Edge adjustment roller.

5. LPC/EPC to control the edge or line, position of the LPC sensor can be small adjusted in handle side.

6. Cutting table: Fixed splicing table.

7. Operate the machine in unwinding side with rear operation panel.

8. Automatic stop when the diameter of unwind reel reach to your setting.



Driving system

1. Nip drive

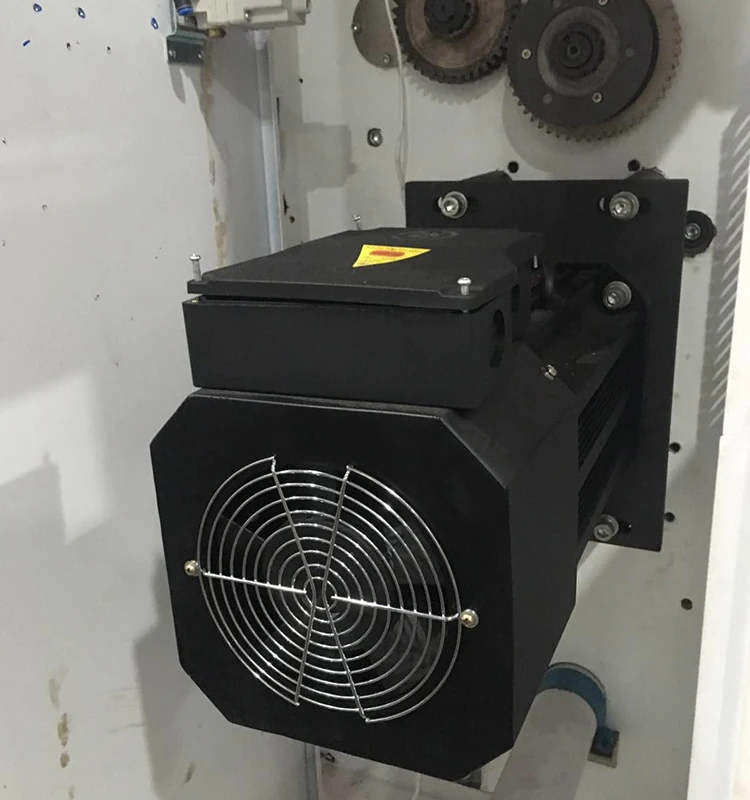

2. Driving motor: Servo motor

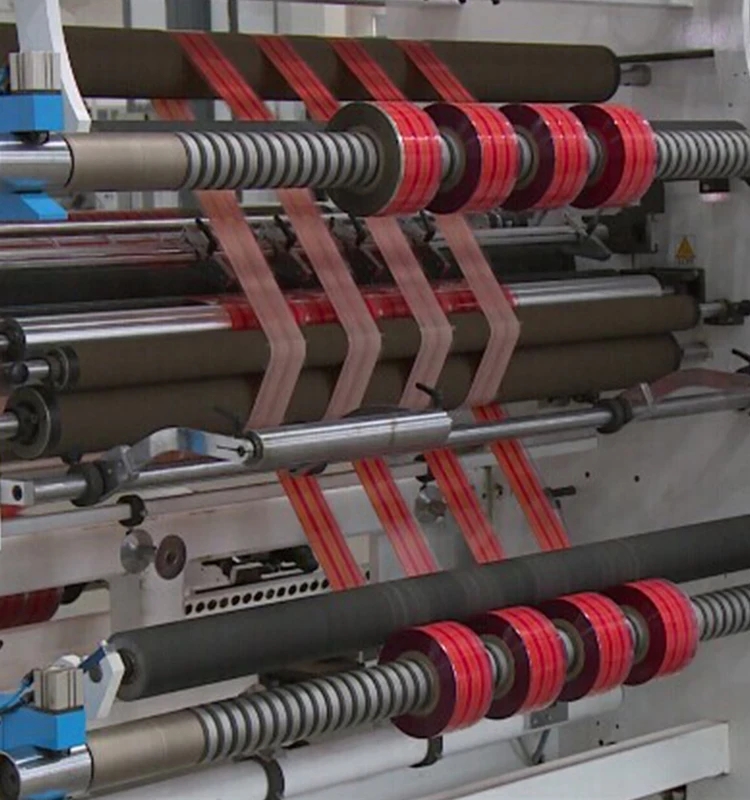

Cutting system

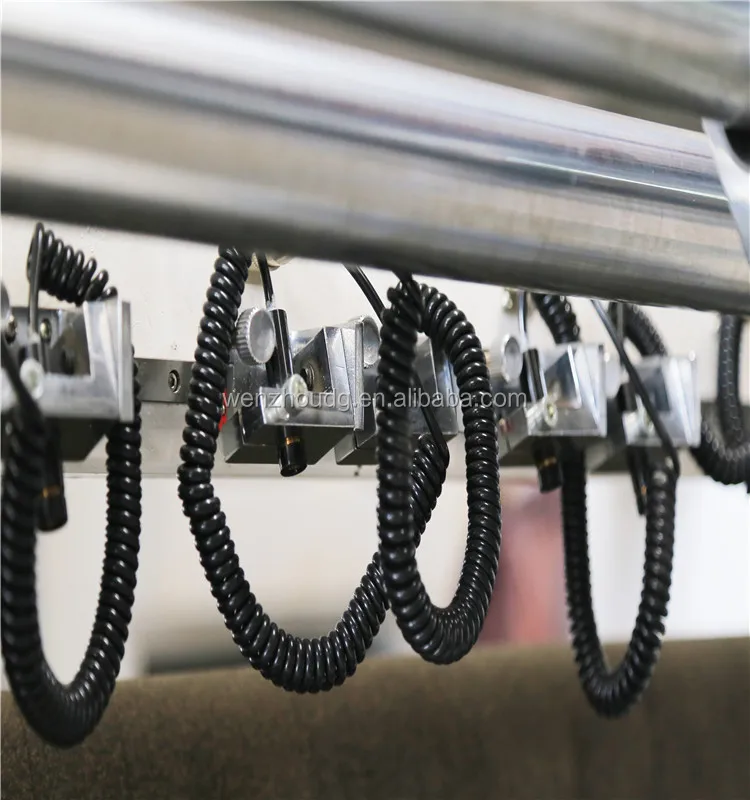

1. Pneumatic cutter

2. You can adjust the cutout depth by hand wheel.

3. Two slitting model:Flat blade or rotary blade.

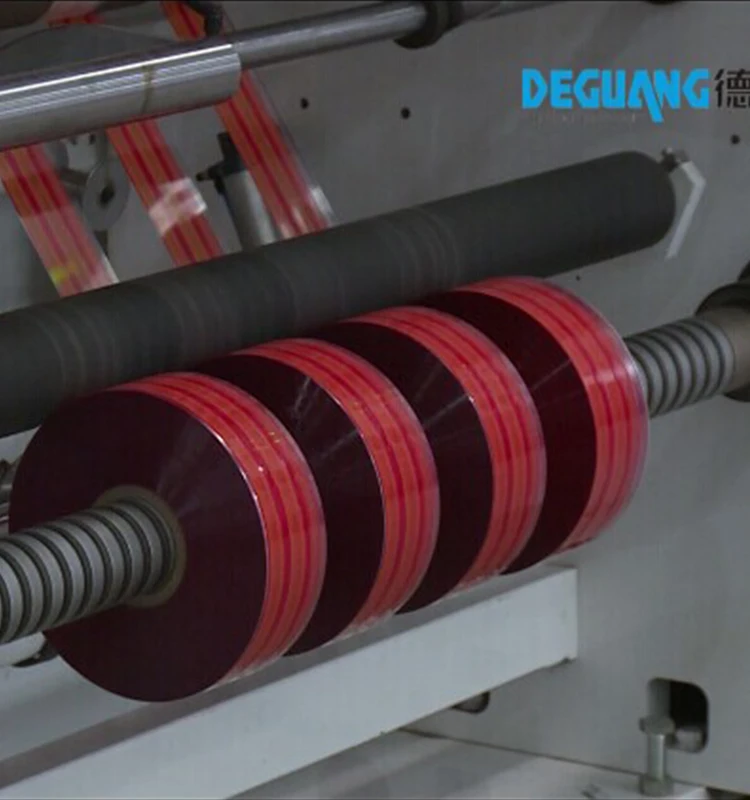

Rewinding system

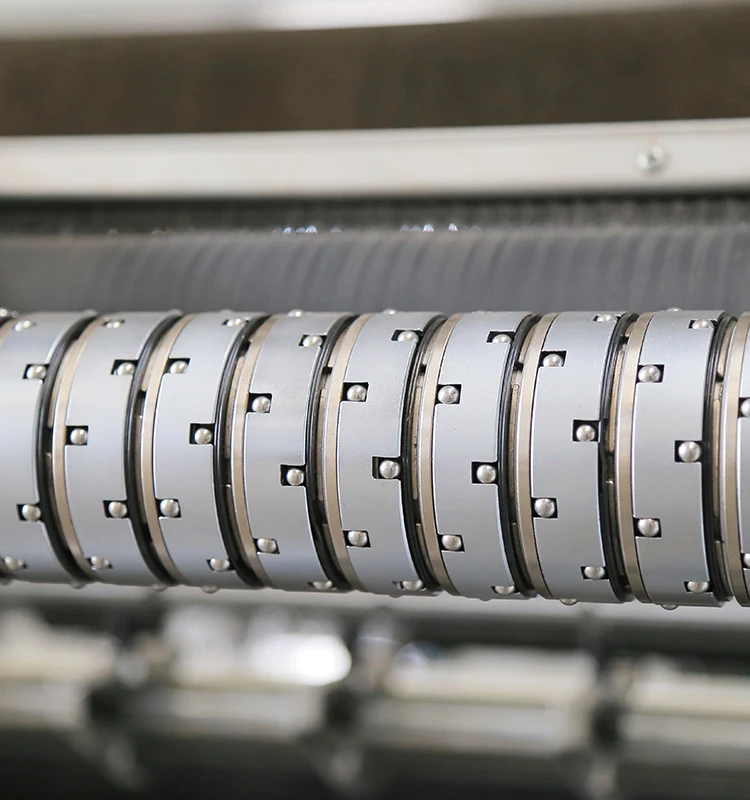

1. 3 inch pneumatic differential friction shafts, making the tension constant.

2. Main pressing roller 4 pcs with width 350mm.

3. shaft.

4. Automatic stop when the length of One servo motor control the two rewinding rewinding reach your setting.

5. The whole machine PLC control, you could do all the operation by touch screen which is convenient.

6. Paper core aser positioning

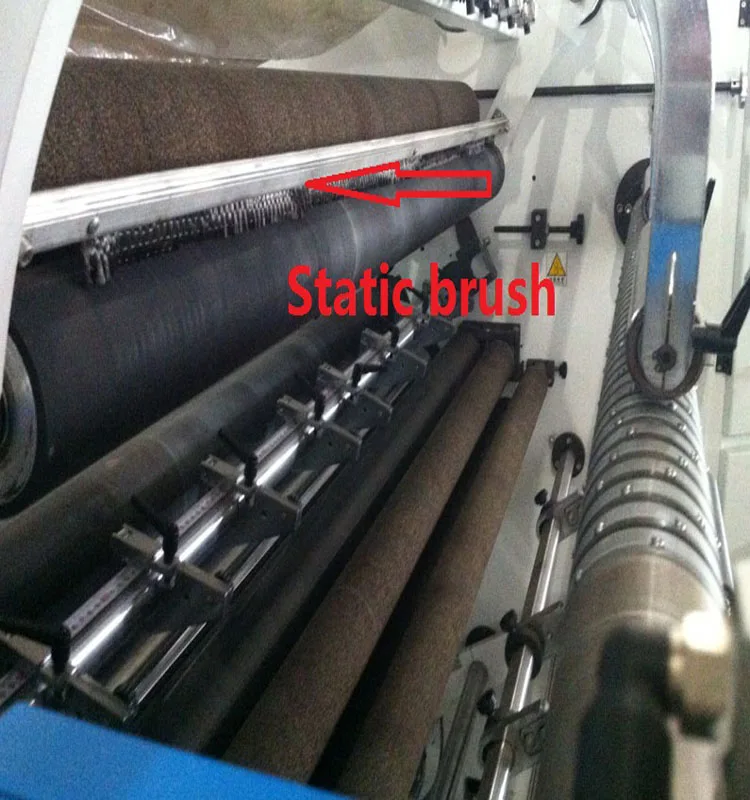

7. Static brush to eliminate static electricity.



Unloading system

Unloading holder which is convenient.



Trim system

Trim blower 1 set 1.1kw







 Video for this slitting machine:

 https://www.youtube.com/watch?v=mQa5HQcHUPA
