Good Price Earth Rod Copper Diameter 8Mm 16Mm 18Mm 20Mm C11000 T1 T2 Copper Rod Round Copper Bar For Sale
- Category: >>>
- Supplier: Electric (tianjin) Power Technology Co. Ltd. . Beijing Branch
Share on (1601277776336):
Product Overview
Description
Product Description
Copper Bonded Steel Ground Rod | ||
Product name | Ground Rod Earth Rod | |
Material | Low-carbon steel | |

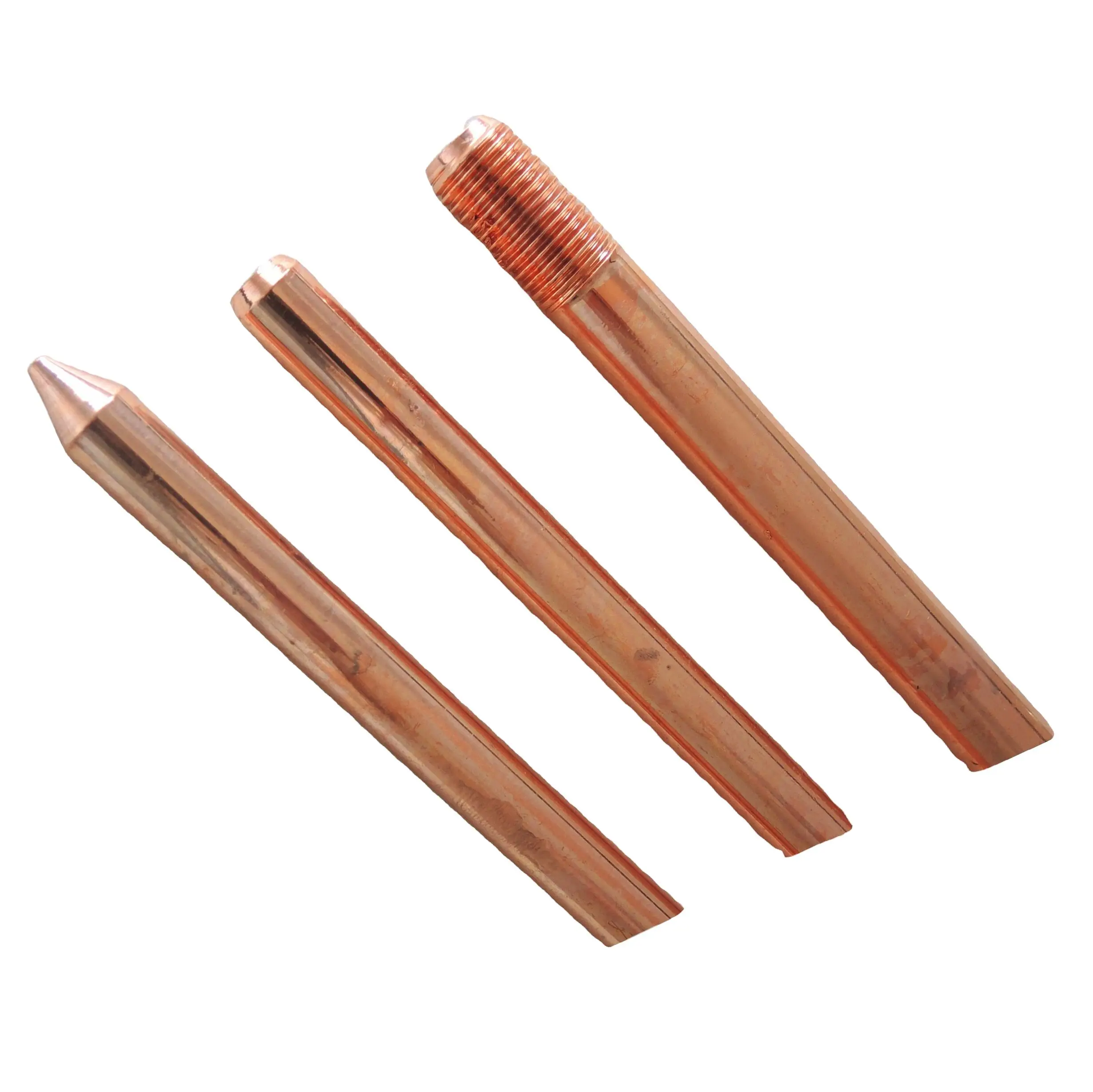

Type | Threaded or flat or pointed | |
Copper Thickness | ≥0.254mm | |
Copper Purity | 99.9% | |
Tensile strength | ≥600Mpa | |
Straightness error | ≤1mm/m | |
Service life | ≥30years | |
Application | Grounding System | |
Purpose | Reduce the soil resistivity outside the ground conductor | |
Diameter | 8.47mm/9.50mm/12.7mm/14.2mm/17.2mm/23.10mm | |
Length | 1200mm/1220mm/1500mm/1800mm/2400mm/2440mm/2500mm/3000mm | |
Size can be customized according to need | ||
Packing | Wooden pallet or iron rack packing,10,20,50peice /bundle | |
Certificate | ISO/ROHS/UL | |
When requiring high speed production and enough copper coating atthe same time, it needs copper ions deposit fast on the iron substrate.And, the good malleability and excellent bonding force put forwardstrict requirements of the manufacturing procedures.
By using high concentration, high temperature, high current density and fully stirwith air, it achieves high speed deposition of the copper ions, qualifiedcopper coating (over 0.254mm)，excellent bonding force,goodsmoothness and malleability of the copper coating.
By using high concentration, high temperature, high current density and fully stirwith air, it achieves high speed deposition of the copper ions, qualifiedcopper coating (over 0.254mm)，excellent bonding force,goodsmoothness and malleability of the copper coating.

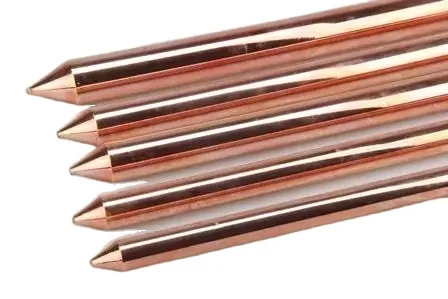

Product Display

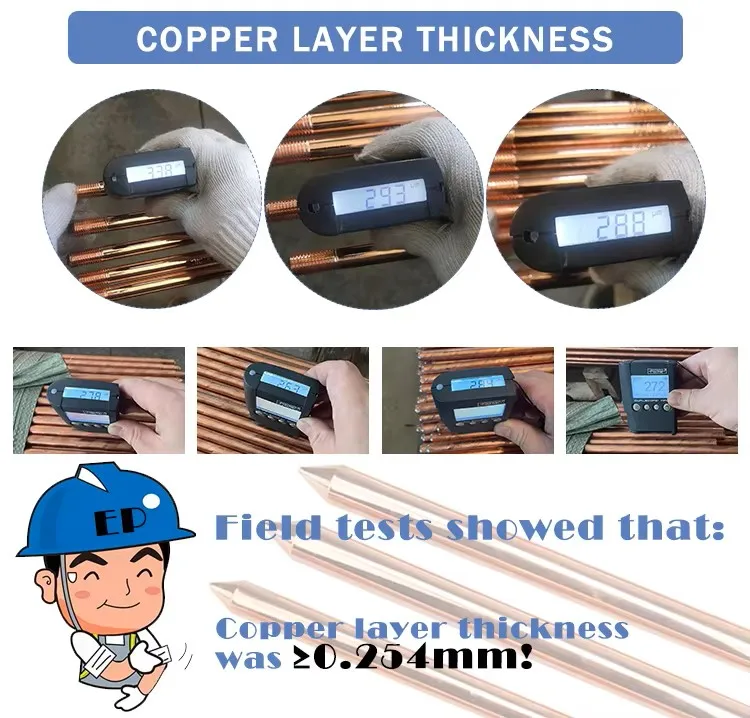

The thickness of the copper layer is very uniform, and the thickness difference of the copper layer at any point on a rod does not exceed 10um, which can completely avoid point corrosion and effectively extend the product life. The steel core uses high-quality steel core with carbon content of 0.18%-0.2%, and the tensile strength is maintained at 650-700Mpa. Perfect copper bonding force!
Copper layer stripping test, copper and steel do not crack, processing thread copper layer does not fall off.
Copper layer stripping test, copper and steel do not crack, processing thread copper layer does not fall off.

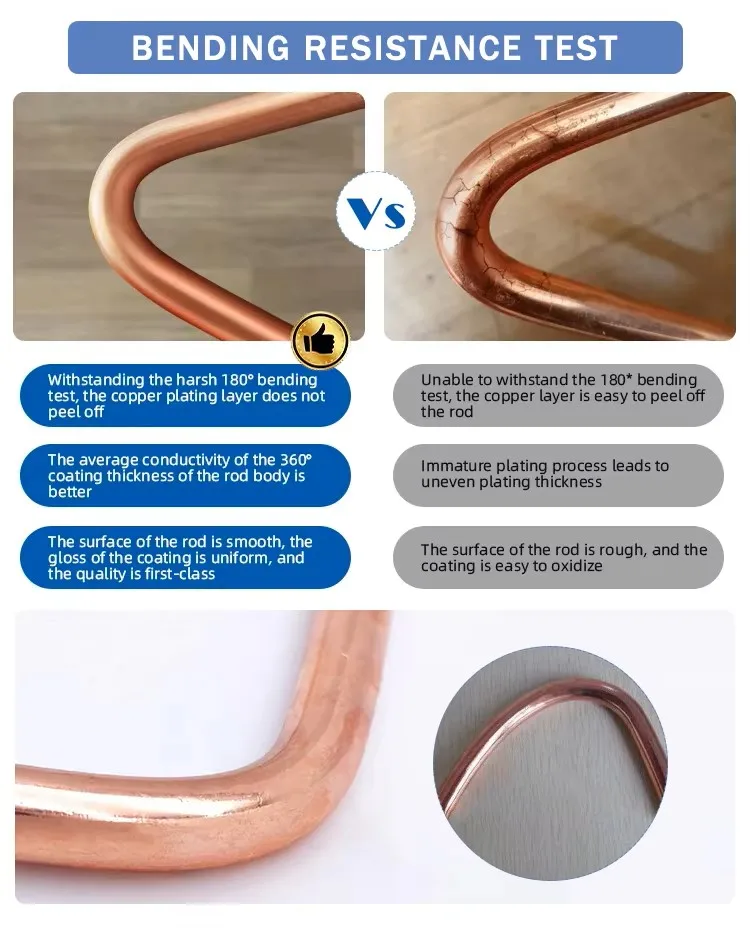

Is tested by bending the rod at 180 degree.Lack of cracks and exfoliation.
The service life of the grounding rod is protected and the integrity of the whole electrode is maintained.
The service life of the grounding rod is protected and the integrity of the whole electrode is maintained.
Specification

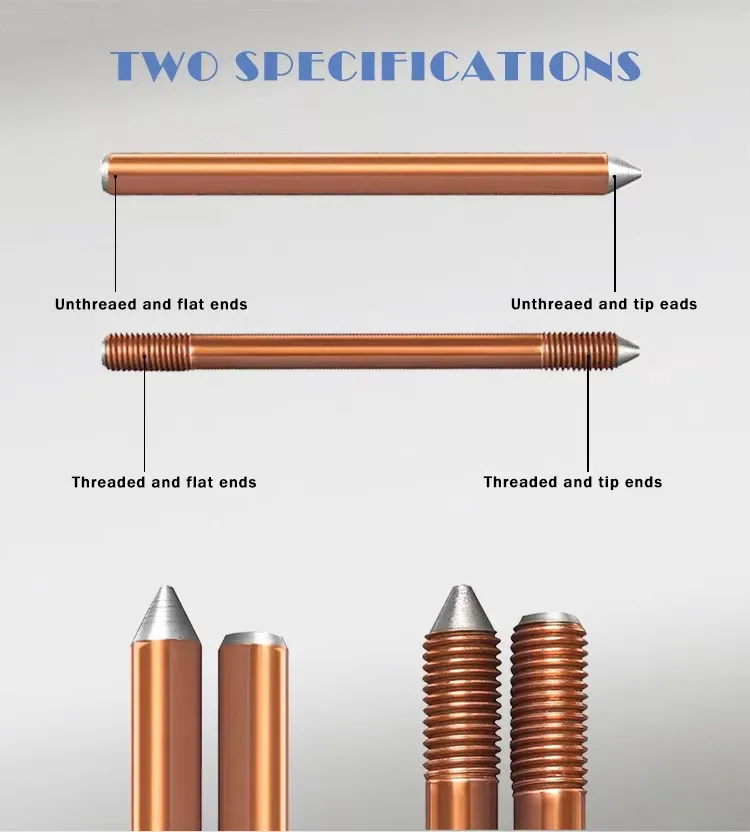

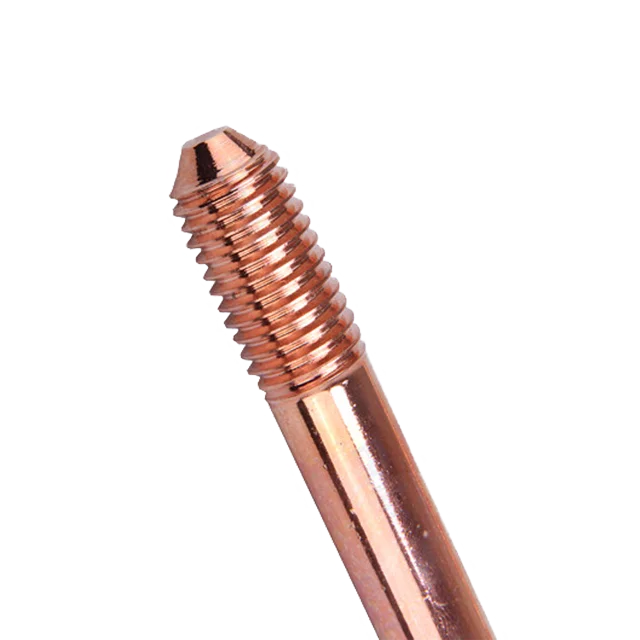

The copper bonded steel grounding rod is made of high-quality low carbon steel with good softness and carbon content of 0.10%-0.30%. The special process is used to evenly cover the high conductive electrolyzer copper on the surface of the round steel, and the thickness is 0.25-0.5mm. This process can effectively slow down the oxidation speed of the grounding rod in the underground. The single root can be pointed and flat, and can be pointed and threaded on the roll. The two ends of the combination need to be threaded on the roll. The thread is processed by the roller thread groove, which maintains the close connection between the steel and copper, ensures high strength, and has excellent electrical grounding performance.
Model name | Metric diameter(mm) | Inch diameter(in) | Metric length(m) | Inch length(ft) | Unit weight（kg/m） |
EP1308 | 8.47 | 1/3 | 2.44 | 8 | 0.45 |
EP3808 | 9.50 | 3/8 | 2.44 | 8 | 0.57 |
EP1208 | 12.70 | 1/2 | 2.44 | 8 | 1 |
EP1210 | 12.70 | 1/2 | 3.05 | 10 | 1 |
EP5805 | 14.20 | 5/8 | 1.52 | 5 | 1.26 |
EP5806 | 14.20 | 5/8 | 1.83 | 6 | 1.26 |
EP5808 | 14.20 | 5/8 | 2.44 | 8 | 1.26 |
EP5810 | 14.20 | 5/8 | 3.05 | 10 | 1.26 |
EP5812 | 14.20 | 5/8 | 3.66 | 12 | 1,26 |
EP5815 | 14.20 | 5/8 | 4.56 | 15 | 1.26 |
EP3406 | 17.20 | 3/4 | 1.83 | 6 | 1.84 |
EP3408 | 17.20 | 3/4 | 2.44 | 8 | 1.84 |
EP3410 | 17.20 | 3/4 | 3.05 | 10 | 1.84 |
EP3412 | 17.20 | 3/4 | 3.66 | 12 | 1.84 |
EP3415 | 17.20 | 3/4 | 4.56 | 15 | 1.84 |
EP4410 | 12.10 | 1/4 | 3.05 | 10 | 3.31 |
Special requirement PLS negotiation with our company!

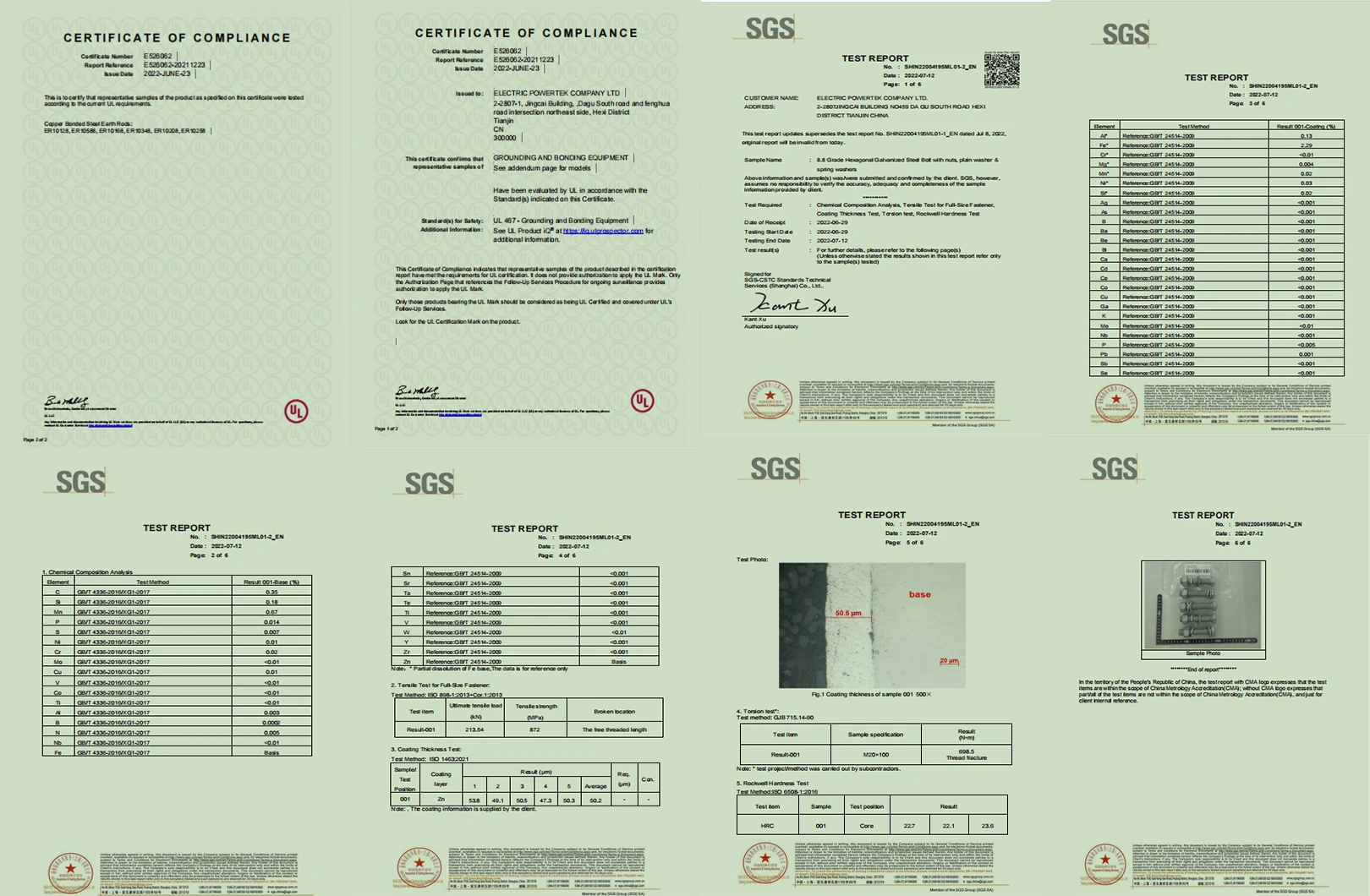

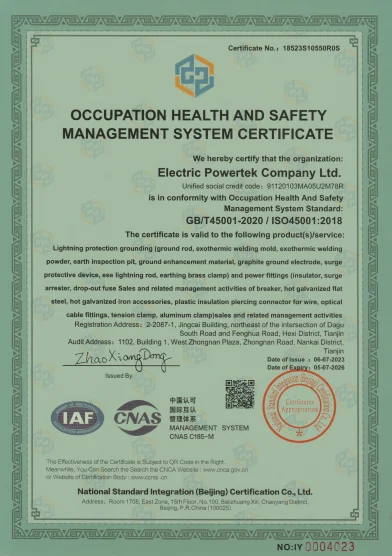

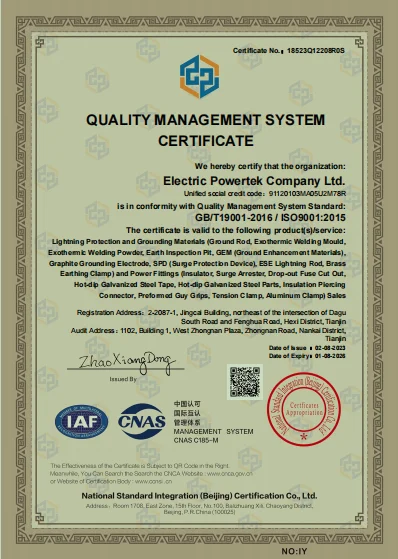

Certifications
Please click the link in the description for more product information！
www.groundingsystem.com
Partners

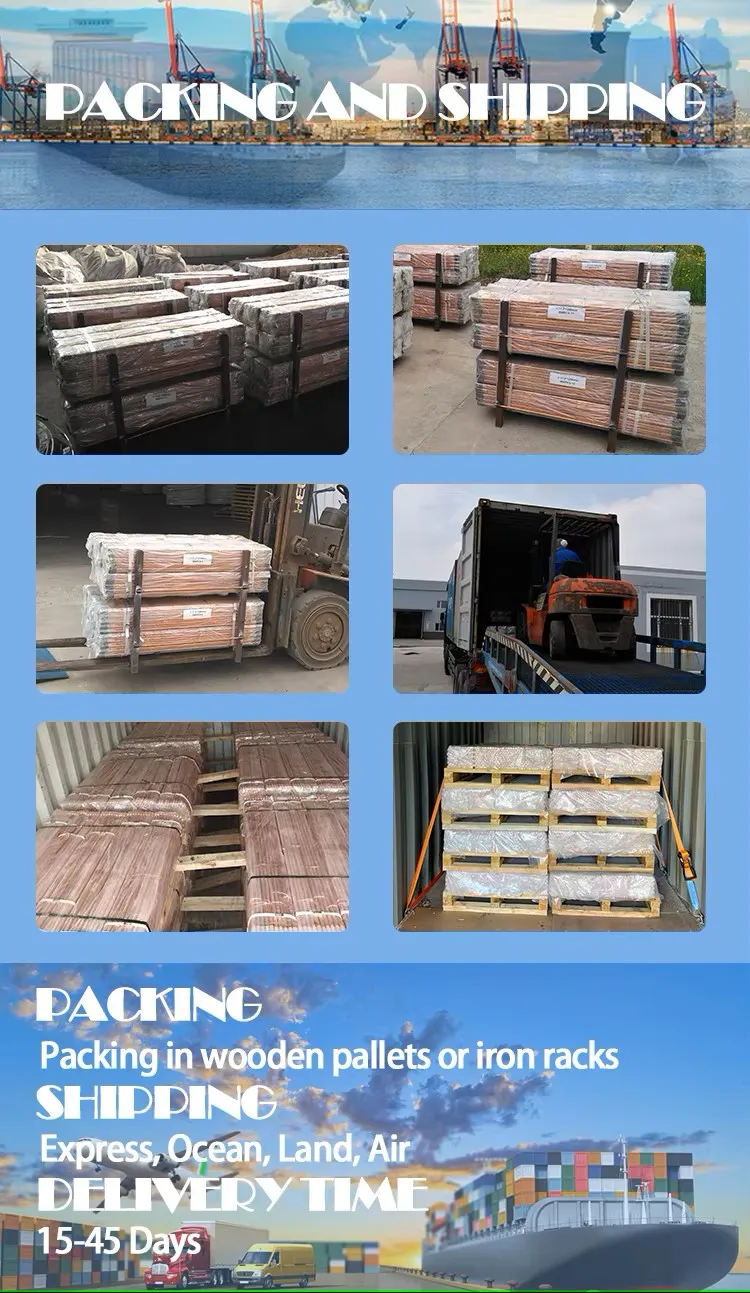

Packing & Delivery
