Stainless Steel 304/316 European Type Dee Shackle D Shackle Lifting

Product Overview

Description

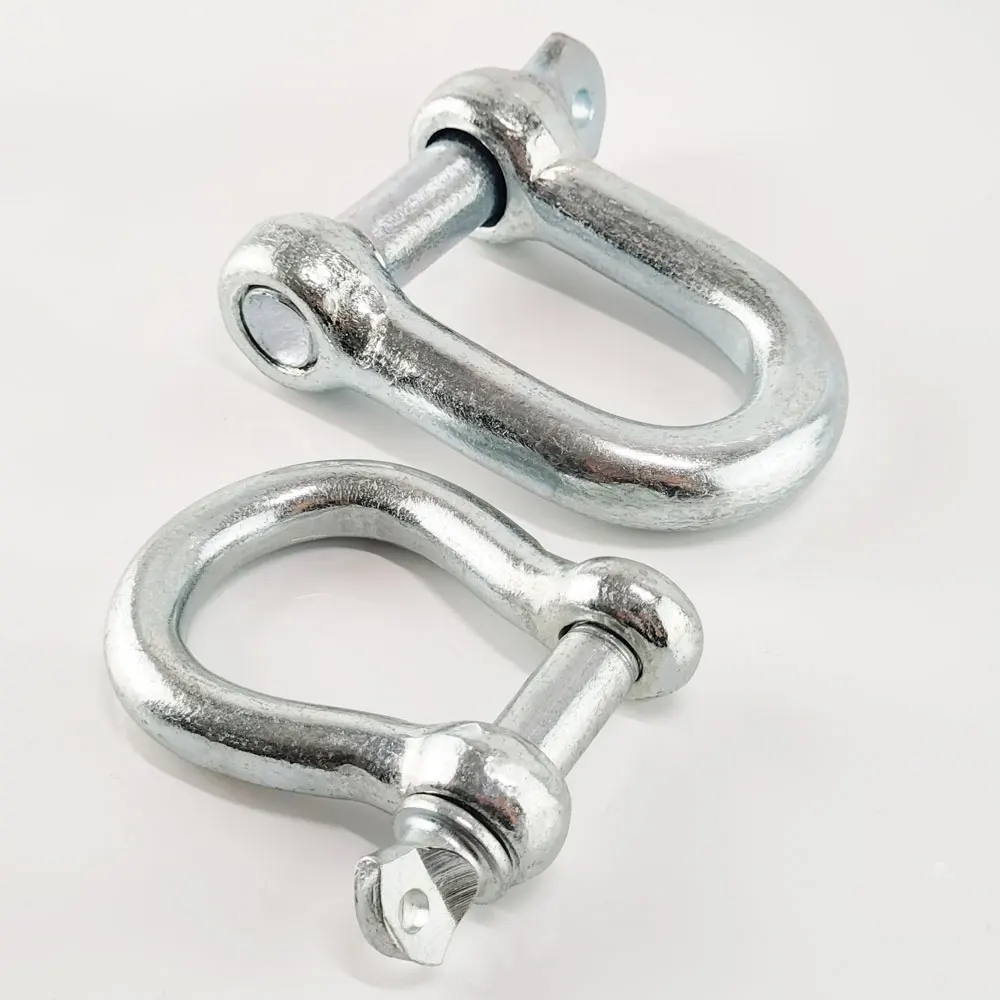

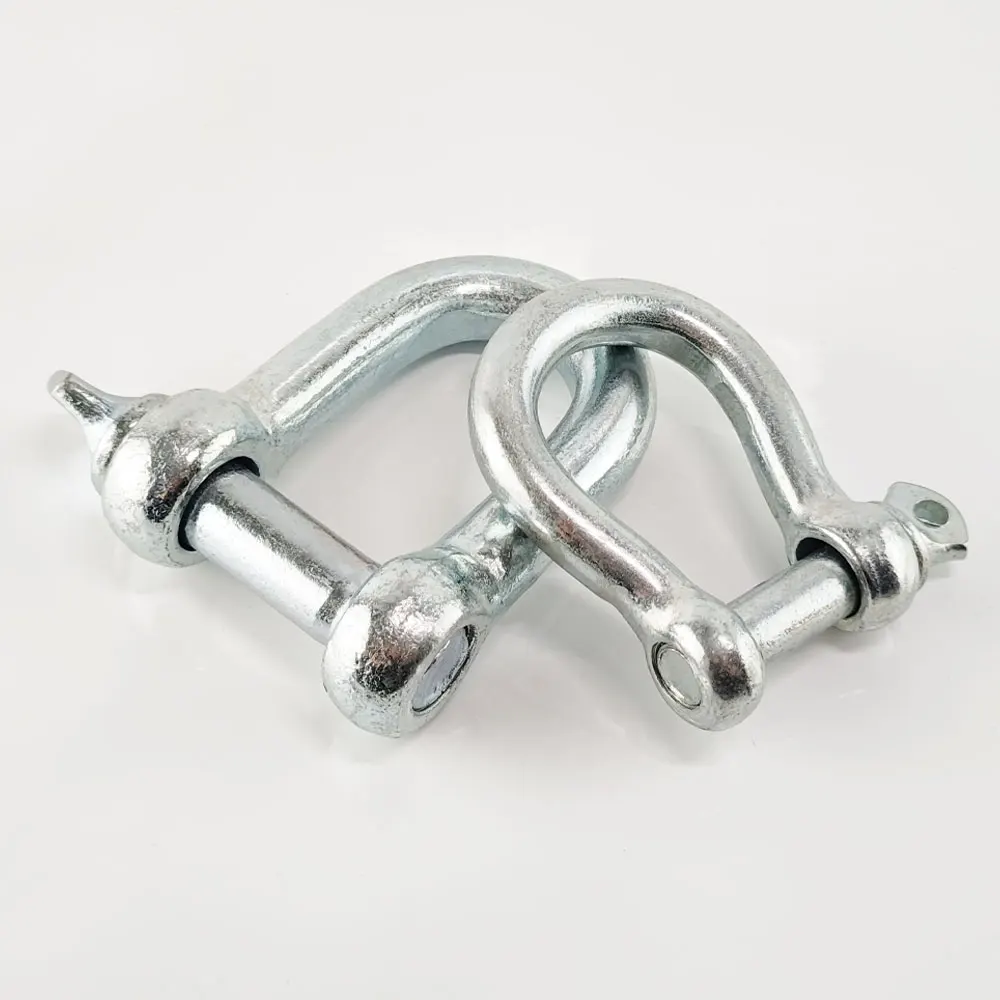

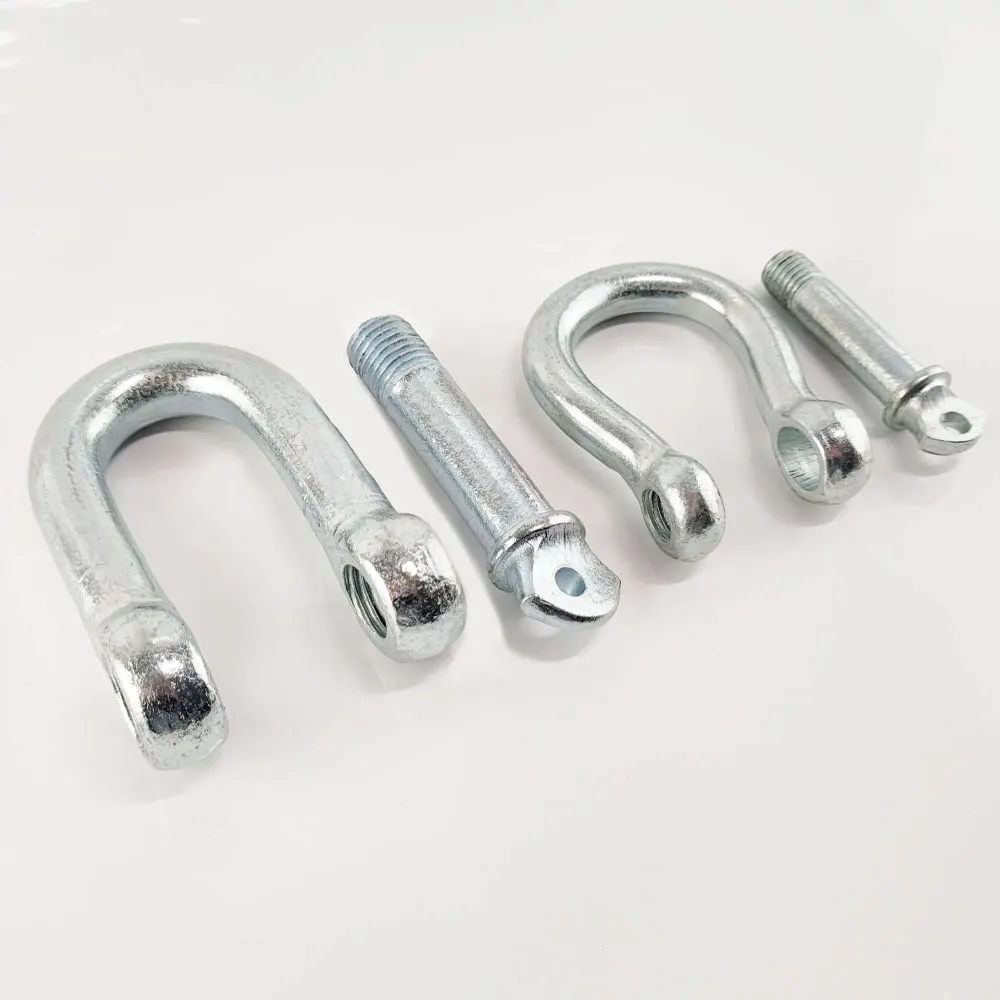

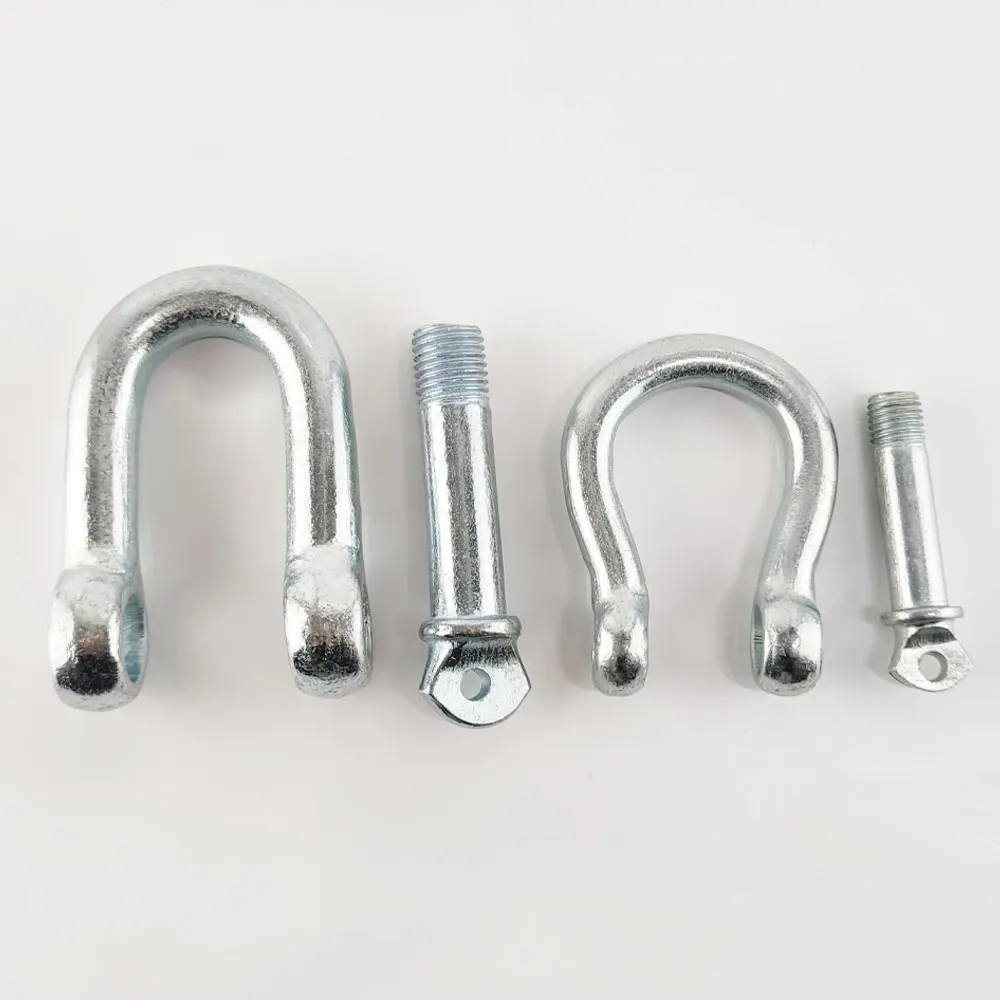

Stainless Steel 304/316 European Type Dee Shackle D Shackle Lifting

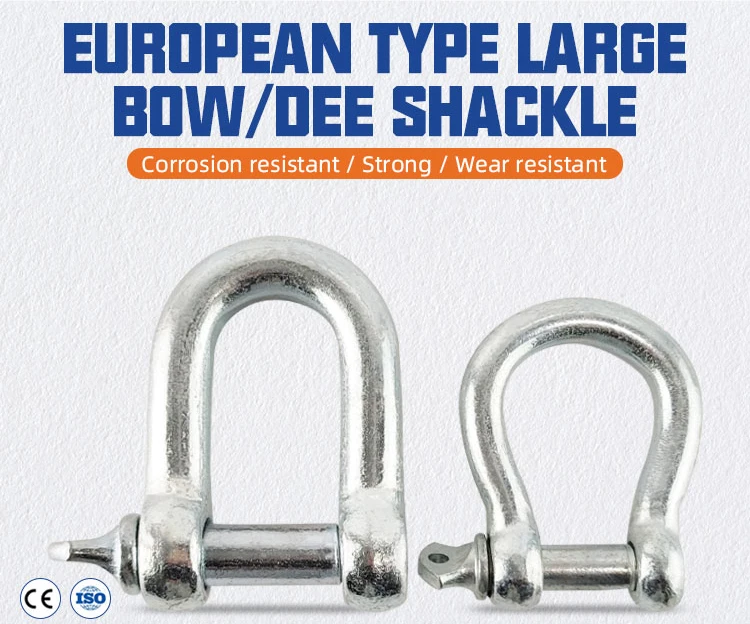

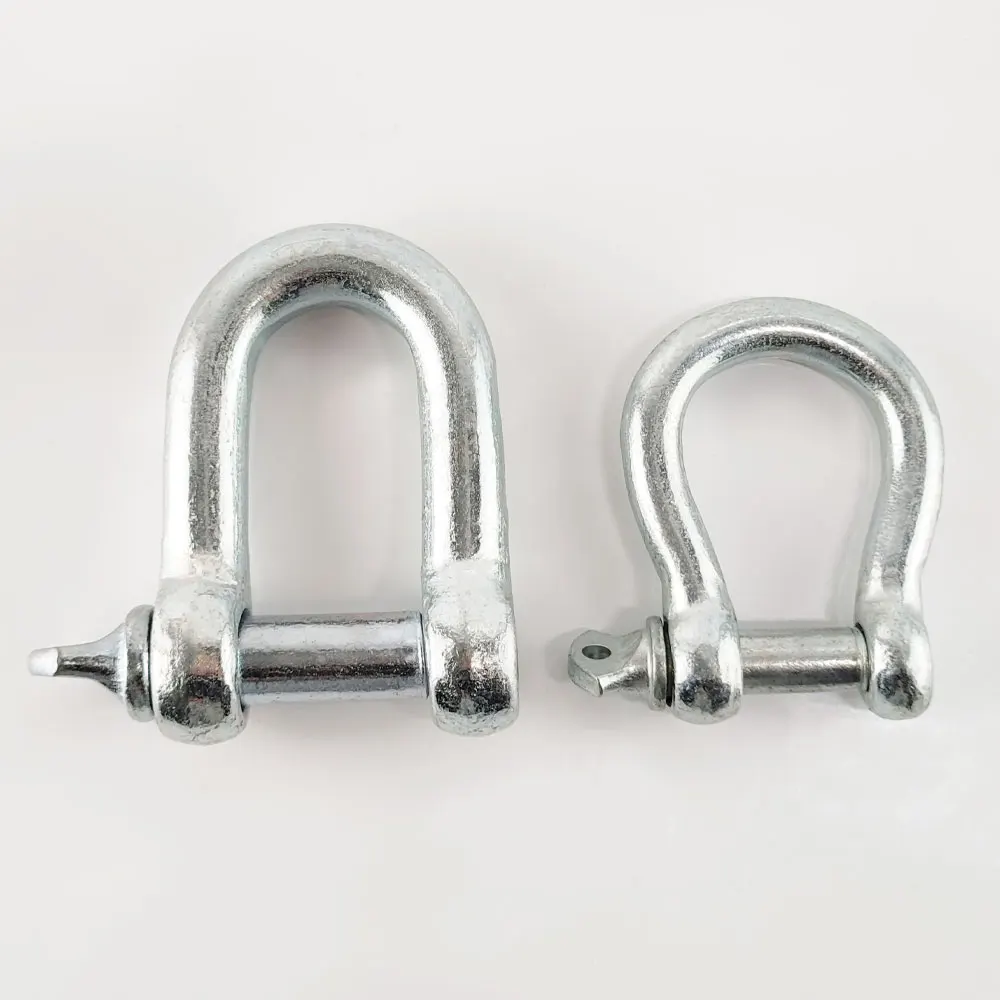

A shackle is a U-shaped metal object used for securing various types of loads, ropes, orchains. The bow shackle is named after its bow shape, while the dee shackle has a "p'shape. A European type large bow/dee shackle is a type of shackle that conforms toEuropean standards for size and weight capacity.These shackles are typically used in industrial settings, such as construction sites, oil rigs, orshipping ports, to secure heavy loads or equipment, They are often made of high-strengthsteel or alloy and come in a range of sizes and weight capacities.

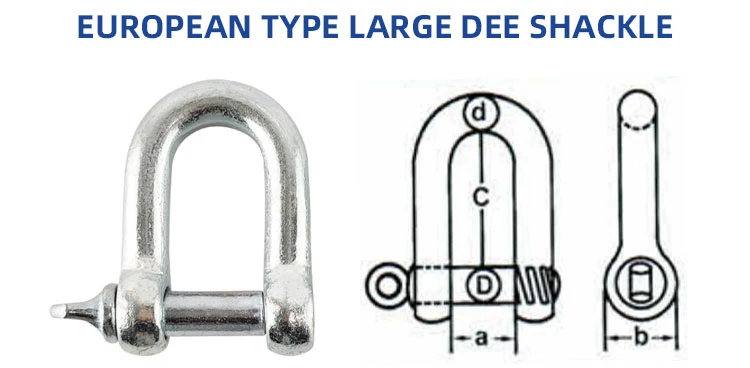

SWL	D	d	a	c	b	Weight per 100 pcs
kg	mm	mm	mm	mm	mm	kg
80	5	5	10	19	11	1.9
100	6	6	13	25	14	3.4
200	8	8	16	32	18	7
320	10	10	19	38	20	13
520	12	12	25	51	26	24
800	16	16	32	64	33	50
1100	20	20	38	76	40	80
1500	22	22	44	89	50	130
2100	25	25	51	100	57	200
3000	28	28	57	115	68	300
3500	32	32	64	127	73	430
5000	38	38	76	152	85	675
7000	45	45	90	180	96	1250
8000	50	50	102	200	108	1750

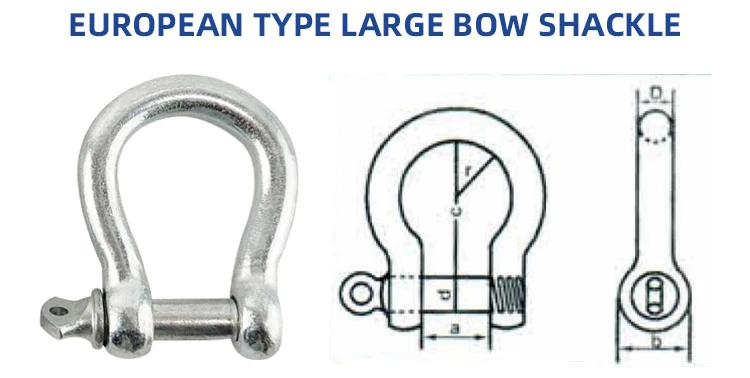

SWL	D	d	a	c	r	b	Weight per 100 pcs
kg	mm	mm	mm	mm	mm	mm	kg
80	5	5	10	19	8	11	1.9
100	6	6	13	25	10	14	3.4
200	8	8	16	32	12	18	7
320	10	10	19	38	16	20	13
520	12	12	25	51	19	26	24
800	16	16	32	64	28	33	50
1100	20	20	38	76	33	40	80
1500	22	22	44	89	37	50	130
2100	25	25	51	100	40	57	200
3000	28	28	57	115	47	68	300
3500	32	32	64	127	52	73	460
5000	38	38	76	152	64	85	675
7000	45	45	90	180	75	96	1250
8000	50	50	102	200	78	108	1750
