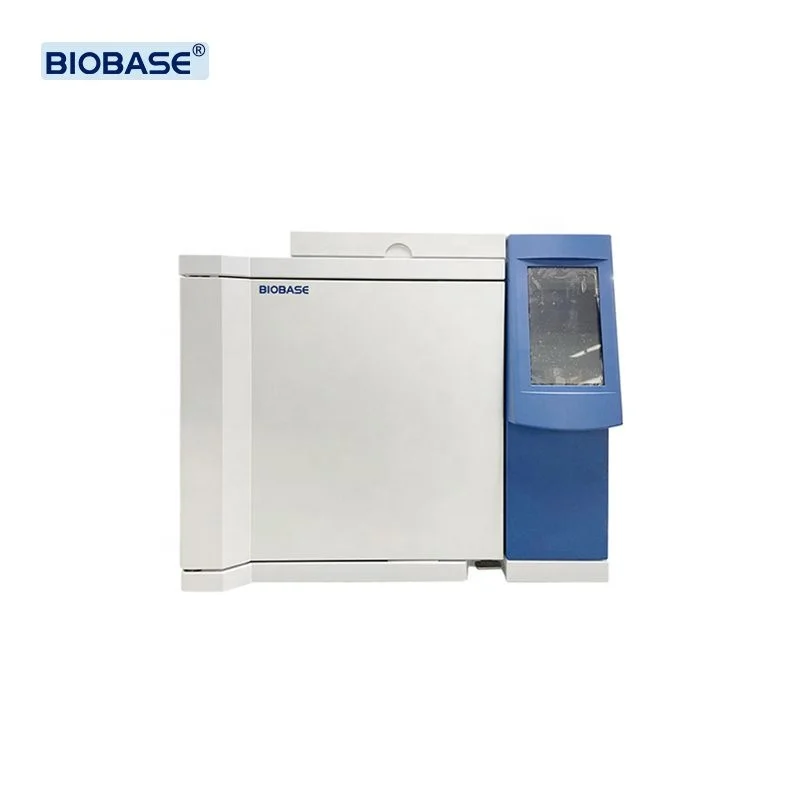

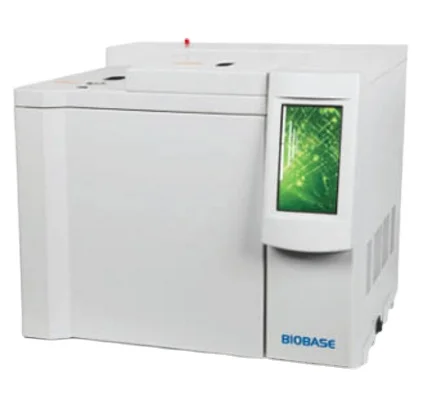

BIOBASE Gas Chromatograph Analyzer Self Test Function and Automatic Fault Recognition Function Gas Chromatograph For Labs
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (1601277796456):
Product Overview
Description
One-stop Laboratory Products!
Welcome to Inquiry!
Product Description
Feature:
*7-inch LCD display indicates temperature, gas flow and heating curve.
*SelMest linction and automatic fault recognition function.
*8 pcs external extension interfaces can connect with control valve.
*Equipped with a flame ionization detector (FID).
*Multi-core and 32-bit embedded hardware system ensures the reliable operation.
*Synchronous external trigger function and the external signal (auto sampler, thermal analyzer, etc.) can start the equipment and
workstation software at the same time.
*With chromatography workstation software to process data.
*Memory function: can store 20 sample test modes.
*One key start up function.
*SelMest linction and automatic fault recognition function.
*8 pcs external extension interfaces can connect with control valve.
*Equipped with a flame ionization detector (FID).
*Multi-core and 32-bit embedded hardware system ensures the reliable operation.
*Synchronous external trigger function and the external signal (auto sampler, thermal analyzer, etc.) can start the equipment and
workstation software at the same time.
*With chromatography workstation software to process data.
*Memory function: can store 20 sample test modes.
*One key start up function.
Parameters
Model | BK-GC112A | ||
Oven | Capacity | 22L | |
Temp. Range | RT+5°C~400°C | ||
Temp. Accuracy | ±0.1 °C | ||
Temp. Program | 9 step | ||
Program Total Time | 9999.9 min | ||
Max Temp. Heating Rate | 60°C/min | ||
Sample Injector | Temp. Range | RT+7°C~420°C | |
Column or split injector can be installed | |||
Carrier gas flow control type: Constant pressure mode | |||
Max. Quantity | 3pcs | ||
Pre Column Pressure Range | 0-400kpa | ||
Pre Column Pressure Accuracy | 0.1 kpa | ||
Flow Setting Range | H2: 0-200ml/min | ||
N2: 0-150ml/min | |||
Detector | Temp. Range | RT+7°C~420°C | |
Hydrogen Flame Ionization Detector (FID) | Logarithmic amplifier | ||
High voltage switch control | |||
Baseline signal display | |||
Detection limit: ^3*1012g/s (Sample: n-hexadecane) | |||
Baseline noise: <5*1014A | |||
Baseline draft:《6*1 O ^A | |||
Dynamic range: 107 | |||
RSD:£3% | |||
Thermal Conductivity Detector (TCD)(Optional) | Sensitivity: 8000mv.ml/mg(Sample: n-hexadecane) | ||
Baseline noise: <0.05mV | |||
Baseline draft: <0.15mV/30min | |||
Dynamic range: 105 | |||
Power Supply | AC220V±10%, 50Hz | ||
Standard Accessory | FID detector, Capillary injection system, Chromatography workstation software,RS232 port, LAN port | ||
Optional Accessory | TCD detector, Chromatographic column, Gas purifier | ||
Package Size(W*D*H) | 735*725*835mm | ||
Gross Weight | 80kg | ||
