Product Overview
Description
In October 2024, the 136th China Import and Export Fair was held in Guangzhou, China. Sylon Air Conditioner and its subsidiary
YINLI Super Air Conditioner production base participated in the exhibition in Zone A to have friendly business communication with
global merchants.
Product Description
Specifications and parameters
Heating and Cooling | ||||||||||||
Model | SSDH-9DH | SSDH-12DH | SSDH-18DH | SSDH-24DH | ||||||||
Power supply | Ph-V-Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |||||||
Cooling | Capacity | Btu/h | 2900 | 3068 | 3409 | 5763 | ||||||
Input | W | 1123 | 1197 | 1291 | 1908 | |||||||
Rated current | A | 5.15 | 5.48 | 5.94 | 8.9 | |||||||
EER | W/W | 2.6 | 2.56 | 2.64 | 3.02 | |||||||
Max. input power | W | 560 | 798 | 838 | 2480 | |||||||
Max. current | A | 5 | 3.65 | 3.96 | 11.57 | |||||||
Heating | Capacity | Btu/h | 3200 | 3061 | 3885 | 6633 | ||||||
Input | W | 1100 | 936 | 1145 | 2069 | |||||||
Rated current | A | 5 | 4.29 | 5.28 | 9.7 | |||||||
COP | W/W | 3.03 | 3.27 | 3.39 | 3.21 | |||||||
Max. input power | W | 960 | 624 | 763 | 2689 | |||||||
Max. current | A | 6 | 2.86 | 3.52 | 12.61 | |||||||
Compressor | Model | KSK75D43UEZA | KSK75D43UEZA | KSK89D33UEZD3 | KSN140D33UFZ3 | |||||||
Type | Rotary | Rotary | Rotary | Rotary | ||||||||
Brand | GMCC | GMCC | GMCC | GMCC | ||||||||
Indoor coil | a.Number of rows | 530-10-ⅡK7-1.3(QS) | 530-10-ⅡK7-1.3(QS) | 605-12-ⅡK7-1.3(QS) | 716-12-ⅡK7-1.4(QS) | |||||||
Indoor air flow (Hi/Mi/Lo) | m3/h | 469 | 481 | 593 | 1081 | |||||||
Indoor noise level | dB(A) | 48 | 48 | 48 | 48 | |||||||
Indoor Fan motor | Type | cross flow | cross flow | cross flow | cross flow | |||||||
output | W | 13 | 13 | 18 | 30 | |||||||
Indoor Fan Speed | Cooling | rpm | 1150 | 1150 | 1150 | 1150 | ||||||
Heating | rpm | 1050 | 1050 | 1050 | 1050 | |||||||
Dry | rpm | 950 | 950 | 950 | 950 | |||||||
Sleep | rpm | 850 | 850 | 850 | 850 | |||||||
Indoor unit | Dimension(W*H*D) | mm | 750*260*196 | 750*260*196 | 840*290*202 | 950*315*222 | ||||||
Packing (W*H*D) | mm | 825*335*255 | 825*335*255 | 920*345*255 | 1048*390*305 | |||||||
Net/Gross weight | Kg | 8/9 | 8/9 | 10.5/12.5 | 14/16 | |||||||
Outdoor fan motor | Type | axial fan | axial fan | axial fan | axial fan | |||||||
Speed | r/min | 860 | 860 | 860 | 860 | |||||||
output | W | 25 | 25 | 25 | 50 | |||||||
Outdoor coil | a.Number of rows | 427-9-ⅠK7.94-1.4(QS) | 500-8-ⅠK7.94-1.4-8(QS) | 500-10-ⅠK7.94-1.4(QS) | 800-680-20-ⅡB7.94-1.4(QS) | |||||||
Outdoor noise level | dB(A) | 50 | 50 | 50 | 50 | |||||||
Outdoor unit | Dimension(W*H*D) | mm | 630*500*236 | 730*550*280 | 730*280*550 | 830*550*295 | ||||||
Packing (W*H*D) | mm | 750*332*528 | 845*371*590 | 845*371*590 | 905*373*599 | |||||||
Net/Gross weight | Kg | 20.3/22.4 | 22/24 | 28/32 | 32/35 | |||||||
Refrigerant type/Refrigerant charge | g | R32/460g | R32/450g | R32/630g | R32/1000g | |||||||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | 9/6 | 9/6 | 12/6 | 12/6 | ||||||
Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |||||||
Max. difference in level | m | 5 | 5 | 5 | 5 | |||||||
power cord/Connecting line | Electric wire | Core number x Size x Length | 16A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | 13A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | ||||||
I&O connection cable | Core number x Size x Length | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | |||||||
Operation temperature range | ℃ | 16~31 | 16~31 | 16~31 | 16~31 | |||||||
Room temperature | Indoor(cooling/ heating) | ℃ | 43 | 43 | 43 | 43 | ||||||
Outdoor(cooling/heating) | ℃ | -7 | -7 | -7 | -7 | |||||||
Application area (Cooling Standard) | m² | 10~15 | 16~26 | 15~30 | 20~37 | |||||||
Cooling Only | ||||||||||||
Bom.NO. | T101596 | T101579 | T101585 | T101670 | ||||||||
Model No. | 9000BTU | 12000BTU | 18000BTU | 24000BTU | ||||||||
Funture | only cooling | only cooling | only cooling | only cooling | ||||||||
Power supply（V-Hz-Ph ） | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||||||||
Control | Remote | Remote | Remote | Remote | ||||||||
Cooling | Capacity | Btu/h;W | 2165 | 2577 | 3148 | 4648 | ||||||
current | A | 4.29 | 6.25 | 6.36 | 8.38 | |||||||
Input Power | W | 940 | 1278 | 1377 | 1823 | |||||||
EER | W/W | 2.26 | 2.02 | 2.29 | 2.55 | |||||||
Heating | Capacity | Btu/h;W | / | / | / | / | ||||||
current | A | / | / | / | / | |||||||
Input Power | W | / | / | / | / | |||||||
EER | W/W | / | / | / | / | |||||||
Compressor | Brand | Lamda | Lamda | GMCC | Lamda | |||||||
Model | QXF-A086D130U | QXF-B129T130BU | ASM140V01VDZL | QXAH-C193E030 | ||||||||
Type | Rotary | Rotary | Rotary | Rotary | ||||||||
Outdoor unit | Dimension (WxHxD) | mm | 630*500*236mm | 630*500*236mm | 730*550*280mm | 830*550*295mm | ||||||
Packing (W*H*D) | mm | 750*528*332 | 750*528*332 | 845*590*371 | 905*599*373mm | |||||||
Net weight | Kg | 22.5 | 23 | 28 | 40 | |||||||
Gross weight | Kg | 25.5 | 26 | 32 | 43.5 | |||||||
Condenser | a.Number of rows | mm | 427-9-ⅠK7.94-1.4(QS) | 427-9-ⅠK7.94-1.4(QS) | 508-10-ⅠK7.94-1.4(QS) | 680-10-ⅠK7.94-1.4(QS) | ||||||
Indoor unit | Dimension (WxHxD) | mm | 750*260*196mm | 750*260*196mm | 840*290*202mm | 950*315*222mm | ||||||
Packing (WxHxD) | mm | 825*335*255 | 825*335*255 | 920*345*255 | 1048*390*305mm | |||||||
Net weight | Kg | 8 | 8 | 11 | 15 | |||||||
Gross weight | Kg | 10 | 10 | 13 | 18 | |||||||
Evaporator | a.Number of rows | mm | 530-5-I K7.94-1.3(QS) | 530-5-I K7.94-1.3(QS) | 605-10-ⅡK7-1.4(QS) | 716-12-ⅡK7-1.4(QS) | ||||||
Indoor air flow (Hi/Mi/Lo) | m3/h | 527 | 544 | 633 | 980 | |||||||
Noise level | Indoor noise | dB(A) | 48 | 48 | 48 | 48 | ||||||
Outdoo noise | dB(A) | 50 | 50 | 50 | 50 | |||||||
Indoor fan motor | type | cross flow | cross flow | cross flow | cross flow | |||||||
output | W | 13 | 13 | 18 | 30 | |||||||
Indoor fan speed | Cooling | rpm | 1150 | 1150 | 1150 | 1150 | ||||||
Heating | rpm | 1050 | 1050 | 1050 | 1050 | |||||||
Dry | rpm | 950 | 950 | 950 | 950 | |||||||
Sleep | rpm | 850 | 850 | 850 | 850 | |||||||
Outdoor fan motor | type | axial fan | axial fan | axial fan | axial fan | |||||||
output | W | 25 | 25 | 25 | 50 | |||||||
speed | r/min | 860 | 860 | 860 | 860 | |||||||
Refrigerant | type | R410a | R410a | R410a | R410a | |||||||
weight | g | 420 | 500 | 800 | 950 | |||||||
Design pressure | (DP) | MPa | 4.36 | 4.36 | 4.36 | 4.36 | ||||||
(SP) | MPa | 1.15 | 1.15 | 1.15 | 1.15 | |||||||
Max current | Cooling | A | 5.57 | 8.07 | 9.67 | 11.77 | ||||||
Heating | A | / | / | / | / | |||||||
Max input power | Cooling | W | 1222 | 1508 | 1797 | 2493 | ||||||
Heating | W | / | / | / | / | |||||||
Connecting pipe | Liquis side / Gas side | mm | 9/6 | 9/6 | 9/6 | 9/6 | ||||||
Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |||||||
Max. high difference | m | 5 | 5 | 5 | 5 | |||||||
Power cable/connecting cable | Electric wire | Core number x Size x Length | 13A 1.5mm2×3 1.5m | 13A 1.5mm2×3 1.5m | 13A 1.5mm2×3 1.5m | 1.5mm2 | ||||||
I&O connection cable | Core number x Size x Length | 3×1.0mm2×(3.8m) | 3×1.0mm2×(3.8m) | 3*1.5(3.8m) | 3*1.5(4.5m) | |||||||
Application are | m2 | 10~15 | 16~26 | 15~30 | 20~37 | |||||||
Operation temperature range | ℃ | 16-31 | 16-31 | 16-31 | 16-31 | |||||||
Ambient temperature range | Indoor(cooling/ heating) | ℃ | 43 | 43 | 43 | 43 | ||||||
Outdoor(cooling/heating) | ℃ | -7 | -7 | -7 | -7 | |||||||

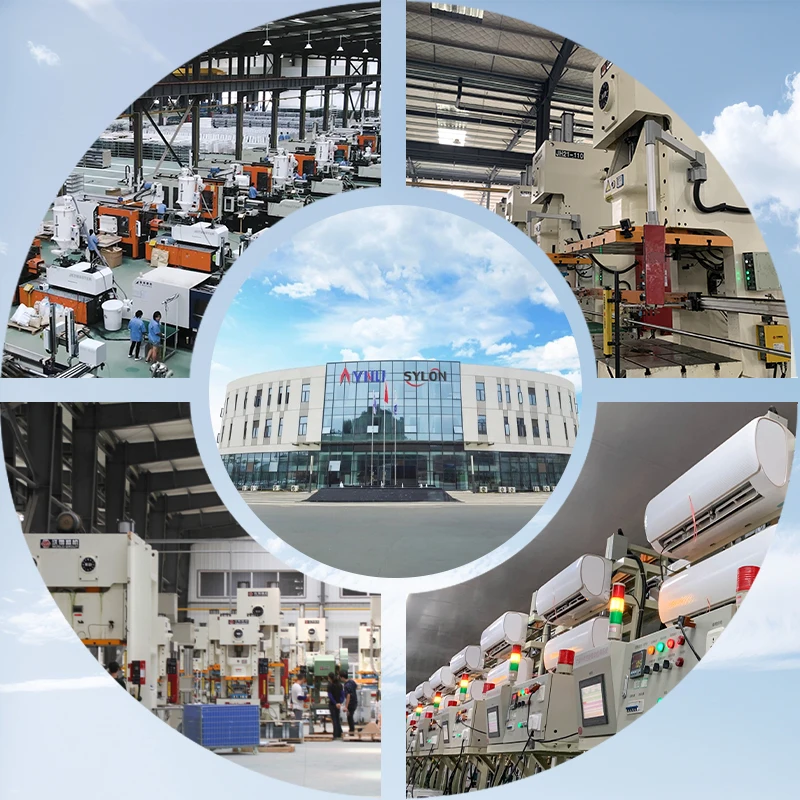

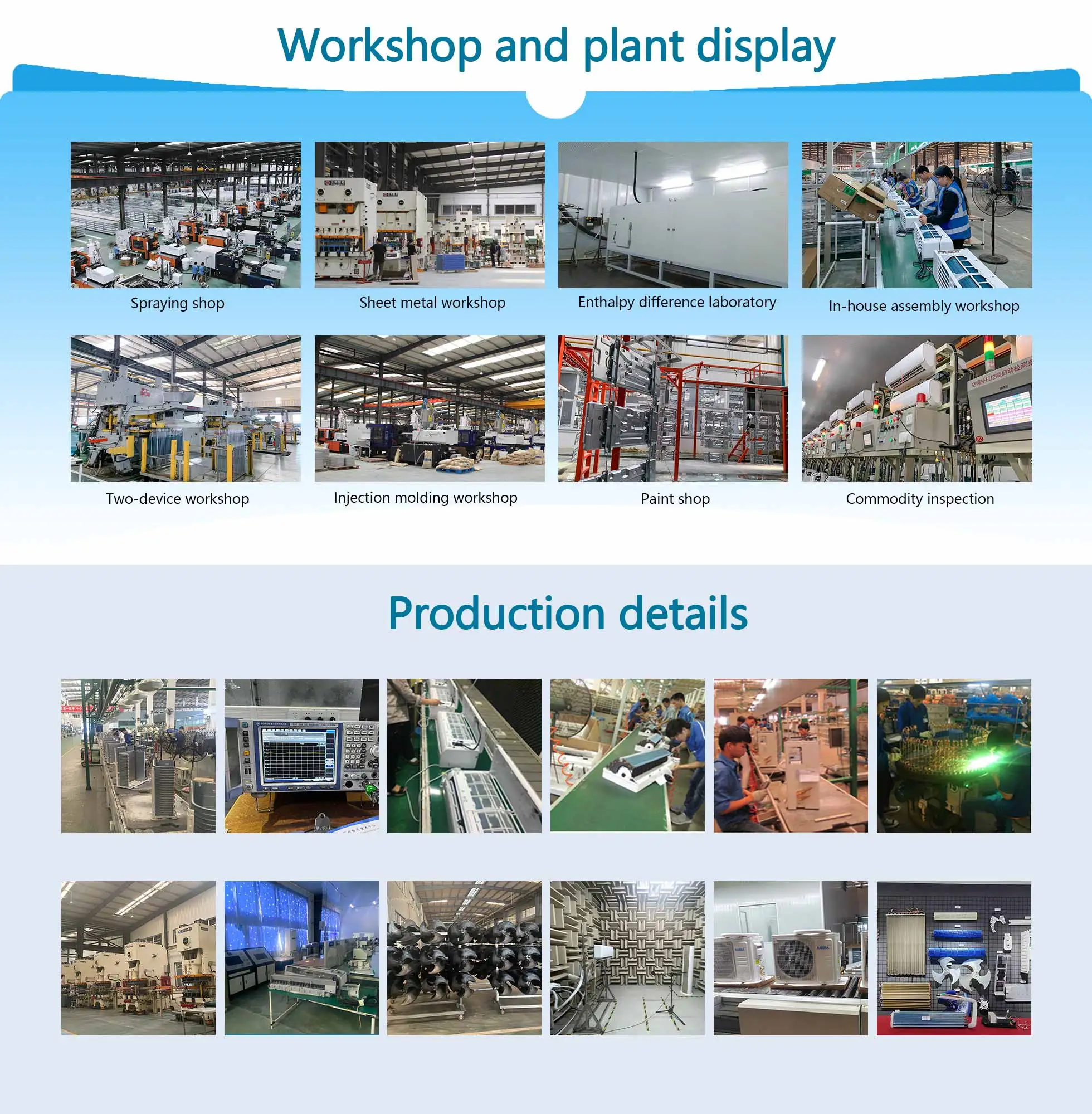

Company Factory Introduction
Trade exhibition
Certifications
Customer Case feedback
Packaging and shipping
FAQ
Q1:Are you a manufacturer or trading company? How can I trust your company?
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of experience,
and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and
TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your
area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide
professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at
a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with
good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
