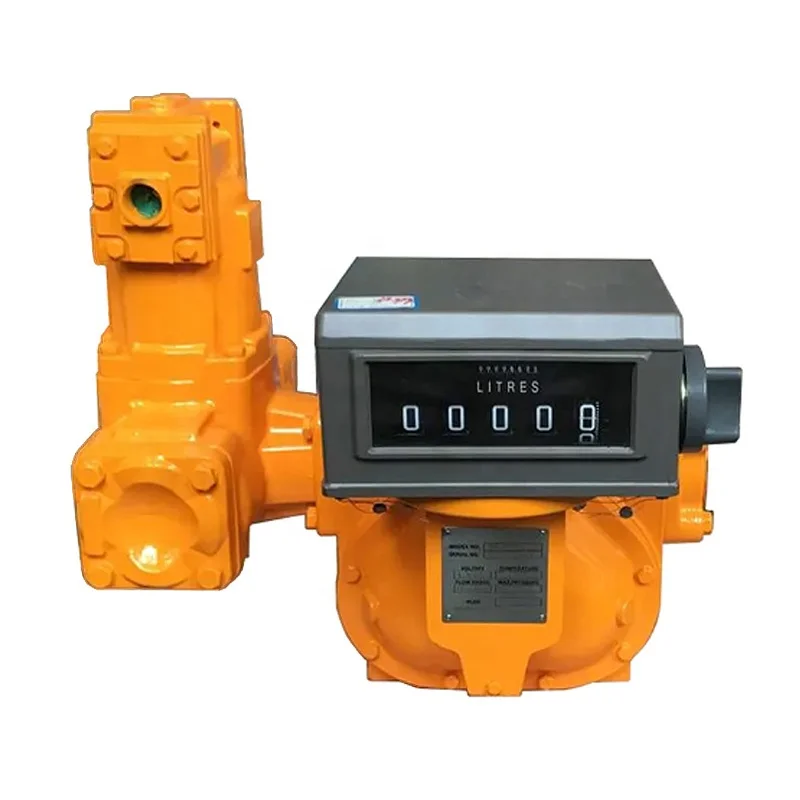

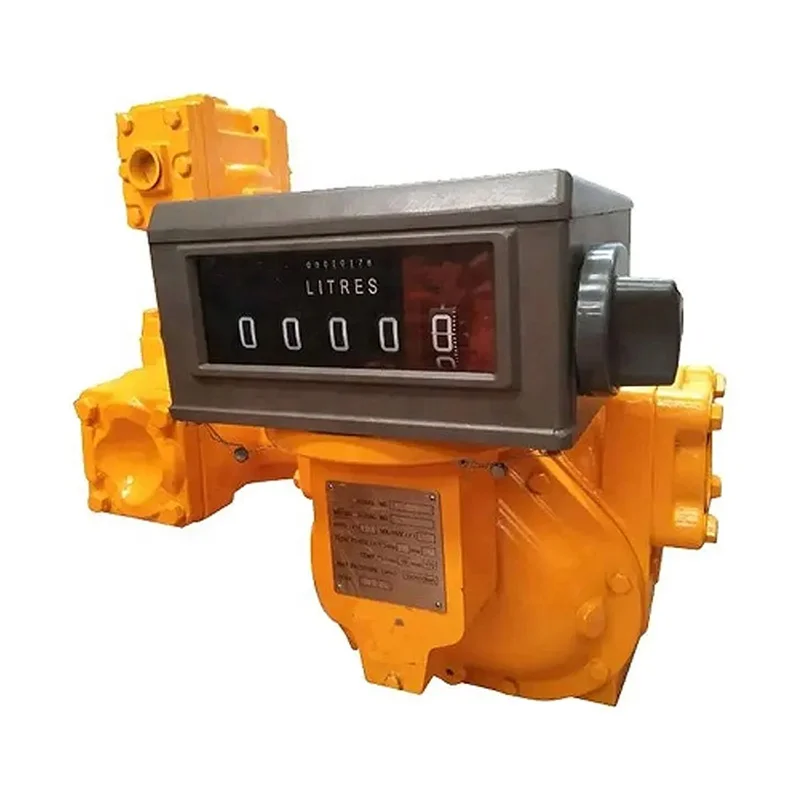

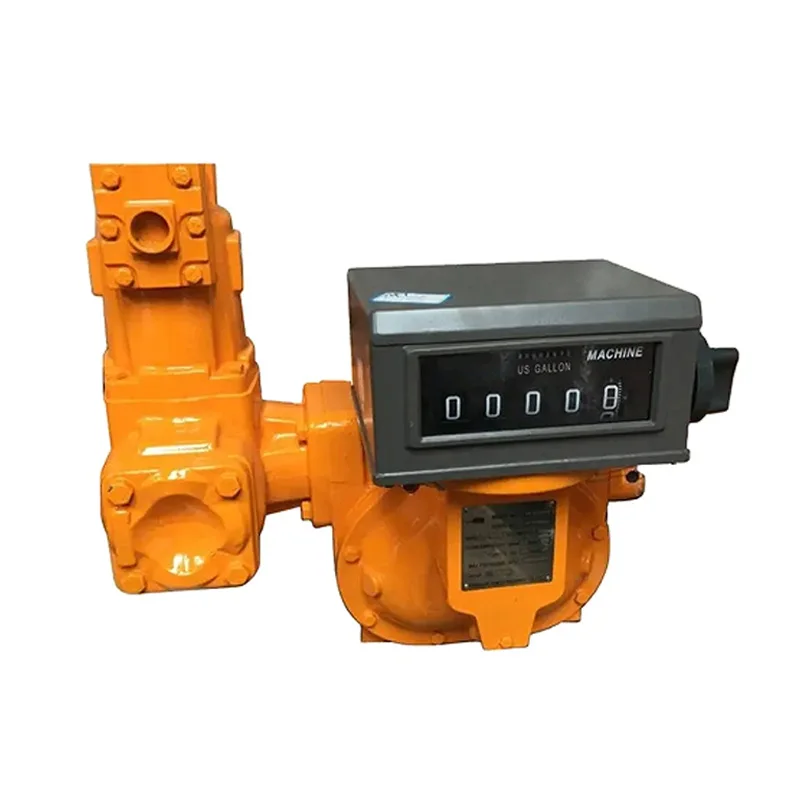

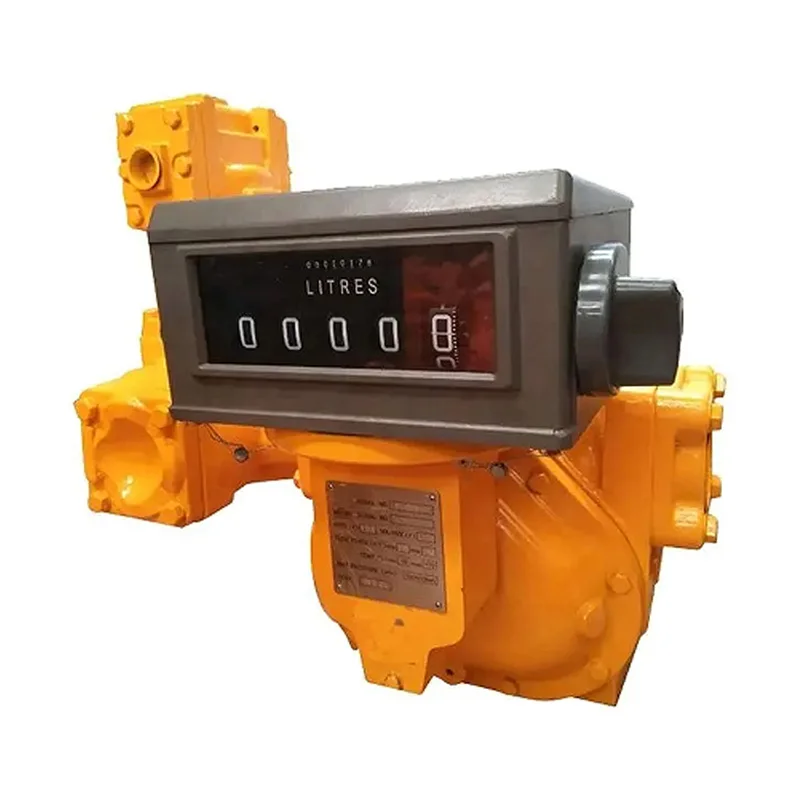

PD Fuel Flow Meter M 80 KX 1 80mm 3' LC Flow Meter with Register Counter Electromagnetic Flow Meter For Filling
- Category: >>>
- Supplier: Huixian Zhenghe Machinery Equipment Co. Ltd.
Share on (1601277837082):
Product Overview
Description
M Positive Displacement Flowmeter
* Excellent infinite fine adjustment device (wear compensation device),
capable of positive and negative calibration of flow meters;
* High accuracy and repeatability over the widest range of flow; Superior
accuracy at constant flow;
* Low maintenance, no metal-to-metal contact in measuring chamber,
long life service;
* Low pressure loss, a true gravity flow meter;
* Long service life, low friction ball bearings, fixed cam-type timing, and
rugged construction give sustained accuracy and long time operation.
Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 | ||||
Size | 40mm/1.5" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/6", 100mm/4" | ||||
Flow Range | 25~250L/min | 55~550L/min | 115~1150L/min | 170~1700L/min | 300~3000L/min | ||||
Max.Pressure | 10Bar | ||||||||
Accuracy | ±0.2% | ||||||||
Repeatability | ≤0.07% | ||||||||
