VGA 15.6 17 17.3 18.5 19 inch Kvm Switch Over Ip 4K 1080P Kvm Console Drawer kvm 1u rack mount
- Category: >>>
- Supplier: Zhengzhou Axtron Electronic Technology Co. Ltd.
Share on (1601277873017):
Product Overview
Description
Product Description

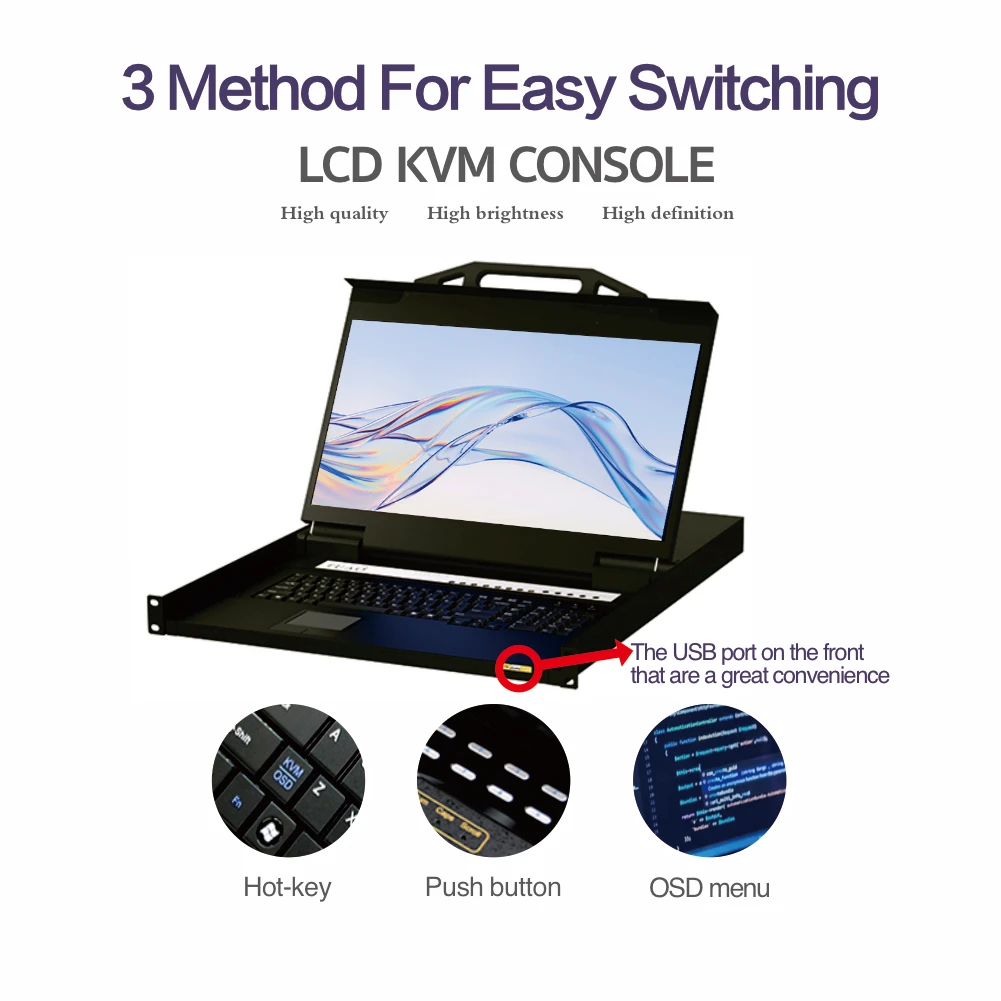

KVM control platform is a control platform that integrates multi-port KVM switching function.It easily switch between servers by hotkey,panel press,OSD switch. And supports hot plug- servers can be added or removed at any time without power down.

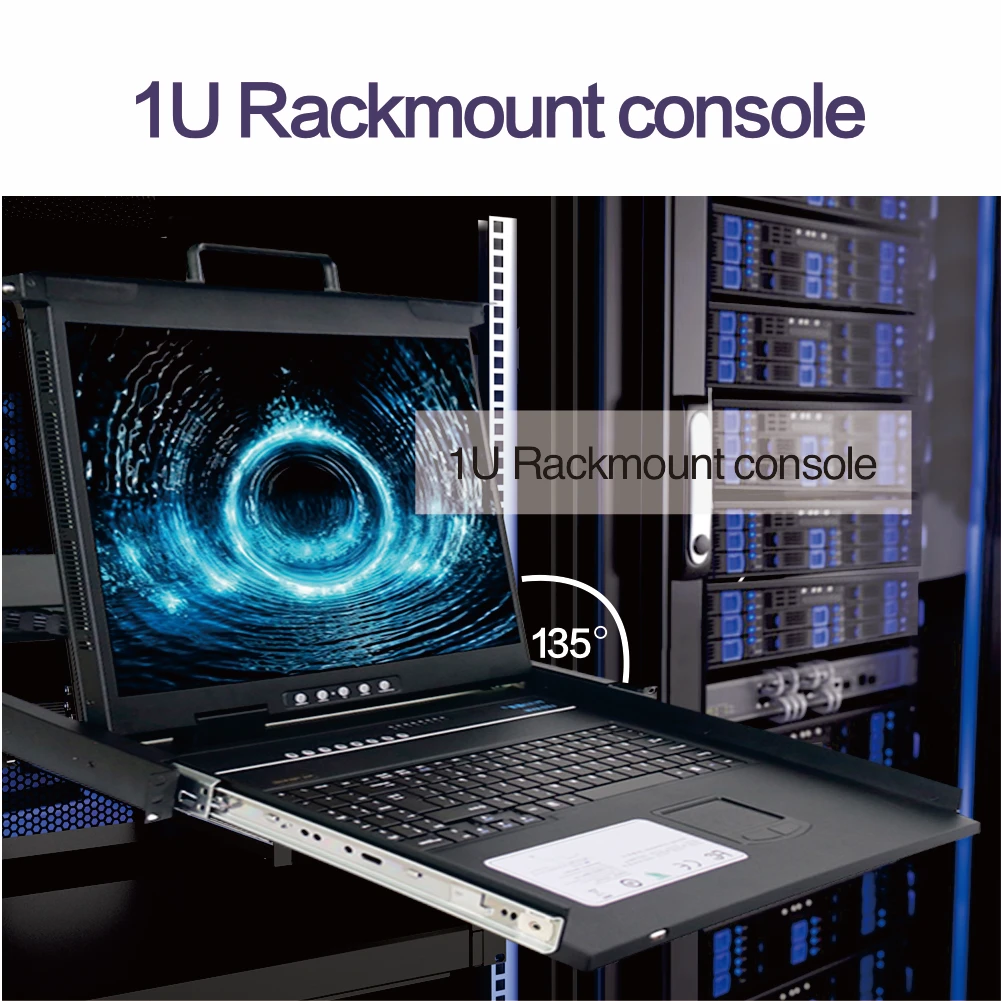

The AX-1708I integrates LED display, ultra-thin keyboard, mouse touchpad, which are integrated in a 1U height unit and installed in a drawer way, which can save 85% space compared with standard keyboard, monitor and mouse with insufficient space. High quality Grade A 17” led (no bright dots) display and a built-in switcher can directly manage 8 servers; up to 256 servers can be managed.Supports various operating systems:Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9,etc.
Features
Hardware Features
| 1.The 17-inch LED HD display and KVM controller are integrated in a single dual-rail body in 1U of rack spaces. |
2.The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle. | |
3.Drawer type. USB HUB function can be realized through the front USB2.0 interface. | |
IP Module Features
| 1.Support remote control,centralized management. |
2.Support 1 remote image channel, multiple users can share access. | |
3.Supports remote firmware upgrade. | |
4.Support for different preemption levels and access sharing model. |
Detailed Images
Model | AX-1708I |

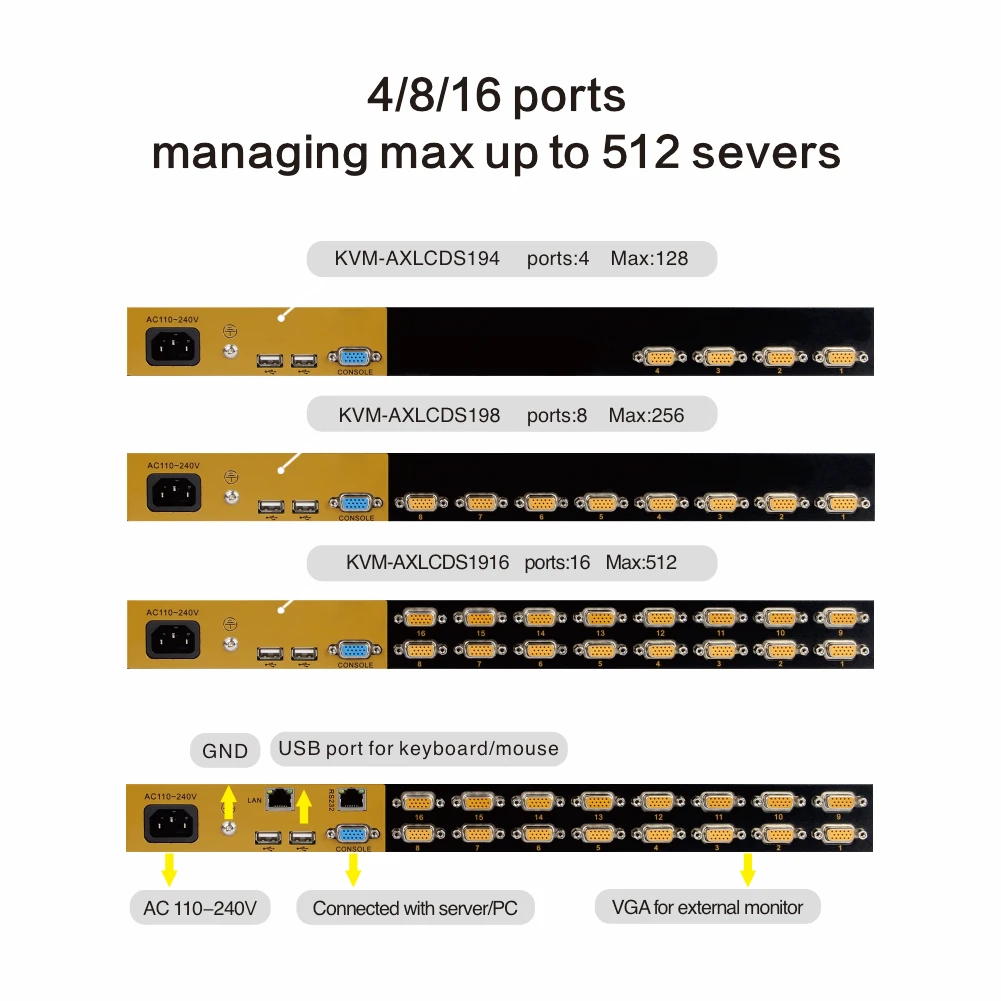

Direct Computer Connection | 8 |
Max.Computer Connection | 256 |
Connection Cable Port | D-SUB15 port (Monitor, 2*USB ) |
Toggle Scan Time | 1-255 seconds(OSD adjustable) |
Applicable Cabinet | 800-1200MM |
Switch Mode | Hotkey,Button,OSD |
LED Display Screen | 17”LED, Resolution 1280 * 1024, Brightness 300 nits, Contrast ratio 700:1 |
LED Diplay Control | Multi-language OSD can be adjusted for best effect |
Keyboard/Mouse | 104 Mechanical Quiet Keyboard, Touchpad |
Voltage Input | A110V-240V 50Hz-60Hz Power: 36W |
Housing Material | High Strength Anti-corrosion Steel Plate |
Color | Insulation black baking varnish (other colors are available) |
Dimension/Weight | 550mm(D) x 481mm(W) x 44mm(H)/17.5KG |
Storage Temperature | -30℃~70℃ |
Operating Temperature | -10℃~60℃ |
Humidity | 0%~80% RH |
