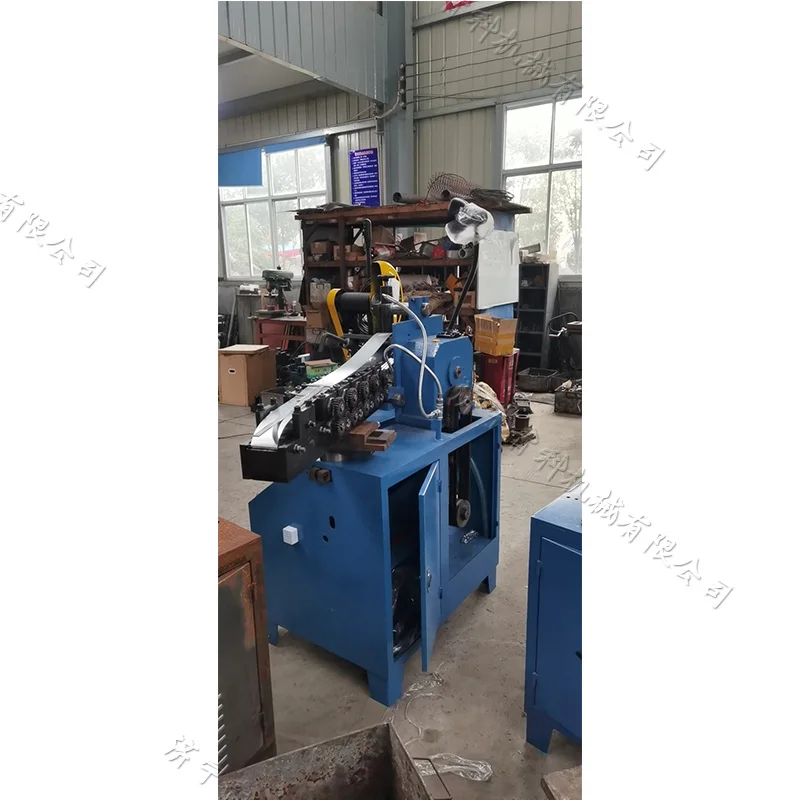

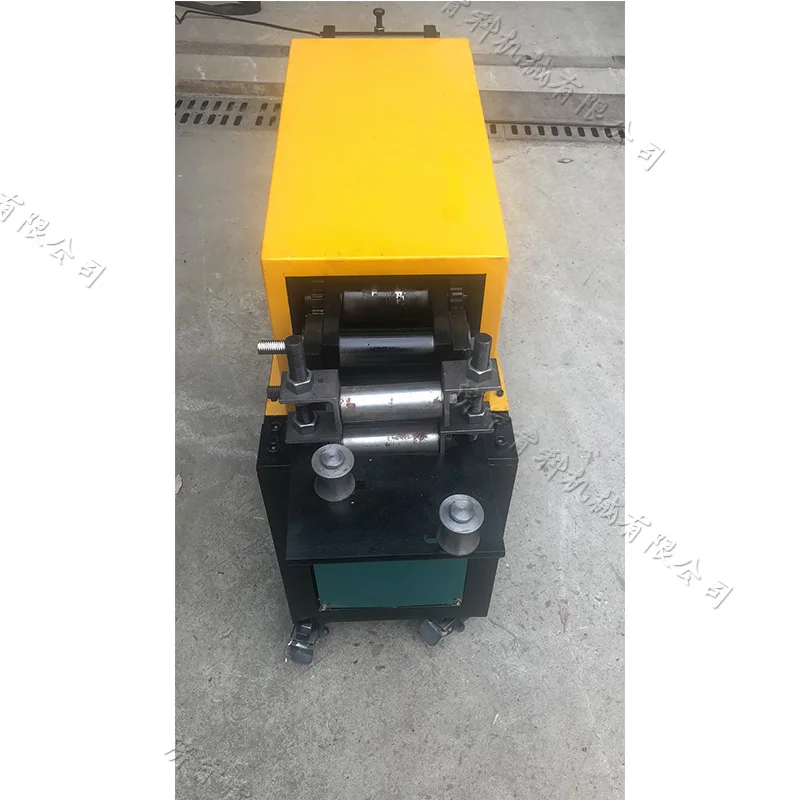

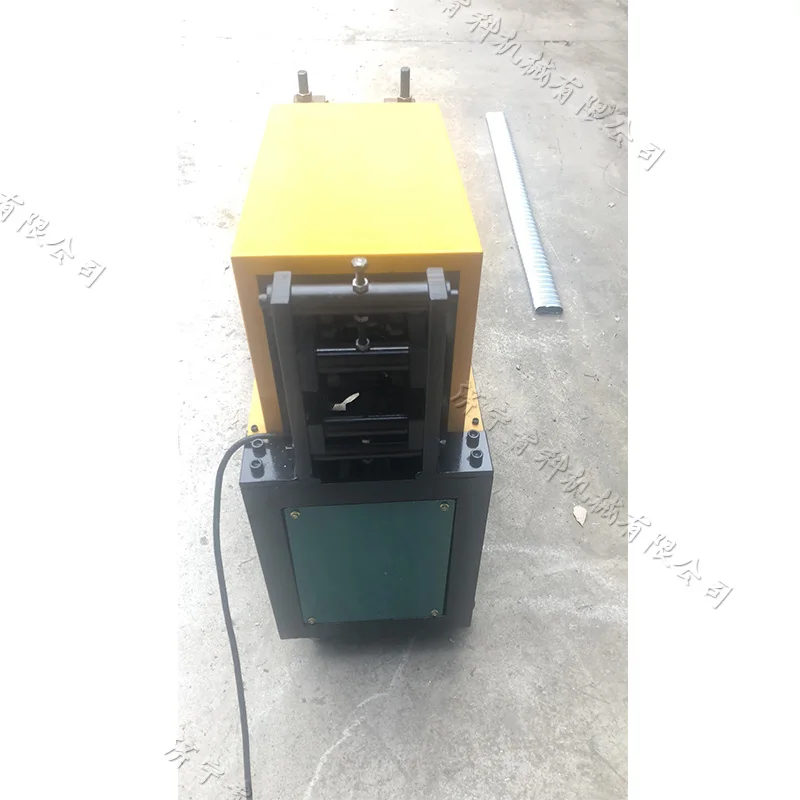

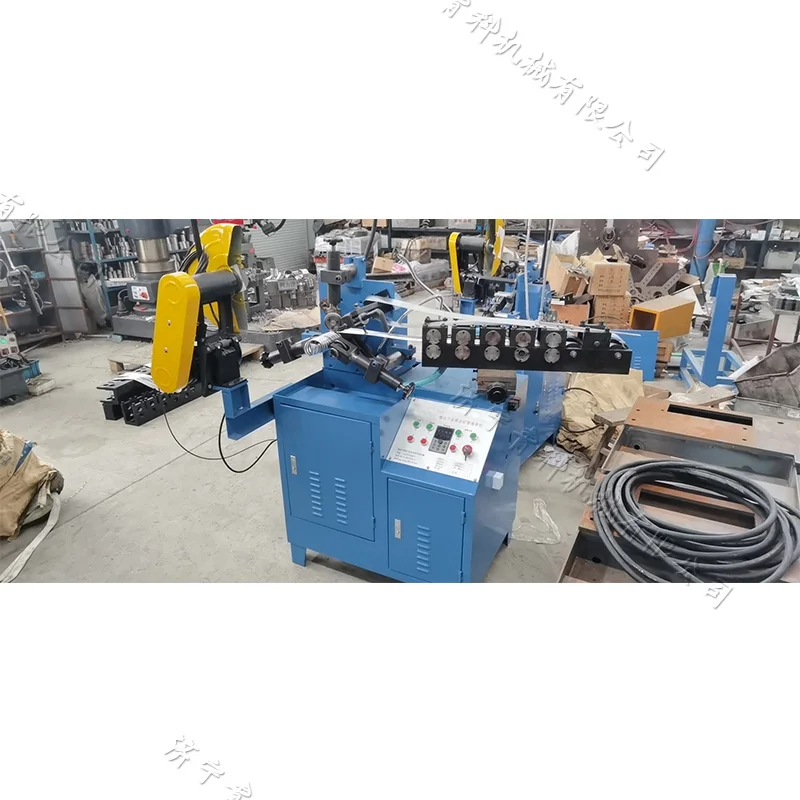

Type 200 Corrugated Tube Machine Automatic Metal Pipe Winding Equipment Bridge Steel Pipe Molding Equipment

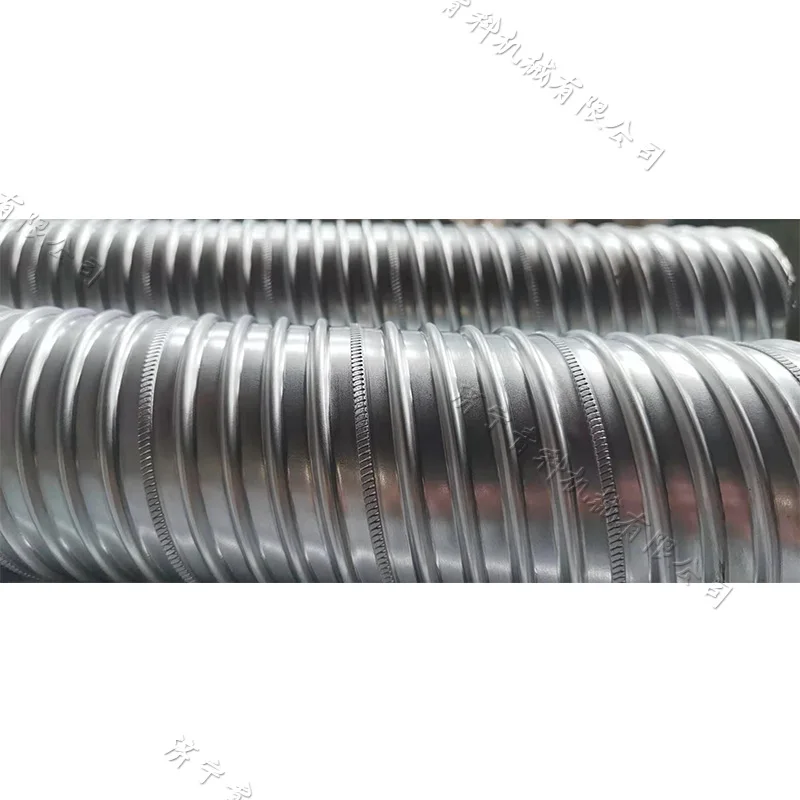

The 200-type pipe reel is used to roll spiral corrugated pipes for reserved channels in the construction of bridges and prestressed buildings. The machine has a compact structure, small size and light weight. It is convenient for indoor and outdoor construction site operations: it has a wide range of applications and high production efficiency, and can meet the needs of engineering use. The rolled spiral corrugated pipes are impermeable, pressure-resistant, high-strength and flexible, and meet the quality of engineering construction.




Width of steel belt
78mm
Thickness of steel belt
0.2-0.45mm
Pipe diameter
φ40~φ180mm
Pipe pitch
64mm
Seam form
Double-locked link
Main motor model
Y112M-15
Main motor power
15kw
Main motor speed
1440r/min
Cutting motor model
Y90L-2
Cutting motor power
2.2kw
Cutting motor speed
2840r/min
Lubrication cooling electric oil pump model
DB-12A
Lubrication and cooling electric oil pump power
80W
Lubrication and cooling electric oil pump flow
12L/min
Voltage
380V
Machine weight
800Kg
Overall Dimension
1800*1300*1600
Coiling speed
0-30m/min




Jining Qingke Machinery Co.,Ltd established in July 29, 2015, registered capital of 5 million . this is our new branch. Our factory has 6 years history. We have CNC machining center, CNC lathe,boring machine,and milling machine.

Main products: steel bar cutting machines, bending machines,straightening and cutting machines, electric vibration impact machines, ground polishing machines, terrazzo machines, adjustment electric hoisting machines.Garden Machinery including tree spade , lawn mower, Construction machinery and accessories, Road Marking and Mining equipment, Mining tools and so on.

we passed the ISO9001:2000 certification. Our company products have been exported to Europe, Russia, south America, Africa, more than 20 countries.
