80*45mm 5.5V 0.5W Solar Panels Cell Panels Solar Marsrock Solar Energy Products Solar Cells Solar Kit Epoxy Resin Solar Panels
- Category: >>>
- Supplier: Xiamen Mars Rock Science Technology Co. Ltd.Xiamen Ltd.
Share on (1601278152443):
Product Overview
Description
Product Description
Product Parameter
MODEL | 0.5W5.5V |
Voltage | 5.5V |
Current | 0.09A |
Power | 0.5W |
Raw Material | Monocrystalline Silicon |

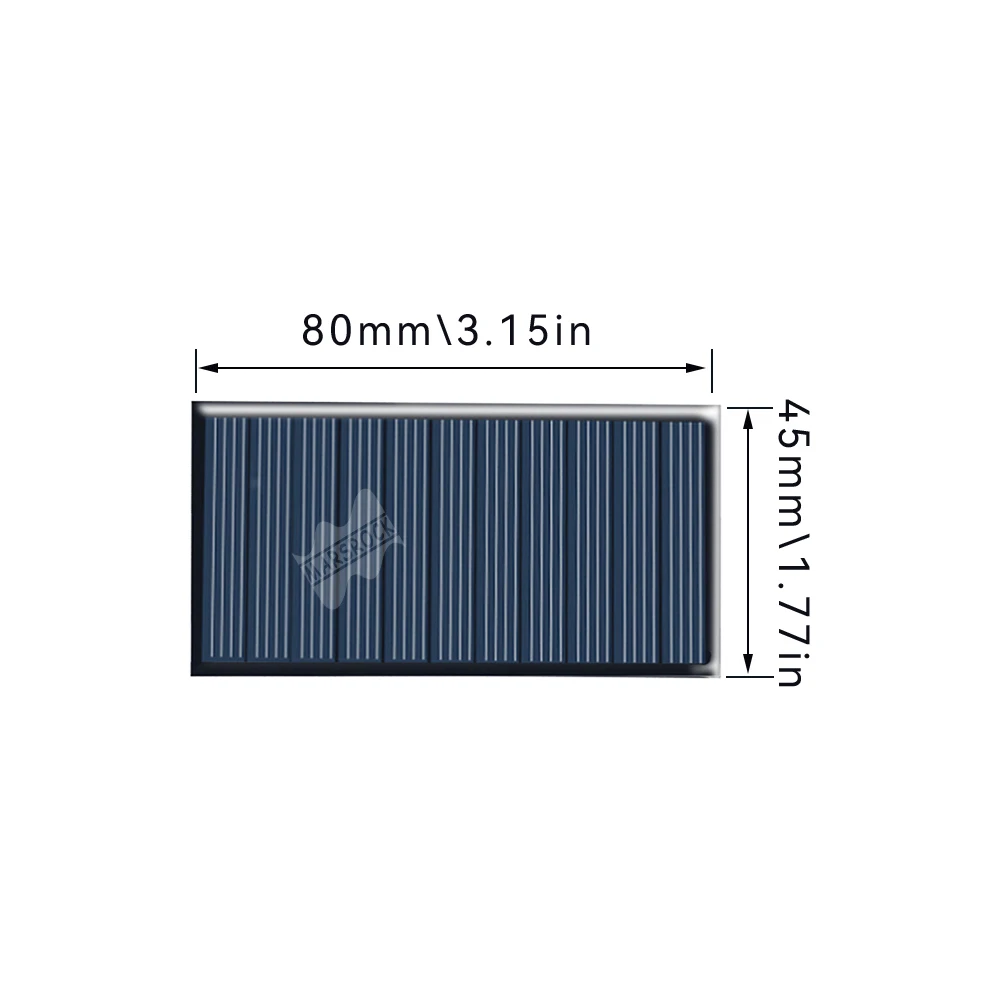

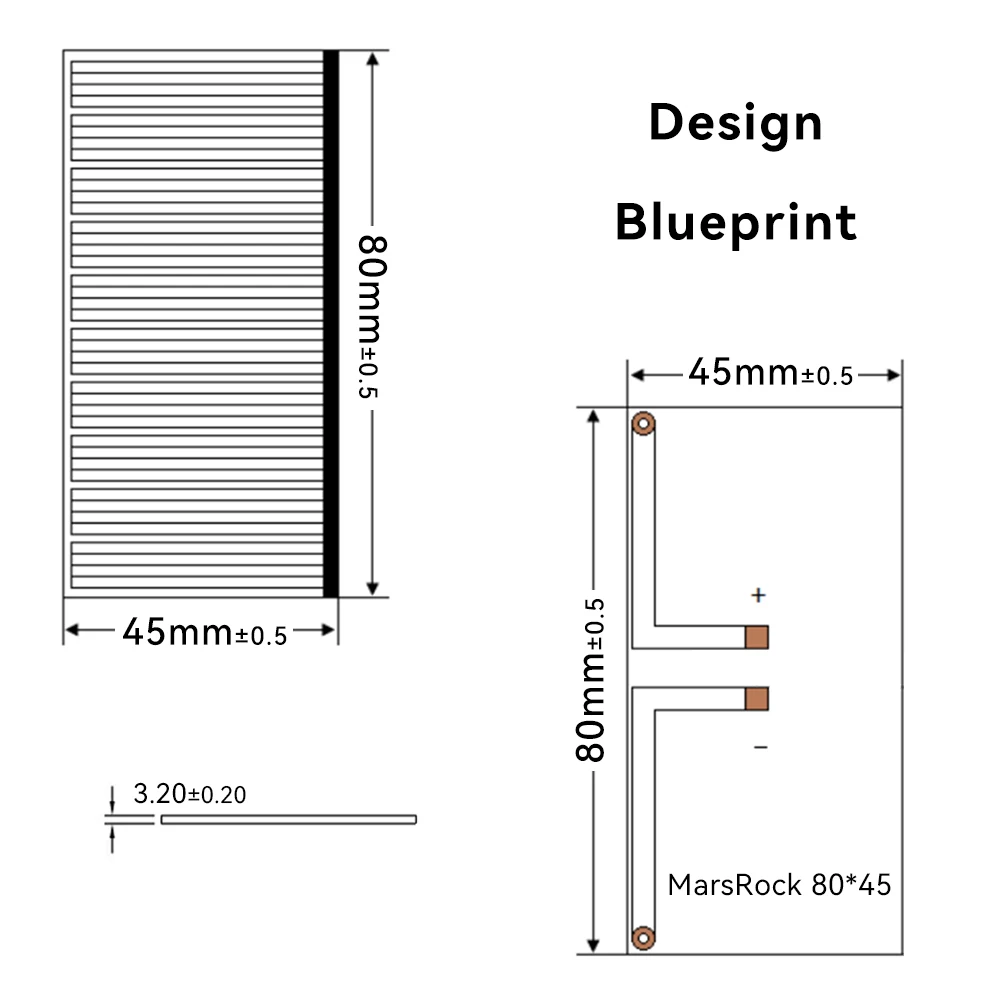

Produt size | 80*45*2.5MM |
Shape | Rectangular |

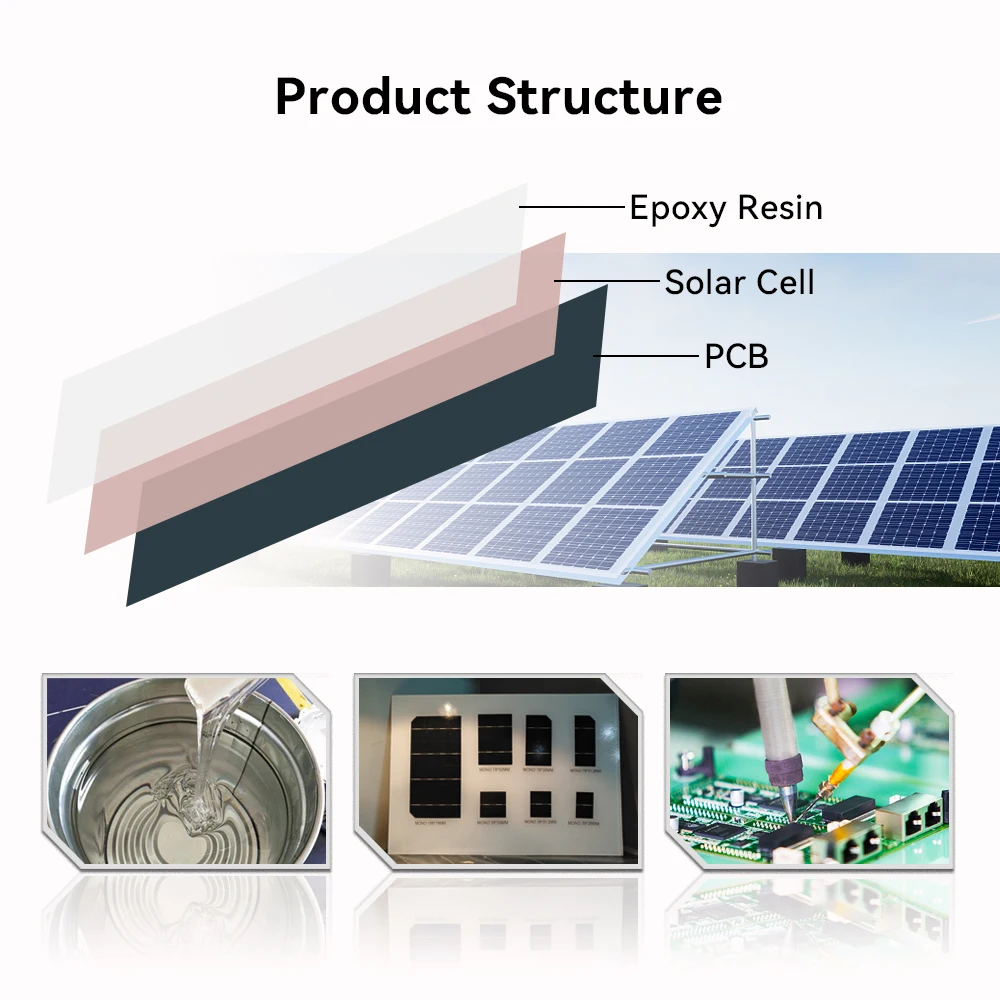

Encapsulation method | Epoxy resin |
Brand Name | MARS ROCK |
Frame | No |
Certificates | CE FC ROHS |
Test condition | AM1.5 1000W/M² 25℃(100000LUX) |
MODEL | Length（mm±0.5） | Widths（mm±0.5） | Power （W） | Voltage（V） | Current（mA） | |||||
18879-11 | 188 | 79 | 0.5 | 5.5 | 90mA | |||||
8080-8 | 80 | 80 | 0.4 | 4 | 100mA | |||||
12620-16 | 126 | 20 | 0.3 | 8 | 40mA | |||||
8045-11 | 80 | 45 | 0.5 | 5.5 | 90mA | |||||
7056-11 | 70 | 56 | 0.5 | 5.5 | 90mA | |||||
6060-11 | 60 | 60 | 0.5 | 5.5 | 90mA | |||||
R60-r10 | 60 | 60 | 0.23 | 5 | 45mA | |||||
7025-10 | 70 | 25 | 0.2 | 5 | 40mA | |||||
7625-10 | 76 | 25 | 0.2 | 5 | 55mA | |||||
11069-10 | 110 | 69 | 1.4 | 5 | 280mA | |||||
5555-4 | 55 | 55 | 0.16 | 2 | 80mA | |||||
R40 | 40 | 40 | 0.12 | 4 | 30mA | |||||
The data in this table is only part of the reference information, specific details can be inquired by phone or e-mail, welcome to call for us! | ||||||||||
Packing & Delivery

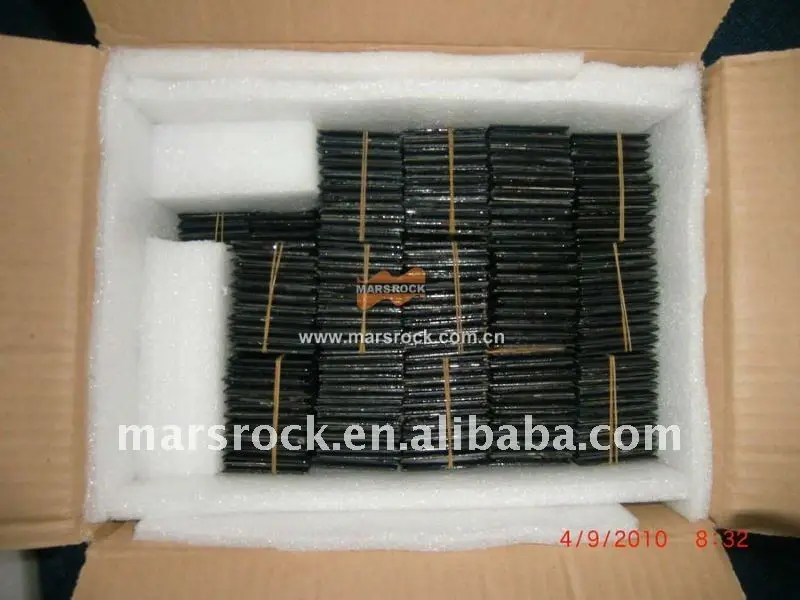

Packaging Details: Strong cardboard boxes with enough foam
Delivery Detail: Samples can be delivered out within 15 days after payment
Product Application
●Wristwatches / Clocks / Wall clocks
●Calculators
● Energy-harvesting equipment
●Wireless sensor networks / RFID tags / RF remote controls for digital home appliances, etc.
●Power sources for multiple cards attached to displays
●Power sources of wearable terminals
●Toys
●e-books
●Garden lights, sensor lights, LED blinkers (curbstone markers, etc.)
●Car accessories and battery chargers
●Security devices
●Power sources for other electric equipment and digital displays
●Reduction of battery replacements and extension of battery life for appliances using dry cells and coin batteries
●The power supply for human body sensors, the power supply for temperature & humidity sensors
●Calculators
● Energy-harvesting equipment
●Wireless sensor networks / RFID tags / RF remote controls for digital home appliances, etc.
●Power sources for multiple cards attached to displays
●Power sources of wearable terminals
●Toys
●e-books
●Garden lights, sensor lights, LED blinkers (curbstone markers, etc.)
●Car accessories and battery chargers
●Security devices
●Power sources for other electric equipment and digital displays
●Reduction of battery replacements and extension of battery life for appliances using dry cells and coin batteries
●The power supply for human body sensors, the power supply for temperature & humidity sensors
Feature
1.Adopt insulated flame retardant cardboard PCB board. Resistant to high and low temperatures of -20°C to +75°C Environmentally friendly non-explosive, burning products.
2. Storage time 10000 hours (excluding sinking, overflow or snow conditions) the best use of 30 days.
3.This PCB board has been done open mold positive and negative position formal positioning. Artificial epoxy resin drops do not do the overall thickness requirements to the actual situation.
4. Surface glossy and transparent for daylight weather, the sun's normal bright light irradiation conditions. Cell conversion rate 19.5 % to 20.0%. Strong light, such as the emergence of electrical parameters, higher than the tolerance range above the normal benign qualified products. There is no requirement for alignment of internal conductive thin white lines, alignment of slices and color of slices.
5.This product is suitable for outdoor charging conversion. It is suitable for charging with DC voltage below 3.6V. Cloudy days below the bright light will directly affect and is not suitable for power generation.
2. Storage time 10000 hours (excluding sinking, overflow or snow conditions) the best use of 30 days.
3.This PCB board has been done open mold positive and negative position formal positioning. Artificial epoxy resin drops do not do the overall thickness requirements to the actual situation.
4. Surface glossy and transparent for daylight weather, the sun's normal bright light irradiation conditions. Cell conversion rate 19.5 % to 20.0%. Strong light, such as the emergence of electrical parameters, higher than the tolerance range above the normal benign qualified products. There is no requirement for alignment of internal conductive thin white lines, alignment of slices and color of slices.
5.This product is suitable for outdoor charging conversion. It is suitable for charging with DC voltage below 3.6V. Cloudy days below the bright light will directly affect and is not suitable for power generation.
