YOUFA Scaffolding Wholesale Shoring Frames Scaffold Price Steel Modular System Scaffolding for Sale

Share on (1601278231204):


Price:$3.00-15.00

Quantity:


Product Overview

Description



Product Description


Frame scaffolding is one of the most widely used scaffolding. Main components inculidng : frame scaffold, joint pin, cross brace, jack base, etc.

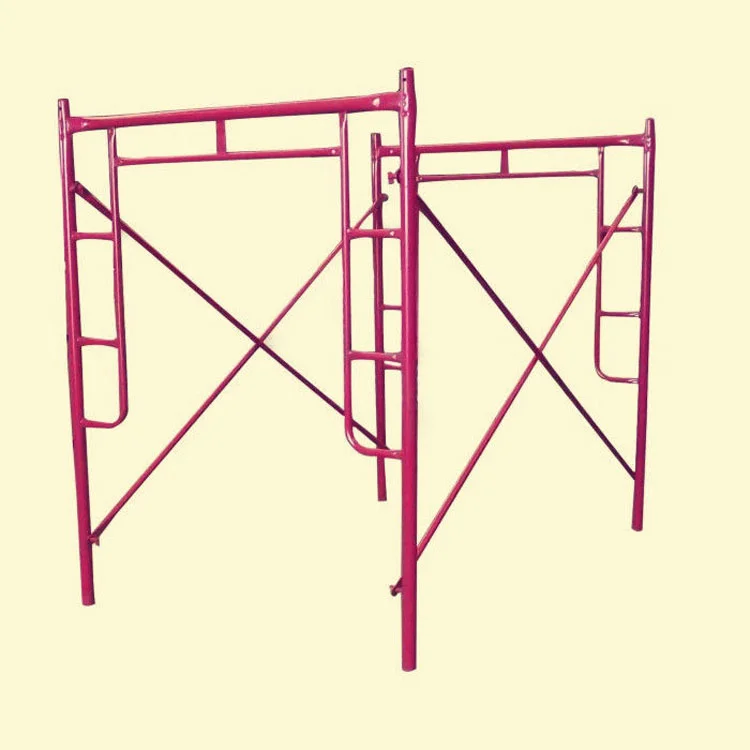

Scaffolding Frame



2 pcs Frame , size 1219 x 1700 mm or as your request

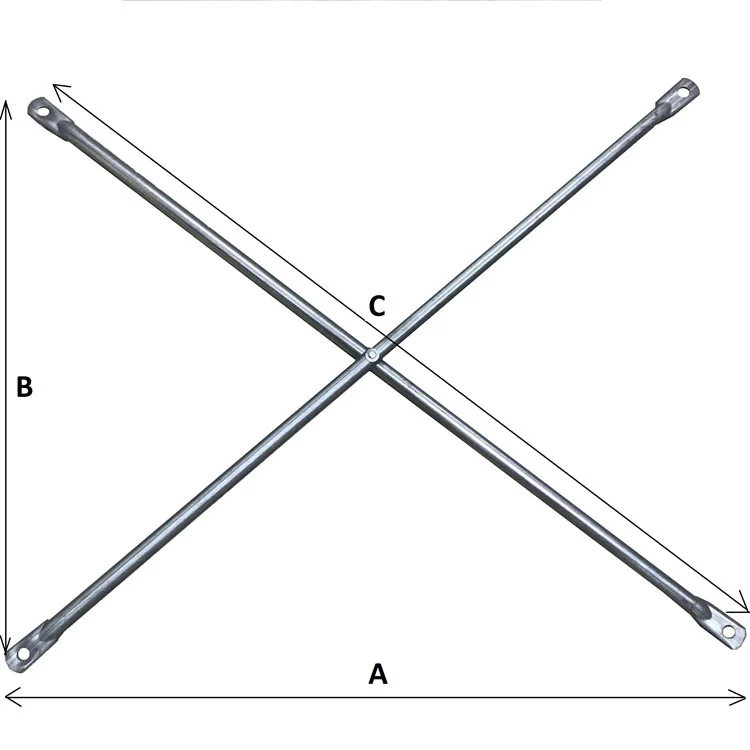

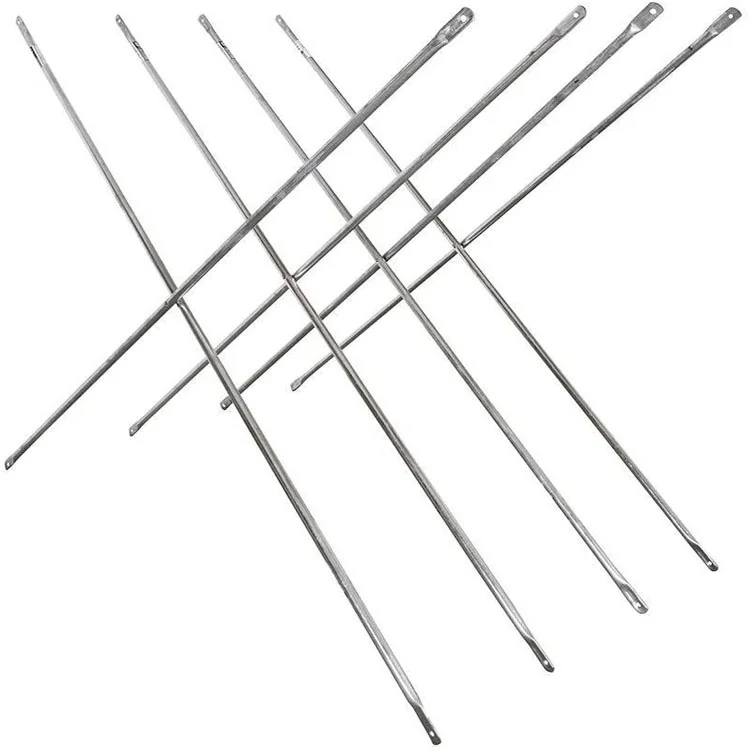

Cross Brace



2sets of Cross Brace

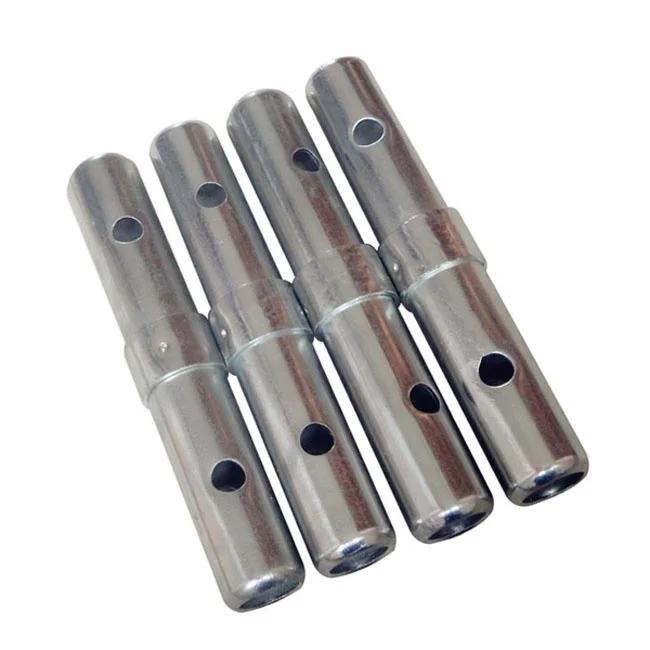

Joint Pin



Joint the two sets scaffolding frame together



Jack Base



Put to the most bottom and top stair of scaffolds foot



4 pcs for 1 scaffold



Steel plank



 1 pcs for one set scaffolding






Frame scaffolding




Scaffolding product features:

1, widely used, indoor and outdoor decoration, store billboards, Bridges, building support, wall scaffolding and so on.

2, multi-function can be single use, double use, can move, simple and fast to use.

3, high efficiency, flexible, fast disassembly and assembly, no screws, has achieved twice the efficiency with half the effort.

4. Large bearing capacity and good stability.

5, safe and reliable, joint self-locking ability is good, series standardization.

6, easy to manage, stacked neatly.

7, economical and practical, low cost, small space, long use time.

frame 42.jpg



frame 24.jpg35cross braceH Frame6





Specification


The follow is normal size ,main tube φ42*2mm, also can customize according to customers requirements.





Walk through frame / H frame



































Surface treatment

Dimension(W*H)



Specification

(OD)


Weight






HDG

Painted

Power Coated

Pre-Galvanized





1219*1930 mm



Outer Pipe:42*2.0MM



Inner Pipe:25*1.5MM


14.3 kg



1219*1700 mm



12.9 kg



1219*1524 mm



11.7 kg



914*1524mm



10.8 kg



914*1700 mm



12.1 kg



H Frame











Mason frame/ ladder frame












































Surface treatment



  Dimension(W*H)



Specification

(OD)


Weight





HDG

Painted

Power Coated

Pre-Galvanized


1219*1930 mm



Outer Pipe:42*2.0MM



Inner Pipe:25*1.5MM


15.2 kg



1219*1700 mm



14.2kg



1219*1524 mm



12.8kg



1219*914 mm



9.2kg



914*1524 mm



11.4 kg



914*914MM



7.9kg






mason 2

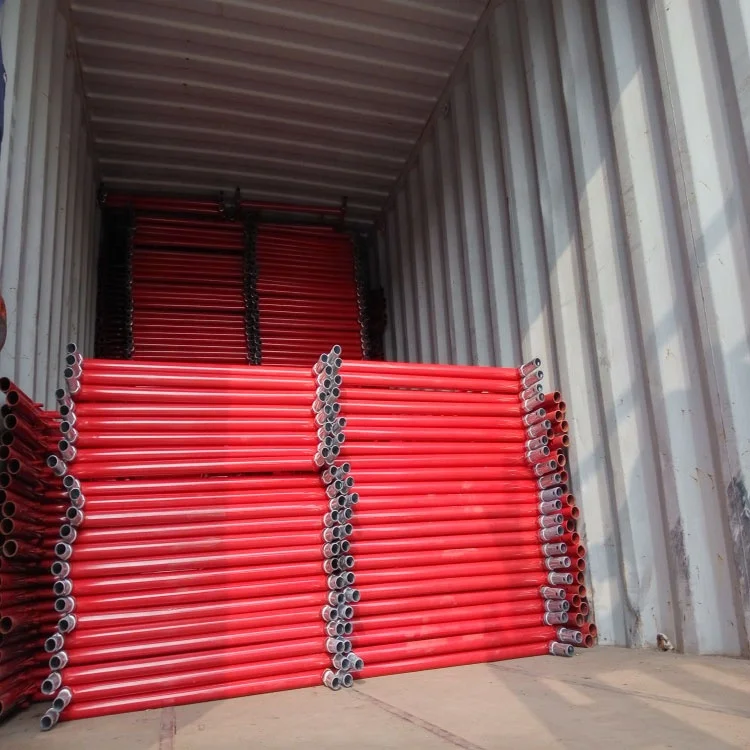

Packaging & Shipping


 mason frame (2)mason





Company Information


Tianjin Youfa steel pipe group co., LTD. Is a collection of ERW pipe, hot dip galvanized steel pipe, rectangular pipe, plastic coated composite pipe, spiral welded pipe, stainless steel pipe,scaffolding system and other products production and sales in the integration of large enterprise groups, with "Youfa" and "zhengjinyuan" two brands.


It has formed five production bases in Tianjin, Tangshan, Handan, Hancheng, Shaanxi and Liyang, Jiangsu. It has 10 steel pipe production enterprises with more than 200 production lines, and has 4 national accredited laboratories, 1 Tianjin Welding Steel Tube Technology Engineering Center and 2 Tianjin Enterprise Technology Center.


Products can be used in industry, construction and other fields.Products exported to North America, South America, Europe, Africa, Oceania, the Middle East, Southeast Asia and other more than 100 countries and regions.


Since 2006, it has been listed among the top 500 enterprises in China and the top 500 manufacturing enterprises in China for 15 consecutive years.


In December 2020, Youfa Group was successfully listed on the main board of the Shanghai Stock Exchange.


Our products have been manufactured according to API, ASTM, EN, BS, ISO, DIN and JIS internationally advanced standards, and also approved by the third party. Paying attention to the quality of products and services, possessing normative QAS, we have acquired certificates of API5L/5CT, ISO9001 and EN10219.


Based on the high quality and considerate service, our products have set up a prominent brand image in markets at home and abroad.


photobankphotobank (2)_202110191711474





Certificate








FAQ


1. ISO, BSI, FPC, UL system.


2. Price  Reasonable.


3. TUV, API, BV audited company.


4. Experience 20 years focus on quality.


5. Strength The company that can produce 10 million tons welded pipe exclusively in the world. More than 12,600,000 tons and 190,000 tons (Annual production and export volume)


6. Quality Reliable and World certified. We have two national CNAS certified laboratories, and cooperated with many big steel plate factories and retesting of raw materials.


7. Delivery  Own factory in TianJin! We are near Tianjin port, also have own transport fleet, have the most convenient transport and prompt delivery.


8. Shipment of goods: More than 78 countries worldwide until now.


9. Service Friendly and Responsible, no matter before or after cooperation.


10. Choose Youfa is equal to Choose Top Guarantee!


Welcome to contact us to make a further discussion!
