YDZ 100 Self pressurized LN2 Tank stainless steel Cryogenic Liquid Nitrogen Container filling tank for laboratory
- Category: >>>
- Supplier: Gansu Shenleng Cryogenic Equipment Co. Ltd.
Share on (1601278306593):
Product Overview
Description
We have 30 years of experience in one-stop solutions for gas storage and transportation, with many specifications and models. The prices of each model vary, and you can send us an inquiry for specific information！
Product Paramenters
Condition | New |
Applicable Industries | Food & Beverage Factory, Farms, Other, Laboratory, semiconductor, Cryogenic chemicals, mould and die industry, animal husbandry, aerospace |
Max Working Pressure(MPa) | 0.1MPa |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Special equipment |
Warranty of core components | 1 Year |
Core Components | Pressure vessel |
Capacity | 100L |
Dimension(L*W*H) | 606*1230mm |
Weight | 69kg |
Warranty | 3 years |
Key Selling Points | Safe, easy to use, high loading rate, refillable |
Showroom Location | None |
Geometric volume | 110L |
Full weight | 149 |
Daily steam loss | 1.3% |
Products Description
Brand: SLDW

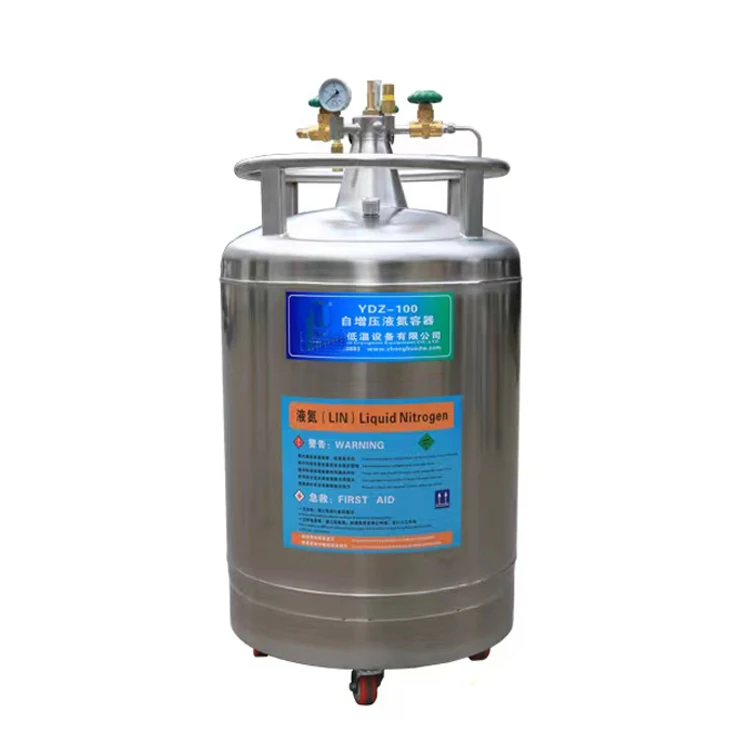

Model: YDZ --100
Effective capacity: 100L
Outer diameter: 606mm
Height: 1230mm
Empty weight: 69KG
Full weight: 149KG
Working pressure: ≤ 0.1Mpa
Daily steam loss rate: 1.3%
Infusion volume: ≥ 6L/Min
Model: YDZ --100
Effective capacity: 100L
Outer diameter: 606mm
Height: 1230mm
Empty weight: 69KG
Full weight: 149KG
Working pressure: ≤ 0.1Mpa
Daily steam loss rate: 1.3%
Infusion volume: ≥ 6L/Min

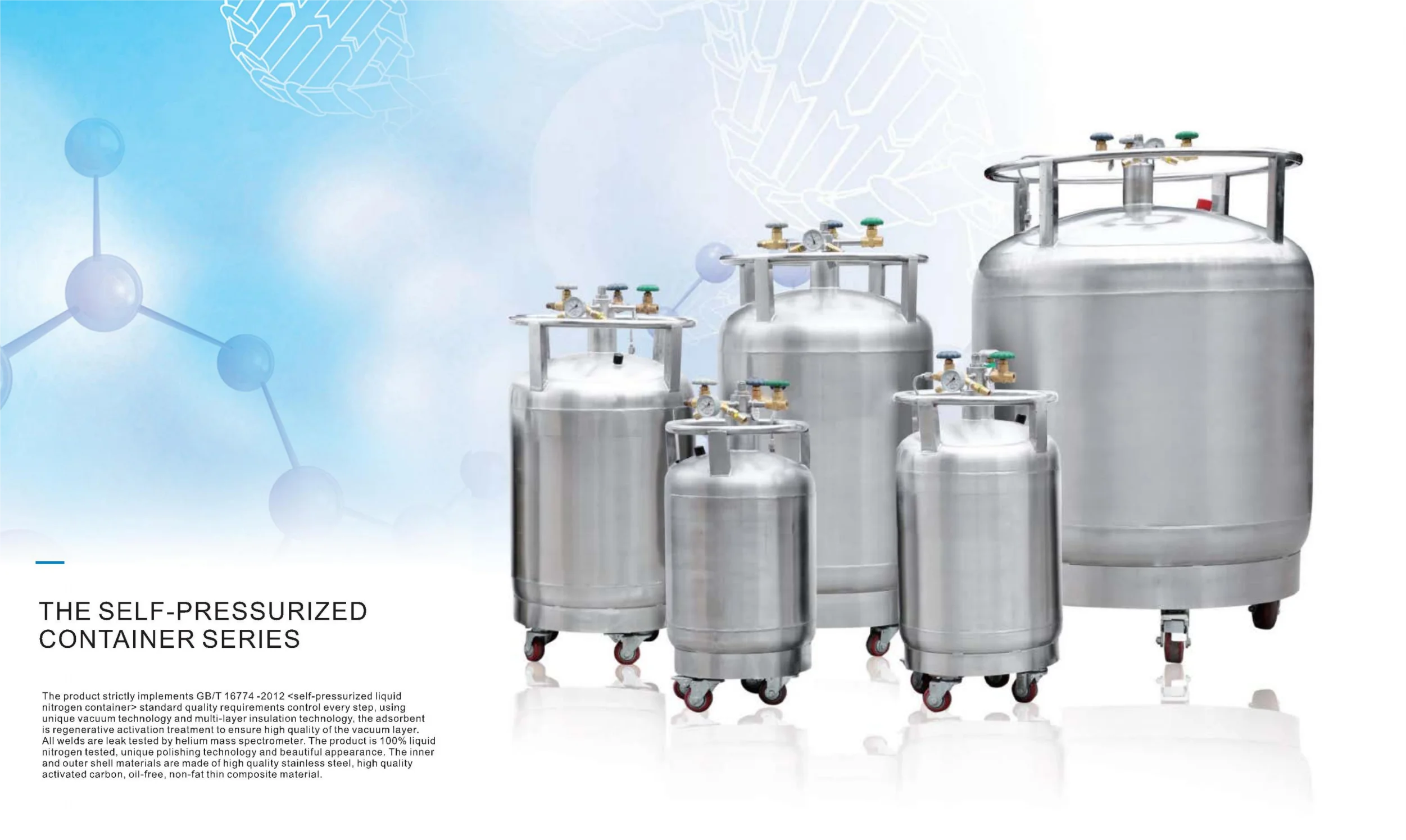

Liquid nitrogen replenishment series liquid nitrogen tank
The self-pressurized liquid nitrogen tank uses a small amount of liquid nitrogen in the tank to generate pressure, so that the container can automatically discharge liquid nitrogen, so as to supplement liquid nitrogen for other containers. It is mainly used for transportation and storage of liquid media, and can also be used as a cold source for other refrigeration devices. It can be equipped with liquid nitrogen tank monitoring terminal and monitoring software, which can realize remote transmission of liquid nitrogen level pressure and other data, realize remote alarm of low liquid level and overpressure, and can also manually remote pressurization and control replenishment.

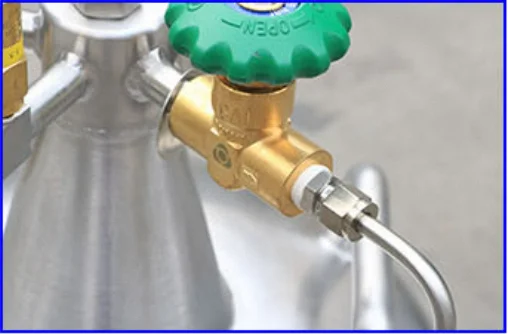

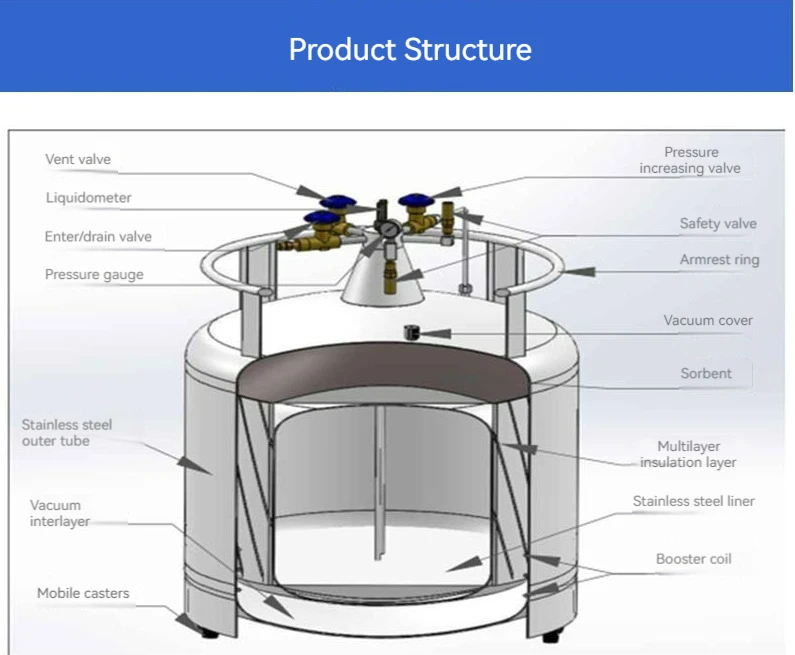

Liquid nitrogen supplement series is mainly used for the storage of liquid nitrogen in the central laboratory. It is a new high-performance low-temperature liquid nitrogen medium storage container, which uses a small amount of liquefied gas in the container to generate pressure, so that the container can automatically discharge liquid, so as to supplement the liquid for other containers. The stainless steel design structure can apply to the harsh use environment and reduce the evaporation loss rate. This series of products are fully equipped with a booster valve, drain valve, drain valve, pressure gauge, 200 liters and above the container also added bursting disc and muffler and other structures. In addition, all models in the series are equipped with four mobile universal casters to facilitate the use and movement of containers in different locations. Mainly suitable for laboratory users and chemical enterprise users for liquid nitrogen storage or automatic replenishment of liquid nitrogen.
Product characteristics：
1. All welds of the product pass the leak detection by helium mass spectrometer:
2. Unique neck design and patented vacuum technology ensure extremely low evaporation loss rate
3. Unique polishing technology, beautiful appearance;
4. With double safety valve],
Ensure product safety;
5. Protective operation ring;
6. With a sound safety structure;
7. Easy to move with casters;
2. Unique neck design and patented vacuum technology ensure extremely low evaporation loss rate
3. Unique polishing technology, beautiful appearance;
4. With double safety valve],
Ensure product safety;
5. Protective operation ring;
6. With a sound safety structure;
7. Easy to move with casters;
