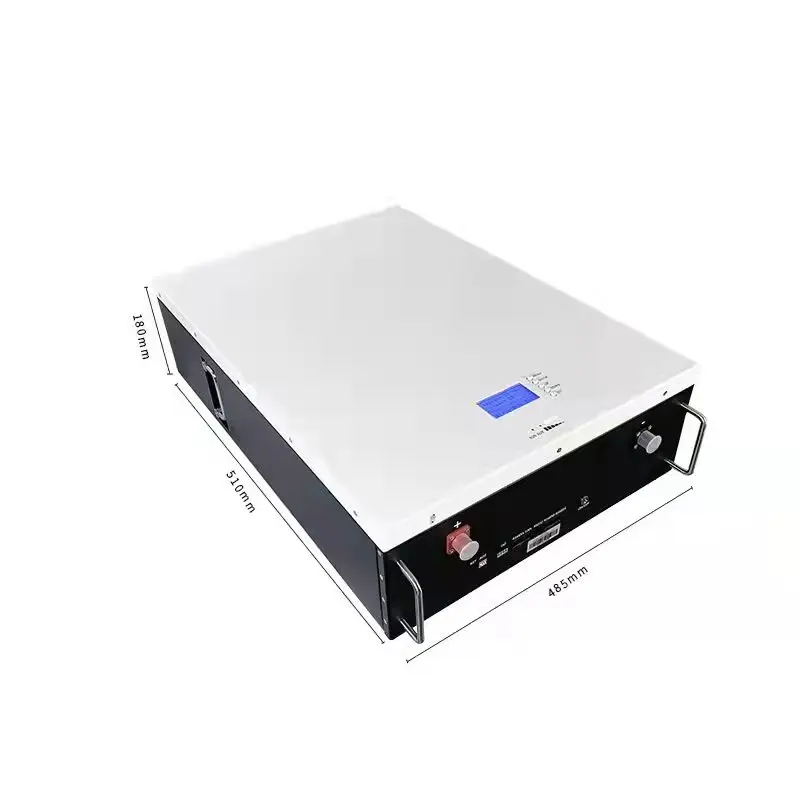

48V 200AH Hybrid Grid Home Energy Solar Battery Storage System Wall Mounted House IP65 Protection CAN Communication Port 100AH
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.
Share on (1601278311435):
Product Overview
Description

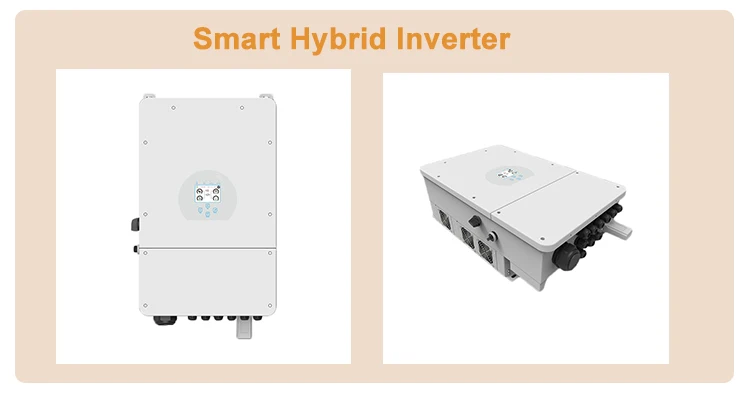

Recommend matching inverters | ||||||||||||||
Model | Maximum input voltage of the component | Largest component Configuration | The output voltage | Maximum charge and discharge current | AC rated output current | battery voltage | ||||||||
Single | 3.6kw/EU | Each string of photovoltaic modules has the highest voltage at the end 500V; Maximum when not selling electricity 450V. Regardless of whether it is sold to the grid or not Electricity, it is recommended to 370V left Right, no more than 400V | 4680W | 220V/230V/240V | 90A | 15.7A | Rated: 48V/51.2V Range: 40V-60V | |||||||
5KW/EU | 6500W | 120A | 21.7A | |||||||||||
8KW/EU | 10400W | 190A | 35A | |||||||||||
DUAL | 5KW/US | 6500W | 110V/220V 120V/240V | 120A | 20.8A | |||||||||
8KW/US | 10400W | 190A | 33.4A | |||||||||||
TRIPLE | 8kw/EU | Each string of photovoltaic modules has the highest voltage at the end 800V; It is recommended to be around 450V, the maximum Does not exceed 700V. | 10400W | 380V/400V | 190A | 11.6A | ||||||||
10kw/EU | 13000W | 210A | 14.5A | |||||||||||
12kw/EU | 15600W | 240A | 17.4A | |||||||||||

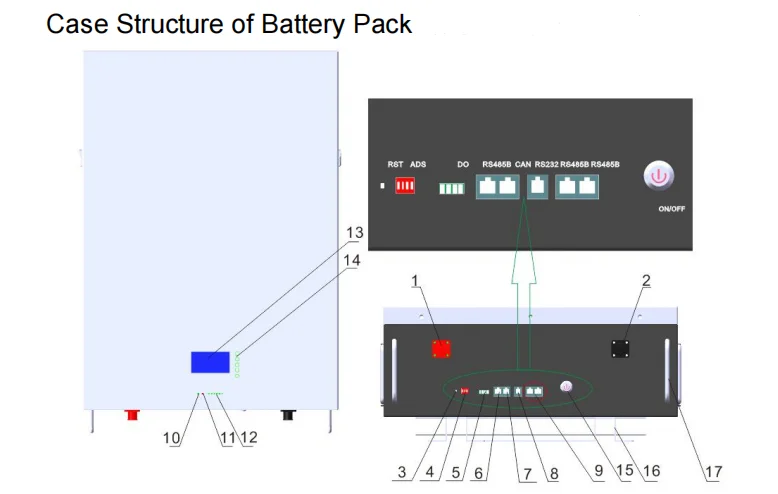

Battery General Features
Battery Management System function introduction
1）：The BMS is designed for 15/16 series lithium battery.
2）：The BMS have all functions which are :
overcharge detection function
over discharge detection function
over current detection function
short detection function
Temperature detection function
balance function
communicate function
Alarm function
Total capacity function
Storage history function
2）：The BMS have all functions which are :
overcharge detection function
over discharge detection function
over current detection function
short detection function
Temperature detection function
balance function
communicate function
Alarm function
Total capacity function
Storage history function
Main specifications
Model | FY-5KWH-LW | FY-7.5KWH-LW | FY-10KWH-LW |
Nominal voltage | 51.2V | 51.2V | 51.2V |
Nominal capacity | 100Ah | 150Ah | 200Ah |
Size | 520*345*160 | 520*450*170 | 585*450*205 |
Weight | 45KG | 70KG | 85KG |
Charging method | CC/CP/VP | CC/CP/VP | CC/CP/VP |
Charging current | 0.2C (Standard)/1C(Maximum continuous charging current) | 0.2C (Standard)/1C(Maximum continuous charging current) | 0.2C (Standard)/1C(Maximum continuous charging current) |
Charging cut-off voltage | 58.4V/CELL | 58.4V/CELL | 58.4V/CELL |
Discharge method | CC/CP/VP | CC/CP/VP | CC/CP/VP |
Discharge current | 0.5C (Standard)/1.5CMaximum continuous discharge current | 0.5C (Standard)/1.5CMaximum continuous discharge current | 0.5C (Standard)/1.5CMaximum continuous discharge current |
Discharge cut-off voltage | 43.2V/CELL | 43.2V/CELL | 43.2V/CELL |
Display | LCD | LCD | LCD |
Communication Interface | 485/232/can | 485/232/can | 485/232/can |
Operating temperature | Charge： 0~+50℃/Discharge： -20~+55℃ | Charge： 0~+50℃/Discharge： -20~+55℃ | Charge： 0~+50℃/Discharge： -20~+55℃ |
Storage temperature | Short-term storage：-10~+45 ℃(<3 month, SOC： 20%~60%)/long-term stroage：-10 ~+40 ℃(<1 year, SOC： 30%~60 %) | Short-term storage：-10~+45 ℃(<3 month, SOC： 20%~60%)/long-term stroage：-10 ~+40 ℃(<1 year, SOC： 30%~60 %) | Short-term storage：-10~+45 ℃(<3 month, SOC： 20%~60%)/long-term stroage：-10 ~+40 ℃(<1 year, SOC： 30%~60 %) |
Storage humidity | 5%~95% | 5%~95% | 5%~95% |
Shipping status | Voltage： 48~51V/SOC：30%~50% | Voltage： 48~51V/SOC：30%~50% | Voltage： 48~51V/SOC：30%~50% |

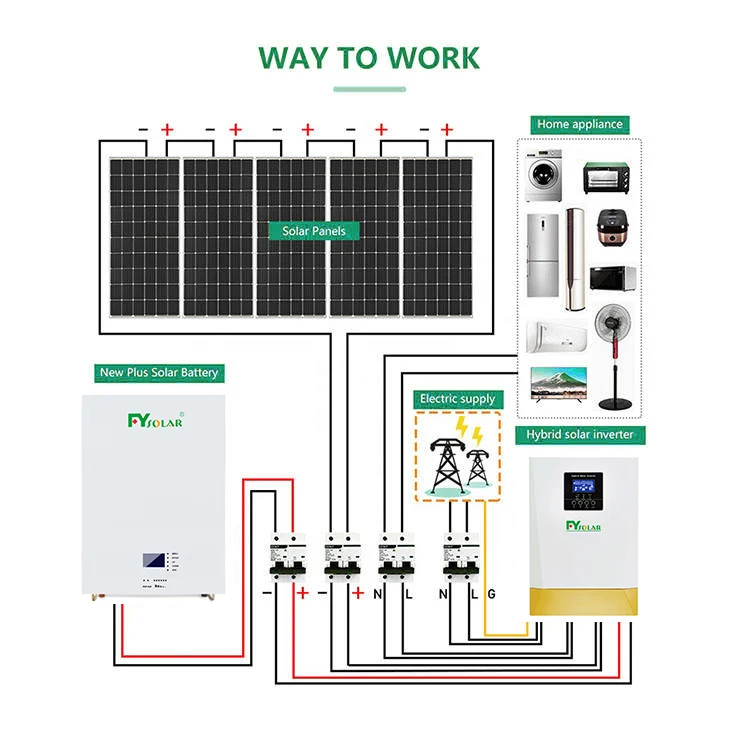

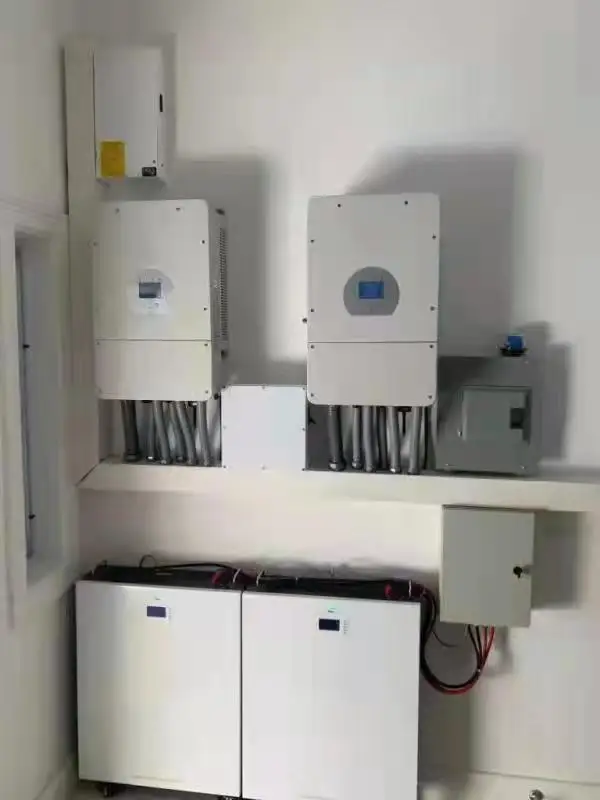

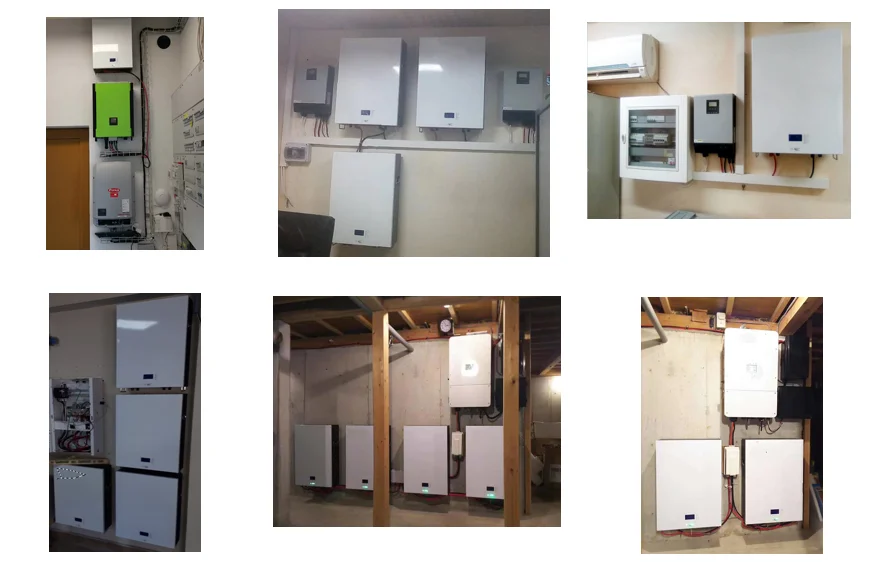

Applications
Packing
