15ch full hd iptv ott transcoder hevc IPTV streaming server system for LAN&WAN support DVB Subtitle and Logo insertion
- Category: >>>
- Supplier: Hangzhou DIBSYS Technologies Co. Ltd.
Share on (1601278320122):
Product Overview
Description
Product Description

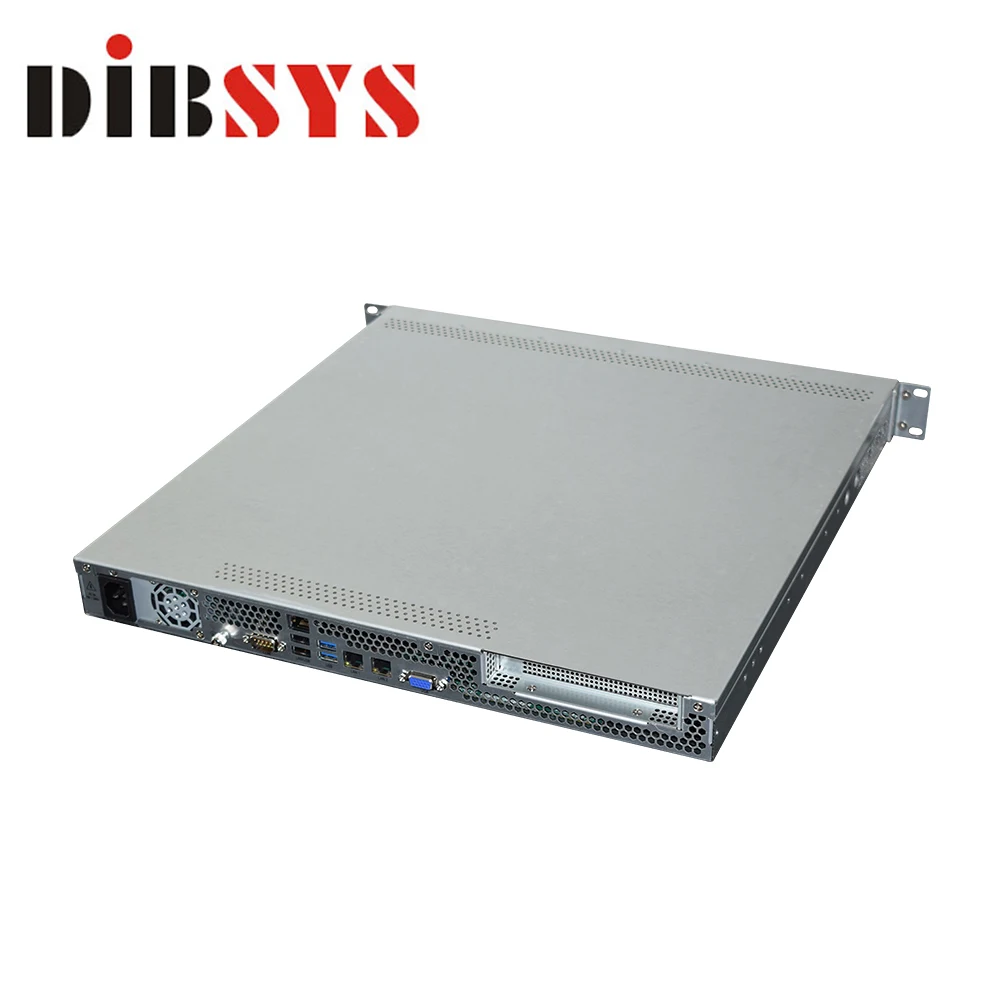

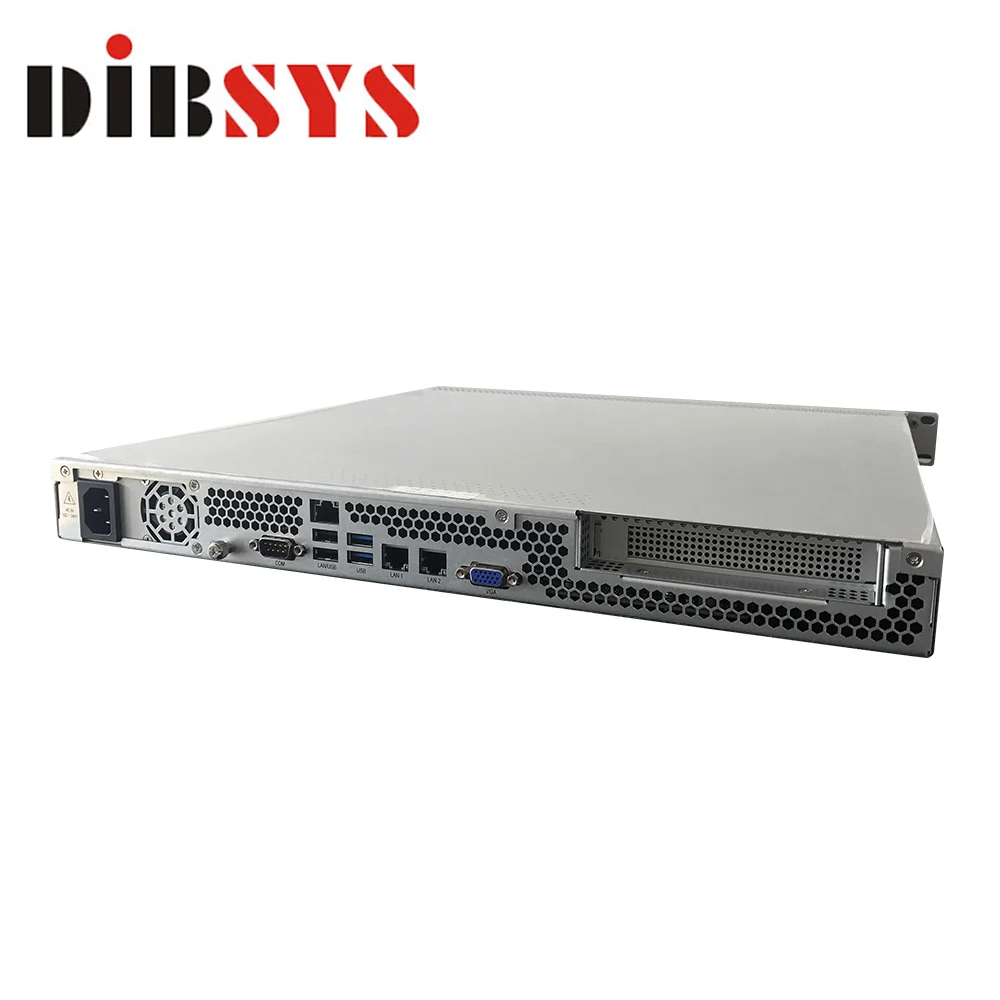

15ch full hd iptv ott transcoder hevc IPTV streaming server system for LAN&WAN support DVB Subtitle and Logo insertion
Anystream415H, a cost-effective appliance for live content transcoding, it provides high-density and scalability for traditional broadcast over cable, IPTV, DTH and DTTV, as well as for multiscreen applications. It converting providers H.264, MPEG2 and HEVC (H.265) contents to each other.
For satellite, terrestrial, cable and multiscreen applications, the Anystream415H has become an ideal solution for operator to provide high quality video transcoding. It can transcode a mix of channels independent of their codec (MPEG-2, MPEG-4 AVC or HEVC), resolution (HD, SD and low resolution) and frame rate (up to 60 fps). Video can be delivered to an external packager, or it can be internally scrambled and packaged in the Apple HLS, Microsoft Smooth Streaming and MPEG-DASH formats.
Anystream415H provides the high bandwidth efficiency on the market, and the best video quality to end users. Purpose on huge number of transcoded channels deployment fast, our R & D team also provides transcoding capable of 200 channels with high density, High reliability and Cost effective video headend distribution solution.
Features
High density 1-RU platform can transcode up to 15*SD or 15*720p or 15*Full HD or 2* 4K profiles
Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
H.265/HEVC Main Profiles Level 5.1
Baseline, main profile & high profile with variable GOP
Picture-in-picture (PIP) operation supported
HD-to-SD down, SD-to-HD up conversion
GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files
Compatible with external MPEG-DASH packager for OTT delivery (option)
Flexible GOP structures with Reference-frame and B-frame edit
Frame rate down- and up-conversion
High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
PCR correction to accurately correct several PCR of the input data
Based on embedded Ubuntu Linux via flashdisk
DVB Subtitle and Logo insertion
High contrast LCD display
Parameter template settings and imports
Real time preview of input video stream in encoding and parameter configuration
The preview interface adds color control adjustment (CCATM) function (video output brightness, contrast, saturation, aberration).
TS parameter configuration: The output stream can be edited to change the program number,
program name, supplier (for video output part), easy to identify end device
Real-time dynamic monitoring of each transcoding channel operation
Support multiple devices unified management
Easy configuration via Web GUI
Designed for secure 24*365 operation
Main Application
Distribute Lowest bitrate HD Video to Ethernet
Bandwidth reduction for Internet/OTT streaming and wireless networks
IPTV live stream transcoding
Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones
Small/Middle-Scale Headends for Multiple System Operators
Upgrade H.264 to HEVC Video headend solutions
VOD archives from live streams
Technical Specifications
Inputs and Outputs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connector | Two Gig Ethernet Ports RJ45 100/1000M - Auto Negot MPEG-TS(MPTS or SPTS) Over IP input MPEG-TS (SPTS) Over IP out TS Over UDP/RTP/HTTP RTP over HTTP FLV Over HTTP RTMP MP3 over HTTP FLV ASP HTTP Live streaming Apple HLS (m3u8) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pre-processing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LOGO insertion | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Subtitle Overlay | Option Static or roll subtitle, up to 3 way | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Deinterlace | default, Close, Linear, Blend, Bob, Yadif | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PID Configuration | PMT/Video/Audio PID; PCR delay/disp interval | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advanced Processing | In-loop De-blocking filter Scene detection, CABAC. CAVLC Entropy coding Automatic PicAFF, MBAFF Interlaced coding Automatic Flexible Macroblock Ordering(ASO) and Arbitrary Slice Ordering(ASO) in Baseline profile Flexible Macroblock Ordering(FMO) and Arbitrary Slice Ordering(ASO) in Baseline Profile 8x8 vs, 4x4 Transform Adaptivity in High profile Quantization Scaling Matrices in High profile I, B and P Slices, Multiple Reference Frames | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Processing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bitrate Control | VBR,CBR,ABR,NearCBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame rate | 2-30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Ratio | 4:3, 16:9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Option Multiple concurrent outputs per each encoding input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video codec | H.265/ HEVC Main profile Level 4.1&5.1 H.264 Main/High Profile 3.0- 5.1 H.264 Baseline Levels 1, 2, 3 H.263 Profile Levels 10, 20, 30 MPEG-4 SP, Levels 0, 0b, 1, 2, 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding delay | 1000-1500ms | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
B-Frame | 0-5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference Frame | 1-6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Key frame rate | 1-18 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bitrate | 32kbps to 10Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Delay | 0-1000ms | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scale | Ordinary, Auto Padding intelligent Scale | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fast Mode | Quality Priority, Balanced, Speed Priority | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 3840x2160p(UHD) 1920x1080p,1280x720p 720x576p, 720x480p, 640x480p, 480x360p, Configurable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
