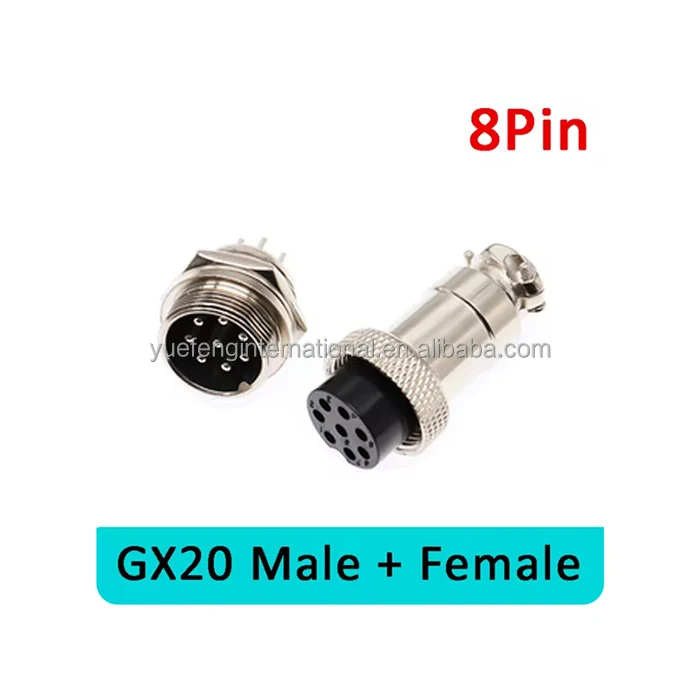

Factory Wholesale CE RoHS GX20 Circular Aviation Quick Wire Panel Connector 8 Pin GX20 Male Female Nut Butt Socket Plug Adapter
- Category: >>>
- Supplier: Dongguan Yuefeng Electronic Technology Co. Ltd.
Share on (1601278408766):
Product Overview
Description
Product Description
Specification
Product name | GX20 Circular Aviation Connector Socket Plug Wire Panel Connector | ||

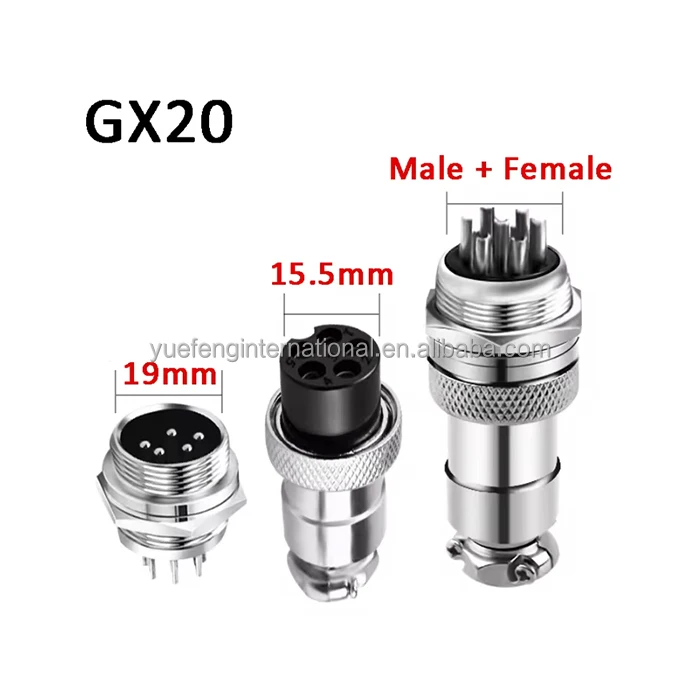

Diameter | 19mm | ||
Ambient temperature | -50 ~ +70 C | ||
Relative humidity | up to 98% at +40 C2 | ||
Atmospheric pressure | up to 4,4 kpa | ||
Mechanical Requirements | Life cycle: 1000 mating cycles minimum | ||
Insulation resistance | In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ. | ||
Waterproof | IP67 | ||
Separation Force | Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single foot separation Force | ||
Temperature Rise | at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature | ||
Certificate | CE,ISO9001,RoHS | ||
GX Circular Connector
Our Product global market distribution, competitive price and fast delivery time. Strict quality control: CE, RoHS, SGS,
ISO9001:2015 certificates.
Our high quality connectors are found in a variety of challenging applications and environments. The connectors are of stable performance and attractive appearance, widely used in the fields of measurement, audio-video, medical, audio-video, military, navigation, security, aviation, industrial control, data transfer equipment, automotive and power etc.
Meanwhile, we design new products according to customers special requirements, and always do our best!
1. Plug-in self-locking system, compact and delicate appearance
2. Suitable for frequent plug-in, high-density installation and space saving
3. IP68 waterproof and good sealing
4. High shielding performance, anti-electronic interference, anti-vibration, anti-impact, and resistance to harsh environments
5. A variety of anti-misalignment pin options, blind insertion
6. A variety of needle core options, a variety of size option
7.-Security of the push-pull self-latching system;
-Multipole types 2 to 26 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Multiple key options to avoid cross mating of similar connectors;
-Keying system for connector alignment;
-360°screening for full EMC shielding;
-Pull-away plugs with lanyards available.
ISO9001:2015 certificates.
Our high quality connectors are found in a variety of challenging applications and environments. The connectors are of stable performance and attractive appearance, widely used in the fields of measurement, audio-video, medical, audio-video, military, navigation, security, aviation, industrial control, data transfer equipment, automotive and power etc.
Meanwhile, we design new products according to customers special requirements, and always do our best!
1. Plug-in self-locking system, compact and delicate appearance
2. Suitable for frequent plug-in, high-density installation and space saving
3. IP68 waterproof and good sealing
4. High shielding performance, anti-electronic interference, anti-vibration, anti-impact, and resistance to harsh environments
5. A variety of anti-misalignment pin options, blind insertion
6. A variety of needle core options, a variety of size option
7.-Security of the push-pull self-latching system;
-Multipole types 2 to 26 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Multiple key options to avoid cross mating of similar connectors;
-Keying system for connector alignment;
-360°screening for full EMC shielding;
-Pull-away plugs with lanyards available.
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan Yuefeng Electronic Technology Co., Ltd. was established in May, 2015 and is located in Yangwu, Daling Mountain, Dongguan.
The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty,efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminalcable, electrical wire, HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty,efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminalcable, electrical wire, HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
Our Team Work:
We have complete equipments and 200 employees with skilled exoerience so that quality and lead time can be guaranteed.
Certifications
Our Partner:
As below:
Why Choose Us
We has complete equipments and 200 employees with skilled experience so that quality and lead time can be guaranteed for yourorders.And also gains ISO9001:2017;ISO13485,GJB9001B Standard Equipment Certifications.
Lead time: 7- 15 days
Quality :All the goods 100% inspection before shipping.
Afer-sales service:Once issues for goods,your money will be returned to you completely.
Lead time: 7- 15 days
Quality :All the goods 100% inspection before shipping.
Afer-sales service:Once issues for goods,your money will be returned to you completely.
1.Lowest price with quality to save cost for you
2.OEM or ODM
3.Bend relief of plug are free
4.Free samples(MOQ/PCS)
5.Free cable solutions
6.Accept credit payment
2.OEM or ODM
3.Bend relief of plug are free
4.Free samples(MOQ/PCS)
5.Free cable solutions
6.Accept credit payment
