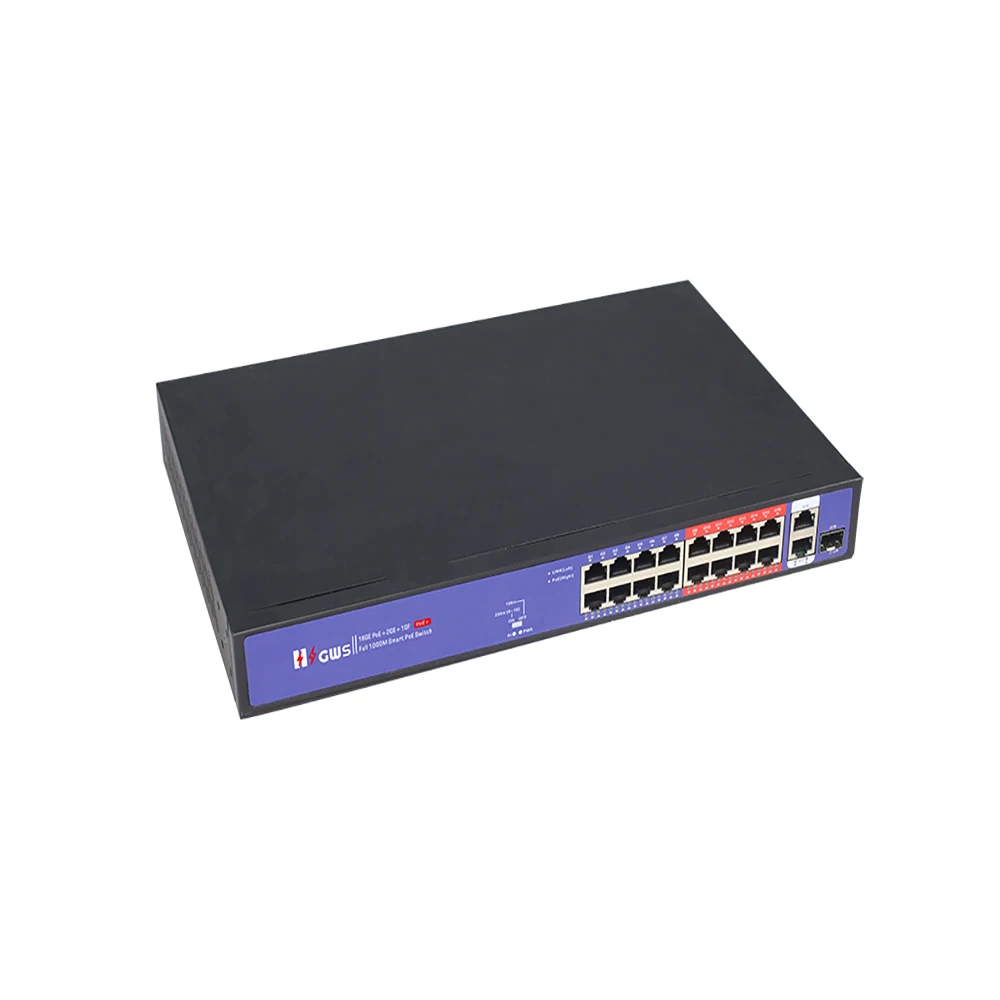

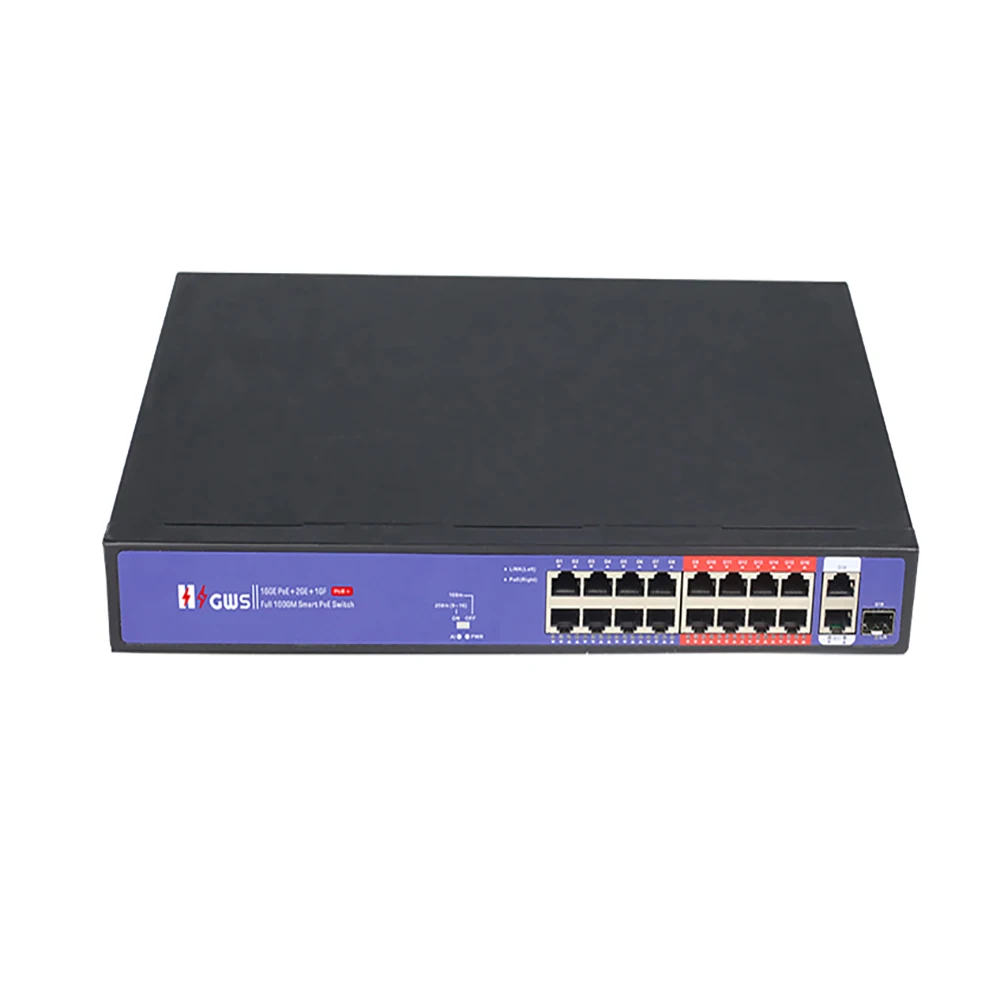

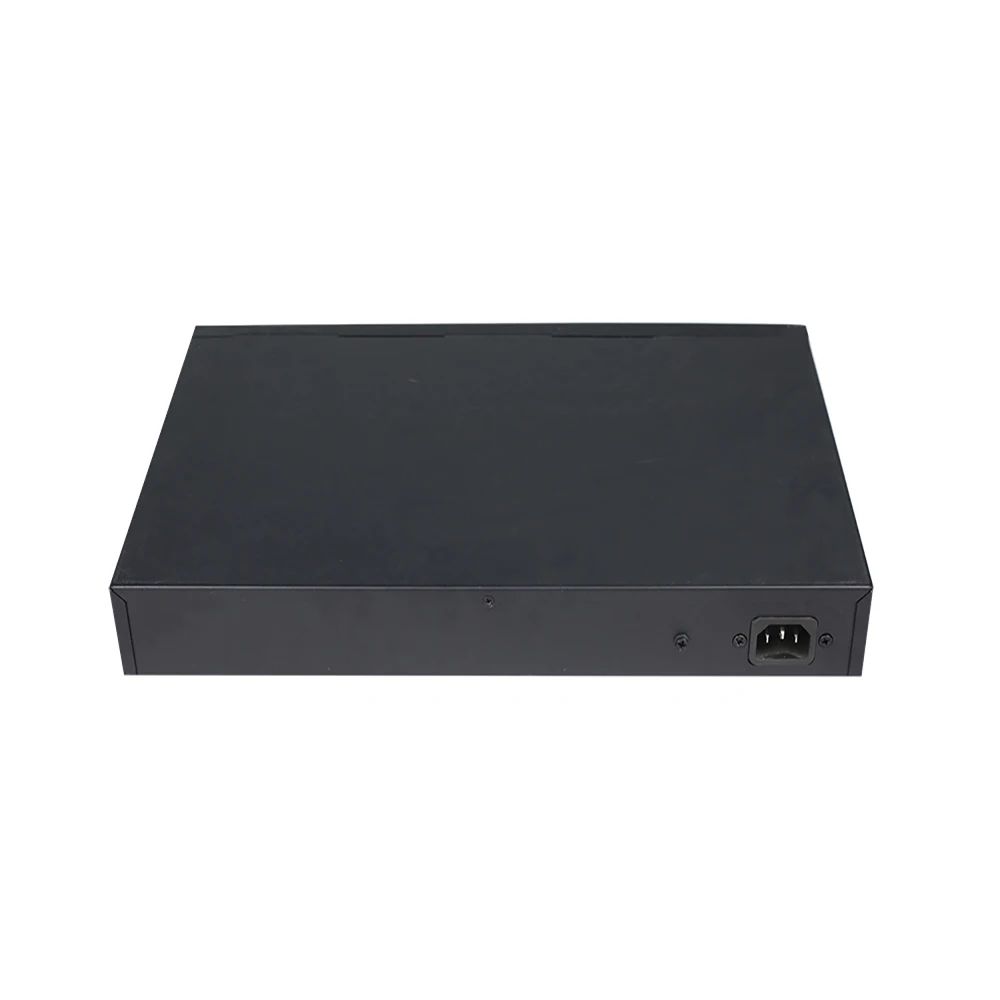

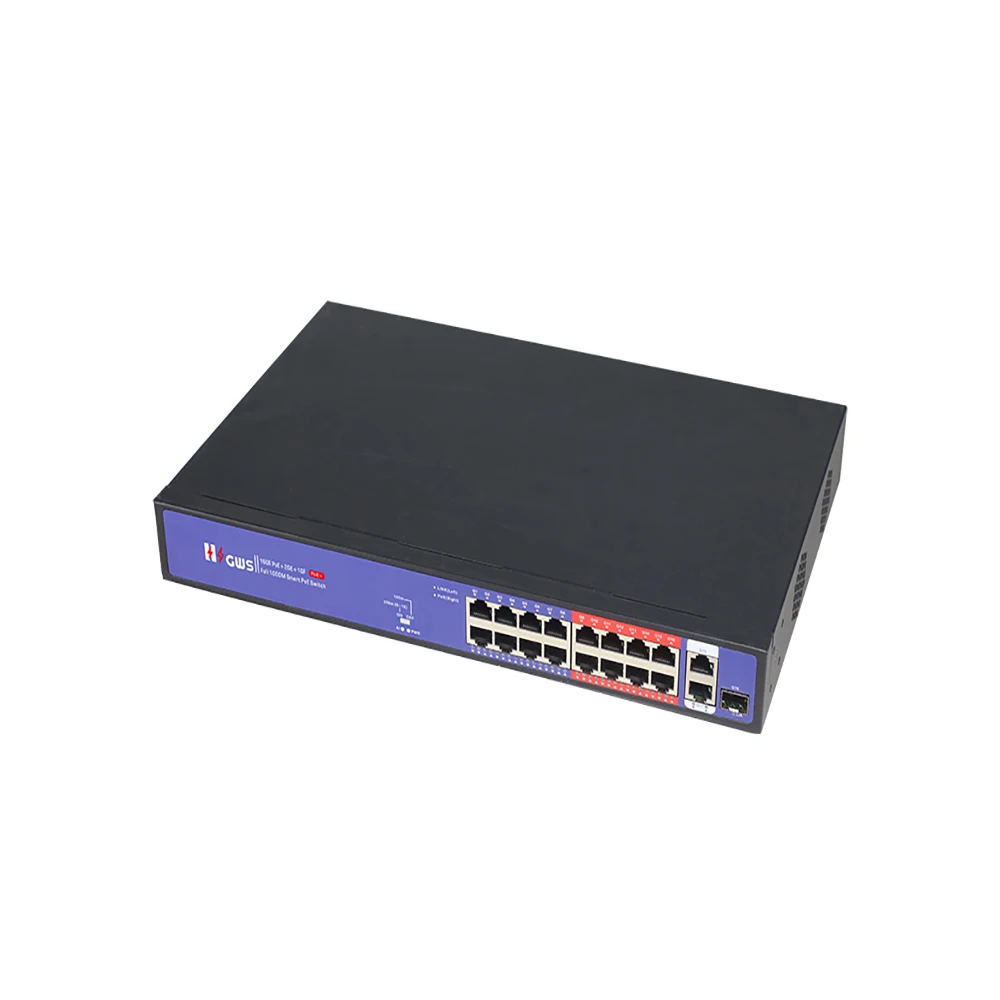

New Series 16 Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet
New Series 16-Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet

New Series 16 Port 1000Mbps Full Gigabit Uumanaged POE Switch with SFP Uplink Ethernet

Share on (1601278547864):


Price:$50.22 - $55.36

Quantity:


Product Overview

Description



Product Description




Specification


Model
GWS-3016PFD
Interface Characteristics
Fixed Port
16*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
1*1000Base-X uplink SFP ports (Data)
Ethernet Port
Port 1-18/1-26 can support 100/1000Base-T(X) automatic detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch
E: long-distance function (Default: OFF, Use:ON), After opening, ports 9-16 support 10M/250m long distance + POE watchdog
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Optical Fiber Port
Gigabit optical fiber port, default no include optical module(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC/SC)
Optical Cable/ Distance
Multi-mode: 850nm/ 0-550m
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Management Type
Unmanaged
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
38Gbps (Non-blocking)
Forwarding
Rate@64byte
28.27Mpps
MAC
4K
Buffer Memory
4M
Jumbo Frame
9.2Kbyte
LED Indicator
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: EXTEND (Green)
PoE & Power Supply
PoE Port
Port 1 to 16 support POE+ power supply
Power Supply Pin
1/2(+) 3/6(-)
Max Power Per Port
30W, PoE+
Total PWR / Input Voltage
180W/ (AC100-240V)
Power Consumption
Standby <5W, Full load <180W
Power Supply
Built-in power supply, AC100~240V 50-60Hz 2.2A
Physical Parameter
Heat Dissipation
No Fan natural cooling
Operation TEMP/ Humidity
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity
-40~+80°C, 5%~95% RH Non condensing

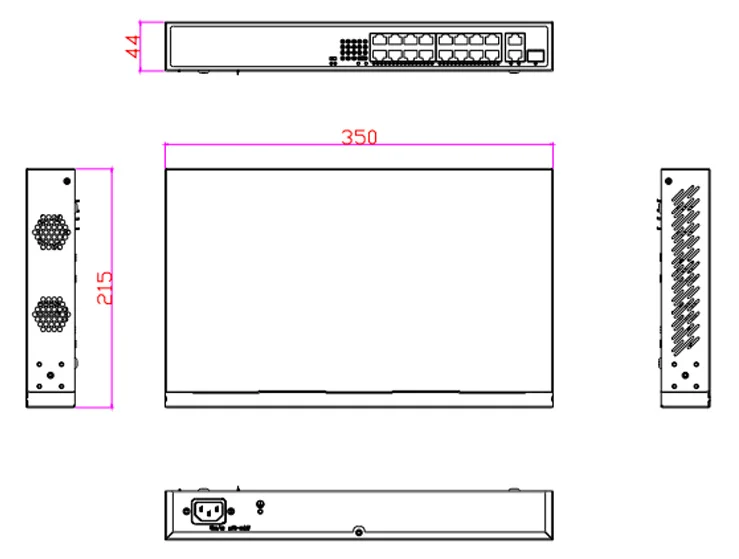

Dimension (L*W*H)
350*215*44mm
Net /Gross Weight
<2.4kg / <2.9kg
Installation
Desktop, Rack-mounted
Certification & Warranty
Lightning Protection
Lightning protection: 4KV 8/20us, Protection level: IP30
Certification
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty
1 year, lifelong maintenance.
