JK BMS 4S 8S 16S 20S 24S Smart 12V 24V 48V 60V 72V 100A 105A 160A 200A 280A 300A Balance Lithium Lifepo4 Jkbms JIKONG BMS
- Category: >>>
- Supplier: Shenzhen Liantian Technology Group Co. Ltd.Shenzhen Ltd.
Share on (1601278581030):
Product Overview
Description
Products Description
0.6A 1A 2A Active Balance JIKONG BMS Battery Protection Board 7S ~ 24S 100A 200A CAN RS485 APP Lifepo4 li-ion LTO 48V 16S 20S 72V
Product introduction:
can use for li-ion Lipo Lifepo4 LTO battery have English APP for Android and IOS cellphone each version size is different
Features:
1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the
batteryusage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear

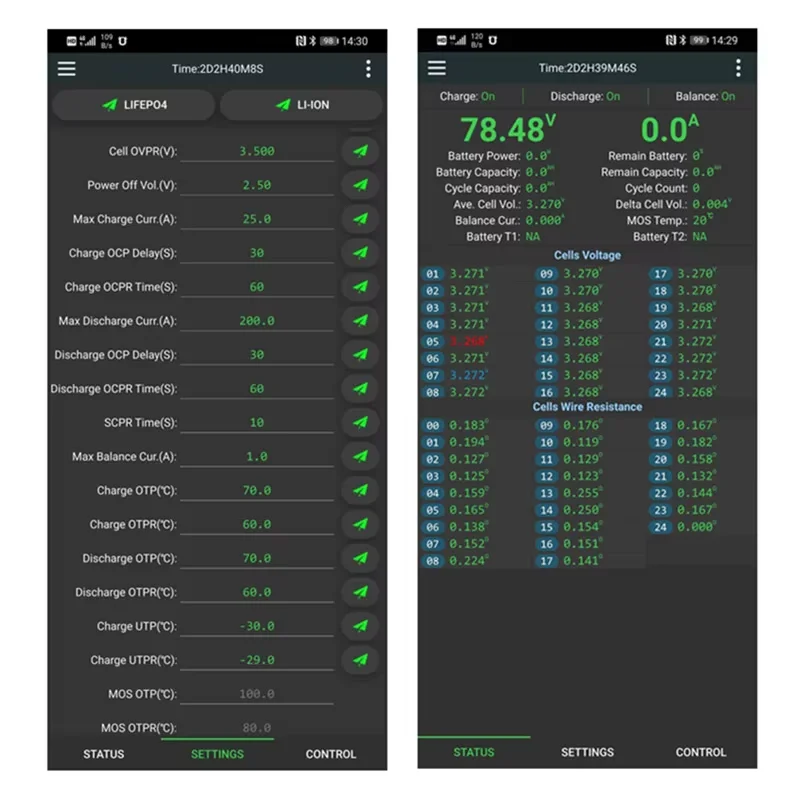

5.BT communication function, the battery status can be displayed on APP
Package:

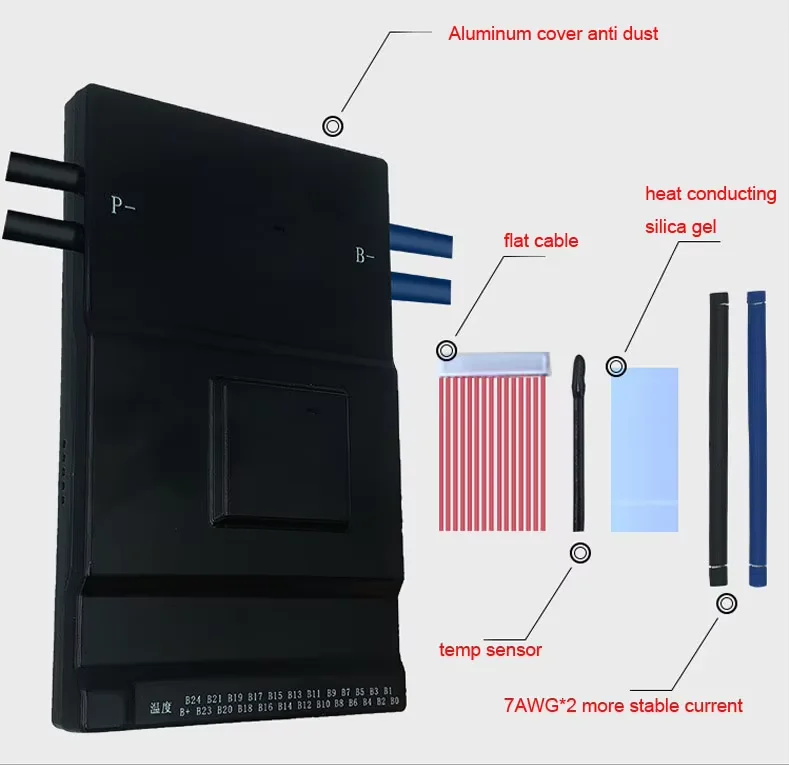

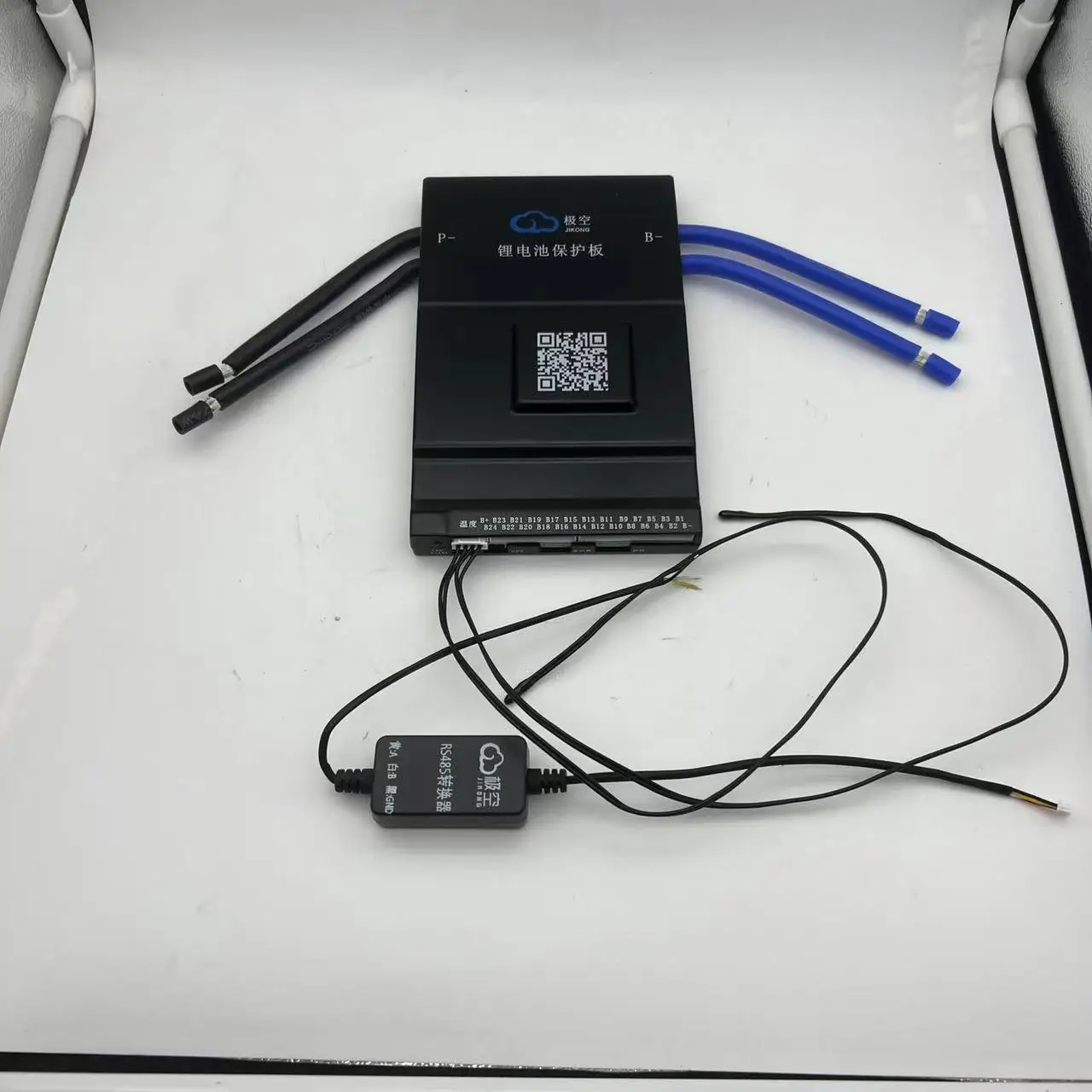

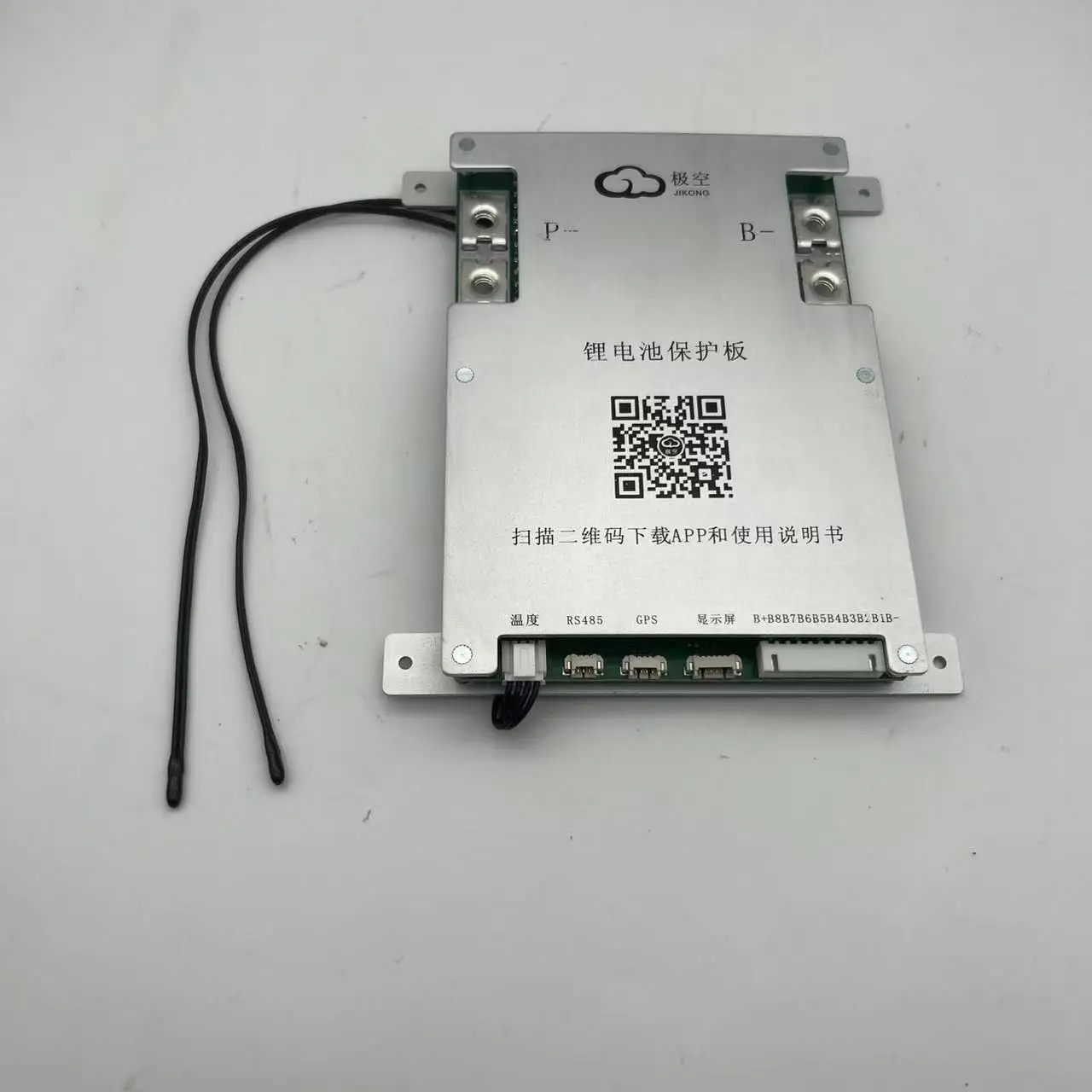

BMS{Bluetooth bulit-in(with P- and B- 7AWG 13cm*2)} *Temperature sensor(40cm) Balance Wires(75cm)
BT link for Phone-JIKONG BMS :
Download link-IOS : Search (JIKONG BMS) in the APP STORE
Download link-Android : https://www.pgyer.com/Cfq3
Attention:
If you want DDP DPD shipping way please contact with us before buy
We can add copper terminal lug on P- B- cable for you, if you need it please contact with us when order
Product introduction:
can use for li-ion Lipo Lifepo4 LTO battery have English APP for Android and IOS cellphone each version size is different
Features:
1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the
batteryusage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear
5.BT communication function, the battery status can be displayed on APP
Package:
BMS{Bluetooth bulit-in(with P- and B- 7AWG 13cm*2)} *Temperature sensor(40cm) Balance Wires(75cm)
BT link for Phone-JIKONG BMS :
Download link-IOS : Search (JIKONG BMS) in the APP STORE
Download link-Android : https://www.pgyer.com/Cfq3
Attention:
If you want DDP DPD shipping way please contact with us before buy
We can add copper terminal lug on P- B- cable for you, if you need it please contact with us when order
Li ion | 7-24 | 7-24 | 7-24 | 7-24 | |||
Lifepo4 | 8-24 | 8-24 | 8-24 | 8-24 | |||
Balance way | Active Balance | ||||||
Acitive balance current | 0.6A | 1A | 2A | 2A | |||
MOSFET | 0.8mΩ | 0.5mΩ | 0.5mΩ | 0.3mΩ | |||
Continuous discharge current | 100A | 150A | 150A | 200A | |||
Peak discharge current | 200A | 300A | 300A | 350A | |||
Over current protection | 10A-100A adjustable | 10A-150A adjustable | 10A-150A adjustable | 10A-200A adjustable | |||
out cable way | Same port | ||||||
single cell voltage scale | 1-5v | ||||||
Voltage accurancy | ±5mV | ||||||
Over charge protection voltage | 2.5V-4.25V adjustable | ||||||
Over charge protection release | 2.5V-4.25V adjustable | ||||||
Over current protection release time | 2S-120S adjustable | ||||||
Over discharge protection voltage | 2.5V-4.25V adjustable | ||||||
Over discharge protection release | 2.5V-4.25V adjustable | ||||||
Temp sensor quantity | 3 | ||||||
Short circuit protection | YES | ||||||
BT function | Support android and IOS | ||||||
Support andriod and IOS | Support | ||||||

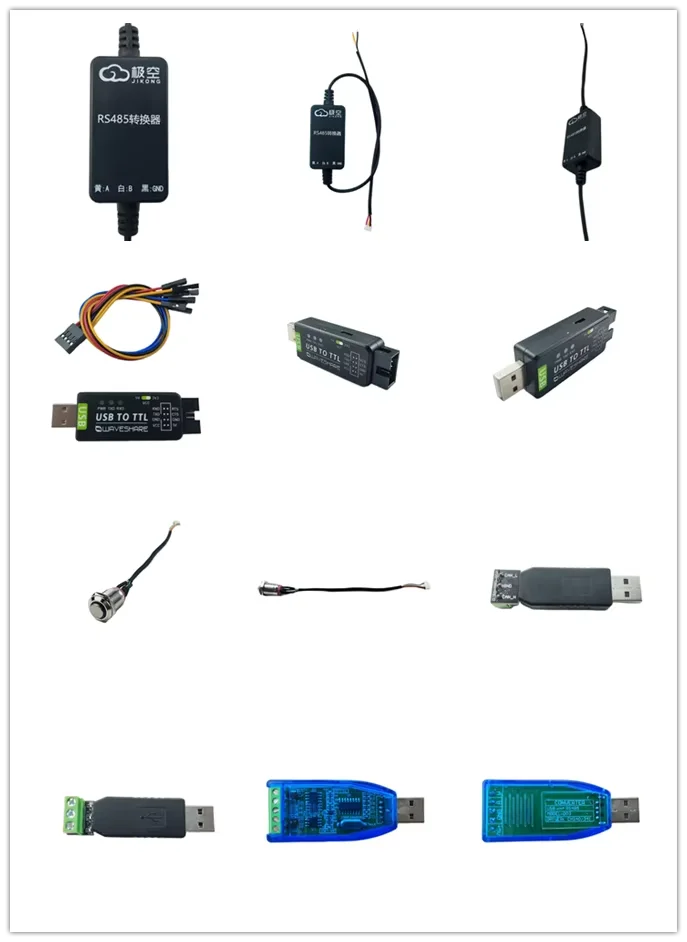

Other communication port | RS485/CAN (customize) | ||||||

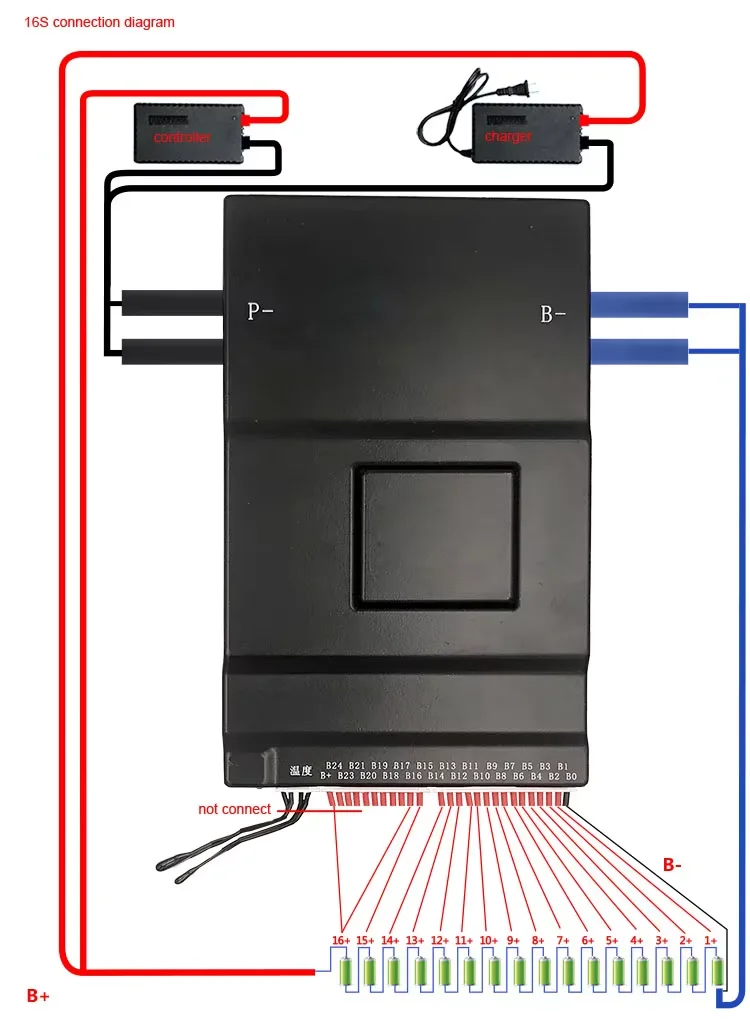

1.Should strictly follow the connection step as the diagram.
2.Double check the connection is correct,then connect it to the battery pack "+","-" Pin.
3.We are not responsible for the defectives caused by wrong connection.
2.Double check the connection is correct,then connect it to the battery pack "+","-" Pin.
3.We are not responsible for the defectives caused by wrong connection.
