RP TNC Male Crimp Type for RF Coaxial Cable RG316 Straight
- Category: >>>
- Supplier: Dongguan Dosin Precision Industry Co. Ltd.
Share on (1601278633903):
Product Overview
Description

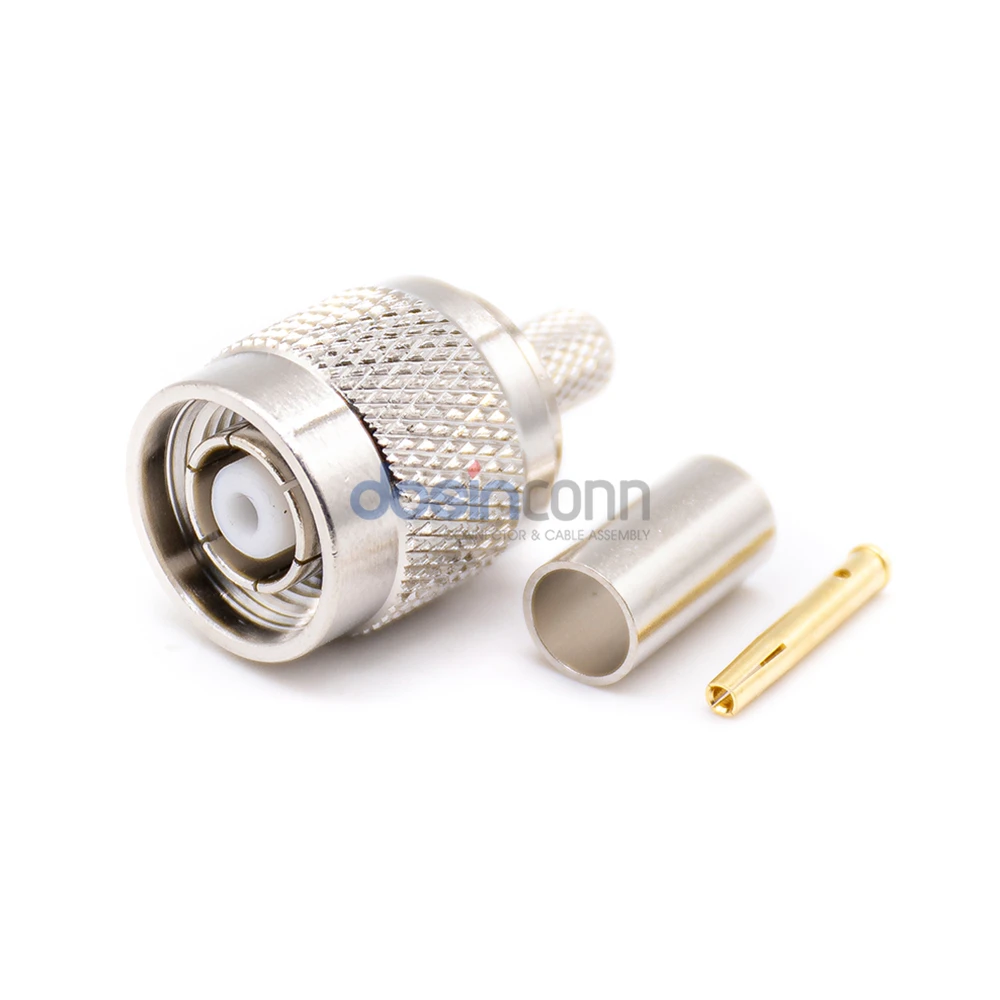

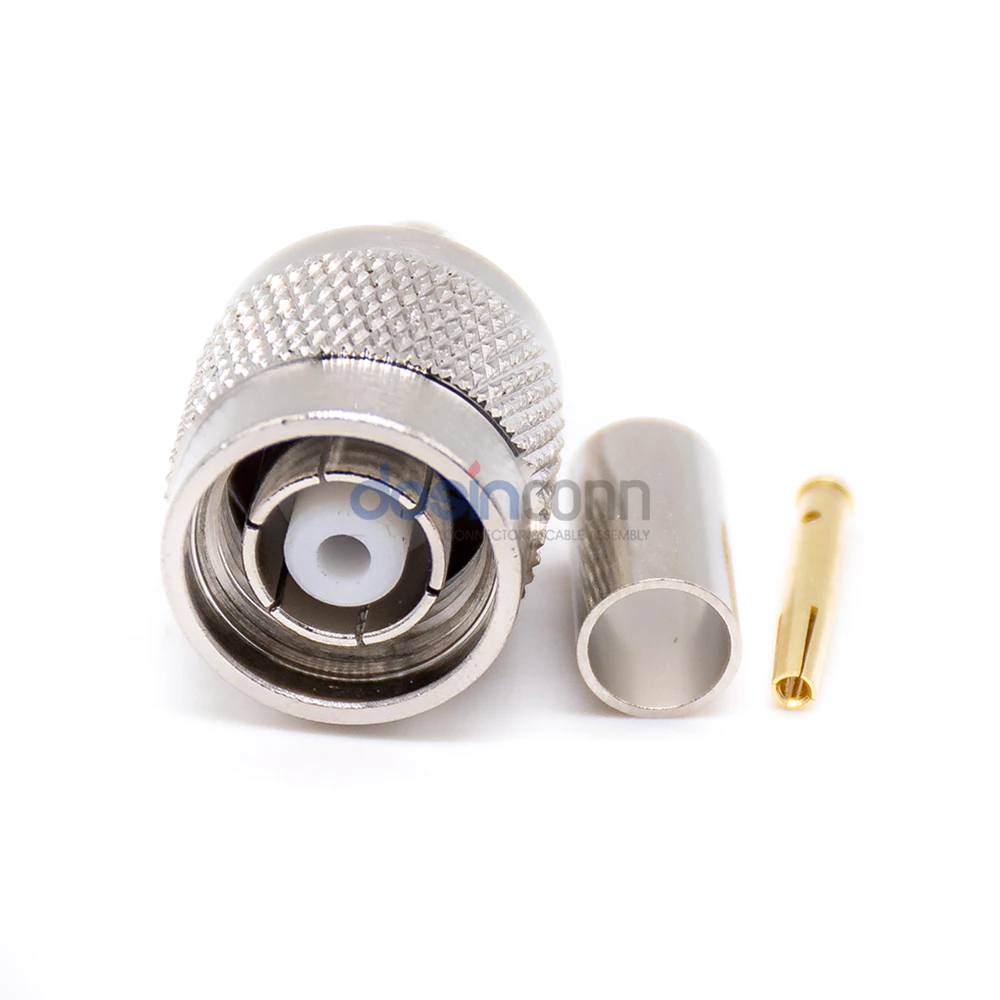

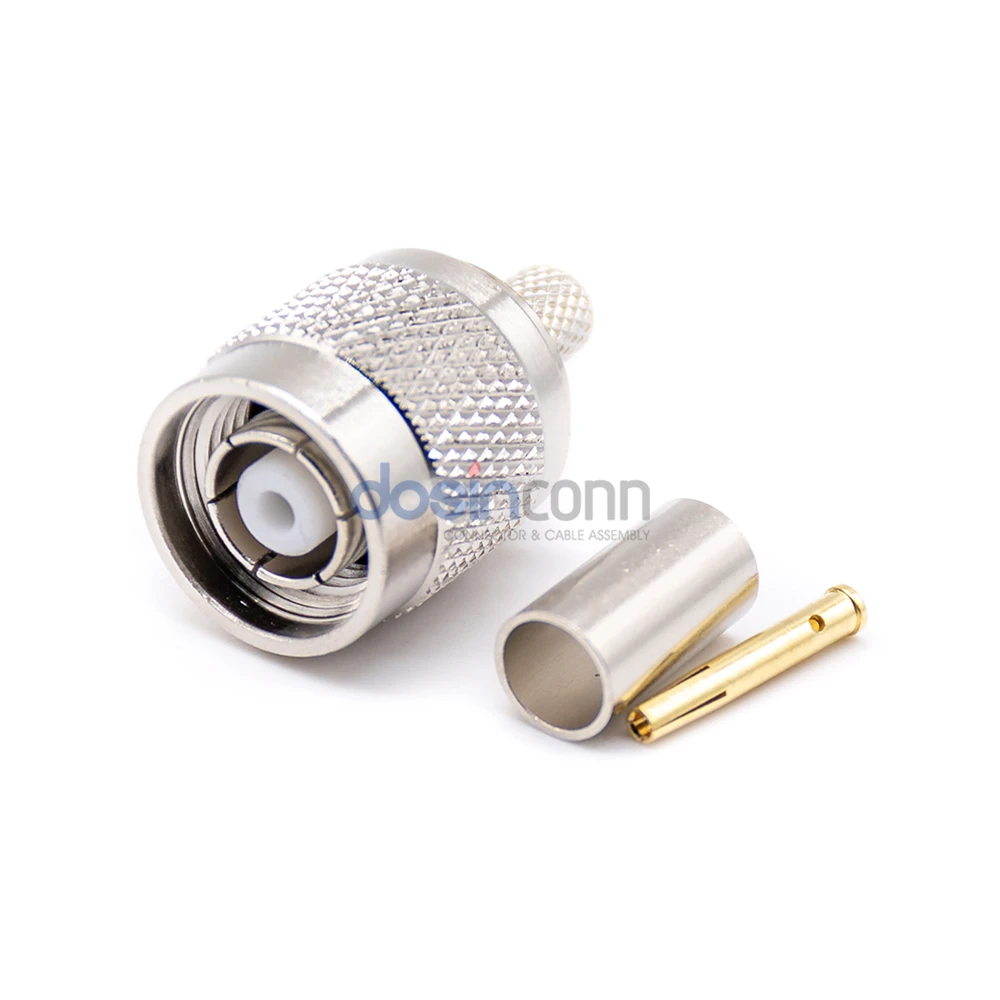

RP TNC Male Crimp Type for RF Coaxial Cable RG316 Straight
Want a Reliable RF Connectors Manufacturer to Support Your Project?
You’ll Never Regret to Contact Us.
Product Description
Full Series RF Connectors
All types of RFconnectors from OEM Manufacturer in China
Product Description
TNC (Threaded Neil Concealment) connector emerged in 1956 as an alternative to the bayonet coupling mechanism of BNC. Which have the same basic structural parameters as BNC connector.
Products Feature
1. Made according to MIL-C-39012 standard.
2. Thread Version of BNC used in Vibration-Intense application;
3. Higher Performance with 0-11 GHz frequency and 50 ohm impedance;
If You Still Not Found a Suitable Product, Please Contact Us>>
| Electrical Characteristics | |
| Impedance | 50 ohm or 75 ohm |
| Frequency Range | 0~4 GHz for 50 ohm, 0~2 GHz for 75 ohm |
| VSWR | Straight type ≤ 1.3max / R/A type ≤ 1.5max |
| Dielectric Withstanding Voltage | 1500 V rms |
| Working Voltage | 500 V rms |
| Center Contact Resistance | ≤ 3.0 mΩ (Milliohms max.) |
| Outer Contact Resistance | ≤ 2.0 mΩ (Milliohms max.) |
| Insultation Resistance | ≥ 5 X 10³ mΩ (Megohms min.) |
| Mechanical Characteristics | |
| Coupling | 7/16-28 thread |
| Contact Retention | 6 lbs min. |
| Durability(mating) | ≥ 500 Cycles (for Beryllium Copper Contact) |
| Environmental Characteristics | |
| Environmental Characteristics | Teflon -55°C ~ +155°C / POM -40°C ~ +60°C |
| Coupling Nut Retention | 100 lbs. min. |
| Vibration | MIL-STD-202 Meth. 204 |
| Corrosion Resistance | MIL-STD-202 Meth. 101 |
How we work for you?
Over 10 years R&D Experience
Talented Engineering Team with a Number of Independent Patents, Provide Professional Connector Solutions
Your RF Connector Supplier From China
Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, Antenna series and other custom made connectors.
We offer an extensive range of interconnect solutions for applications in telecom, security surveillance, automotive, healthcare, and aerospace industries.
Get Test Reports from Us with a Quality Guarantee!!!
Do You Accept OEM / ODM Orders?
Yes, we accept OEM / ODM orders and make many successful projects before.
Our engineer will also offer you technical support and solution suggestion if required.
Application Scenario
High performance TNC coaxial connectors with thread coupling for vibration environment, Mainly used for Cellular Mobile Phones, Aviation Controls, Telemetry, and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation, etc…
