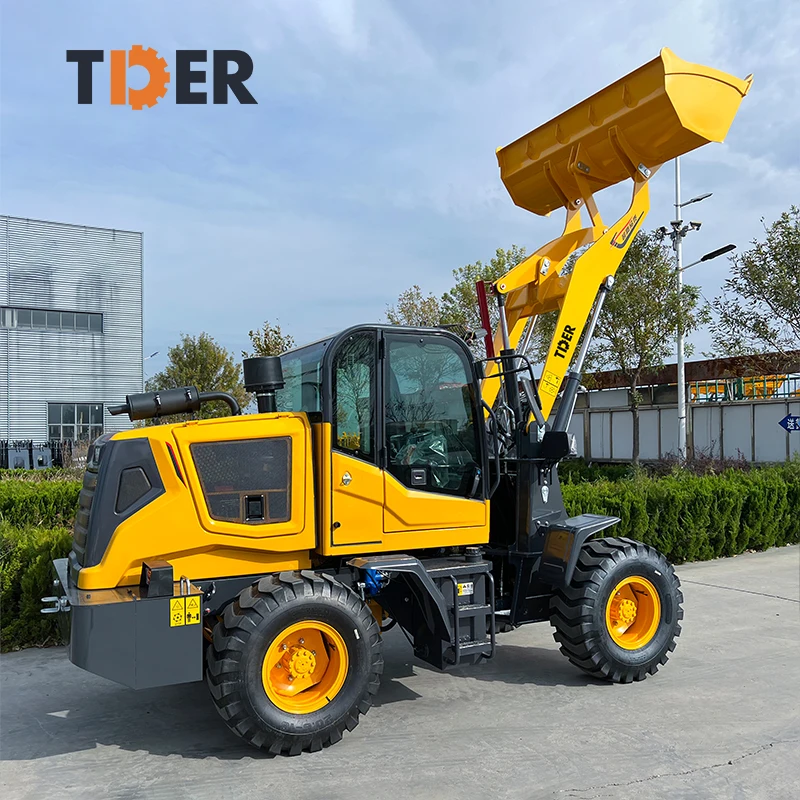

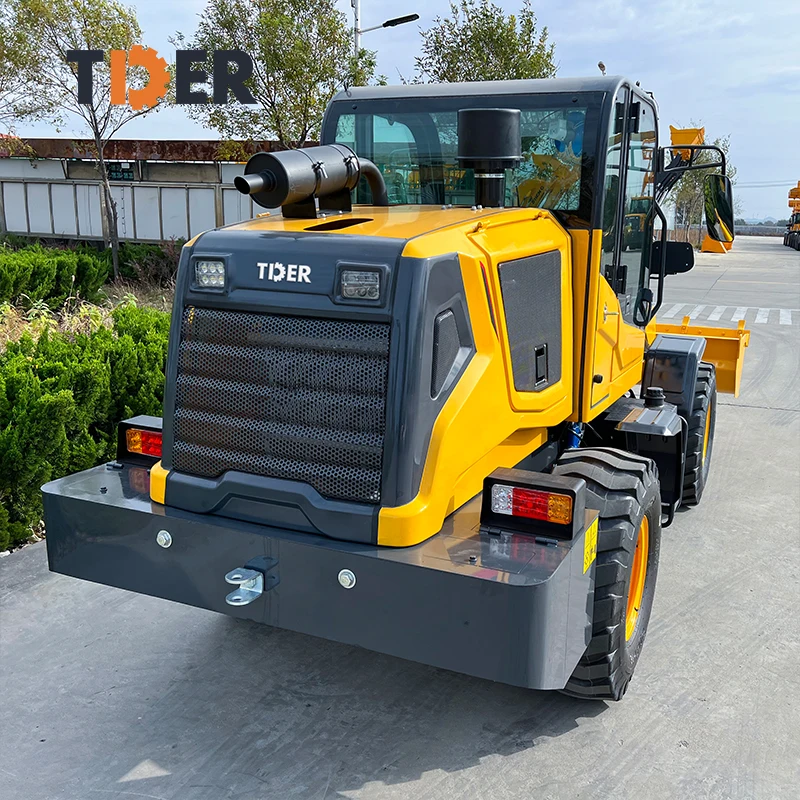

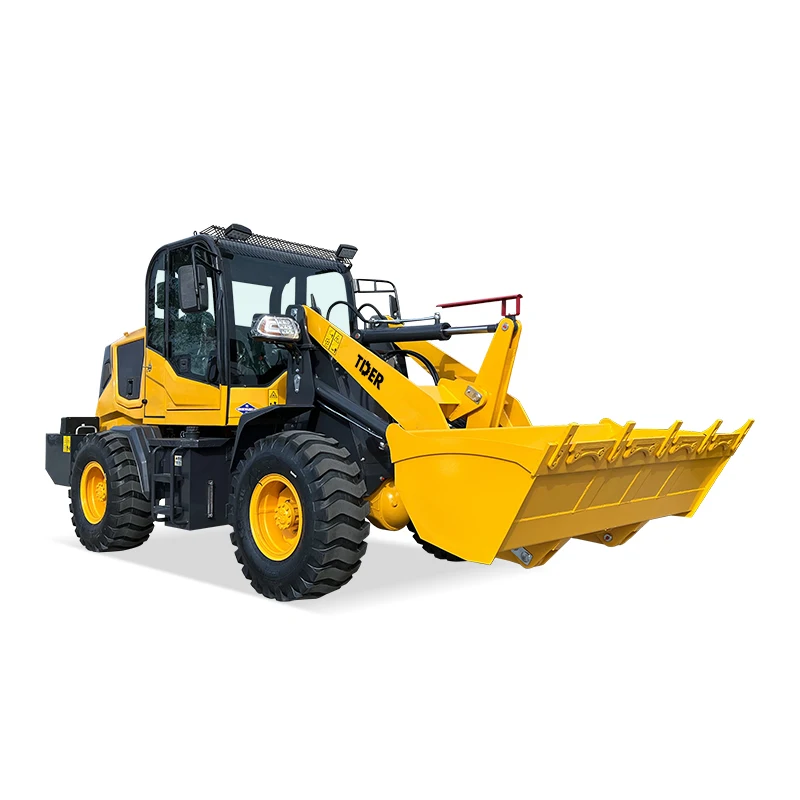

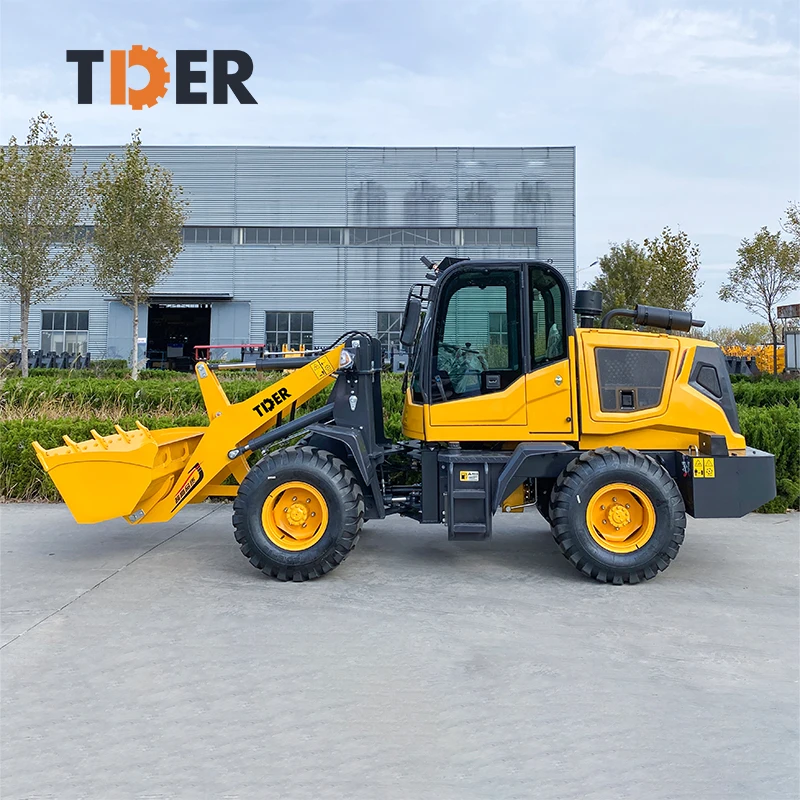

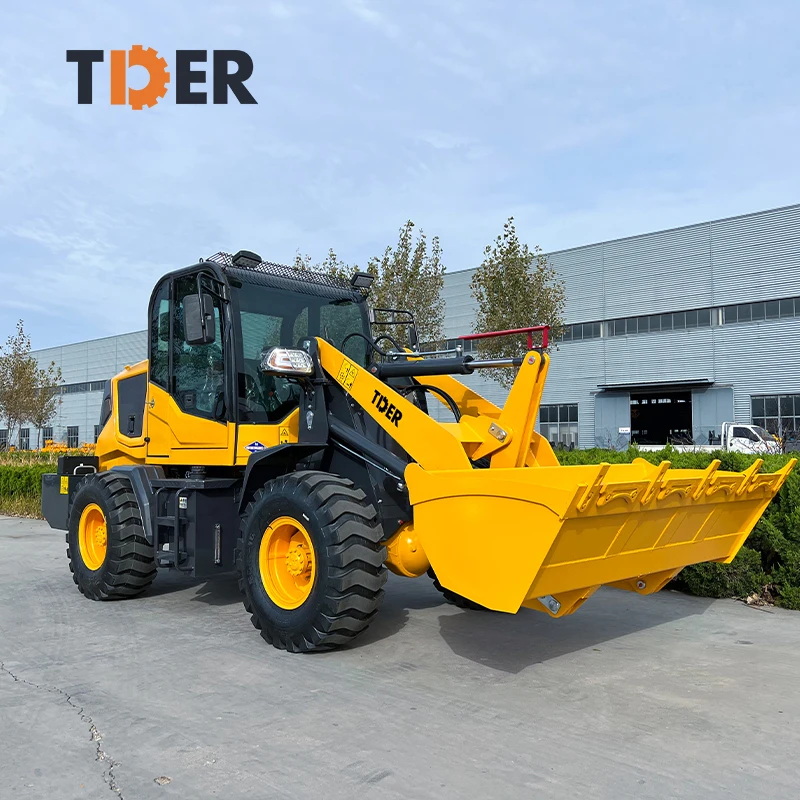

TDER Mini 1000 kg 1 ton wheel loader small compact cab wheeled loader
- Category: >>>
- Supplier: Xiamen Tder Industrial Co. Ltd.
Share on (1601278635849):
Product Overview
Description
Product parameters
Dimension | ||
Length X Width X Height | 5200x1820x2160mm | |
Wheelbase | 2400mm | |
Wheelbase | 1490mm | |
Unloading height | 2800mm | |
Corresponding unloading distance | 850mm | |
Minimum Ground Clearance | 300mm | |
Machine Parameters | ||
Bucket width | 1800mm | |
Bucket capacity | 0.55m3 | |
Rated load | 1000kg | |
Weight | 3100kg | |
Lifting center cylinder | inner 45 outer 90 | |
Lift side cylinder | inner 45 outer 80 | |
Standard Tires | 20.5-16 | |
Engine | ||
Brand/Emission | YUNNEI | |
Rated power | 42kw | |
Product details
1.Competitive price:
we manufacturer’s products are directly exported to buyers without the trading company in China.
2.Exclusive Patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety, such as Auto Cooling Technology on brake system improve the safety.And the dust-proof layer make the axle more durable.
3.Details in Structure:
Besides the special design of structure, full steel plate thickening, the thickness of lift arm and hinge plate reaches 60mm.
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.
4.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
5.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6. Optional accessories:
There are some accessories could be chosen by users ,such as engine, transmission, floating forks ,tire chain etc.
2.Exclusive Patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety, such as Auto Cooling Technology on brake system improve the safety.And the dust-proof layer make the axle more durable.
3.Details in Structure:
Besides the special design of structure, full steel plate thickening, the thickness of lift arm and hinge plate reaches 60mm.
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.
4.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
5.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6. Optional accessories:
There are some accessories could be chosen by users ,such as engine, transmission, floating forks ,tire chain etc.
Related Products
Attachments
TDER provides a variety of attachments, such as 4 in 1 Bucket,Angle Broom,Bale Spear and so on. You can also send us a request to customize your own attachments.
Spare Parts
Product packaging
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
Our Factory
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer feedback
Why Choose Us
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear customizable."
1. Why choose us?
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
