Product Overview

Description





Product Description


 Multi grid parallel grid connected inverter
Growatt MAX 124~150KTL3-X2 MV grid connected inverters are mainly used in industrial and commercial rooftop photovoltaic systems, large-scale photovoltaic power stations, and agricultural photovoltaic greenhouses. These inverters provide high-quality photovoltaic solutions for industrial and commercial customers with their characteristics of high power, high efficiency, high reliability, and intelligent management. Meanwhile, with the increasing emphasis and demand for renewable energy worldwide, the application prospects of these inverters will also be broader in the future.




Features

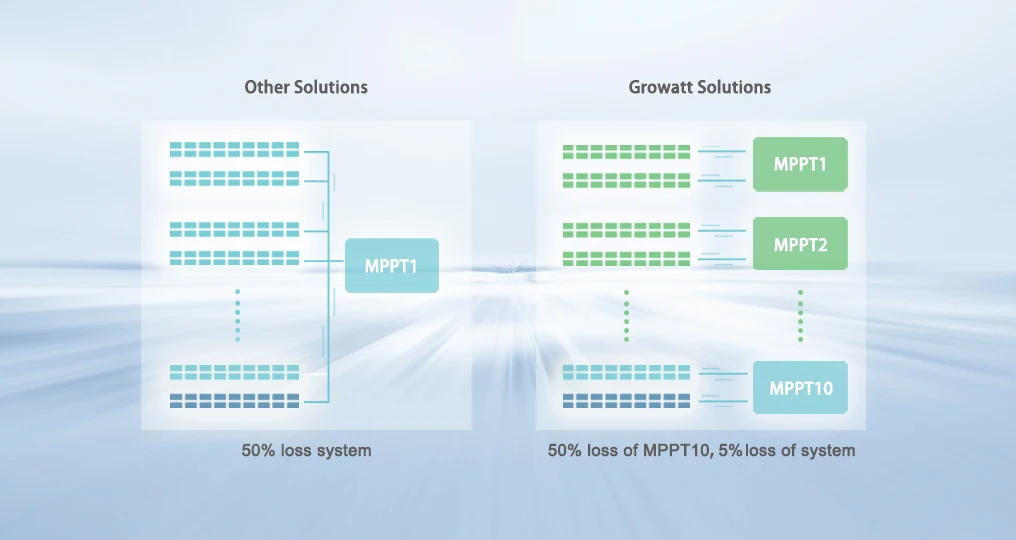

Multi channel MPPT design

10 MPPT channels, each of which can be connected to 2 sets of strings, maximizing the reduction of string adaptation losses and
bringing more power generation benefits.




Support high-power component access

The maximum input current of each MPPT is 32A, which can perfectly adapt to high-power components and double-sided components.


Product Paramenters


Datasheet
MAX124KTL3-X2 MV
MAX125KTL3-X2 MV
MAX136KTL3-X2 MV
MAX150KTL3-X2 MV
Input data (DC)
Max. recommended PV power
(for module STC)
186000W
187500W
187500W
204000W
Max. DC voltage
1100V
Start voltage
195V
Nominal voltage
720V
MPP voltage range
180V-1000V
No. of MPP trackers
8
No. of PV strings per MPP tracker
2
Max. input current per MPP tracker
45A
Max. short-circuit current
per MPP tracker
56.5A
Output data (AC)
AC nominal power
124000W
125000W
136000W
150000W
Max. AC apparent power
136400VA
137500VA
150000VA
165000VA
Nominal AC voltage(range*)
277V/480V
422-528VAC
AC grid frequency(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
164.1A
165.4A
179.9A
198.5A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W/PE
Efficiency
Max.efficiency
99.00%
European efficiency
98.50%
MPPT efficiency
99.9%
Protection devices
DC reverse polarity protection
Yes
DC switch
Yes
AC/DC surge protection
Type II / Type II
Insulation resistance monitoring
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
String detection
Yes
Anti-PID function
Optional
Arc fault detection (AFCI)
Optional
General data
Dimensions (W / H / D)
970/640/345mm
Weight
84kg
Operating temperature range
–30°C ... +60°C
Nighttime power consumption
< 1W
Nighttime power consumption
Transformerless
Cooling
Smart air cooling
Protection degree
IP66
Relative humidity
0-100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Cable gland+OT terminal
Display
OLED+LED/WIFI+APP
Interfaces: RS485 / USB / Wi-Fi/ GPRS/ RF/LAN
Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years
Yes /Optional
CE, IEC62116, IEC61727, UL1741, IEEE1547


Certifications

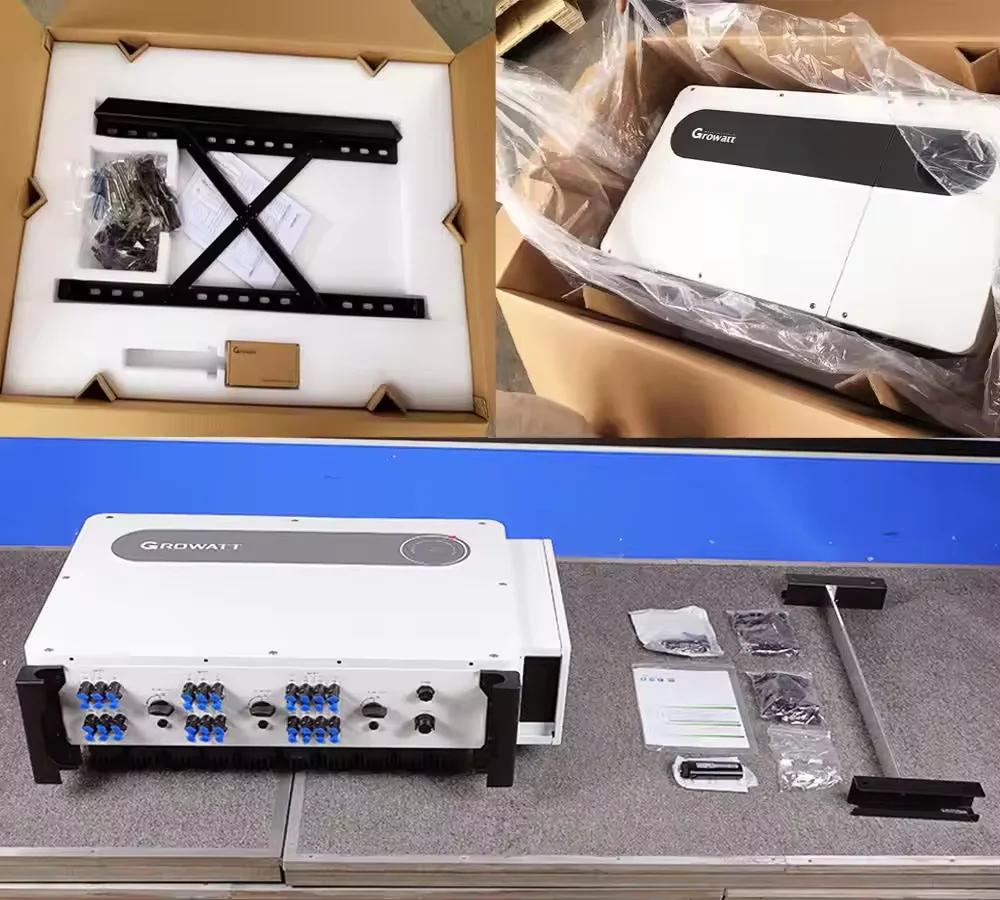

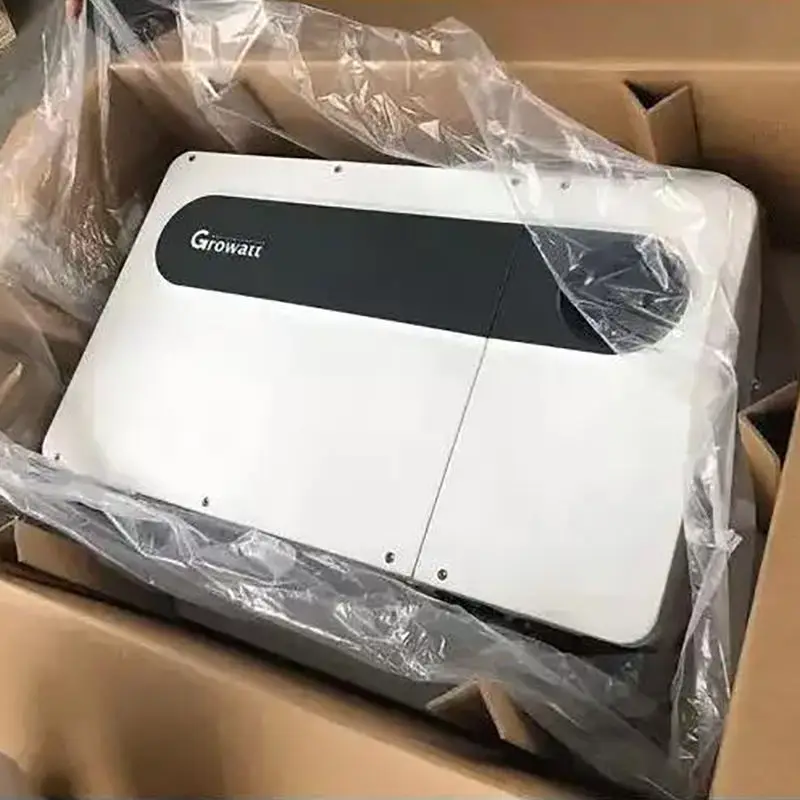

Packing & Delivery






Company Profile






The headquarters of Xiamen Kigienergy Technology Co., Ltd. Is located in Fujian, China.It is a high-tech enterprise specializing in the field of new energy. The core business includes the research and development, production, sales and service of solar panels, solar inverters, photovoltaic brackets, energy storage batteries, solar power generation systems, solar cleaning machines and other products, and undertakes large-scale photovoltaic power station projects to meet the requirements of different customers. Kigienergy's business covers more than 100 countries and regions and is widely praised around the world. Our company implements quality tracking management of its products, winning a high market reputation and being trusted by millions of customers around the world.
Employees: 160+
Professional R&D personnel: 50+
Production base area: 1,000 ㎡ Certificates: 30+
Patents: 60+
Enterprise government credit rating: AAA+




FAQ


Q: How long is the delivery time of your products?
A:Stock products need around 15days. Customized products will base on the quantity.

Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.

Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.

Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
