2024 new Glasses Cristal Cube 3d Crystal Laser Subsurface Engraving Carving Machine
- Category: >>>
- Supplier: Shandong Pratt Cnc Machinery Co. Ltd.
Share on (1601278709074):
Product Overview
Description
Sample Display
3D laser inside engraving machine is professional to engrave 3D photo of the crystal cube or glass by laser.
3D crystal laser engraving machine can be widely used to open a shop in malls or tourism place, even can open a shop on line for 2D, 3D crystal photo engraving , art photo engraving, personalized crystal gift engraving , high precision crystal product mass processing , glass decorating , glass marking , high-grade glass anti-counterfeiting and other areas
3D crystal laser engraving machine can be widely used to open a shop in malls or tourism place, even can open a shop on line for 2D, 3D crystal photo engraving , art photo engraving, personalized crystal gift engraving , high precision crystal product mass processing , glass decorating , glass marking , high-grade glass anti-counterfeiting and other areas
Product Overview
1) Machine no consumables, no need to change the spare parts, just power is ok.
2) Import germany laser can working 25000 hours,whole machine can be use more then ten years. and can continue 24 hours working.
3) Free computer Free 500 design photo Free，English menu, Free training 3-5 days,Free make sample for you
4) 2 years whole machine warranty, life-time maintenance service,any problem we can solve on- line by special software.
5) Large engraving area 320*400*150 , fast speed 5KHZ (5000dos/s), good for qty and large size glass engraving.
2) Import germany laser can working 25000 hours,whole machine can be use more then ten years. and can continue 24 hours working.
3) Free computer Free 500 design photo Free，English menu, Free training 3-5 days,Free make sample for you
4) 2 years whole machine warranty, life-time maintenance service,any problem we can solve on- line by special software.
5) Large engraving area 320*400*150 , fast speed 5KHZ (5000dos/s), good for qty and large size glass engraving.
Product Paramenters
Laser Pumping Type: Diode semiconductor | Average Output Power: 1.5W | |
Laser Wave Length:532nm | Max. Monopulse Power: 1.2mJ | |
Laser Beam Quality: M2 | Q adjusting: Acousto-optic | |
Pulse Width: 7ns | Frequency: 3000HZ(4000HZ,6000HZ for option) | |
Max. Working Range: 300*400*150mm | Max. Engraving Speed: 3000 dots/s (4000 dots/s, 6000dots/s for option) | |
Focal Length:100mm(120mm,165mm for option) | Focus Diameter: 0.02mm | |
Resolution: 500-1200DPl | Cooling: Air Cooling | |
Lifetime of Laser module: 20000 hours | Moving Mode: Five axis linkage | |

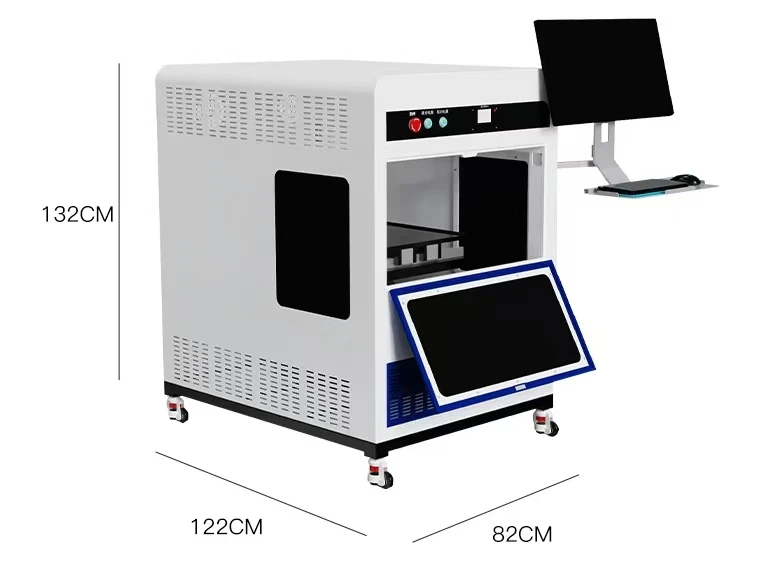

Power supply: AC 220V+10%,50Hz | Dimensions & Weight: 790*940*1000mm, 140kg | |
Working Environments: Clean, no dust, no epicenter, better under air-conditioned environment | ||
Product feature
Wide range of application materials with Multi Functions.
There is no limit of the materials, could engrave various patternsand letters into the inner of transparent materials, such ascrystal, glass, acrylic, zircon, etc.
Moreover, the device can also engrave on the surface of opaquematerials such as metals and non-metal. Thus the machineachieve the purpose to be a multi-purpose machine.
Easy operation, flexible and convenient.
Equipped with very simple software, it only needs one hour for anewcomer, who can operate computer, to operate this machineindividually.
It can not only be used for volume production, but also for customizedproduction.In volume production, one person can operate severaldevices to save manpower.
It can not only be used for volume production, but also for customizedproduction.In volume production, one person can operate severaldevices to save manpower.
Both 2D and 3D functions.
The machine could make two dimensions graphic photoschildren's hands and feet, trophies and medals as well as 3Dportraits and various 3D models.
.
No dust and no pollution.
Because the laser is engraved and processed inside the crystal, glass,acrylic, there is no any damage on the surface, so no any pollutionrelease.
Design of integrated z axis and XY axis.
This design makes higher engraving accuracy and better
perormance.
Wear resistance, cannot be altered.
As engraved pattern is inside the materials and no any cracks or damage on the surface, so cannot be altered with acid and alkali, solvents, heat,friction to remove.
Fast engraving speed, fine and uniform.
For engraving portrait in 368 crystal, it takes only two or three minutes to complete with high quality.
Low power consumption.

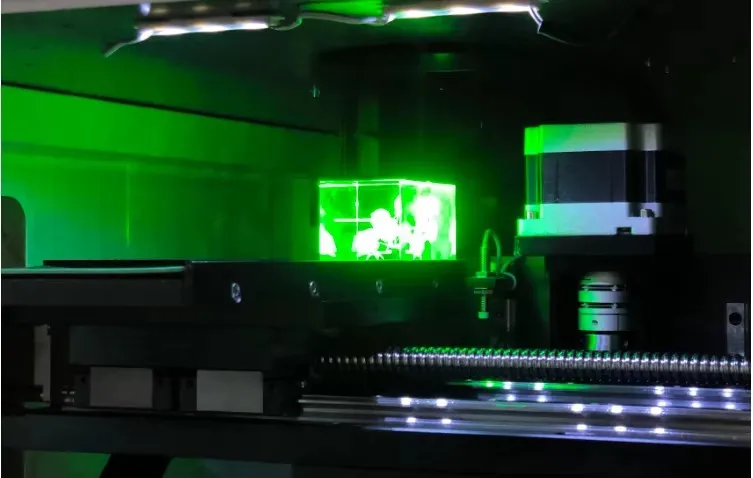

Details Images

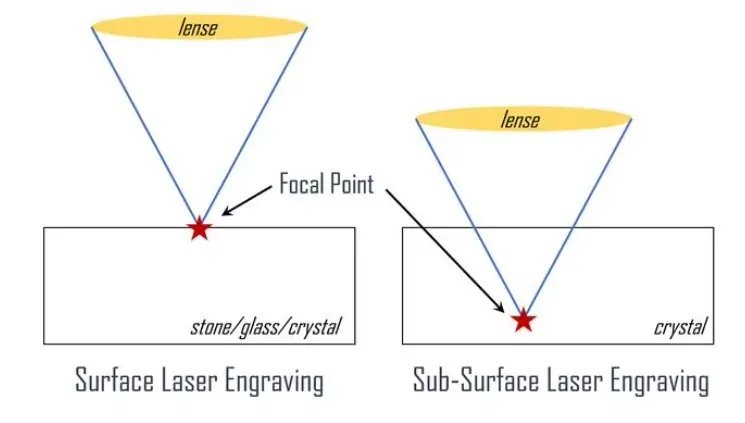

Engraving Principle
Engraving laser will be a certain wavelength of laser into the glass or crystal inside, so that the internal specific parts of the subtle burst to form bubbles, so as to outline the preset shape of the processing process, also refers to the processing out of this process. Laser "is the most useful tool for engraving artificial crystals (also known as" crystal glass "). Using the laser interior engraving technology, the plane or three dimensional pattern is "engraved" on the inside of the crystal glass
Hi-Speed Field Lens from Singarpore
Hiwin Power Supply from Taiwan
Universal Wheel Easy to Move
DIODE laser source from Germany
Panasonic Guide Rail from Japan
Precise Laser Control Card

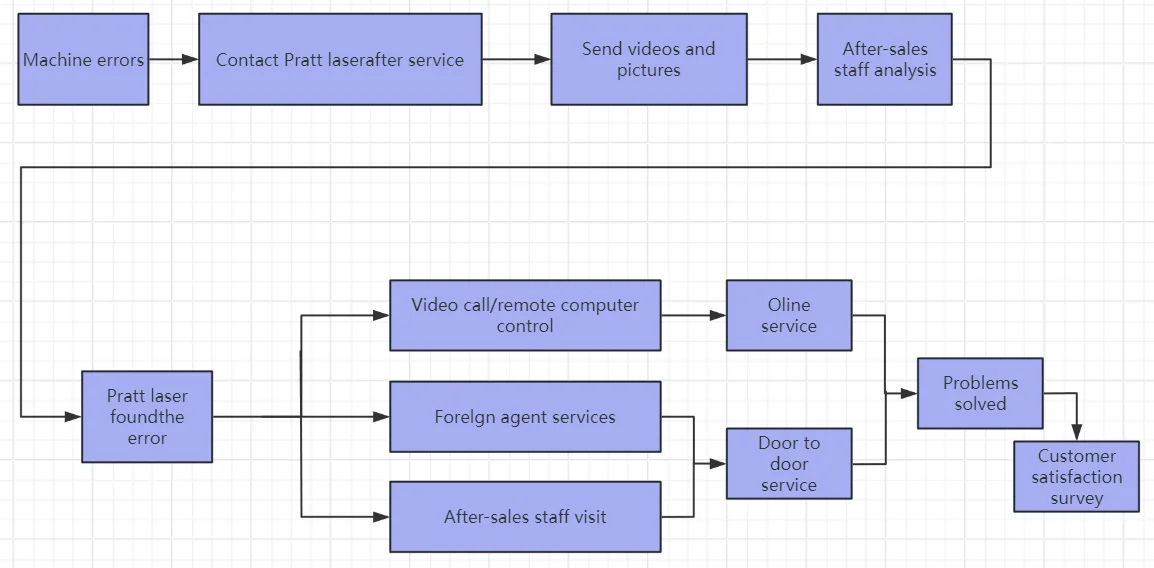

After-sales service process
FAQ
1.How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
8.How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give you the link to orde.
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
8.How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give you the link to orde.
