Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor
Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor
Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor
Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor
Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor

Full HD Endoscope Camera Orthopedic Endoscopy with 19inch HD monitor

Share on (1601278713539):


Price:

Quantity:


Product Overview

Description





Products Description


Item ID
YKD-9101
Camera
1/2.8 /Inch Full HD SONY CMOS, 1/3 Inch SONY CMOS
Image Size
1920x1080P
Frame rate
(1920x1080)60fps
Scanning System
Progressive scanning
Pixels
2,100,000 Pixels
Resolution
1080P
LED Light Source
80W, Cold Light Source
Video Output
DVI, HDMI,CVBS
Minimum Illuminance
0.5LUX
Color Temperature
5100-7000K
Luminous Flux Value
≥800lm
Color Rendering Index
≥90
/Monitor
19 INCH
AC Input
AC100-240V 50/60HZ
Video Recording
Build-In USB
Weight
9.35kg
White Balance
AWB & MWB
Dimension(mm)
461*402*105
Camera Control
WB & Photo Capture
SNR
50dB, Tolerance 20%

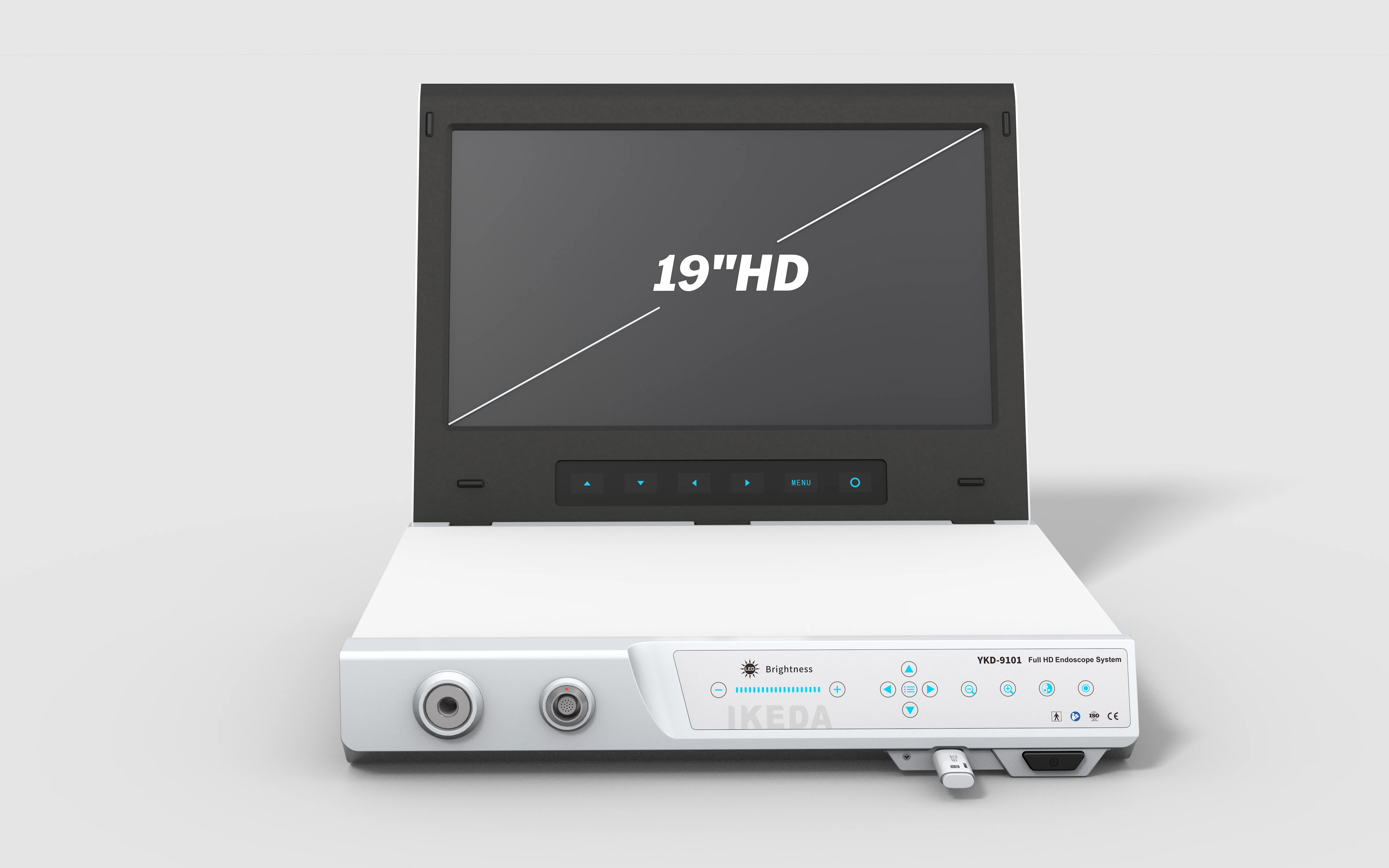

YKD-9101 video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

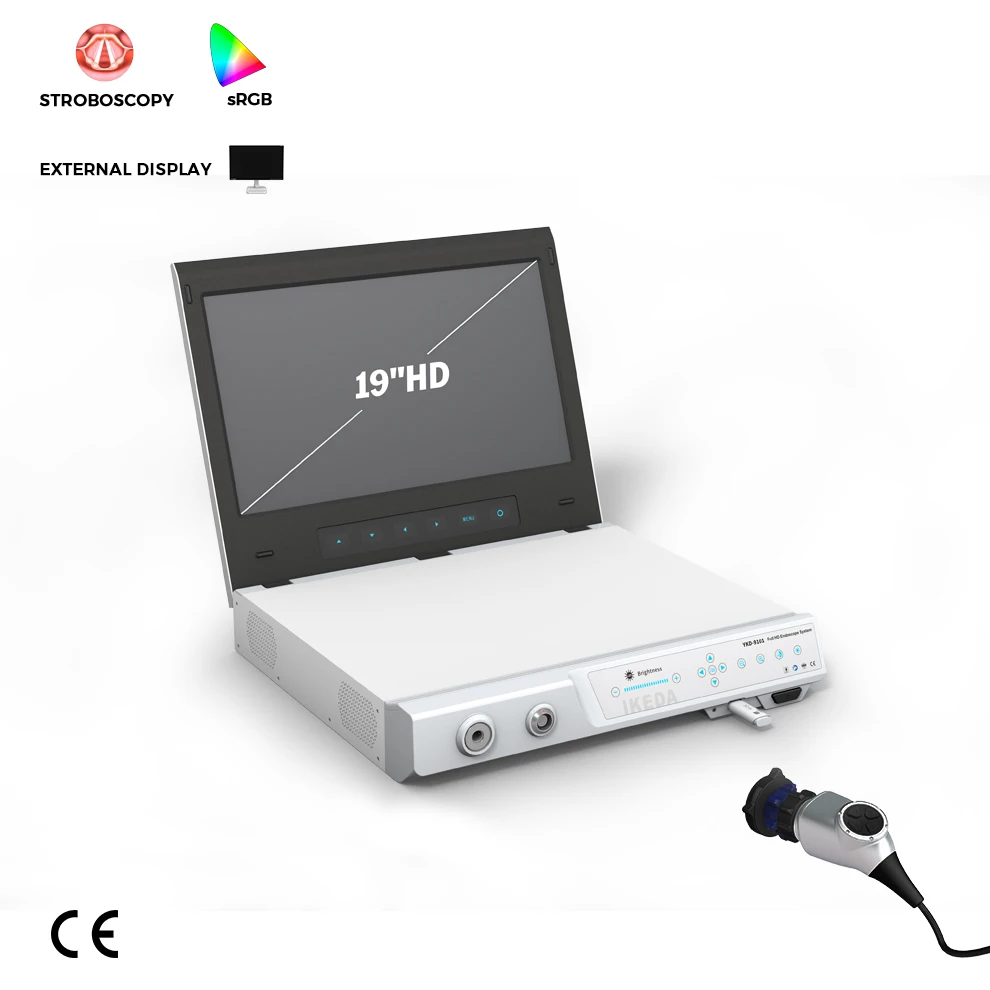

4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.
Medical Grade HD Monitor : 19 Inch.
Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.
Optional Extra Aluminum Crate : easy to carry and save shipping cost.
Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.

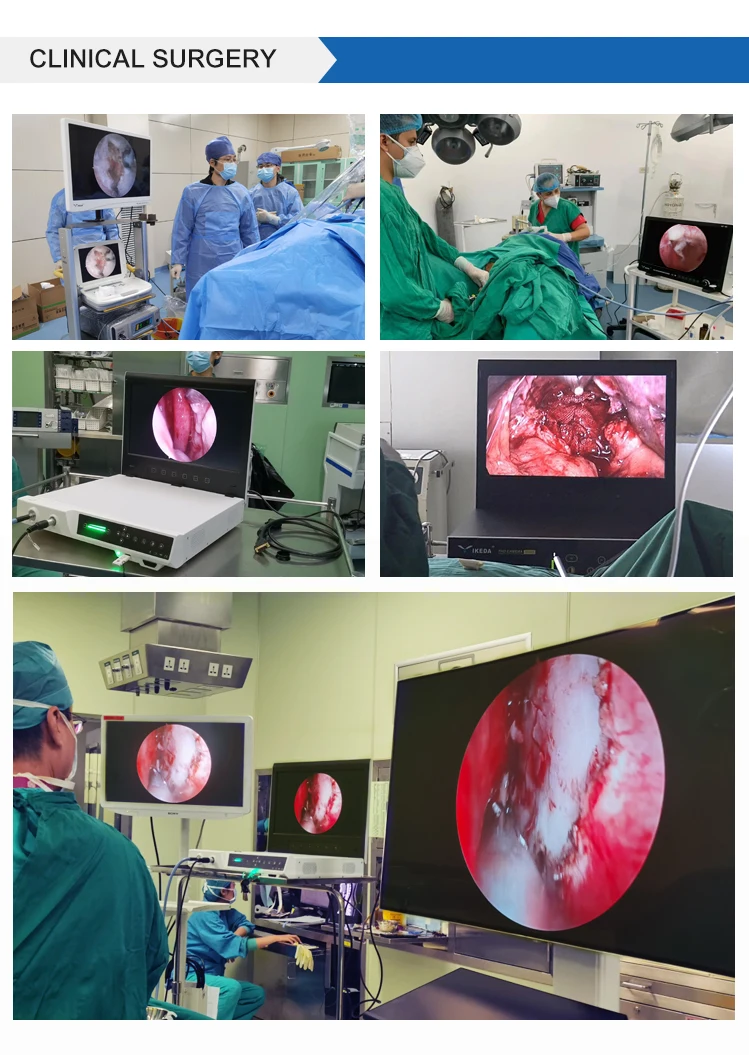

IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.

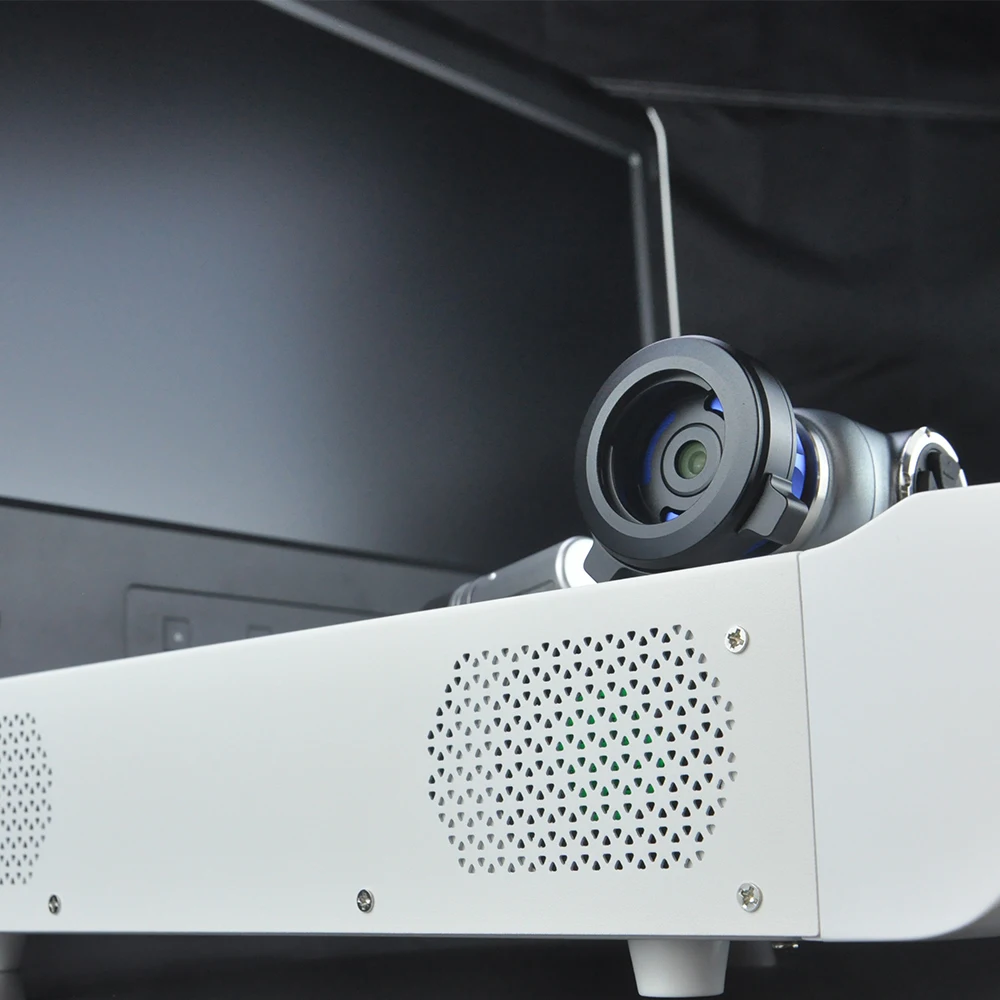

FULL HD CAMERA

We can define auto white balance as the adjustment that allows the camera to select the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and
maximizing your clinic’s productivity at minimum costs.

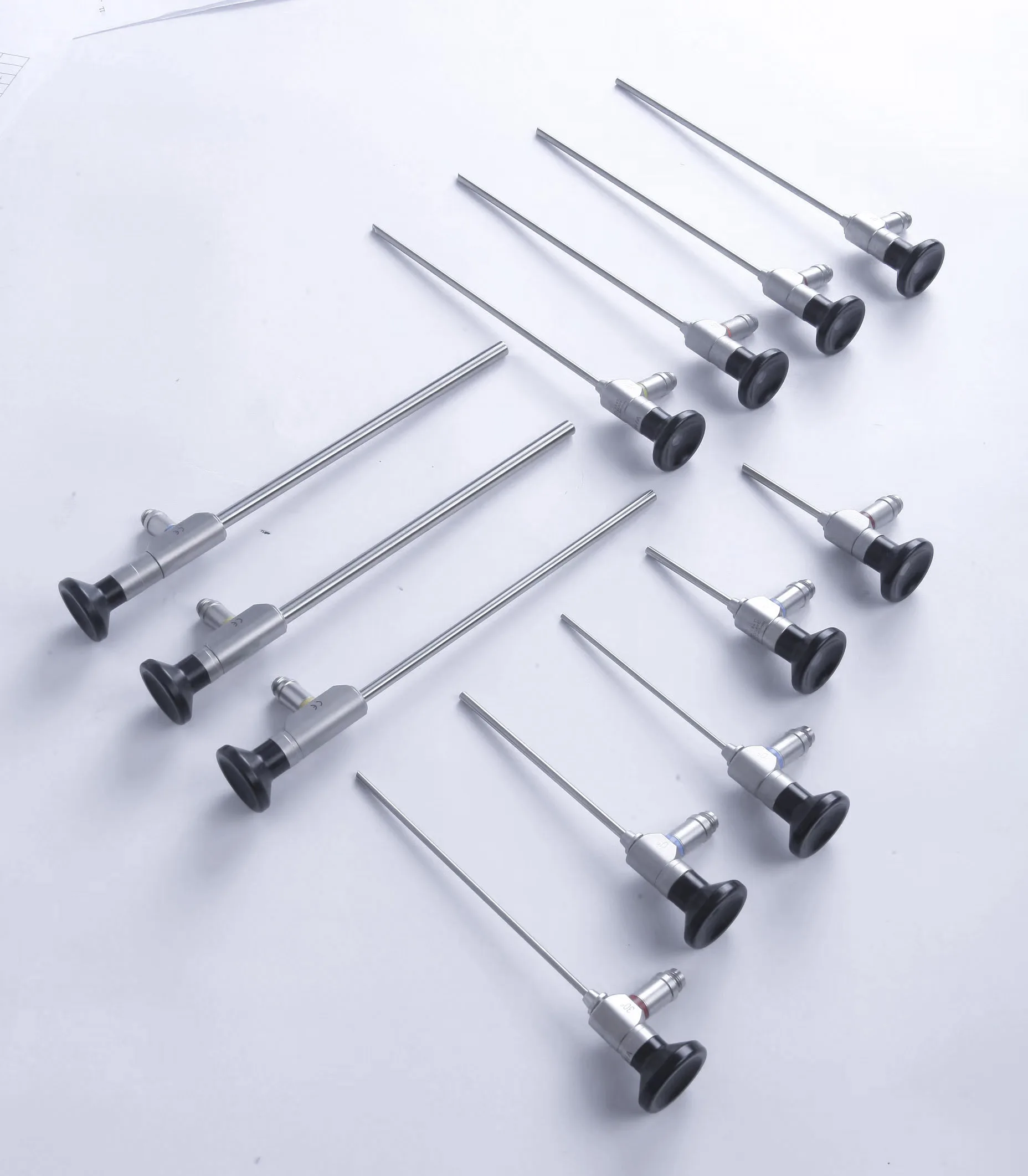

RIGID ENDOSCOPES

Adaptable to wide range of rigid endoscopes such as laparoscopes, hysteroscopes, cysteroscopes, arthroscopes, sinuscopes. We offer you High Magnification, High Definition, High Definition plus and 4K endoscopes.

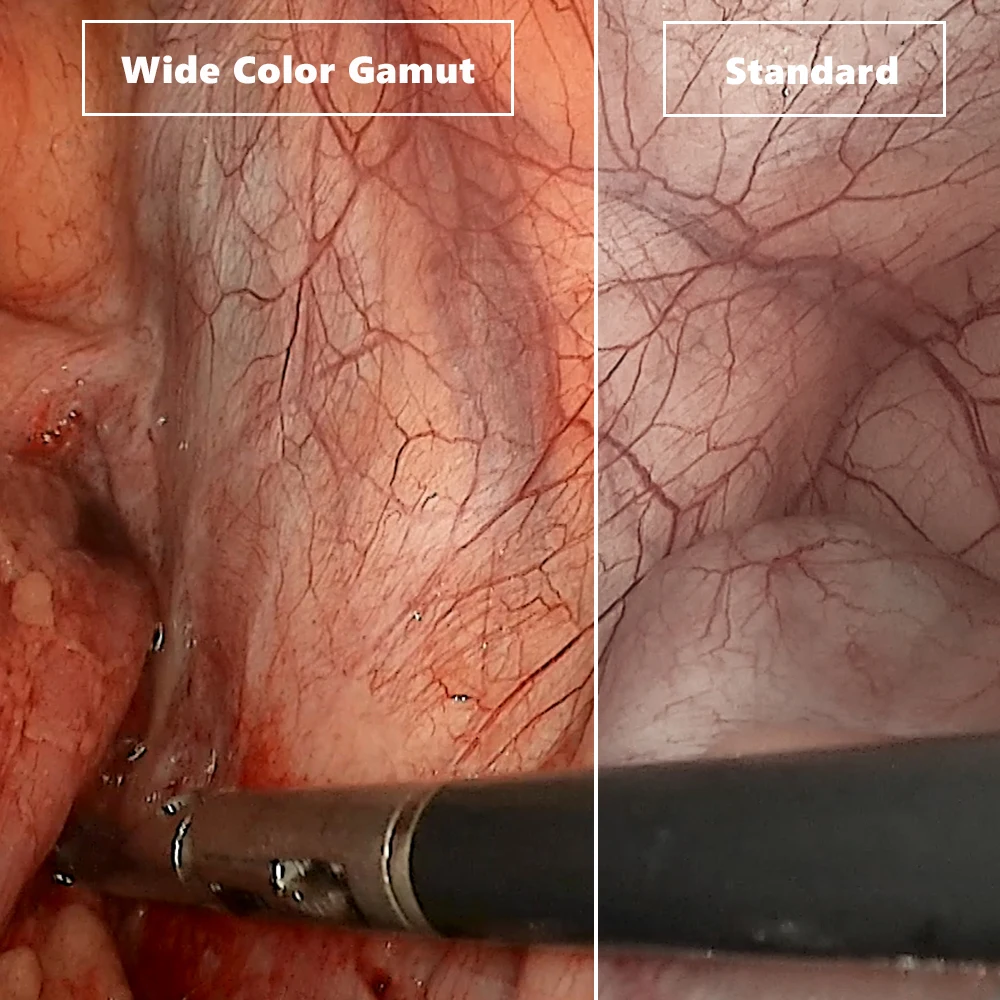

THE ULTIMATE IN BRILLIANCE

Enjoy rich, accurate colours and deeper contrasts with crisp detail. The smallest colour differences are accurately reflected, providing clearer, richer and more realistic colours.



IKEDA is always trying to achieve laparoscopic visibility that is equivalent to open surgery by providing HD video imaging systems with advanced technologies.
They introduce a range of new, easy-to-use technologies that aim to revolutionize the way medical disorders can be detected, characterized and sampled. We want to support every endoscopist. In every procedure. Every day.



Latest Reviews




Company Profile






Certificates




Exhibition




Packing & Delivery




FAQ


IKEDA has devoted itself to offering OEM/ODM services to domestic and foreign endoscopy clients since its first day of establishment. We have a professional R&D Team who has rich experience and expertise in the fields of digital video transmission and electronic component controlling. IKEDA is equipped with a PCB circuit board production line and has professional dust-free environmental workshops to meet OEM/ODM service for our domestic clients and overseas clients.

The Main OEM/OEM service is for medical endoscopy Full HD 1080p/4K camera system, medical LED cold light source, Laparoscopic CO2 insufflator, and all the stuff for ENT/Gynecology/Arthroscopy/Laparoscopy/Urology.

Q1:Are you a Factory or trading company?
A1: We are a factory which is located in Xuzhou, China. Our company has been specialized in medical instruments for 20 years.

Q2: What is your quality control process?
A2: We are certified with ISO, and strictly follow the ISO procedures. We do 100% testing for medical instruments and endoscopes before the order is delivered.

Q3:What is Certificates do you have?
A3:We have CE and ISO 13485 certificates.

Q4:What is the after-sales service?
A4:We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complaints and feedback. Our warranty is 2 years.

Q5:What is your Delivery Time?
A5:3-5 days after order confirmed.

We will make the delivery as soon as possible after receiving the payment.
