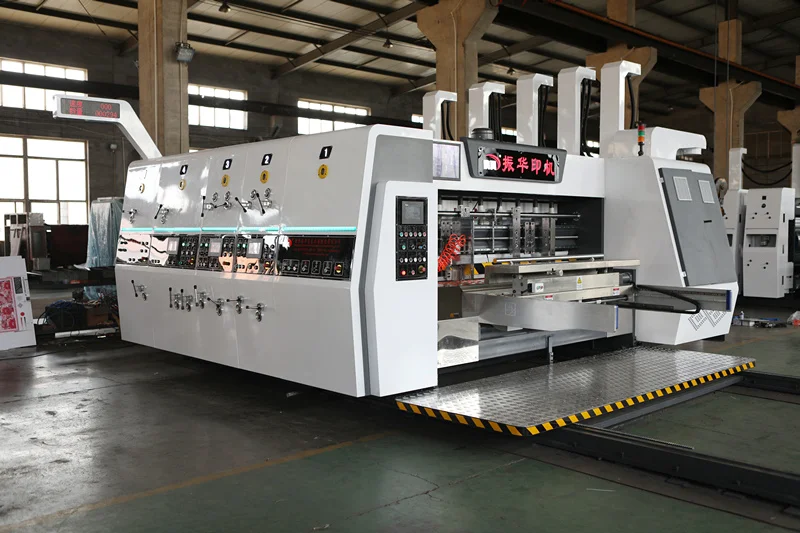

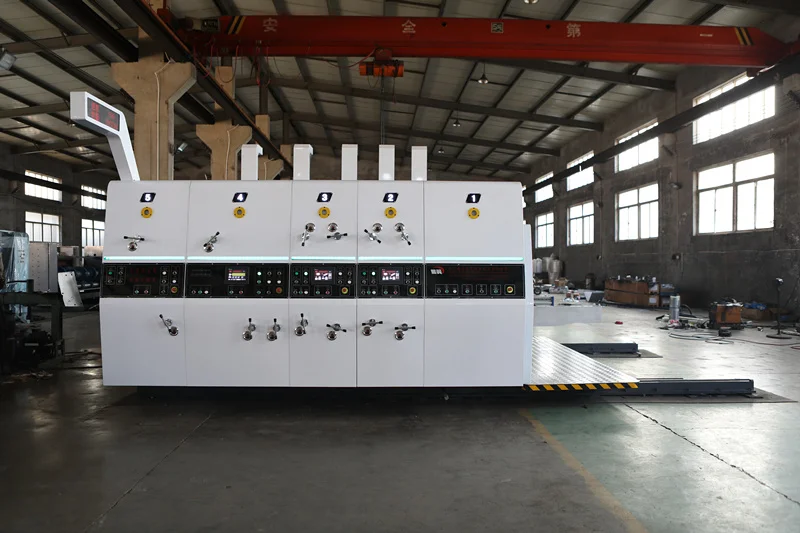

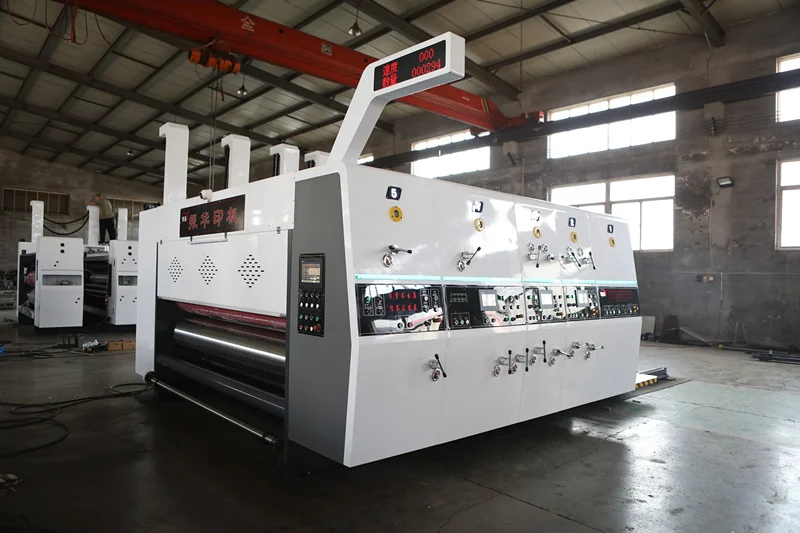

SYKM High Speed Printing Die Cutting Slotting Corrugated Packing Rotary Die Cutter Printer Pizza Box Machine
- Category: >>>
- Supplier: Cangzhou Golden Wings Machinery Co. ltd
Share on (1601278716630):
Product Overview
Description
Modle | 920 | 1226 | 1428 | 1630 | |||||
Wall board thickness(mm) | 50 | 50 | 50 | 50 | |||||
Walboard distance | 2000mm | 2600mm | 2800mm | 3000MM | |||||
Max Machine Speed(pcs/min) | 300 | 250 | 200 | 180 | |||||
Economic Working Speed(pcs/min) | 100-250 | 100-220 | 100-150 | 80-120 | |||||
Max. Feeding Size(mm) | 900x1750 | 1200x2350 | 1400x2550 | 1600x2750 | |||||
Max. Printing Size(mm) | 900x1600 | 1200x2200 | 1400x2400 | 1600x2600 | |||||
Min. Feeding Size(mm) | 260*500 | 290*500 | 380*600 | 450x700 | |||||
Skip-feeding Size(mm) | 1100x1750 | 1500x2350 | 1700x2550 | 1800x2750 | |||||
Standard Plate Thickness(mm) | 7.2 | 7.2 | 7.2 | 7.2 | |||||
Min. slotter distance positive（mm） | 145x145x145x145 | 150x150x150x150 | 160x160x160x160 | ||||||
Min. slotter distance negative（mm） | 215x60x215x60 | 255x60x255x60 | 260x65x260x65 | ||||||
Max slotter depth(mm) | 220 | 300 | 350 | 450 | |||||
Suitable Cardboard Thickness(mm) | 1.5-12 | ||||||||
ZHENHUA-SYKM High-speed water-based ink printing slotting die-cutting and stacking machine is an advanced printing equipment that combines high-speed water-based ink printing technology with slotting die-cutting and stacking functions, aiming to improve the efficiency and quality of printing production lines. The machine is highly automated and intelligent, and can quickly and accurately complete printing, slotting, die-cutting and stacking processes.

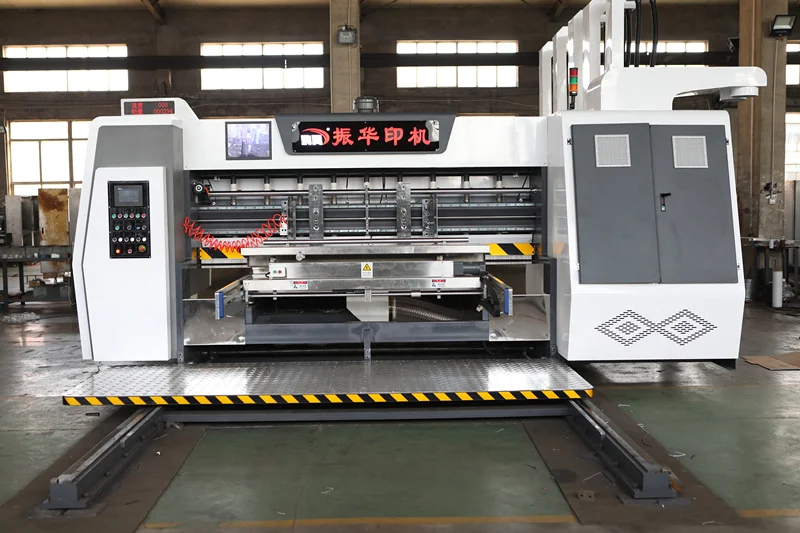

01 LEAD EDGE FEEDER UINT
1.Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feedingcardboard, the blowing rate is adjustable by the transducer according to the degree ofcrook of cardboard in order to transmit cardboard smoothly.
2.The main control pannel is composed of control buttons and touch screen, which is veryconvenient and reliable. 3.The machine is launched by pressing the start button with two hands, which ensure theoperator's safety.
4.The side plate is electrical adjusted automatically while the backstop is adjustedmanually
4.The side plate is electrical adjusted automatically while the backstop is adjustedmanually
5.Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
6.The upper transmission roll is made of seamless steel tube, the surface is coveredwearproof rubber, which is also good at avoiding crushing the cardboard.
7.The lower transmission roll is made of seamless steel tube, with the treatment of grinding,embossing, and chrome plated.
6.The upper transmission roll is made of seamless steel tube, the surface is coveredwearproof rubber, which is also good at avoiding crushing the cardboard.
7.The lower transmission roll is made of seamless steel tube, with the treatment of grinding,embossing, and chrome plated.
8.The transmission between the upper and lower transmission roll is driven by double slidercoupling, which is good at reducing wear down and transmitting smoothly.
9.The transmission shaft equipped with electromagnetic friction clutch, for avoidingdamaging the motor in case of misoperation or overload.
10.Automatic counter for recording the cardboard supply quantity to show the output.
9.The transmission shaft equipped with electromagnetic friction clutch, for avoidingdamaging the motor in case of misoperation or overload.
10.Automatic counter for recording the cardboard supply quantity to show the output.

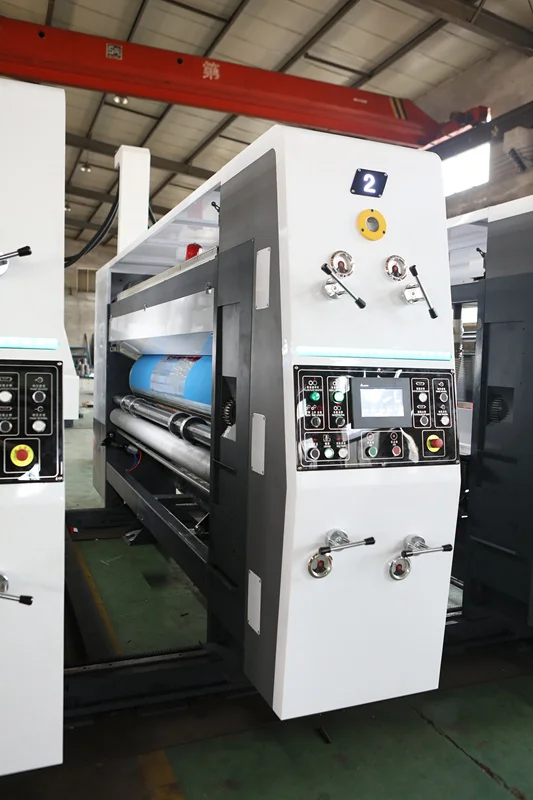

02 PRINTER UNIT
1.Gear enclosed spray lubrication system, key less drive design, so that accurate long-term chromatic unchanged. High-speed ink Printing Slotting Machine Manufacture.
2.Frequency control system to control becomes easy and flexible. Each group of printing unit
is equipped with jogging button for easy control and loaded rubber plate.
3.Each printing unit can be electrical separation. Printing Slotting Machine.
4.High-precision ailox roller, diameter 195 mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the
printing effect is clear and beautiful.
5.Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine. saving ink. Automatic cycle supply. Cleaning with clean water can be.
6.Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
7.The rubber roller is use high quality hard wearing rubber,and with the middle of are latively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine. 8.Phase institutions is 360-degree Electric adjustment, ergonomic design.
is equipped with jogging button for easy control and loaded rubber plate.
3.Each printing unit can be electrical separation. Printing Slotting Machine.
4.High-precision ailox roller, diameter 195 mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the
printing effect is clear and beautiful.
5.Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine. saving ink. Automatic cycle supply. Cleaning with clean water can be.
6.Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
7.The rubber roller is use high quality hard wearing rubber,and with the middle of are latively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine. 8.Phase institutions is 360-degree Electric adjustment, ergonomic design.
1.Gear enclosed spray lubrication system, keyless drive design, so that accurate long-termchromatic unchanged. High Speed Flexo
Printing Slotting(stacking Unit).
Printing Slotting(stacking Unit).
2.Phase institutions is 360-degree Electric adjustment, ergonomic design.
3.Four-blade sync adjustment for carton height.
4.Serrated slotted cutter.Thickness: 7mm.
5.Slotter and creaser combined movement
3.Four-blade sync adjustment for carton height.
4.Serrated slotted cutter.Thickness: 7mm.
5.Slotter and creaser combined movement
04 DIE-CUTTING UNIT
1.Rubber roller mechanical spiral commutation 40mm move about horizontal structure.
2.Die-cutter phase, computer and electric
digital control.
digital control.
3.Horizontal phase, computer and electric digital control, range *5mm.
4.Rubber roller and die roller gap use
computer and electric digital control.
computer and electric digital control.
5.Adjust the transfer roller use computer and electric digital control.
6.The rubber roller compensated by motor-driven,control the speed of thr rubber roller. range ±3mm.
05 Vibrator Stacker
1.Paperboard collection arm
1)Operation by manual or automatic.
2) For belt of paperboard collection arm, the tightness is saperated adjustment,
3) The speed of stacking paper is adjusted in a certain range.
2.Paper waster stripper
1)Heavy duty design
2)Vibration type
2)Vibration type
3.The bed platform lift
1) Strong chain drives
2) The stacking height is 1600mm
3) The drive motor of bed platform lifting is with brake function, it can make the bed platform staying in fixed position and not fall. 4.Paper collection board
1) The paperboard collection board is with pneumatic action, when the cardboard is piled up to the predetermined height, the paper tray authentically sticks out and holds the cardboard.
2)The backboard position is adjusted manually.
3)The surface with wrinkle belt, to prevent the cardboard slide.
1.High precision bevel gear, adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear,transmission gear of high
strength, good wear resistance, low noise, longtime ensure the machine rotation precision.
strength, good wear resistance, low noise, longtime ensure the machine rotation precision.
2.Lubrication adopt closed type spray
lubrication system, to ensure transmission accuracy and use-life.
lubrication system, to ensure transmission accuracy and use-life.
Main feature
High-speed production: The high-speed ink printing slotting, die-cutting and stacking machine performs printing,slotting, die-cutting and stacking operations at excellent speeds, greatly improving production efficiency.
Precision and Consistency: These machines are equipped with advanced control systems that ensure consistent high quality with every print and enable precise grooving and die-cutting.
Automation: The high-speed ink printing slotting die-cutting and stacking machine can realize a highly automated production process, reducing the need for human intervention and reducing labor costs.
Versatility: These machines are versatile enough to suit a variety of printing and packaging needs, from simple carton making to complex box manufacturing.
Space Saving: Due to the compact design, these machines occupy less space, making them suitable for various printing factories.
Advantage
Improve production efficiency: The high-speed operation and automation functions of the high-speed ink printing slotting die-cutting and stacking machine can significantly increase the output of the printing production line and reduce production time.
Reduced costs: By reducing manual intervention and scrap rates, these machines can reduce production costs and improve production efficiency.
Superior quality: The machine's precise control and high degree of automation ensure high quality and consistency for every print.
Flexibility: High-speed ink printed slotting die-cut stackers can be adjusted to different printing and packaging needs, making them ideal for a variety of products.
Environmental protection: Using high-efficiency equipment can reduce energy consumption and waste production, helping to reduce the impact on the environment.
