AI camera 1080p Monitor Built in Recorder For Truck Trailer Harvester Rear view System forklift application reversing camera

Share on (1601278728831):


Price:$185.00 - $250.00

Quantity:


Product Overview

Description



Product Description


Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly
monitor the vehicle's rear view monitor image screen. This is especially true in situations where no reverse radar warning
system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses.

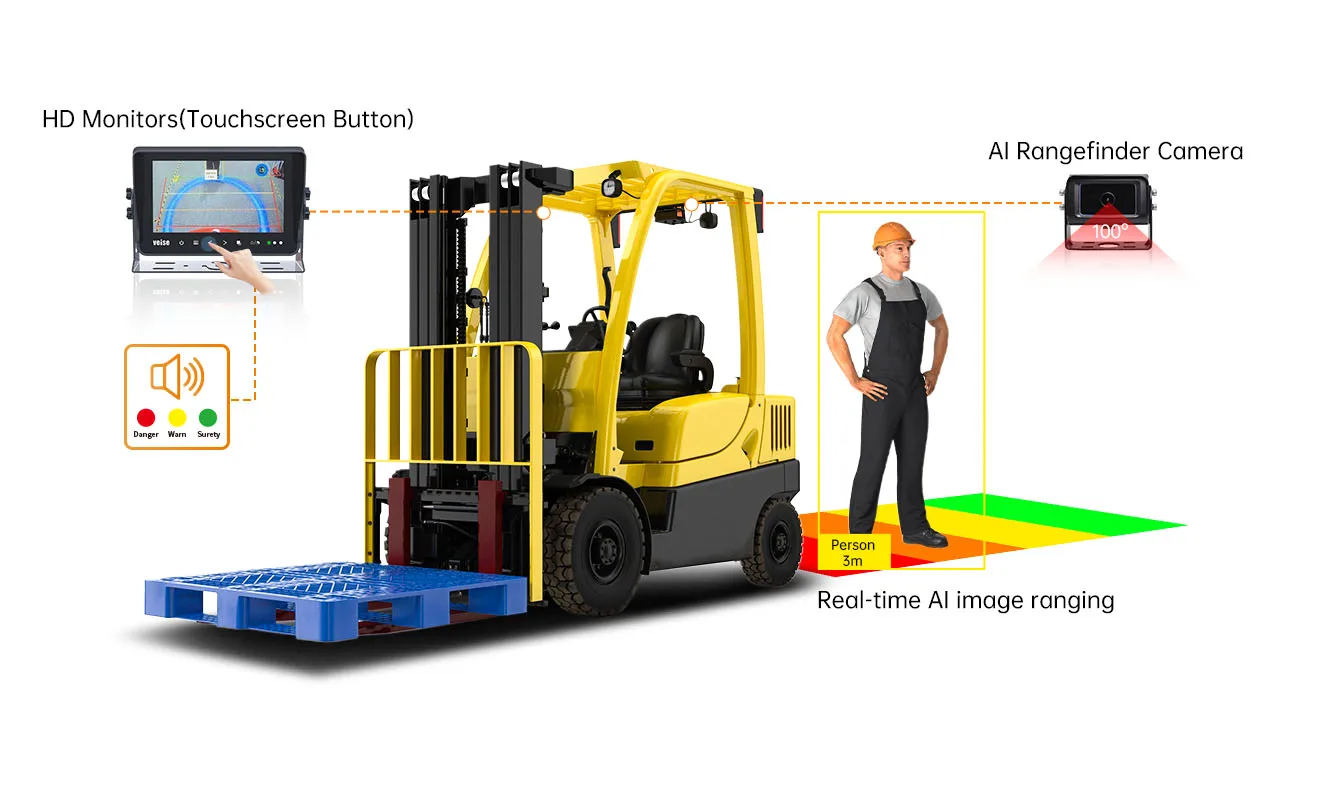

The AI pedestrian detection warning rear view system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI human shape analysis camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. This system is widely used in trucks, forklifts, buses, and construction vehicles.




Specification






System Model
HDS-7171J122MAI1

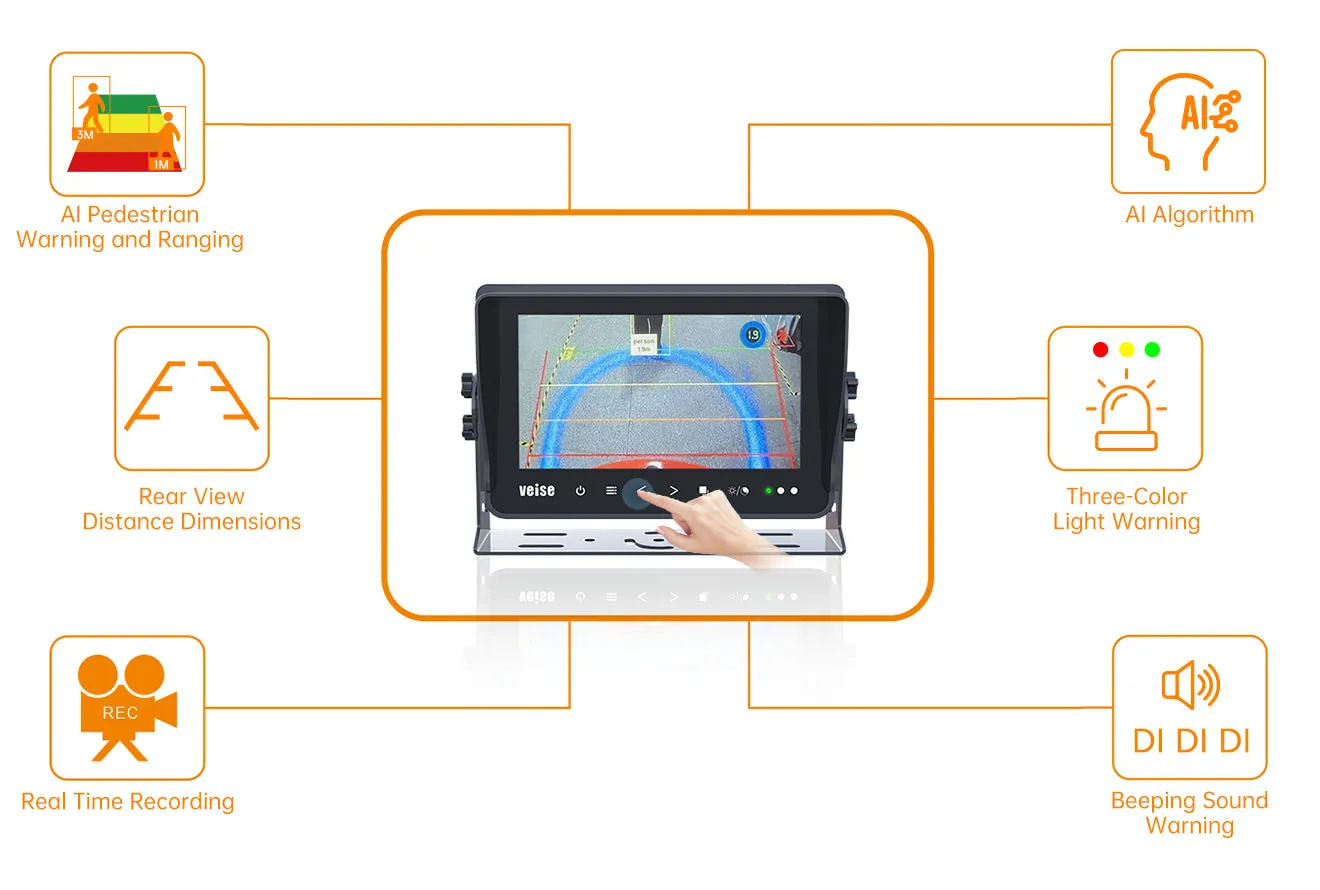

HD Monitor
MHD-7171J
Color Screen
7-inch IPS screen
Resolution
1024RGB(H) X 600(V) dot
Video Input
2-channels
Screen Mode
Single screen
Video Signal Input
CVBS / AHD 720P / 1080P
AI Pre-warning signal input

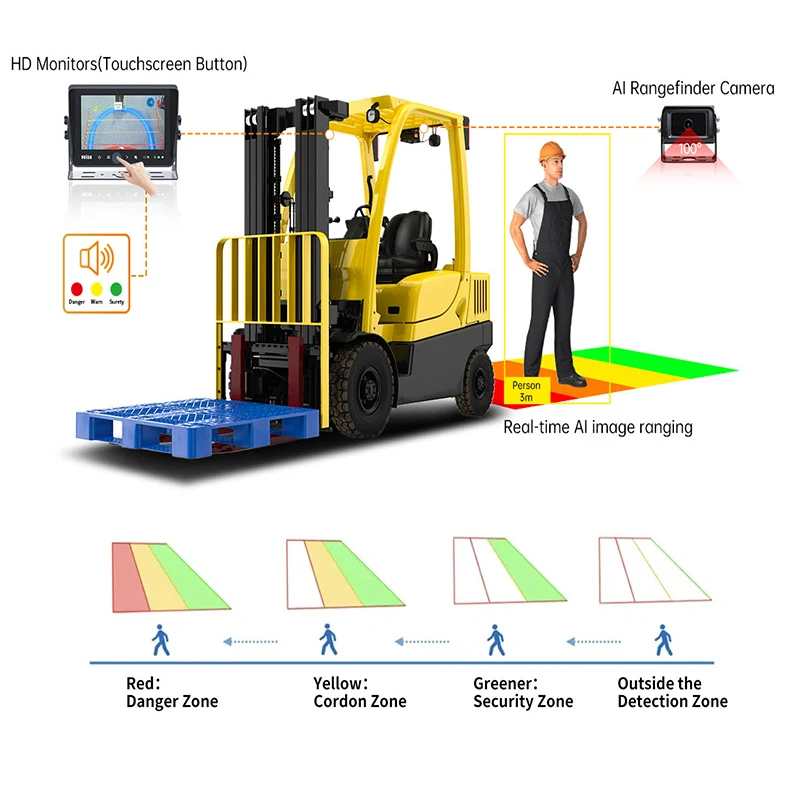

●Green light - Safe, ●yellow light - Caution, ●Red light - Danger
OSD Menu Functions
Mirror/normal image setting, reverse delay setting,
trigger priority, multilingual support
Color System
PAL/NTSC (AUTO)
Video Recording Format
/
Video Recording Capacity
/
Video Recording Function
/
Brightness
600 (cd/㎡)
Contrast Ratio
800:1
Surge and Load Dump Protection
ISO16750-2 Standard (24V System Us=174V, Ri=4Ω, td=350ms)
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Operating Voltage
DC11-32V
Vibration Level
GB∕T 2423.56-2018 Standard (Random 5G Vibration)
Dimensions (L x W x T)
210 x 143 x 84mm
Weight
800g
OSD Language
Multi-language Optional
Feature
High Resolution

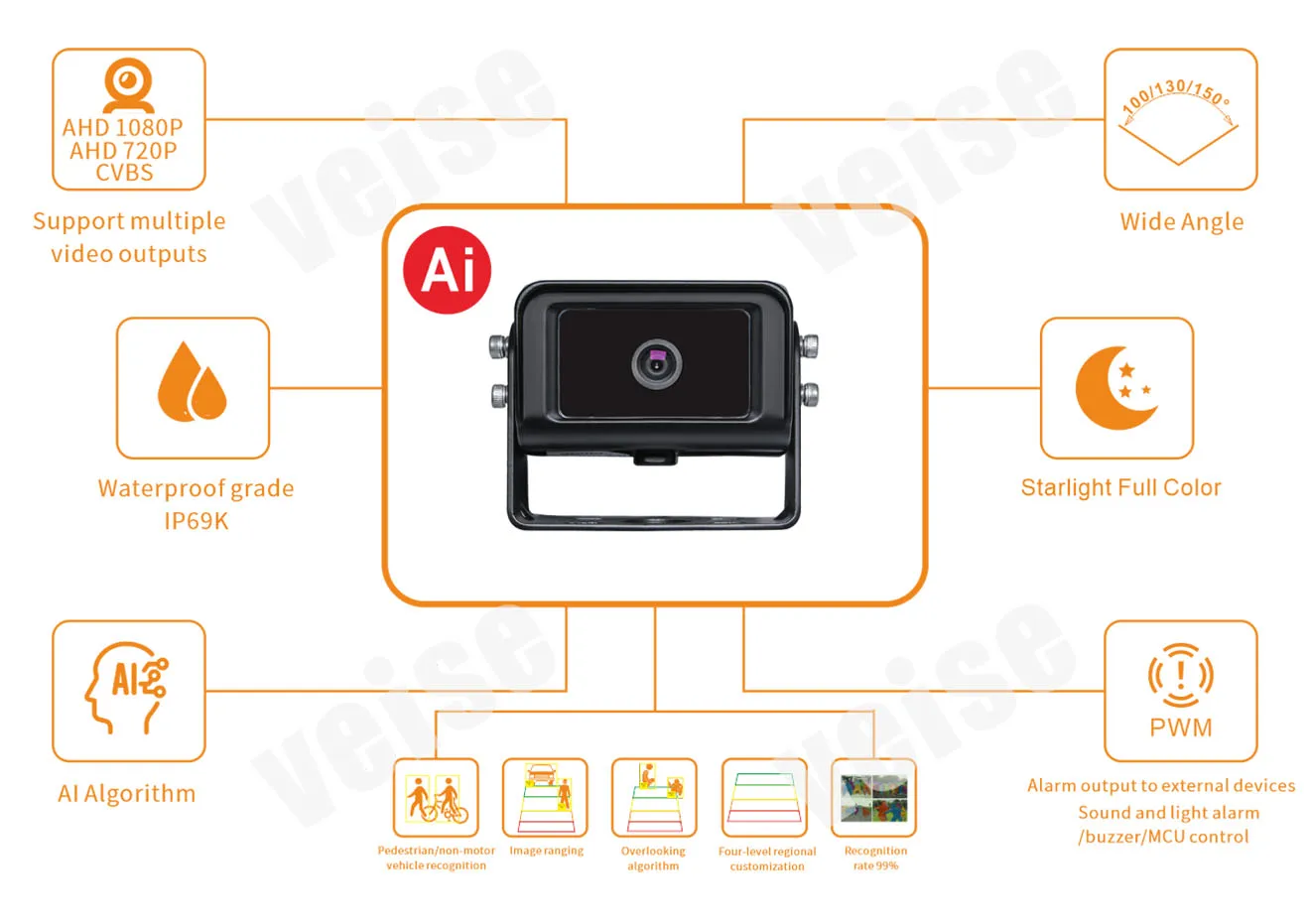

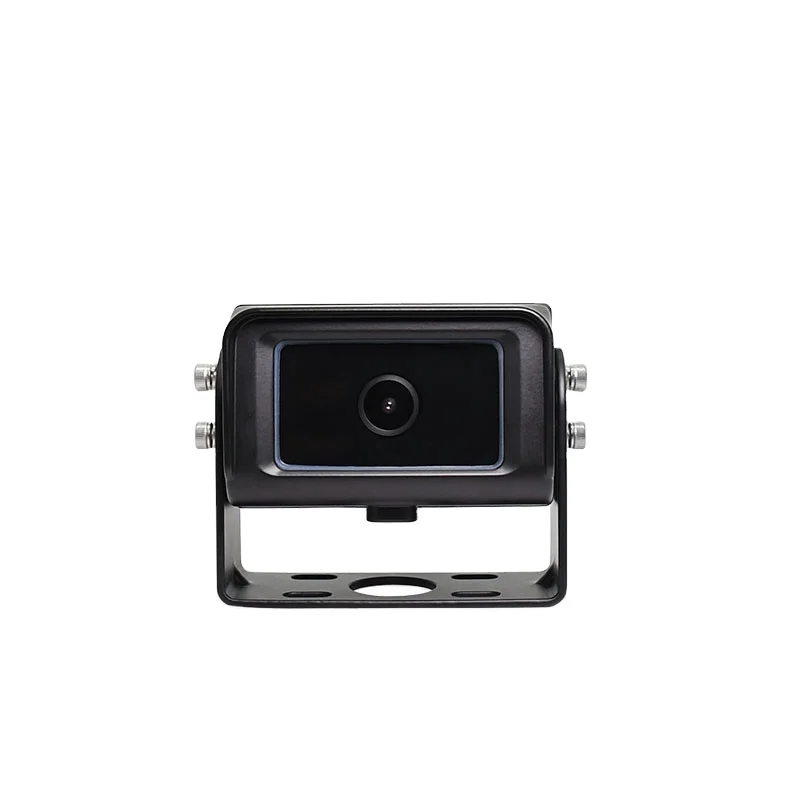

AI Camera (CHD-122MAI)
Image Sensor
1/2.9 Color CMOS
Effective Pixels
1920(H) X 1080(V)
Horizontal Resolution
1080P
Field Of View
100°
AI Alarm I/O Output
1-4 Levels PWM
Detection Targets
Pedestrians/Non-Motorized Vehicles
Detection Image Ranging
0-5 Meters (Customizable)
Signal-To-Noise Ratio
≥48dB (AGC Off)
Video Output
AHD 1080P
Housing Material
Aluminum Alloy
Waterproof Rating
IP69K
Operating Voltage
DC 12V ±10%
Operating Temperature
-20°C To +60°C (RH95% Max)
Storage Temperature
-30°C To +70°C (RH95% Max)
Vibration Resistance
GB∕T 2423.56-2018 Standard (Random 5G Vibration)
Body Interface
4-Core Aviation Connector
Product Dimensions
74(W) X 64(H) X 56(D) Mm

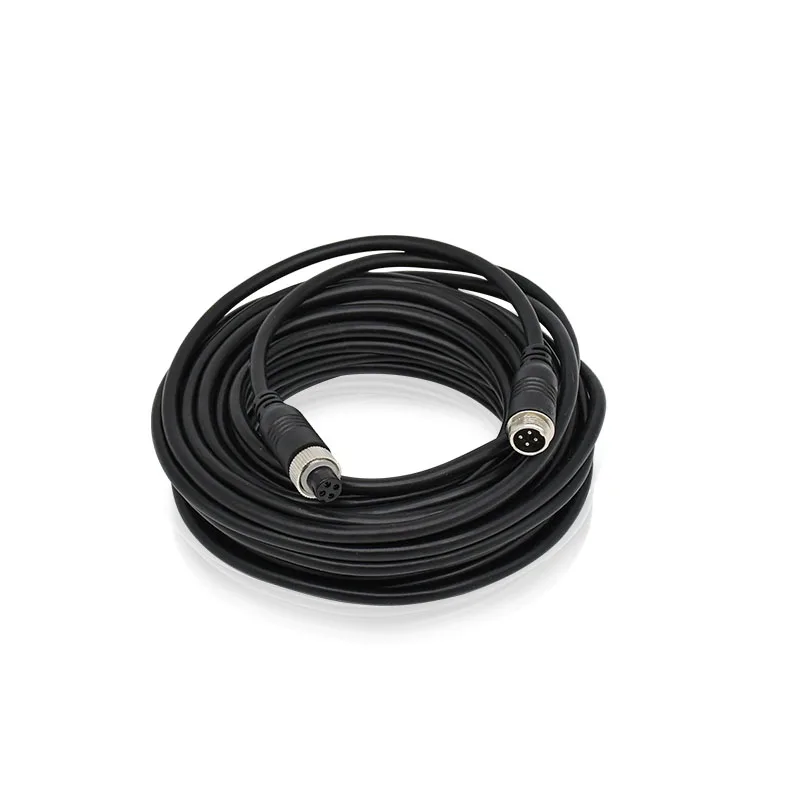

Video Power Connecting Cable
 4-core phosphor bronze aviation plug with dual-shielded


Company Profile




Veise (Guangzhou) Electronics Co., Ltd. was established in 2003 (founded in 1997). It is a national high-tech enterprise that integrates R&D, production, and sales. It is also a little giant in Guangdong Province and a key enterprise of the local government. The company has been focused on vehicle safety for more than 20 years, with nearly 100 independent intellectual property patents. It has passed the IATF16949 international quality management system certification of the International Automotive Task Force. Its products have obtained multiple certificates such as CE, FCC, RoHS, E-mark, and ECER65/R10. What's more, Veise has built good cooperative bridges with many well-known vehicle manufacturers and accessory distributors at home and abroad, becoming a global leading visual solution provider.




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2003,sell to North America(30.00%),Western Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Domestic Market(8.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),South Asia(2.00%),Eastern Asia(2.00%),Africa(2.00%),Mid East(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LED Work Light/LED Beacon Warning Light, Rearview Monitor Camera System

4. why should you buy from us not from other suppliers?
Producer of Rear View Safety Solutions since 1997

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,HKD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,German,Russian
