Customized Professional 3D Laser Galvo Head Eye Medical Galvanometer Scanner Head
- Category: >>>
- Supplier: Shenzhen Tianchuanqi Electronic Technology Co. Ltd.
Share on (1601278773017):
Product Overview
Description
Recommend Products
Our Advantages
https://lasermotor.en.alibaba.com/contactinfo.html
What products do you use the galvanometer for?
The laser used is: how much power? How big is the spot? What wavelength of light does it emit?
What are your needs? We recommend the most suitable galvanometer for you.
The laser used is: how much power? How big is the spot? What wavelength of light does it emit?
What are your needs? We recommend the most suitable galvanometer for you.

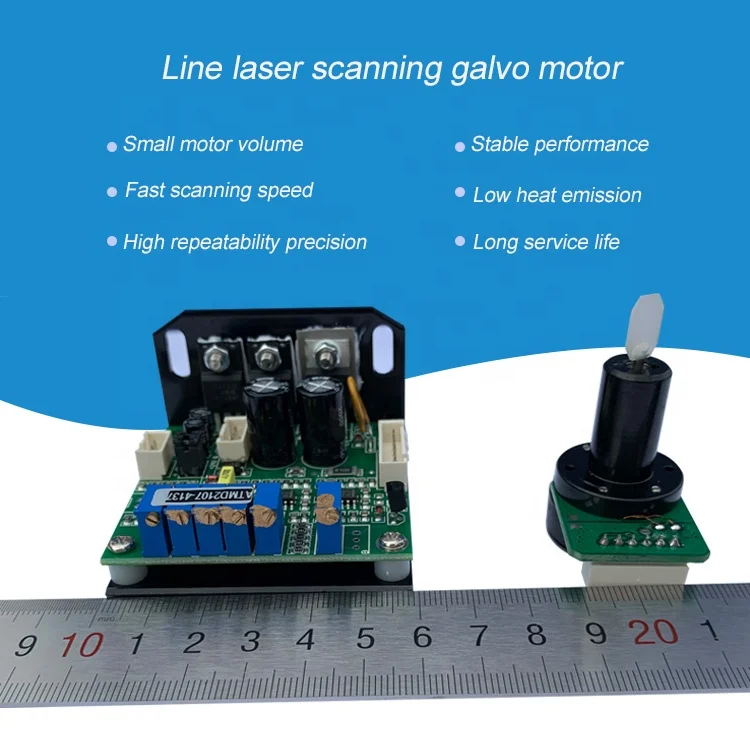

Why Choose Our Galvo

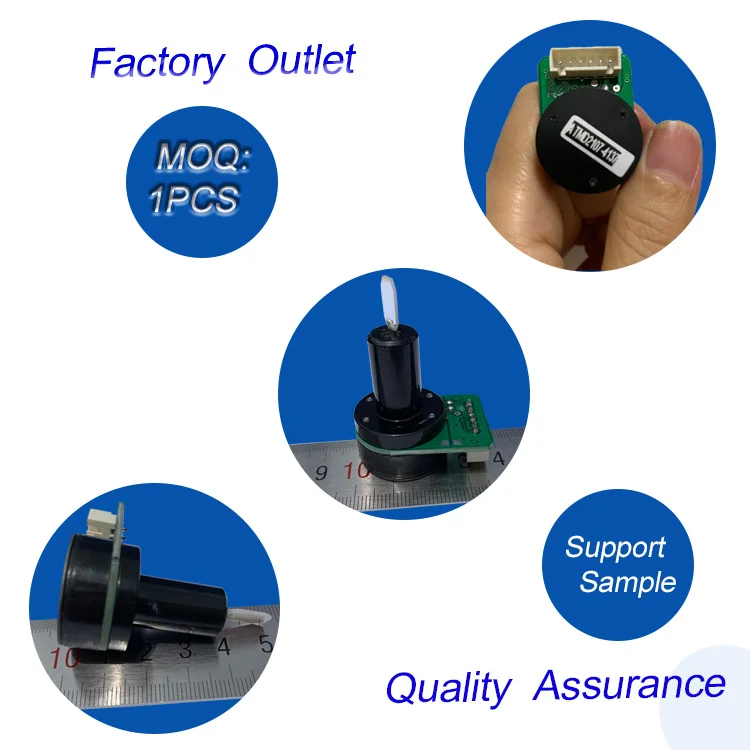

1. Small motor size: thumb size2. Stable performance: the parameters are consistent for more than a week of continuous work
3. Long service life: After working for 10 years, the laser is exhausted, and the galvanometer can still work normally
4. Wide range of applications: medical, 3D printing, robotics, industrial processing, automation, laser lights...
Now it has been recognized and supported by industries such aos dental film scanning, ophthalmic OCT, lidar, handheld laser marking, SLA 3D printing, and laser performance !
Product Description
Galvo Descriptions
Galvomotor is a set of core parts of laser scanning system. Through simulating the voltage signal, change of laser reflecting lens intovarious angles driven by galvo motor can be controlled to make the incidence point of laser beam into different locations.
The galvo motor responses very fast to make the laser point quickly move on a two-dimensional surface, with a controllable movement trajectory, so that the required diagrams and texts can be drawn and scanned by laser.
The galvo motor responses very fast to make the laser point quickly move on a two-dimensional surface, with a controllable movement trajectory, so that the required diagrams and texts can be drawn and scanned by laser.
Installation Instructions

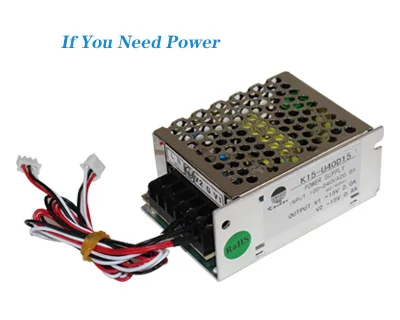

Power voltage | ±24 V/1 A, ±15 V/1.6 A (optional) |
Input impedance of analog signal | 200 K±1% Ω (differential input) |
Input range of analog location | ±5 V, ±10 V (optional) |
Operating temperature | 0~50°C |
Size of driver board | 77 mm×50 mm×27 mm |
Maximum scanning angle | ±30° (default set: ±20°) |
Degree of linearity | 99.0% |
Scanning speed | >30 Kpps (30k ILDA standard test image) |
Lens reflectance | >99% @45° incidence (covering wavelength: 380 nm-700 nm) |

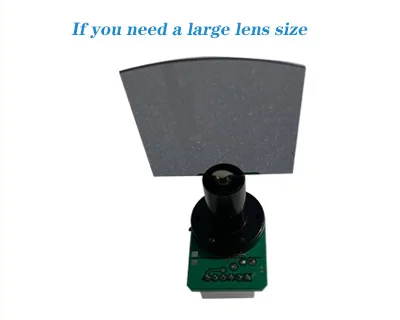

Lens size | 7*12*0.8 mm |
Company Profile
GOOD NEWS ! ! !
Galvo Lifetime Warranty
We provide labor cost
You provide materials cost and freight cost
Galvo Lifetime Warranty
We provide labor cost
You provide materials cost and freight cost
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. How is the galvanometer controlled?
Give the galvanometer voltage analog signal to control,
The change from negative five volts to positive five volts corresponds to the angle change of the galvanometer lens from negative
20 degrees to positive 20 degrees;
Linear relationship, 99% linearity;
The signal frequency determines the mechanical change speed of the lens swing;
But the signal frequency cannot exceed 200HZ, otherwise the reaction will not be able to come;
The signal current does not need to be too large, generally within 500mA;
The control signal should use a sine wave signal;
The galvanometer can identify voltage fluctuations of 0.001V;
2. Is there a control system?
The motor is made by ourselves, the motor is swinging, special motor;

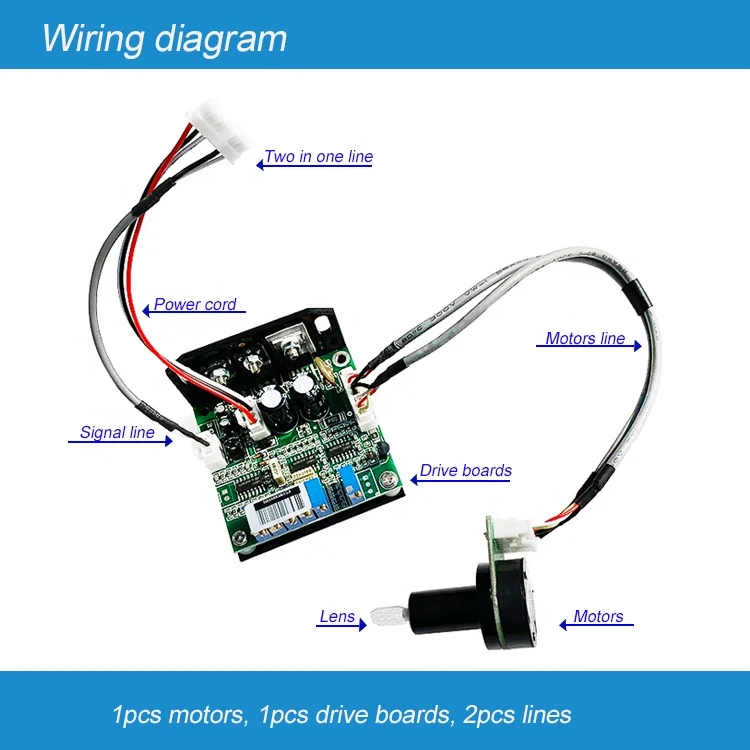

We don’t have a control board, only a driver board, no programs,
You need to use a control panel with a program as the main control, and give signals to control the galvanometer movement;
3. What are the light spots and wavelengths of the galvanometer?

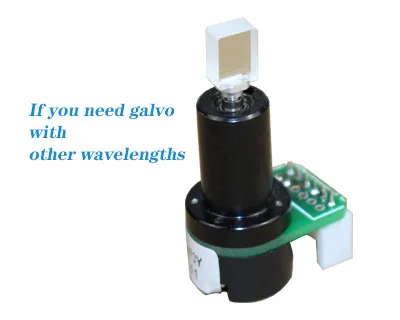

The spot of our conventional galvanometer is 5mm, 8mm, 10mm, 12mm, and the wavelength is 380-700nm, 1550nm, 10600nm. You can also
provide us with lenses to customize for you.
4. Is your galvanometer uniaxial?

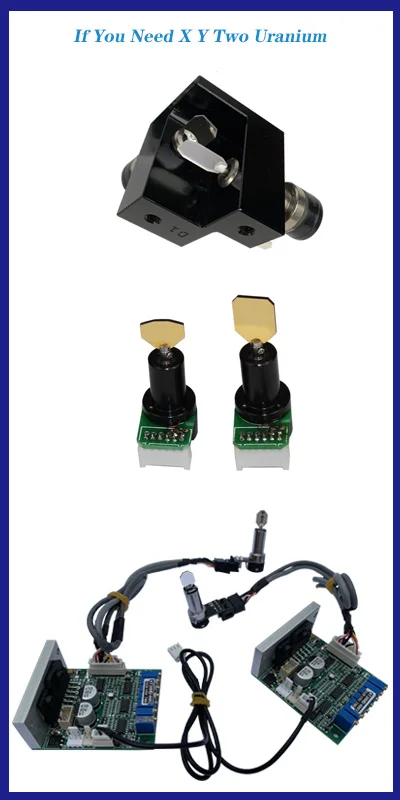

All our galvanometer models can be made into single axis, and X, Y two axis
5. How long will it take to deliver after payment
The delivery time is determined according to your quantity, one or two samples, generally can be delivered within 3-5 days, and
small batches can be delivered within 10-15 days
Give the galvanometer voltage analog signal to control,
The change from negative five volts to positive five volts corresponds to the angle change of the galvanometer lens from negative
20 degrees to positive 20 degrees;
Linear relationship, 99% linearity;
The signal frequency determines the mechanical change speed of the lens swing;
But the signal frequency cannot exceed 200HZ, otherwise the reaction will not be able to come;
The signal current does not need to be too large, generally within 500mA;
The control signal should use a sine wave signal;
The galvanometer can identify voltage fluctuations of 0.001V;
2. Is there a control system?
The motor is made by ourselves, the motor is swinging, special motor;
We don’t have a control board, only a driver board, no programs,
You need to use a control panel with a program as the main control, and give signals to control the galvanometer movement;
3. What are the light spots and wavelengths of the galvanometer?
The spot of our conventional galvanometer is 5mm, 8mm, 10mm, 12mm, and the wavelength is 380-700nm, 1550nm, 10600nm. You can also
provide us with lenses to customize for you.
4. Is your galvanometer uniaxial?
All our galvanometer models can be made into single axis, and X, Y two axis
5. How long will it take to deliver after payment
The delivery time is determined according to your quantity, one or two samples, generally can be delivered within 3-5 days, and
small batches can be delivered within 10-15 days
