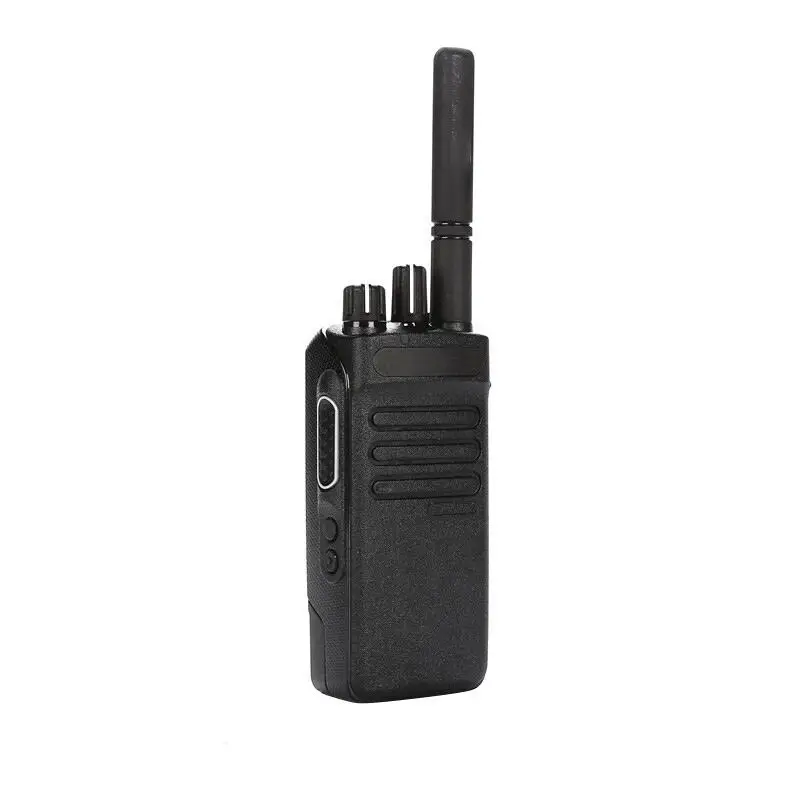

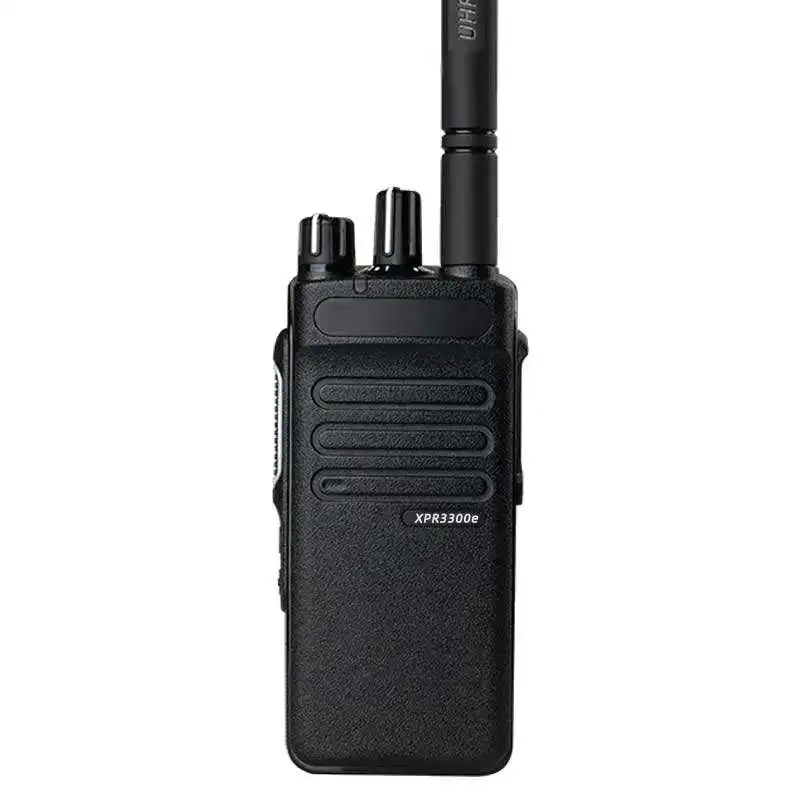

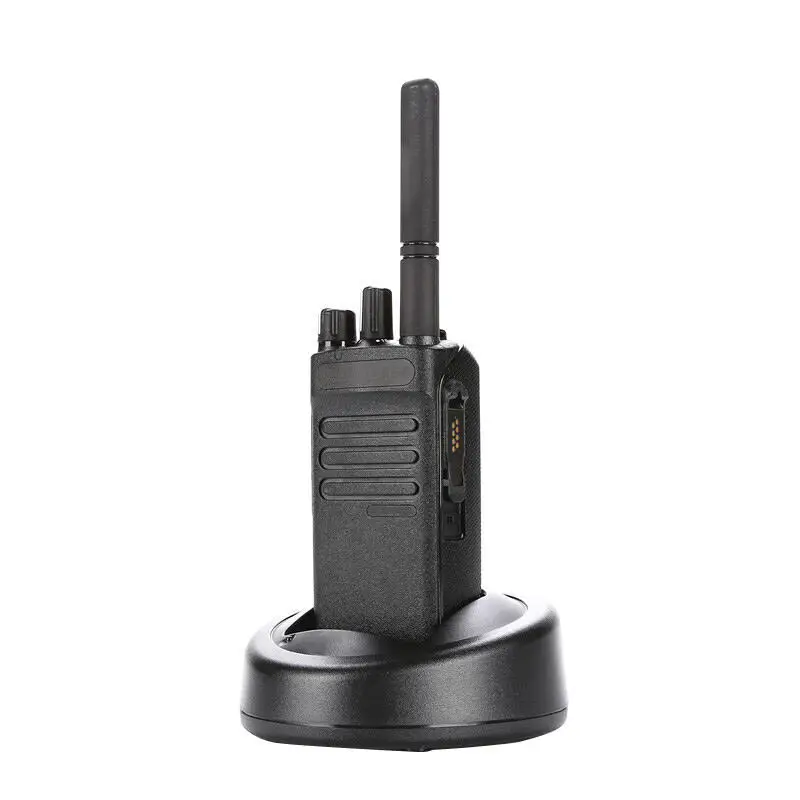

best sale DP2400 waterproof IP55 programmable buttons 16 channels walkie talkie ham radio dp550e DP2400E DP2400
- Category: >>>
- Supplier: Guangzhou Minxing Communications Equipment Co. Ltd.
Share on (1601279122606):
Product Overview
Description
Product Description
| Model Number | |
| GENERAL SPECIFICATIONS | |
Band
| 136-174MHz 403-527MHz |
| High Power Output | 5W(136-174MHz) 4W(403-527MHz) |
| Low Power Output | 1W(136-174MHz) 1W(403-527MHz) |
| Channel Spacing | 12.5/25KHz |
| Channel Capacity | 16 |
| Dimensions(HXWXD) | 122 x 56 x 41.7mm |
| Weight(Radio + Standard 1600mAh Battery) | 285g |
| Digital/Analogue Battery Life(Standard 1600mAh Battery) | 11.5 - 16.0hrs |
| Power Supply(Nominal) | 7.5V |
| TRANSMITTER SPECIFICATIONS | |
| 4FSK Digital Modulation | 12.5 kHz Oata:7K60FID and 7K60FXD |
| Digital Protocol | ETSI TS 102 361-1,-2,-3 |
| Conducted/Radiated Emissions(TIA603D) | -36dBm<1GHz, -30dBm>1GHz |
| Adjacent Channel Power | 60dB(12.5KHz channel), 70dB(25KHz channel) |
| Frequency Stability | ±0.5ppm |
| AUDIO SPECIFICATIONS | |
| Digital Vocoder Type | AMBE+2 |
| Audio Response | TIA603D |
| Rated Audio | 0.5 W |
| Audio Distortion at Rated Audio | 3% |
| Hum and Noise | -40 dB (12.5 kHz channel), -45 dB (25 kHz channel) |
| Conducted Spurious Emissions (TIA603D) | -57 dBm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Electrostatic Discharge | IEC 61000-4-2 Level 4 |
| Dust and Water Intrusion | IEC 60529 - IP67 |
| Packaging Test | MIL-STD 810D and E |
